Crossfire Invercut 85HD Plasma Cutter

$3,016.00
$3,016.00
Sold Out

Crossfire Invercut 85HD Plasma Cutting System



3/4" Clean Cut & Pierce Capacity, 1-1/8" Sever Capacity

The Crossfire Invercut 85HD is a heavy duty, high output plasma cutting system designed to deliver top performance where it is needed, whether in the garage, job site, or shop.

Features

  • Manual or Mechanized Performance - Machines are supplied with hand operated torches for manual applications, as well as a remote input connection to easily adapt to mechanized and automated applications
  • Multi-Voltage Input - One machine, all input voltages. The Invercut 85HD is ready to connect to Single Phase 230V THROUGH 3-Phase 575V, ensuring maximum flexibility in any application.
  • No Cartridges! Spend Less on Consumables - The traditional style torch ensures that operators are able to change only the parts that have worn, rather than an entire consumable stack. Keep less consumables on hand, and save money by only changing consumables when they need to be replaced.
  • Convenient and Easy Operation - The 4.3" LCD display and control, protected by a clear viewing cover allow for easy adjustment of cutting mode, air pressure, and output settings while providing accurate and easy to read data at a glance.
  • 30+ Years of Experience - The Invercut 85HD is made with Thermacut® DNA, Thermacut brings over 30 years of knowledge and experience to all plasma cutting platforms

Specifications

Product Name // Part Number Crossfire Invercut 85HD // CF-99585
Input Voltage // Amp Draw 230V 1Ph // 35.6A Eff, 45.9A Max
230V 3Ph // 25.9A Eff, 41A Max
460V 3Ph // 16.9A Eff, 18.2A Max
575V 3Ph // 14.9A Eff, 16.7A Max
Output Current 60% at 65 A, 1Ph 230V
100% at 50 A, 1Ph 230V
40% at 85 A, 3Ph 208V
100% at 54 A, 3Ph x 208 V
80% at 85 A, 3Ph 460/575V
100% at 76 A, 3Ph 460/575V
Protection Rating IP23S
CSA Approved ✅
Dimensions (L × H × W) 22 x 15.7 x 10.2 in
Net Weight 66 lb.

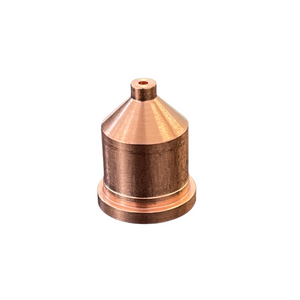

Full Product Spec Sheet | Plasma Torch Consumables
