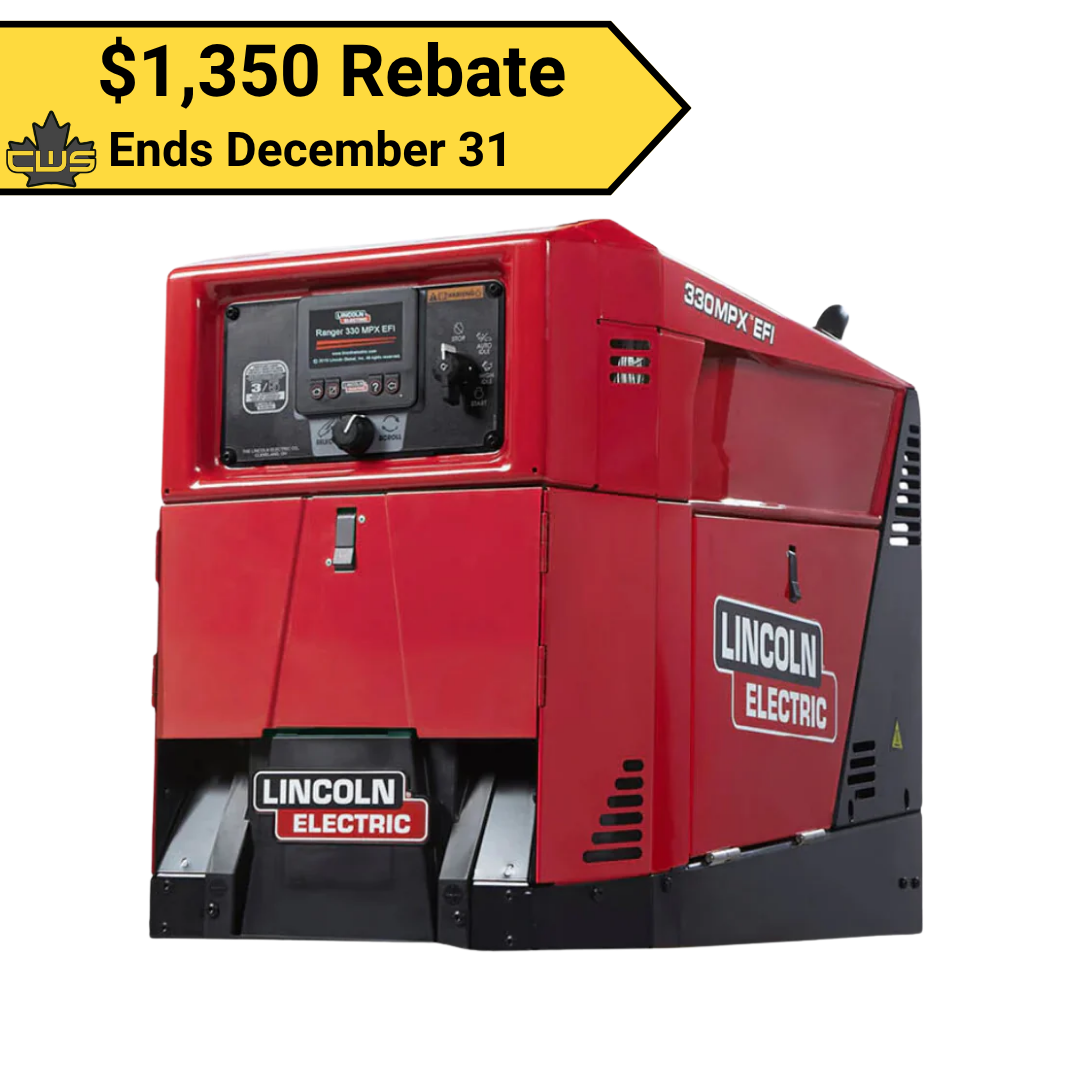

Lincoln Electric Ranger 330 MPX EFI Engine Driven Welder (KOHLER®) - K4779-1

Lincoln Electric Ranger 330 MPX EFI Engine Driven Welder (KOHLER®) - K4779-1

Regular: $10,752.00

Sale: $10,752.00
Regular

Sold Out

Unit Price: per

0 In Stock Available to Order. Ships in an average of 5–10 business days

💸 Rebate Available! Click Here for More Information

Lincoln Electric Ranger 330 MPX Engine Driven Welder (KOHLER®) - K3459-1

$9,892.00

Lincoln Electric Ranger® MPX Ballistic Nylon Cover - K3588-1

$471.00

All Terrain Undercarriage for Lincoln Electric Ranger MPX Engine Drive Welders

$1,198.00

Lincoln Electric Activ8X Wire Feeder One-Pak

$3,927.00

Lincoln Electric LN-25X® w/CrossLinc® and TVT (with Flowmeter,Tweco®)

$4,817.00

Lincoln Electric LN-25X / Magnum Pro Curve 300 One-Pak Wire Feeder Package

$5,352.00

ESAB Robust Feed AVS - CC/CV Portable Wire Feeder

$4,086.00

Lincoln Electric Ranger 330 MPX EFI Engine Driven Welder

The EFI engine on the Ranger 330MPX EFI welder/generator delivers several key advantages:

Advanced design excels in high altitude applications
Quick and easy starts in cold weather with no choke required
Provides consistent operation and improved fuel efficiency

Top Features

Compact Size
Low Decibel Rating
Easy-to-Use Digital User Interface
Clean AC Generator Power
Advanced technology to improve weld performance and productivity

Smaller
The Ranger 330MPX has a 20 percent smaller footprint and is 25 percent lighter than other machines in its class. It transports to the field with less bulk and less effort, leaving more room for other tools and accessories needed on your job site.

Smarter
The Ranger 330MPX’s digital user interface offers a suite of advanced technology that improves weld performance and productivity.

High Quality Operations

Clean AC generator with 10 kW of continuous, consistent power to keep tools running without interruptions
New engine driven weld modes: downhill pipe, touch-start pulse TIG, and pulse spool gun
Plenty of power at 330A/28V for 100% duty cycle to weld ¼ in. 7018 electrode
Fine tune adjustments available on: Hot start, arc force, and pinch controls
Arc gouging capabilities up to 3/16” carbon electrode

Ranger 330MPX EFI Technical Specifications

Duty Cycle:	330 Amps, 28 Volts @ 100%
Welding Output:	330 Amp DC, MulitProcess, Chopper Technology
Generator Output:	11,500W Peak, 10,000W Continuous 60Hz AC Power
Full-KVA Receptacle:	42A @ 240V, 40A @ 120V ea. Branch Circuit
120V Receptacles:	Four 120V Receptacles, 20A Total
Kohler Engine: OHV Command ECH740 Gasoline	25 HP @ 3600 RPM, 44.2 cu in (725 cc) Electric Start, 12V Battery, 410 CCA, Rotary Start Switch Fuel: 11 Gals (41.6 liters) Oil: 2.0 Qts (1.9 liters)

Download Tech Sheet | Accessories
