Lincoln Electric Ranger 330 MPX Engine Driven Welder (KOHLER®) - K3459-1
- Regular
- $8,524.00
- Sale
- $8,524.00
- Regular
- $8,632.00
Sold Out
- Unit Price
- per

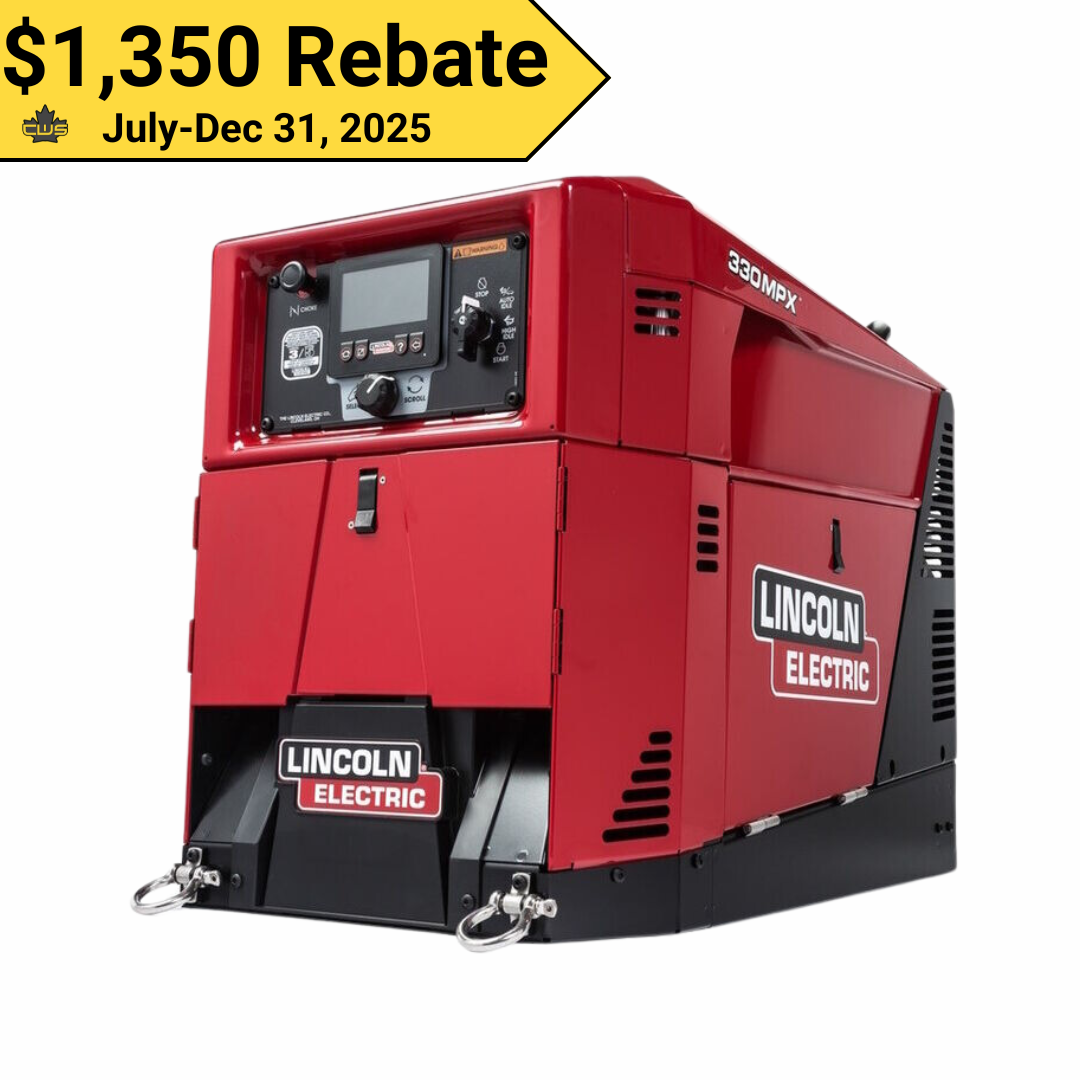

Lincoln Electric Ranger 330 MPX Engine Driven Welder
The Ranger® 330MPX™ welder and generator leads the way for the construction, maintenance, and service truck industries. The modern design and advanced features allow this machine to streamline welding operations and improve efficiency at the job site.
Top Features
- Compact Size
- Low Decibel Rating
- Easy-to-Use Digital User Interface
- Clean AC Generator Power
- Advanced technology to improve weld performance and productivity
Smaller
The Ranger 330MPX has a 20 percent smaller footprint and is 25 percent lighter than other machines in its class. It transports to the field with less bulk and less effort, leaving more room for other tools and accessories needed on your job site.
Smarter
The Ranger 330MPX’s digital user interface offers a suite of advanced technology that improves weld performance and productivity.
High Quality Operations
- Clean AC generator with 10 kW of continuous, consistent power to keep tools running without interruptions
- New engine driven weld modes: downhill pipe, touch-start pulse TIG, and pulse spool gun
- Plenty of power at 330A/28V for 100% duty cycle to weld ¼ in. 7018 electrode
- Fine tune adjustments available on: Hot start, arc force, and pinch controls
- Arc gouging capabilities up to 3/16” carbon electrode
- Lincoln Part Number: K3459-1
Ranger 330MPX Technical Specifications
| Duty Cycle: |
330 Amps, 28 Volts @ 100%
|
| Welding Output: |
330 Amp DC, MulitProcess, Chopper Technology
|
| Generator Output: |
11,500W Peak, 10,000W Continuous 60Hz AC Power
|
| Full-KVA Receptacle: |
42A @ 240V, 40A @ 120V ea. Branch Circuit
|
| 120V Receptacles: |
Four 120V Receptacles, 20A Total
|
| Kohler Engine: OHV Command CH740 Gasoline |
25 HP @ 3600 RPM, 44.2 cu in (725 cc)
Electric Start, 12V Battery, 410 CCA, Rotary Start Switch Fuel: 11 Gals (41.6 liters) Oil: 2.0 Qts (1.9 liters) |
Download Tech Sheet | Accessories
Please allow minimum two week lead time on this item. Freight charges extra, contact us at support@canadaweldingsupply.ca for a freight quote.
