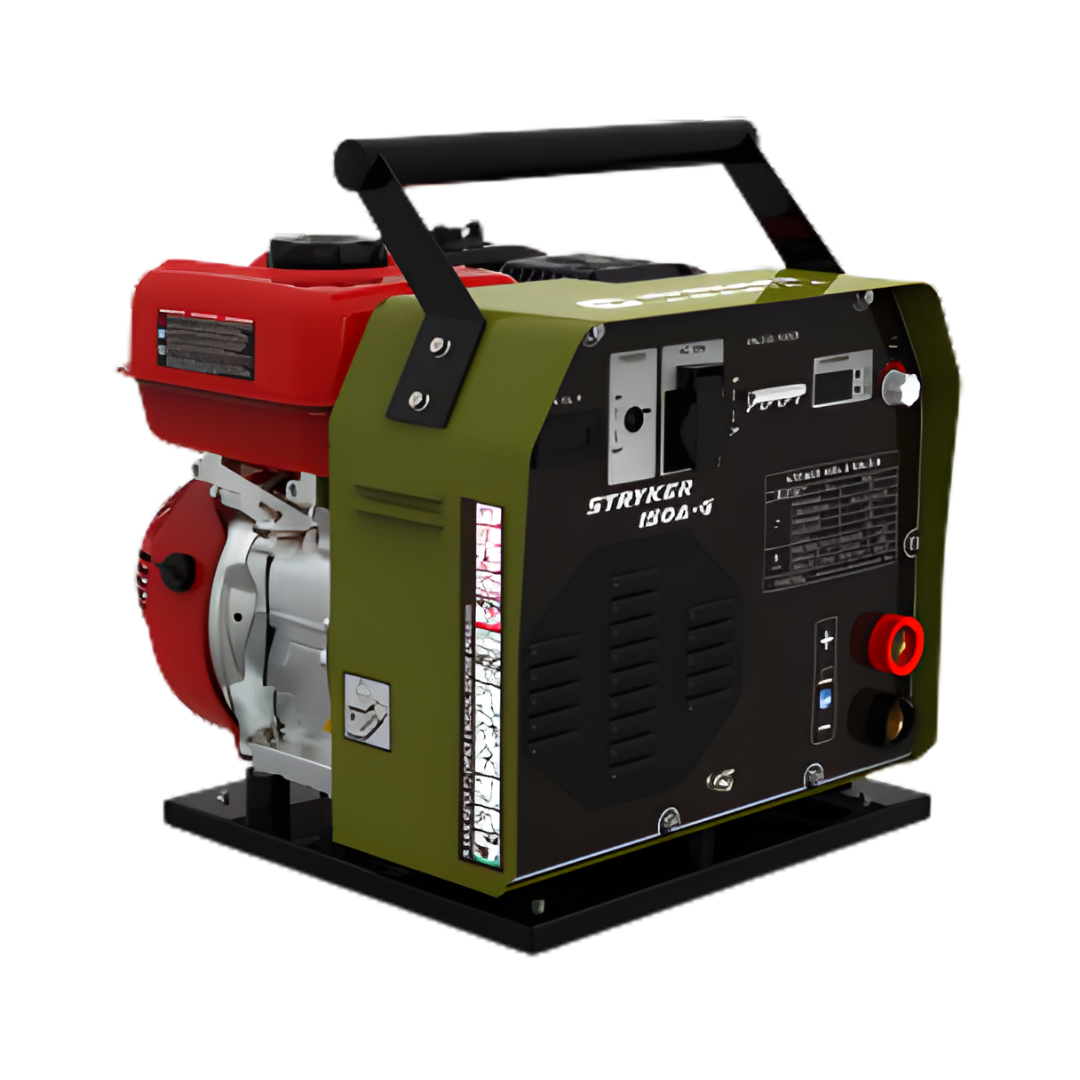

Stryker 150A Engine Driven Welder



Stryker 150A is a versatile and portable power solution, combining a robust STRYKER gas engine with a high-performance brushless AC generator. Designed for reliability in the field, it provides consistent welding power and auxiliary electrical output in a compact, lightweight frame.

Key Features

  • Dual Functionality: Seamlessly switch between high-efficiency ARC (SMAW) welding and auxiliary AC power generation.
  • Maintenance-Free Design: Features a Direct Drive, brushless generation system for increased longevity and reduced downtime.
  • Portable Efficiency: Weighing only 35 kg (77 lbs), it is engineered for easy transport and maneuverability on job sites.
  • Environmental Compliance: Powered by a STRYKER S225 gas engine that meets US EPA standards.
  • Operator Safety: High Open Circuit Voltage (75 OCV) ensures easy arc starting and stability at 3600 RPM.
  • SAE 10W-30 is generally recommended for a wide range of temperatures, while 10W-40 or 5W-30 can be used depending on extreme hot or cold conditions, ensuring proper engine lubrication and, consequently, good arc performance.

Technical Specifications

Category Parameter Specification
Welding (IEC) Process ARC (SMAW)
Current Range 10A – 140A
Duty Cycle 100% @ 130A
Electrode Diameter
1.6 mm – 3.2 mm (1/16 in – 1/8 in)
Auxiliary Power Max Output 3.2 kW
Voltage / Frequency 120V / 60 Hz
Receptacle Type
1 x 120V - 20A (NEMA 5-15R)
Engine Model
STRYKER S225 (Gas)
Power Output
4.8 kW / 6.53 HP
Operating Speed 3600 RPM
Sound Rating
72 dB @ 7 m (22.96 ft)


  • Cable leads and accessories sold separately
  • 2 years of Warranty

Spec Sheet
