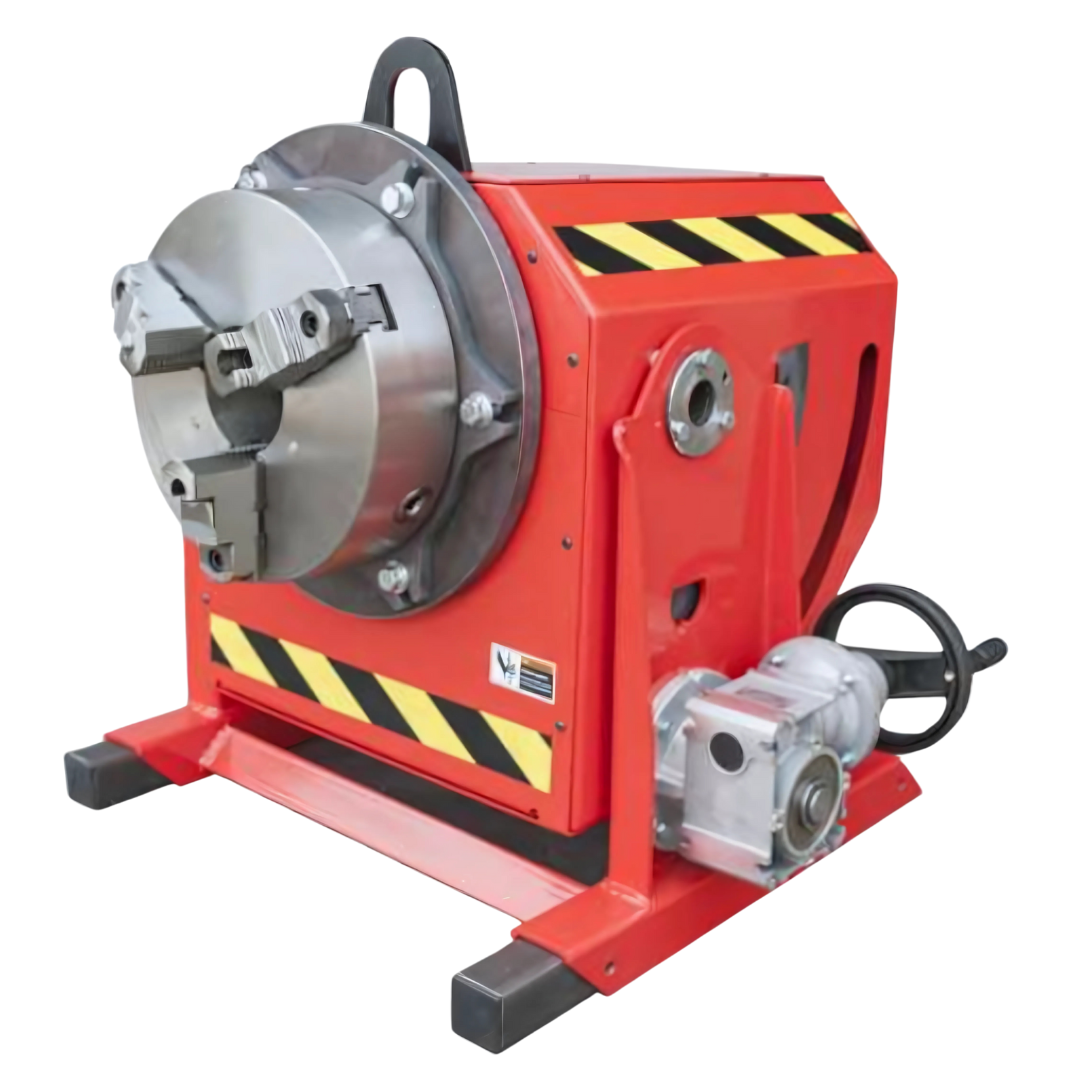

Rapol 1,000 lbs Welding Positioner Model BP1000



The BP-1000 is designed for rotation of medium weight work pieces, it offers a robust solution for consistent holding and rotating of parts in your welding workstation. The BP-1000 positioner offers manual tilt adjustment, high frequency protection, and a heavy-duty foot control switch  The capacity is 1000lbs in the horizontal position.

Made in Canada

  • Chuck not included

Features

  • Control The solid state (SCR) DC control with dynamic braking – variable speed table rotation motor system will always provide proper weld speed settings and steady rotation rates. Rotation speeds are electronically controlled in both forward and reverse direction.
  • Drive Heavy-duty self-locking worm gear reducer on rotation drive positively prevents the load from moving unless the worm gear is revolving.
  • Electrical System The electrical control components are housed in an easy access cabinet in the front of the machine. Components and wiring are neatly laid out and labeled for easy troubleshooting.
  • Control Panel User friendly and positioned on the back of the machine.

Product Specifications - BP-1000 Positioner
Load Capacity 1,000 lbs
Input Power 110-120V, 1Ph, 60Hz
Rotational Motor Size 1/2 HP
Rotation Speed 0.06–3 RPM
Rotation Torque 6,000 In/lbs
Tilt Range 0–90 Degrees
Tilt Motor Size Manual
Spindle Thru Hole N/A
Offset Distance 6 in.
Table Size 20 in.
Table Height (90°) 18 in.
Table Height (Flat) 25 in.
Weight 540 lbs

*Heavy item - additional shipping charges apply at checkout
