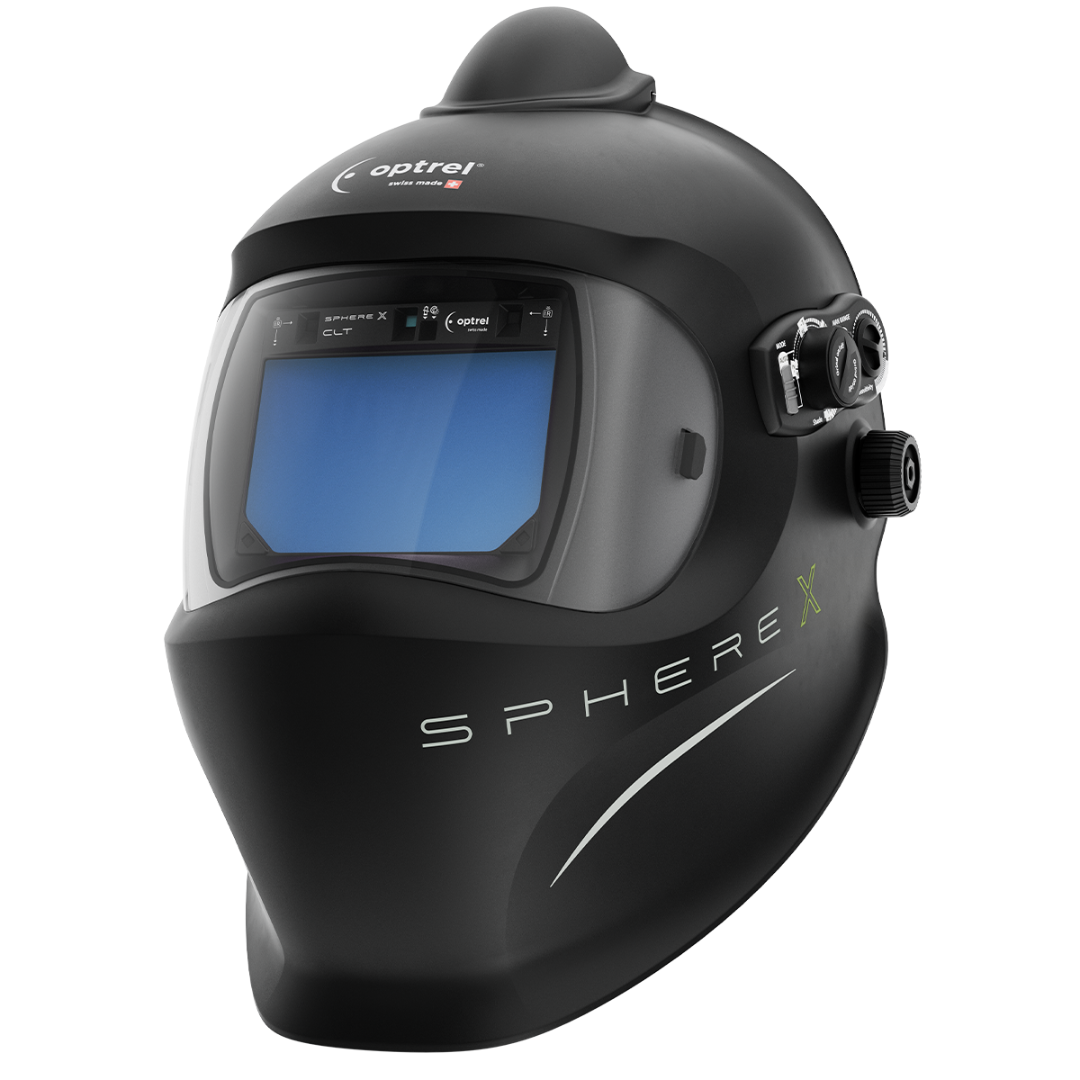

Optrel SphereX CLT Pure Air PAPR Welding Helmet


The SphereX CLT Pure Air PAPR offers vision like you’re in daylight – even in the lowest ampere range. Ideal for delicate seams and the highest demands. The SphereX CLT welding helmet comes with variable shade 2/5-12 and ShadeTronic® function, manual mode, CLT (Crystal Lens Technology), opening delay with FadeTronic function, true color view, sensitivity adjustment, grind function and IsoFit® X headgear.

  • Expanded Visibility: The SphereX CLT provides over 30% more visibility compared to the previous sphere series, allowing for a perfect view of every detail during the work process. The elimination of solar cells contributes to this wider field of vision.
  • Crystal Lens Technology (CLT) 2.0: Provides a world-record light state of 2.0, allowing you to see your work environment and weld pool with unparalleled clarity and true-color perception.

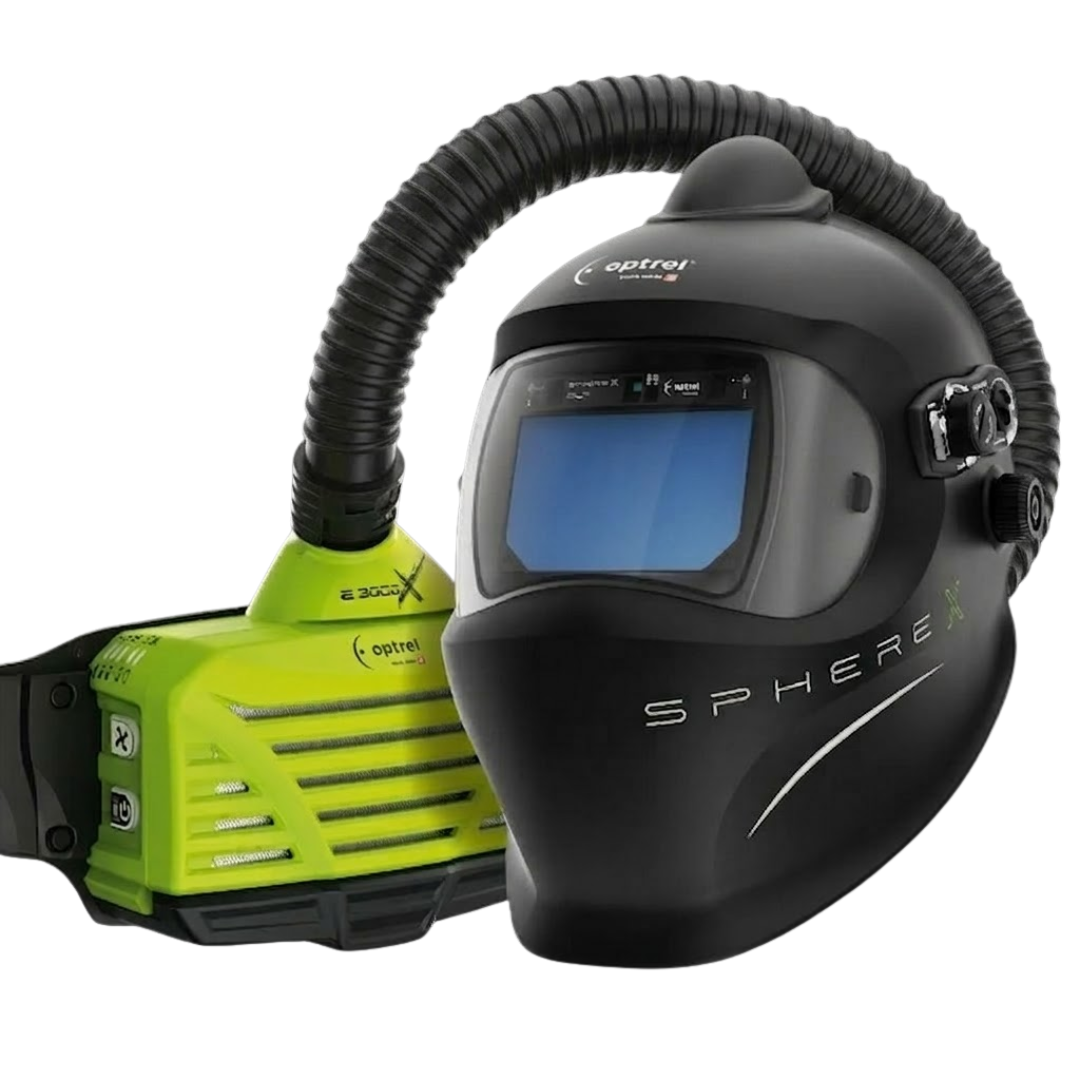

  • e3000X PAPR Integration: When used with the e3000X, TH3-certified respiratory protection filters out 99.8% of welding fumes, dust, and particles, with up to 18 hours of battery life.
  • Enhanced Sensor Technology: The new system features five sensors instead of the previous three, resulting in a faster and more precise reaction time.
  • Automatic Protection: All models in the Sphere X series come equipped with ShadeTronic®, which automatically selects the appropriate protection level.
  • Superior Comfort and Fit: The helmet features the IsoFit® X headband with a Position Locker, providing a perfect fit and maximum comfort for extended wear.

Position Locker Headgear

The two-position locking function for a safely open or closed helmet. Now standard with all Optrel Sphere X series welding helmets and with the IsoFit® headgear.

Features and Technical Specs

  • Shadetronic automatically adjusts shade from 5 to 12
  • Sensitivity Control prevents ADF from responding too soon or not at all to their arc flash
  • Opening Delay: Adjust the time it takes to switch from dark to light
  • Curved helmet optimized for overhead welding
  • Meets CSA standard Z94.3
  • Part Number (PAPR Helmet Only): 4441.905.US
  • Part Number (PAPR Helmet and e3000X Blower): 4530.055.US
Feature Specification
Light State Shade 2.0
Active Shade Levels
4 - 12 (Manual) / 5 - 12 (ShadeTronic®)
Optical Classification 1/1/1/2 (EN 379)
Sensors 5 Arc Sensors
Switching Time
Light to Dark: 0.100 ms
Weight
640g (Helmet & Headgear)
Respiratory Protection TH3 (EN 12941)
Battery Life (PAPR)
Up to 18 hours (High Capacity Battery)
Warranty
2 Years (+1 year with registration)

What's Included

  • Welding helmet
  • Optrel IsoFit® X headgear
  • Front Cover Lens
  • Warranty Card

Warranty

  • From the date of purchase: 2 years for manufacturing and material defects, 6 months for the battery
  • 1 year warranty extension (except batteries) for online product registration within the first 6 months
