Miller Multimatic® 215 PRO Multiprocess Welder



120/240V MIG, Stick and DC TIG Welder. Welds up to 3/8" steel and aluminum. Featuring advanced technologies like USB-enabled updates, Auto-Set™, higher duty cycle, 15’ MIG gun, and dinse connections—built to keep you welding all day, every day.

Key Features
Multiprocess Includes MIG, flux-cored, DC TIG, and DC stick capabilities.
Auto-Set™ Predefined settings for multiple materials and processes to help you get welding quickly.
Color LCD Display Highly visible interface for adjusting parameters and viewing process selections.
Smooth-Start™ Provides a smooth, spatter-free start for high-quality welds.
Multi-Voltage Plug (MVP™) Allows connection to 120 V or 240 V receptacles without tools.

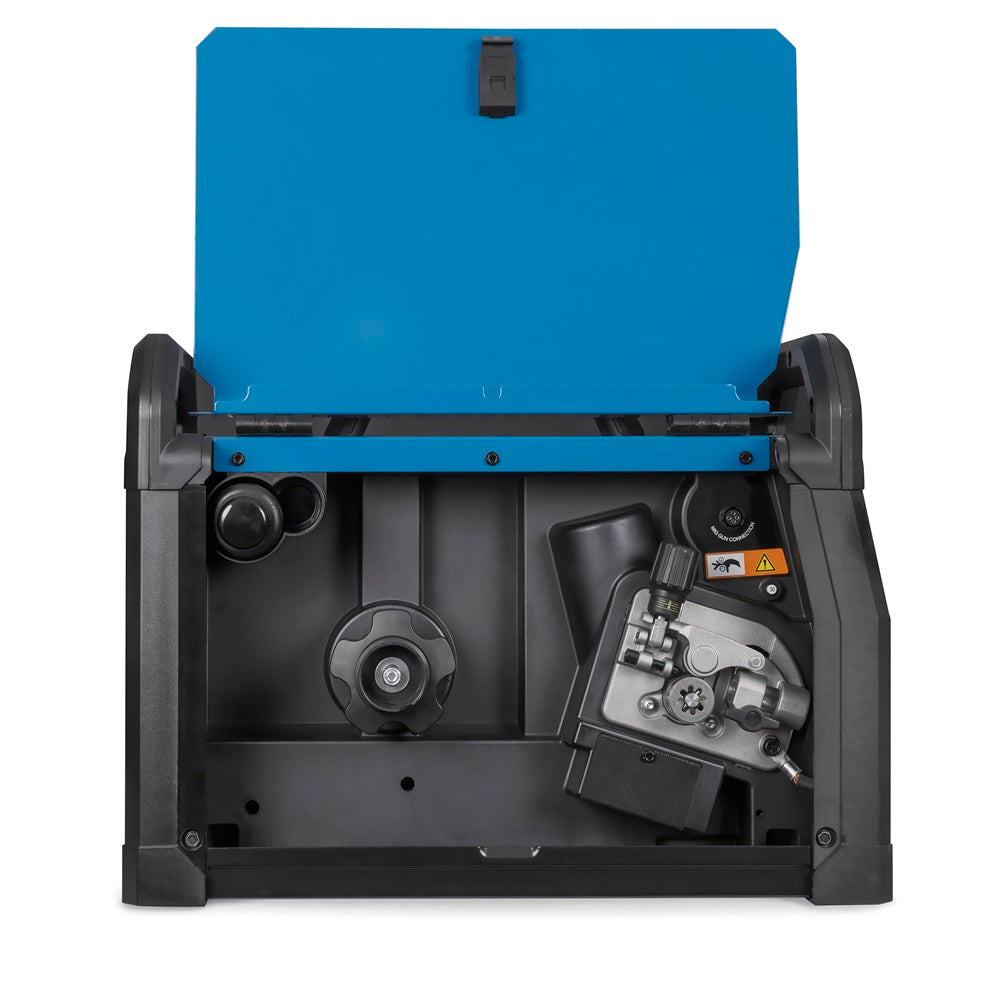

Angled Drive System Cast-aluminum system with calibrated tension knob for consistent wire feeding.
Quick Select™ Drive Roll Features three grooves for different wire sizes and types.
Fan-On-Demand™ Cooling system operates only when needed to reduce noise and energy use.
USB Upgradeable Software can be updated to expand capabilities without mechanical modifications.
Gas Detect Detects shielding gas presence and displays alerts for supply issues.

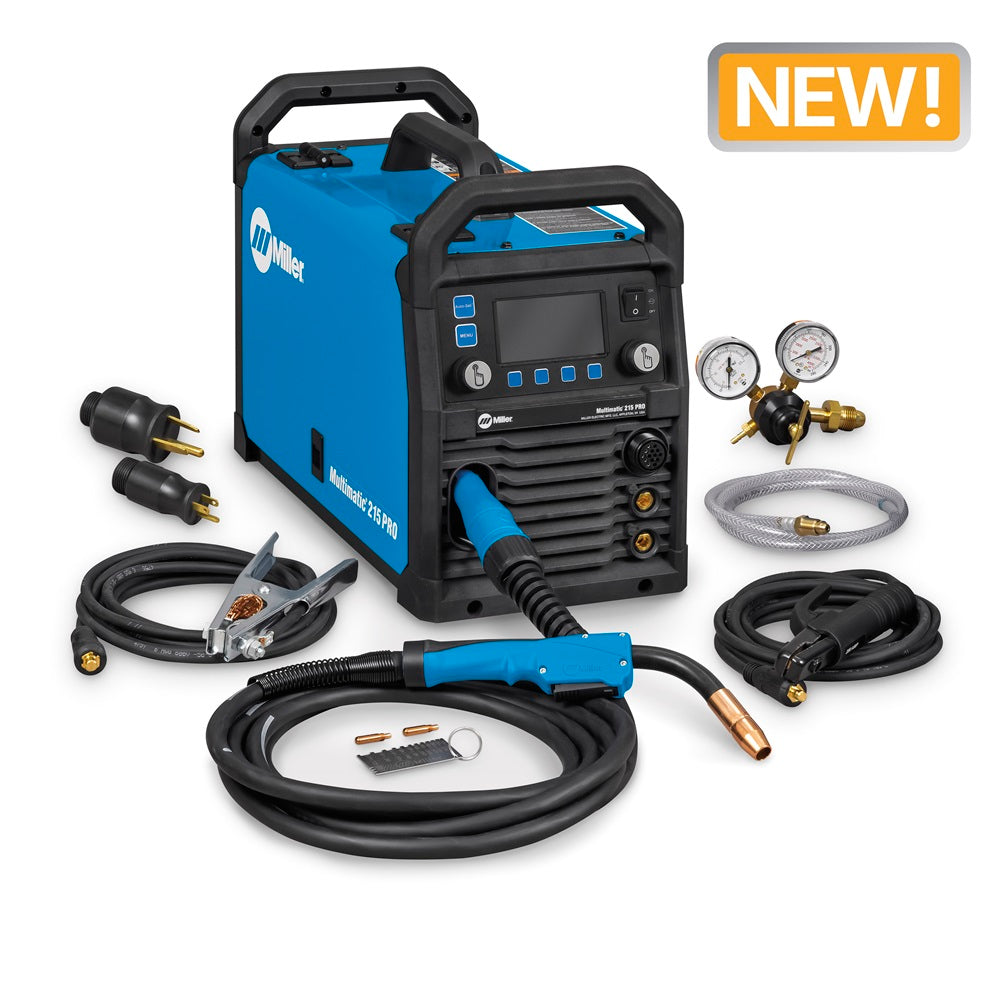

Available Packages and Part Numbers
Multimatic 215 PRO (Base) Multimatic 215 PRO with Welding Cart Multimatic 215 PRO with TIG Kit
907840 951000074 951000213
•Multimatic 215 PRO (120/240 V)
•15 ft. MDX™-100 MIG gun
•15 ft. electrode holder & 15 ft. work cable
•6.5 ft. cord with MVP™ 120 V/240 V plugs
•Flow gauge regulator & gas hose
•Quick Select™ Drive roll (0.030")
•Contact tips (0.030")		 •Multimatic 215 PRO (120/240 V)
•15 ft. MDX™-100 MIG gun
•15 ft. electrode holder & 15 ft. work cable
•6.5 ft. cord with MVP™ 120 V/240 V plugs
•Flow gauge regulator & gas hose
•Quick Select™ Drive roll (0.030")
•Contact tips (0.030")
•Running Gear/Cylinder Rack (301239)		 •Multimatic 215 PRO (120/240 V)
•15 ft. MDX™-100 MIG gun
•15 ft. electrode holder & 15 ft. work cable
•6.5 ft. cord with MVP™ 120 V/240 V plugs
•Flow gauge regulator & gas hose
•Quick Select™ Drive roll (0.030")
•Contact tips (0.030")
•TIG Contractor Kit w/ Wireless Foot Control (301917)



Multimatic 215 PRO Specifications
Input Power 120 or 240 V, single-phase, 50/60 Hz.
Welding Amperage Range MIG: 30–230 A; TIG: 20–210 A; Stick: 30–200 A.
MIG Rated Output (120 V) 110 A at 19.5 VDC, 60% duty cycle.
MIG Rated Output (240 V) 160 A at 22.0 VDC, 60% duty cycle
215 A at 24.8 VDC, 30% duty cycle.
Materials Steel, Stainless, Aluminum
Aluminum TIG Not Available
Rated Material Thickness Mild Steel 24 ga. - 3/8 in. (MIG)
Mild Steel 24 ga. - 1/4 in. (TIG)
Mild Steel 16 ga. - 3/8 in. (Stick)
Aluminum 18 ga. - 3/8 in (MIG)
Wire Feed Speed 60–600 ipm (1.5–15.2 m/min.).
Max. Open-Circuit Voltage 57 VDC.
Dimensions H: 14.625 in. (372 mm)
W: 9.75 in. (248 mm)
D: 20 in. (508 mm).
Net Weight 35 lb. (15.9 kg).

Full Product Data Sheet | See All Multimatic® 215 PRO Accessories
