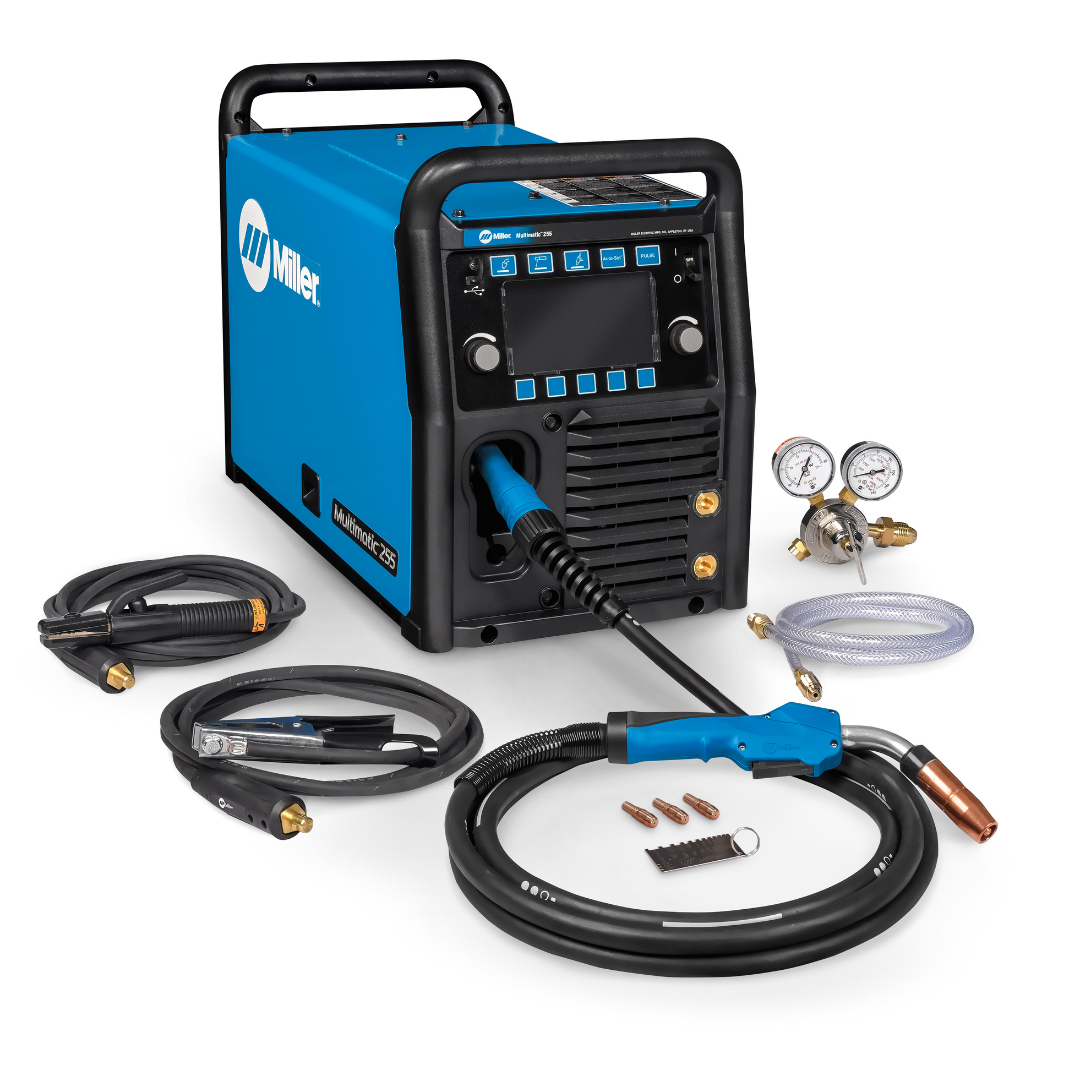

Multimatic® 255 Multiprocess Welder


Built for professionals in the MRO and light manufacturing/fabrication segments who want a smaller, versatile welder with intuitive setup to increase efficiencies and productivity. This 250-amp inverter multiprocess welder is easy to use, will deliver
versatility for faster uptime and performance, while allowing for portability.

What's Included

  • Power source with 7 ft. (2.1 m) industrial power cord
  • 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun with AccuLock™ MDX consumables for .030/.035 in. (0.8/0.9 mm) wire
  • 10 ft. (3 m) cable with electrode holder and 50 mm Dinse-style connector
  • 10 ft. (3 m) work cable with clamp and 50 mm Dinse-style connector
  • Flow gauge regulator and gas hose for argon or AR/CO2 mix
  • 0.030/.035 in. (0.8/0.9 mm) reversible drive rolls
  • EZ-Latch™ single-cylinder running gear
  • Chain to secure gas cylinder
  • Extra contact tips
  • Material thickness gauge
    Product Name Miller Multimatic 255
    Welding Processes MIG (GMAW), Flux Core (FCAW), TIG (GTAW), Stick (SMAW)
    Input Voltage 208V - 575V, Single Phase
    Welding Output Amps (230V) MIG: 30 - 350A
    TIG: 5 - 275A
    Stick: 30 - 275A
    Output Current DC - CC/CV
    Aluminum TIG ❌
    Spool Gun Ready ✔️ - Spoolmate 150
    Dimensions

    H: 19.24 in. (489 mm)
    W: 13.75 in. (349 mm)
    D: 24.25 in. (616 mm)
    Weight 63 lb
    Warranty Machine: 3-Year Parts & Labour, Torch: 90 Days Parts



    Full Product Data Sheet | MultiMatic 255 User Manual | MDX Torch Consumables
