Part No. 907838

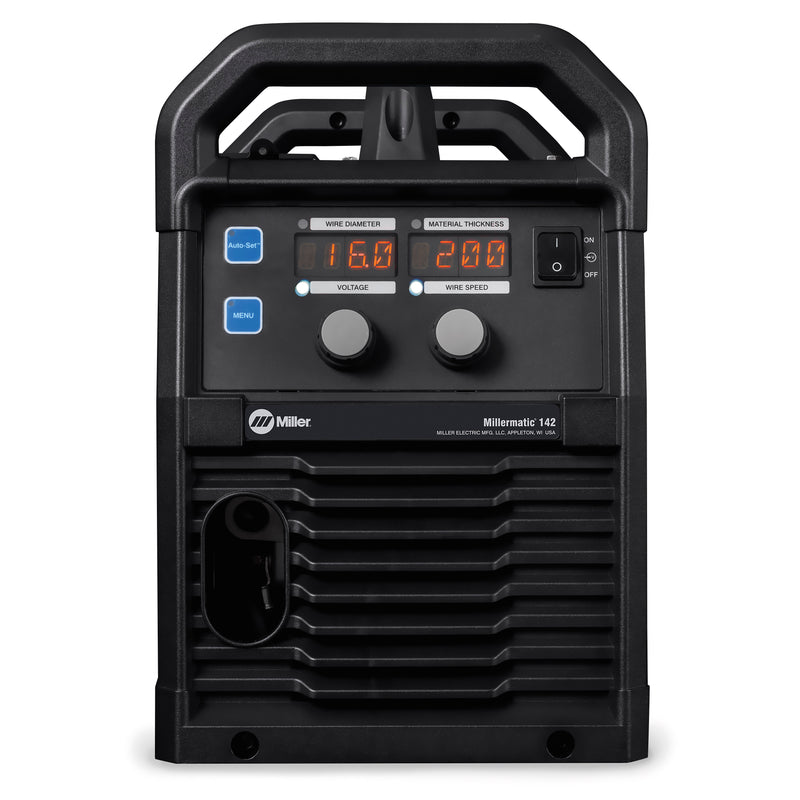

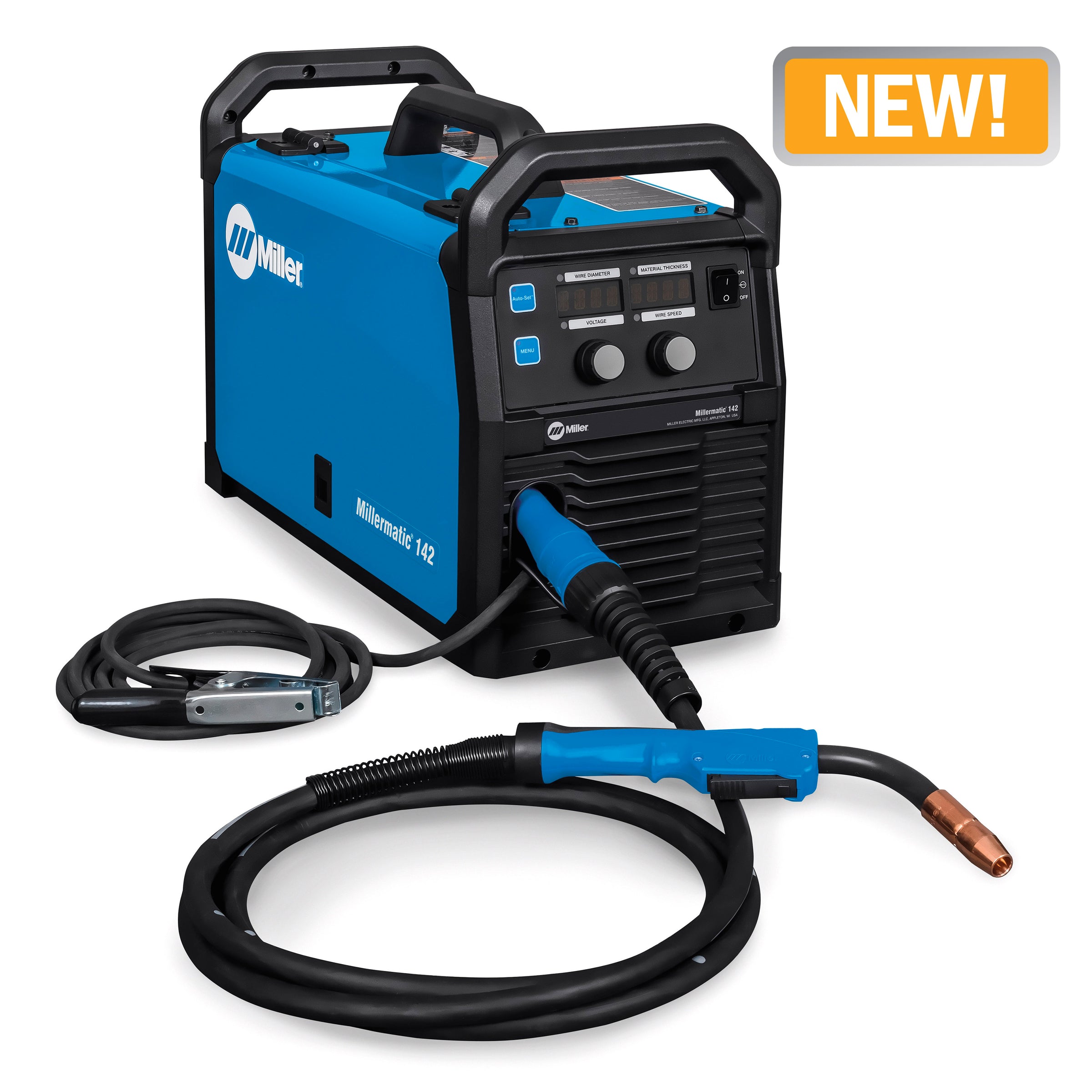

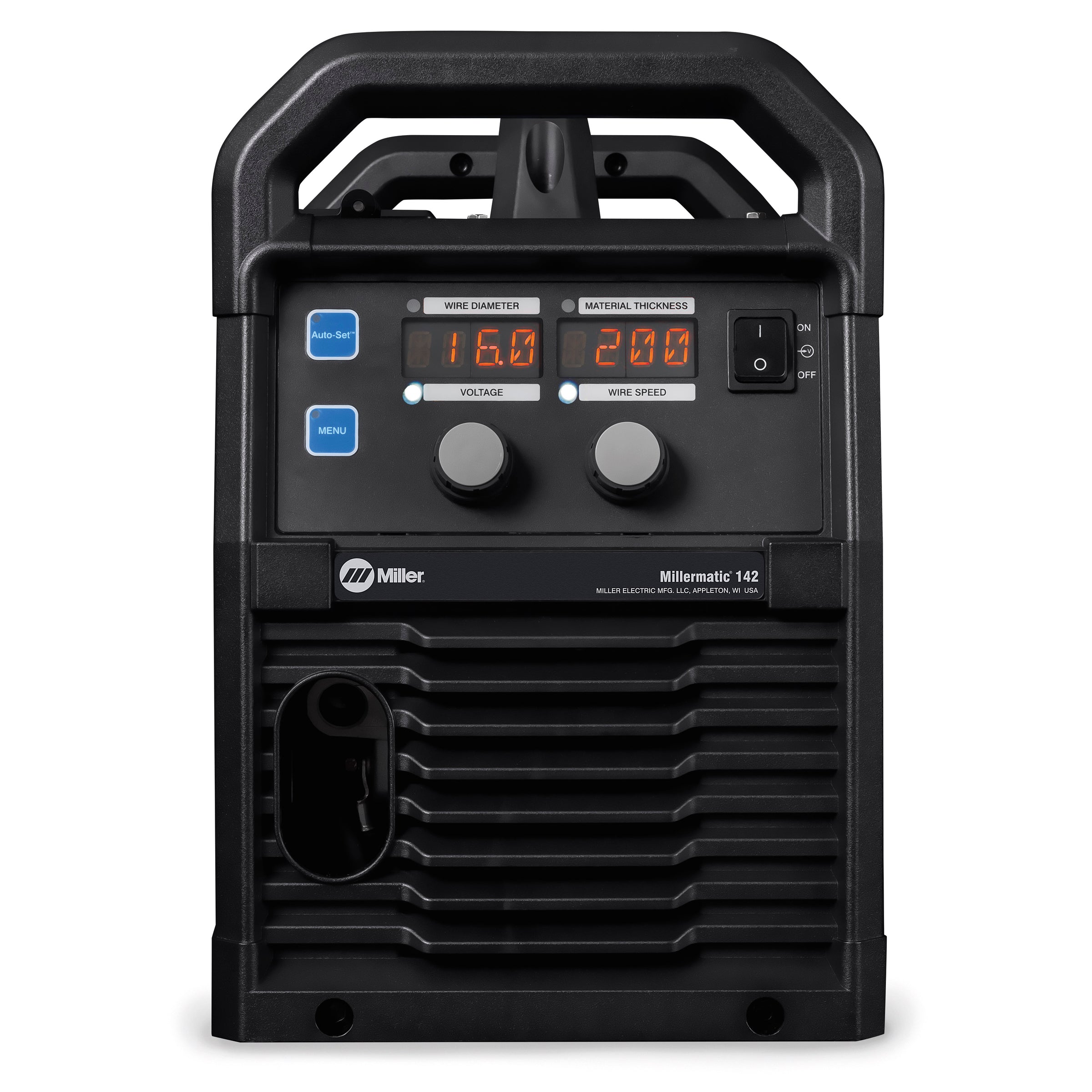

| Title | Millermatic® 142 MIG Welder |
|---|---|
| Applications | Car Restoration Garage/Shop Metal Art Welding Education and Training Welding Projects |
| Industries | Racing, Customizing & Restoring Farm & Ranch Manufacturing |
| Amperage | 30 A - 140 A |
| Material Thickness | Aluminum 18 ga. (1.2 mm) - 14 ga. (1.9 mm) Mild Steel 24 ga. (0.8 mm) - 3/16 in. (4.8 mm) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Current Type | DC |
| Rated Output | 100 A at 19 V, 60% duty cycle 80 A at 18 V, 100% duty cycle |
| Max Open Circuit Voltage | 57 VDC |
| Wire Feed Speed | 1.5 m/min - 15.2 m/min 60 IPM - 600 IPM |
| Wire Diameter | Stainless 0.024 in. - 0.03 in. Stainless 0.6 mm. - 0.8 mm. Solid Steel 0.6 mm. - 0.8 mm. Solid Steel 0.024 in. - 0.03 in. Flux Cored 0.03 in. - 0.035 in. Flux Cored 0.8 mm. - 0.9 mm. |
| Spool Size | 8 in. |
| Portability | Handle(s) Running Gear / Cart (Optional) |
| Weld Output | CV |
| Input Voltage | 110/115/120 V |
| Input Phase | 1-Phase |
| Input Hz | 60 Hz |
| Warranty | 3 Years |
