Miller Maxstar® 161 S 120-240 V, X-Case, Stick Package
Best-of-class - provides maximum portability and performance in the most compact Stick package in the industry. Packs dependability and performance all in one machine.
Top Features
-
Auto-Line Power Management Technology
Allows for any input voltage hookup (120–240 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or
unreliable power.
-
Portable
in the shop or at the jobsite — at 13 pounds, the handle/shoulder strap allows
the end user to easily move from location to location.
-
No More "Sticky" Electrodes
With Miller's Adaptive Hot Start™ technology, you no longer have to worry about those difficult-to-strike electrodes
Technical Specs
| Product Name // Part Number | Miller Maxstar 161 S, X-Case // 907709001 |
| Input Voltage | 120V thru 240V, 1Ph, 50/60 Hz |
| Input Current (120V) | 60 A at 22.4 VDC, 100% duty cycle - 14.68A 90 A at 23.6 VDC, 30% duty cycle - 23.16A |
| Input Current (240V) | 110 A at 24.4 VDC, 100% duty cycle - 14.31A 160 A at 26.4 VDC, 20% duty cycle - 22.55A |
|
Dimensions |
H: 10.3 in. (262 mm) W: 5.6 in. (142 mm) D: 13.5 in. (343 mm) |
| Weight | 13 lb |

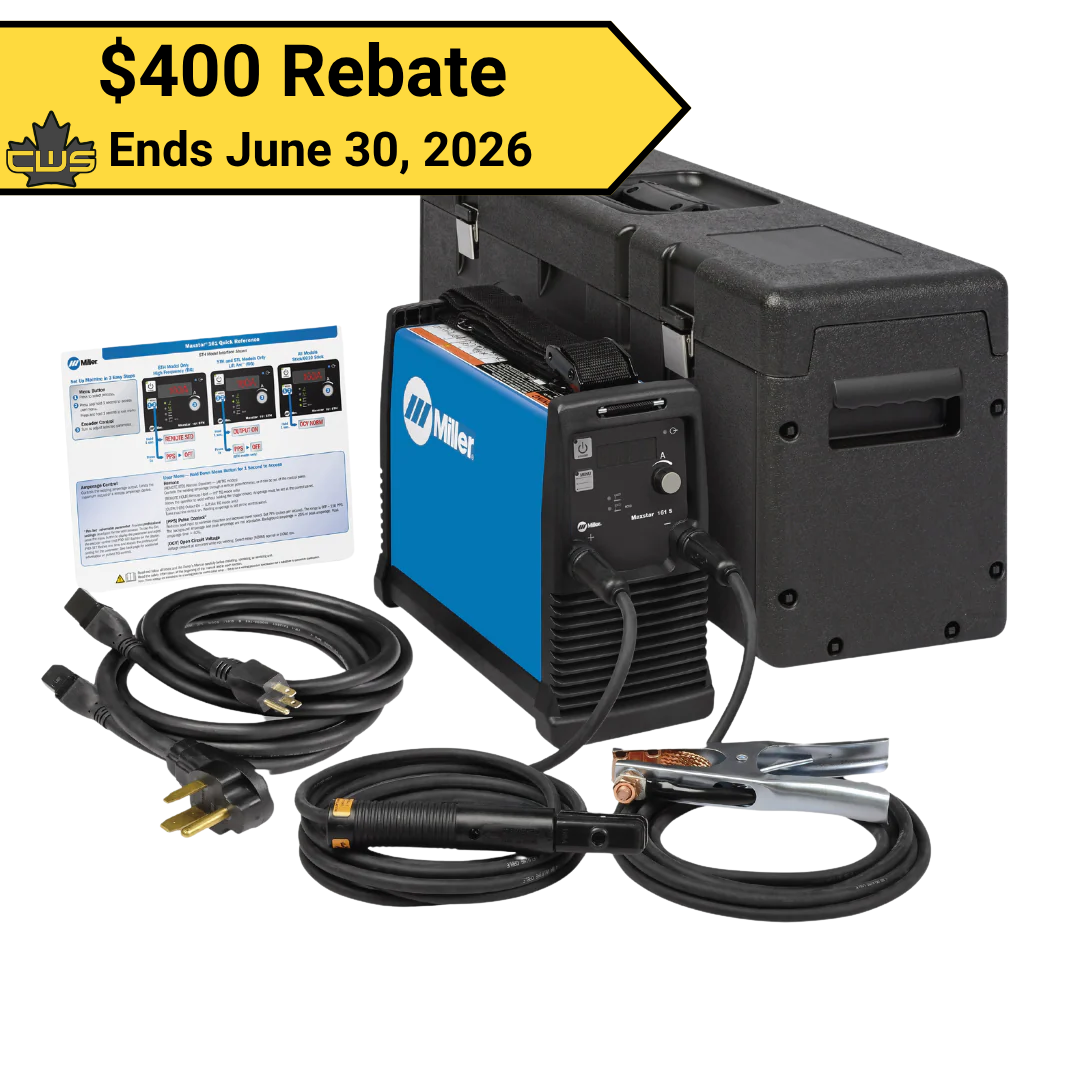

What's Included
- Maxstar® 161 S
- X-CASE™ — provides protection in transport and storage
- 6.5 ft. (2 m.) primary cords for 120 V and 240 V
- 13 ft. (4 m.) stick electrode holder with 25 mm. Dinse-style connector
- 10 ft. (3 m.) work clamp with 25 mm. Dinse-stlye connector
- Adjustable handle/shoulder strap
