Dynamic™ Temporary Anchorage Connectors
- Regular
- $203.00
- Sale
- $203.00
- Regular
- Unit Price
- per
This item replaces the discontinued Miller Grip 496
Portable/Reusable Anchorage Connection

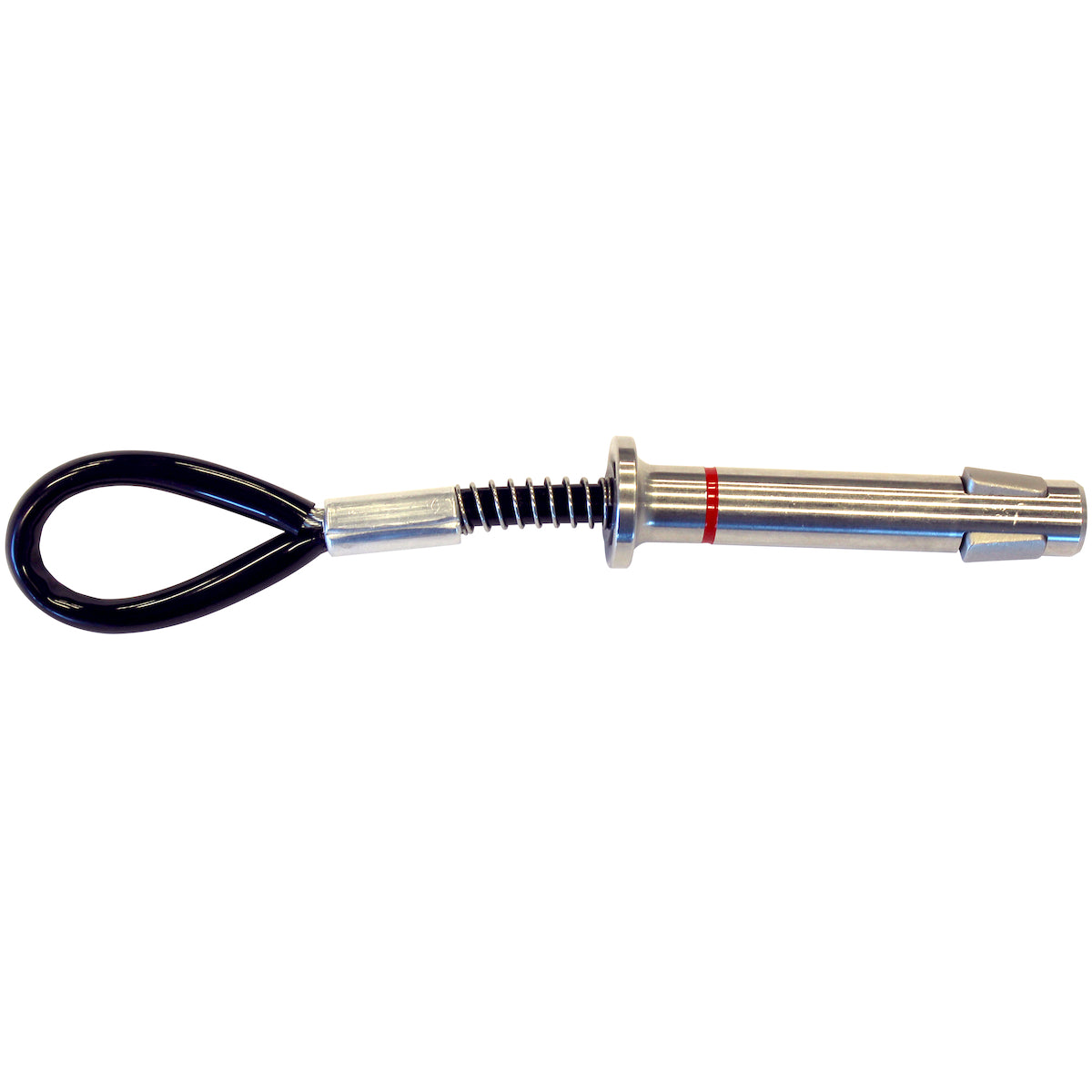

Temporary and removable Fall Protection concrete anchor. 3/4" diameter rated for 22kN (5000 lbs).
A safe anchor point is established when the anchor is inserted into a properly-sized, cured concrete hole. Designed for use in cured concrete with a compression strength of at least 3,000 psi (20.7 MPa) , it can be used for vertical or overhead/ceiling surface applications. The Dynamic™ Temporary anchor can be removed and simply re-installed in a new location. The FP373175Y Removable Concrete Anchor should be installed into a pre- drilled hole made within a minimum of 3,000 PSI fully cured concrete. Additional installation specifications regarding concrete thickness and edge distance are also described within the manual – for more information, refer to Section 8.5. The structure to which the FP373175Y Removable Concrete Anchor is attached must be capable of supporting loads as detailed in Section 4. This anchor may be installed overhead, vertically, or horizontally. If the anchor is installed below the FBH dorsal D-ring, a PFAS designed for extended free fall scenarios must also be used. When properly installed, the anchors may be used as part of a PFAS, restraint or work positioning system.
