Miller Digital Infinity, Imperial Welding Helmet, Clearlight 4x
- Regular
- $501.00
- Sale
- $501.00
- Regular
0% OFF
Sold Out
- Unit Price
- per
In Stock Online

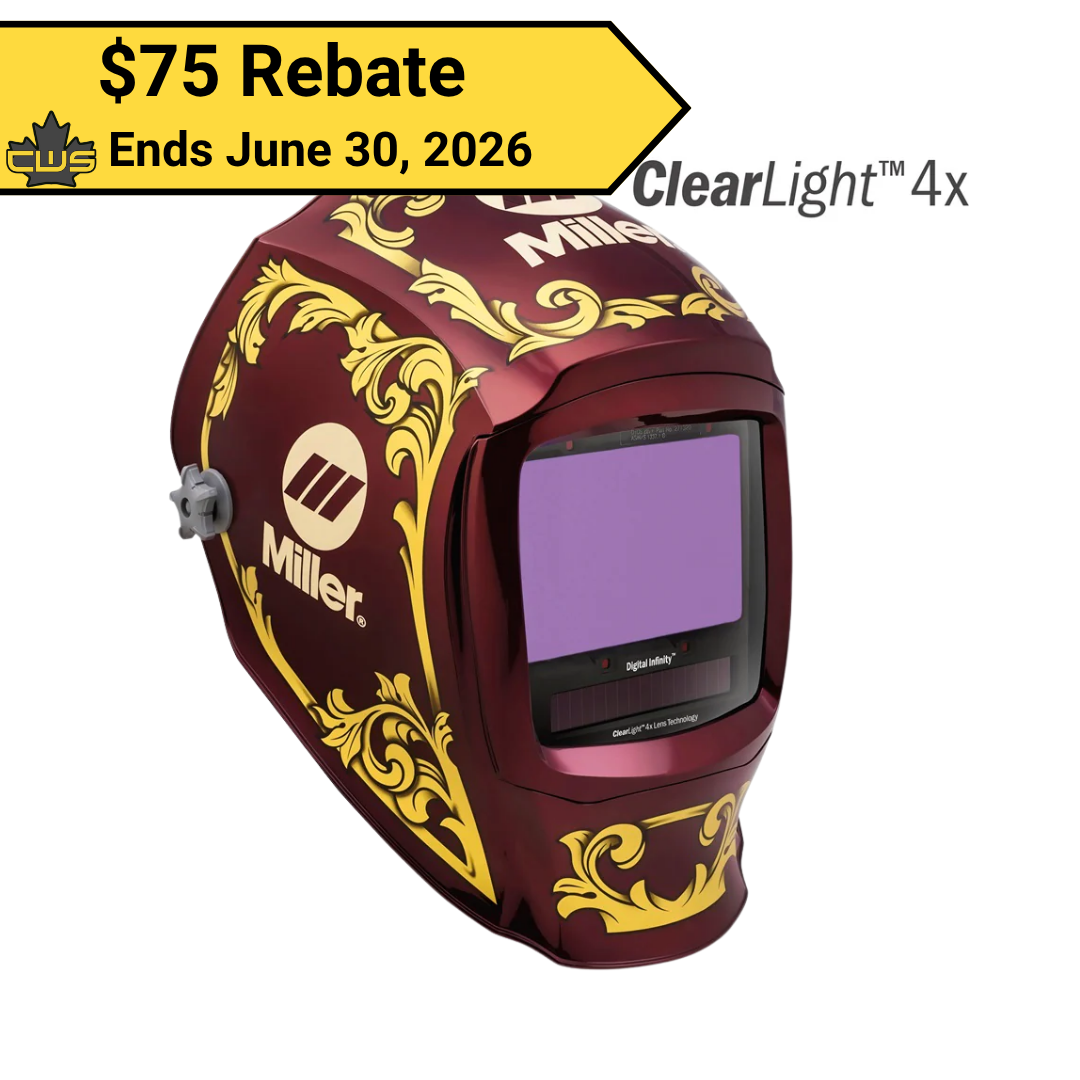

Miller Digital Infinity™, Imperial Welding Helmet
Clearlight 4x
Digital Infinity™ Series welding helmets are ideal for commercial and industrial weld operators who need an extra large viewing area for maximum visibility. Largest viewing area maximizes visibility – featuring ClearLight™ 4x Lens Technology
Part No. 296784
Features:
- ClearLight™ 4x Lens Technology: Offers up to four times the clarity compared to traditional welding helmets with 1/1/1/2 lens visibility.
- Largest Viewing Area: 13.4 square inches with a wide-screen format for an expansive view, reducing tunnel vision.
- AutoSense™ Feature: Automatically sets helmet sensitivity based on the environment, reducing manual adjustments.
- InfoTrack™ 2.0: Tracks and displays arc time and arc count for productivity monitoring.
- Memory Function: Allows easy switching between two preset memory settings for convenience.
- Legacy Headgear with Comfort Cushion: Designed for all-day comfort and stability.
- Four Modes (Weld, Cut, Grind, X-Mode™): X-Mode electromagnetically senses the weld, reducing sunlight interference and detecting the arc even if sensors are blocked.
- Half-Shade Settings: For precise adjustments to lens shading.
- Optional Helmet Lighting Accessory Kit: Includes two lights and mounting hardware for better visibility during use.
- InfoTrack™ - Exclusive arc tracking technology features arc time, time and timer functions, and a multi-language help menu.
- Variable Shades - Welding shades 8-13 and cutting shades 5-8 allow operators to customize the lens shade to their needs.
- Digital Controls - intuitive design and large push buttons allow user to easily adjust mode and settings.
-
ClearLight™ Lens Technology - High-definition optics for precision arc recognition.
| Product Name // Part Number | Digital Infinity™, Clearlight 4x, Imperial // 296784 |
| Light State | 2.5 |
| Sensors | 4 |
| Optical Clarity (EN 379) | 1/1/1/2 |
| TIG Rating | 5 amps and below |
| Switching Speed | 1/25,000 second |
| Weight | 21.4 oz (606 g) |
| Certifications | ANSI Z87.1+, CSA |
| Viewing Area | 13.4 sq. in. (86.45 sq. cm) |
| Operating Modes and Shades | Weld (8–13), Cut (5–8), Grind (2.5), X-Mode™ (8–13) |
| Warranty | Four years for the auto-darkening lens |
What's Included
- Helmet bag
- 2 inside cover lenses
- 5 outside HDV cover lenses
- Clip-on Top Comfort Cushion
Digital Infinity CL 4x Series Data Sheet | Digital Infinity CL 4x Series Manual | Replacement Parts
