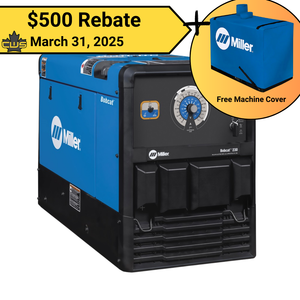

Miller Bobcat 230 Engine Driven Welder (Vanguard Edition)

$6,868.00

Miller Big Blue® 400 Pro (Kubota) ArcReach - 907732001



The professional welder’s choice— designed with the professional in mind, the Big Blue 400 Pro is the best for ease of use, reliability and fuel economy.

Features

  • Heavy-Duty Low-Speed Kubota V1505 Industrial Diesel Engine - Used in industrial applications around the world, the V1505 is designed to run 10,000 hours before major overhaul. Backed by worldwide support and service.
  • Quiet Operation - Improves worksite safety and communication.
  • Digital Meters with SunVision™ - Enables welding parameters to be viewed with greater clarity at virtually any angle. Meters can be seen clearly even in direct sunlight.
  • Industrial USB Port - Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics.
  • Auto Remote Sense™ (ARS) - Detects if a remote control is plugged into the 14-pin receptacle and eliminates the confusion of a remote/panel switch.
  • Simple-to-Set Controls - Requires no elaborate procedure - just select process and weld!
  • HD Powder Coat - All painted sheet metal is pretreated with a zinc-rich primer to provide extra protection against rust & corrosion (comparable to stainless steel).
  • Low OCV Stick (VRD) - When activated, reduces the open-circuit voltage to 15 volts when the power source is not in use, increasing operator safety without compromising arc starts.
Title Big Blue® 400 Pro (Kubota) ArcReach
Industries Interests Infrastructure
Fabrication
Pipe Fabrication / Construction
Maintenance and Repair - Field Operations
Engine Brand Kohler
Engine Idle Speed 1500 RPM
Engine Weld Speed 1800 RPM
Fuel Tank Size 11.5 gal.
Fuel Type Diesel
Amperage 20 A - 400 A
Horsepower 20.2 hp
Rated Output 400 A at 24 V, 100% duty cycle
Single Phase Generator Continuous Power 10000 W
Single Phase Generator Peak Power 12000 W
Sound Rating Idle: 66 dB (91 Lwa)
Weld: 71.6 dB (96 Lwa)
Rated Carbon Diameter 3/16 in (4.8 mm)
Current Type DC
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Trailer (Optional)
Weld Output CC / CV
Dimensions
 H: 32 in. (813 mm)
W: 26.25 in. (667 mm)
D: 56 in. (1,422 mm)
Net Weight 950 lbs
Warranty 3 Years


Non Stock Item, Not Eligible for free shipping. - Please contact support@canadaweldingsupply for accurate lead time and freight cost
