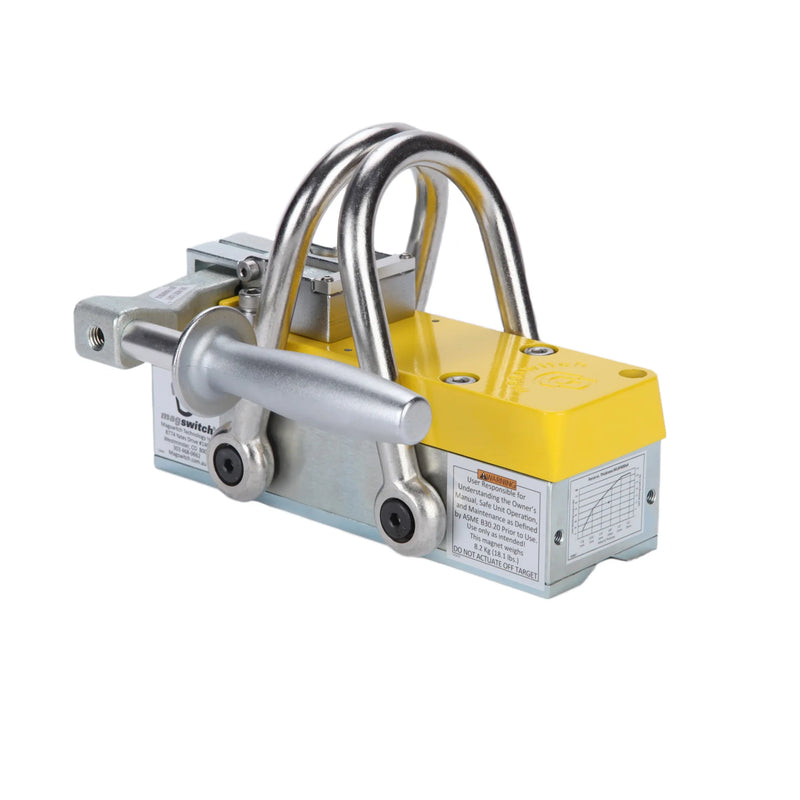

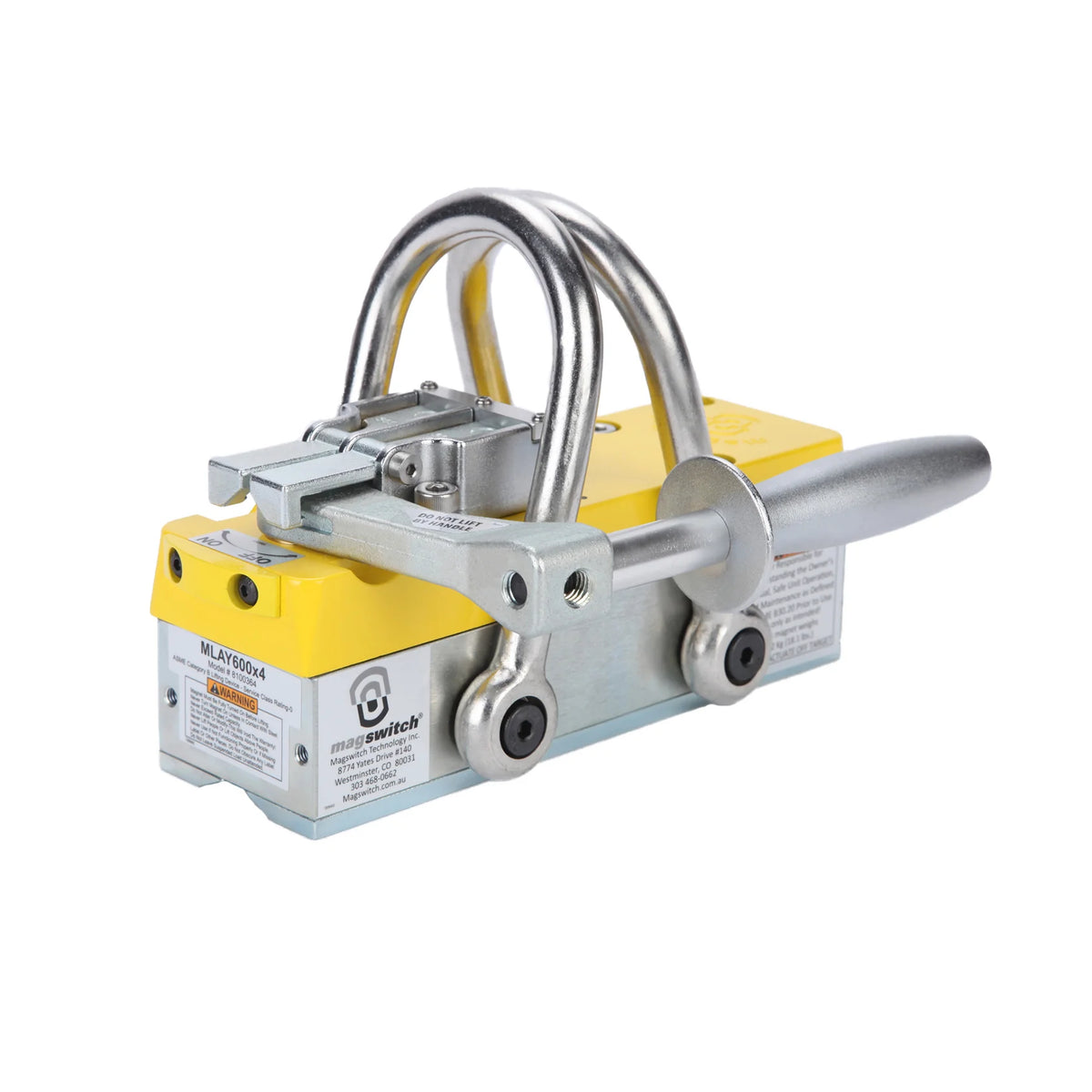

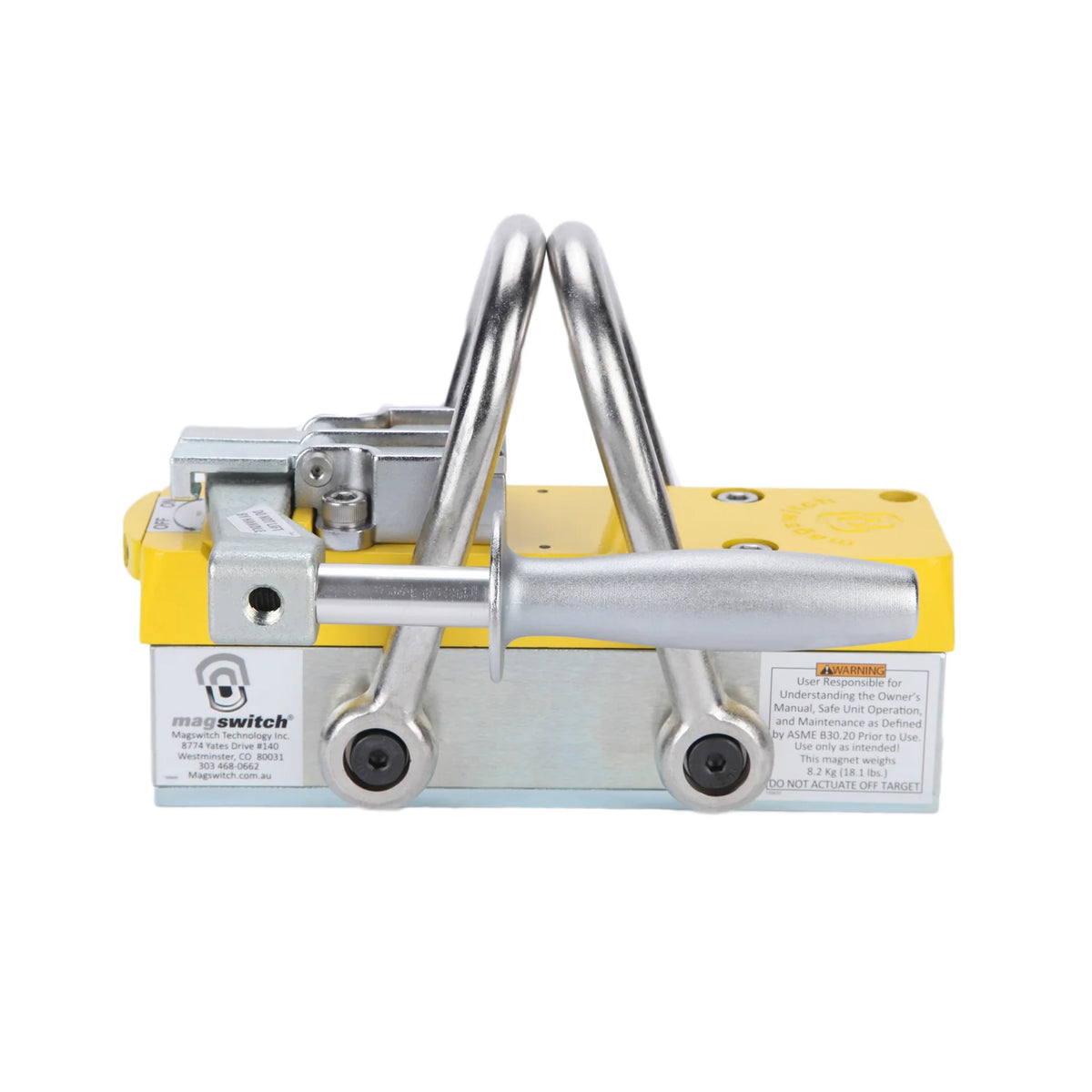

Magswitch MLAY 600X4 Lifting Magnet - 8100364



Built for heavy-duty lifting, our magnet technology is powerful without the need for a power source. Safely lock in the on and off position with a 3:1 Safe Working Load of 750 pounds. The pivoting lift hook offers the stability to lift from horizontal to vertical.

Features

  • Magnetic field turns completely on and off mechanically.
  • Magnet stays clean.
  • Does not use an electrical power source.
  • Lock On/Off handle.
  • Superior hold force on Thin steel (70 mm deep field).
  • Compact, lightweight and easy actuation.
  • Lifts large flat sheets, beams, pipe.
  • Performs well on air gaps such as rust and dirt.
  • Customizable pole shoes to fit almost any application.
  • Part No. 8100364

Specifications:

  • Max Breakaway: 2248 lbs / 1019.6 kg
  • 3:1 Safe Working Load: 750 lbs / 340.1 kg
  • 2:1 Shear Working Load: 330 lbs / 149.6 kg
  • Full Saturation Thickness: 0.5 in / 12.7 mm
  • Minimum Thickness for De-Stack: 0.5 in / 12.7 mm
  • Product Weight: 17.9 lbs / 8.1 kg
  • Mounting Thread: M6x1.0
  • Dimensions: 9.3 x 6.5 x 6.6 in / 236.2 x 165.1 x 167.6 mm
  • Magnetic Pole Footprint: 223 mm x 71.12 mm

Full Spec Sheet
