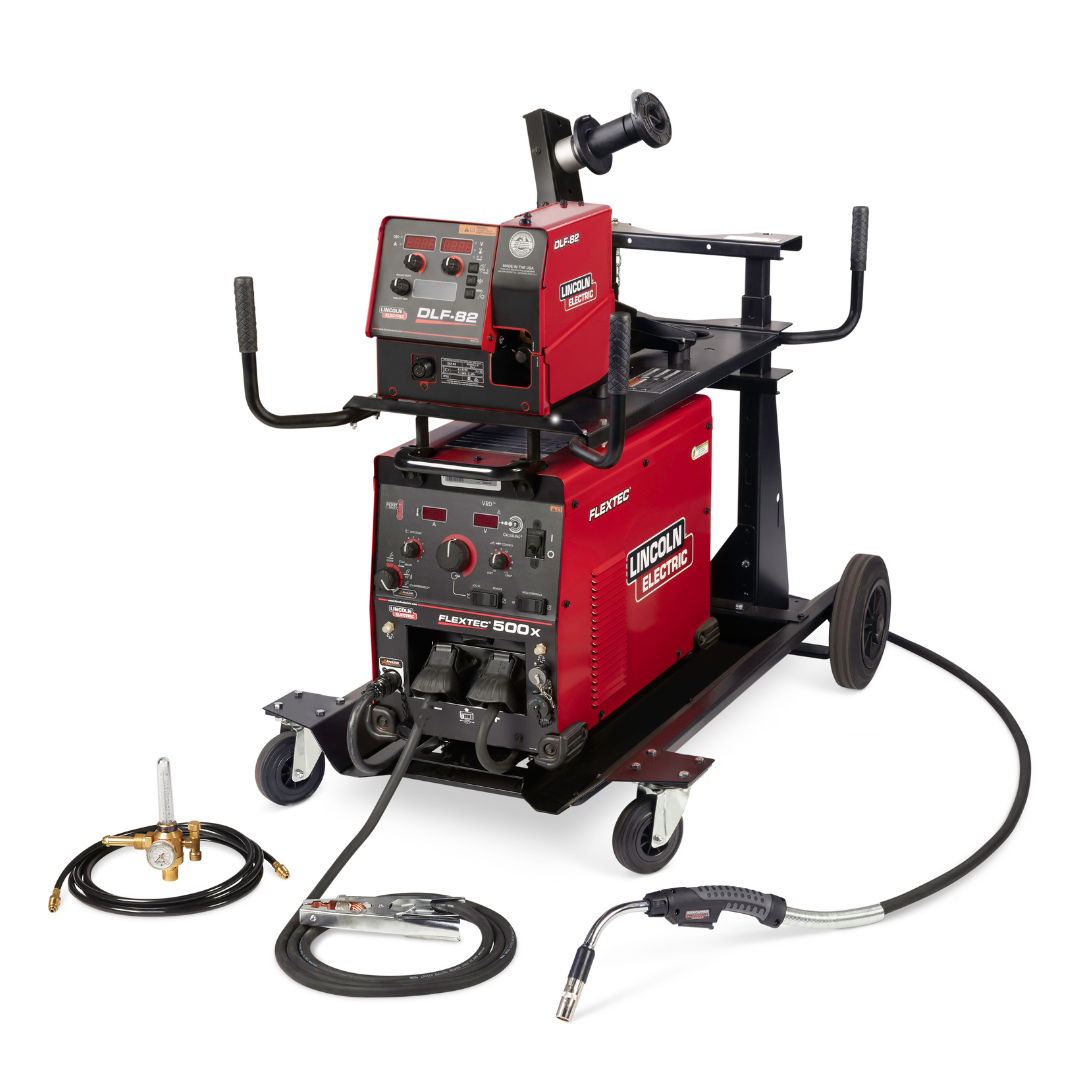

Lincoln Flextec 500X / DLF-82 Ready-Pak - K3608-5


The Flextec 500X / DLF-82 Ready-Pak is the perfect 500A fabrication shop pulsed MIG system. Utilizing the tough and realiable Flextec 500X mulit-process power source, the ready-pak combines the DLF-82 wire feeder for a 500A system that is simple and realiable with the added benefit of pulsed MIG capability, as well as true multi-process support.

Features

  • Lincoln Ready-Paks are fully assembled. Just connect power and add wire and sheilding gas.
  • Includes assembled inverter / wire feeder cart
  • Simple to Use – For synergic setup, choose desired weld process, wire type, wire diameter and gas type.
  • Synergic weld modes = one knob control. Set higher wire feed speeds for thicker materials and lower wire feed speeds for thinner materials. Voltage is automatically adjusted.
  • Pulsed MIG Support – lower spatter, greater puddle control, more forgiving MIG process.
  • 380-575V 3-phase input power required

      Download Product Info


      Flexible

      • Compatible with across-the-arc, analog, digital or CrossLinc™ feeders
      • Premium multi-process arc characteristics works with all DC wire, stick and TIG processes
      • Lightweight and portable

       Product Highlights

      • Desert Duty Rated™ for extreme temperatures up to 55°C
      • VRD® Voltage Reduction Device reduces Open Circuit Voltage for added safety
      • Offered in 4 and 6 pack rack configurations
      • Wide 5-425 amperage range
      • Capable of Arc Gouging with 3/16 in. (4.8 mm) carbons
      Input Power 200-600V 1Phase/3Phase
        Rated Output 350A/34V/60%
        300A/32V/100%
          Output Range 5-425A
            Solid Wire Size Range .023-1/16 in. (.6-1.6 mm.)
              Cored Wire Size Range .030-5/64 in. (.8-2 mm.)
                Wire Feed Speed Range 50-800 ipm
                  DIMENSIONS (H X W X D) 17 x 13 x 24 in.
                  NET WEIGHT 84 lb


                  What's Included?

                  • Fkextec 500X / DLF-82 Ready-Pak
                  • DLF-Feeder Cart Mounting Bracket | K5395-1
                  • Weld Power Cable - Lug to Lug (3/0, 600A, 60%) - 10 ft (3 m) | K1842-10
                  • Flextec® 500X Locking Foot Kit | K3056-2
                  • Inverter and Wire Feeder Cart | K3059-4
                  • Flextec® 500X Multi-Process Welder | K3607-1
                  • DLF-82 Bench Model (w/ Gun) | K5282-3
                  • Model 355-2Ar-58010 Flowmeter Regulator Shielding Gas Kit | 3100211
