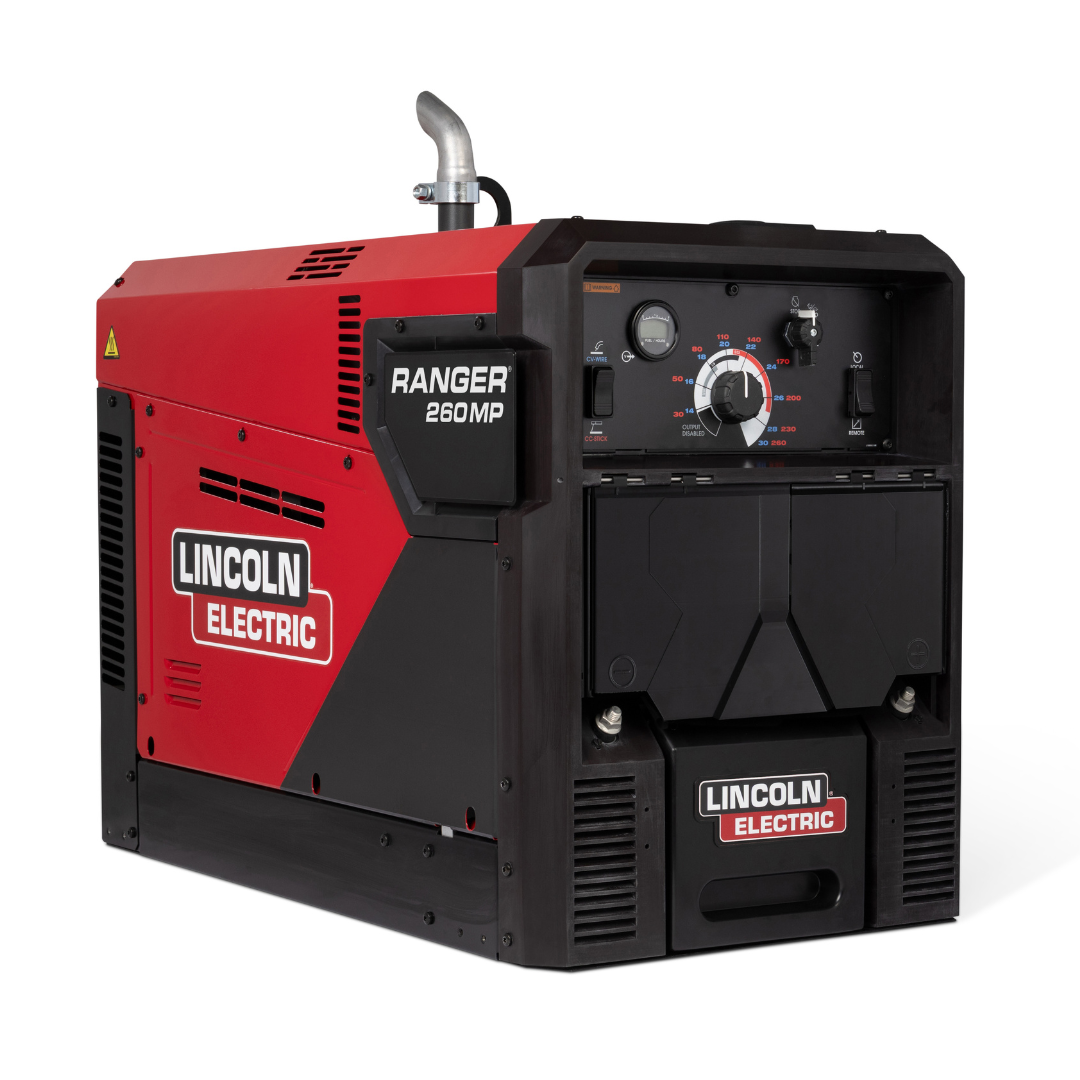

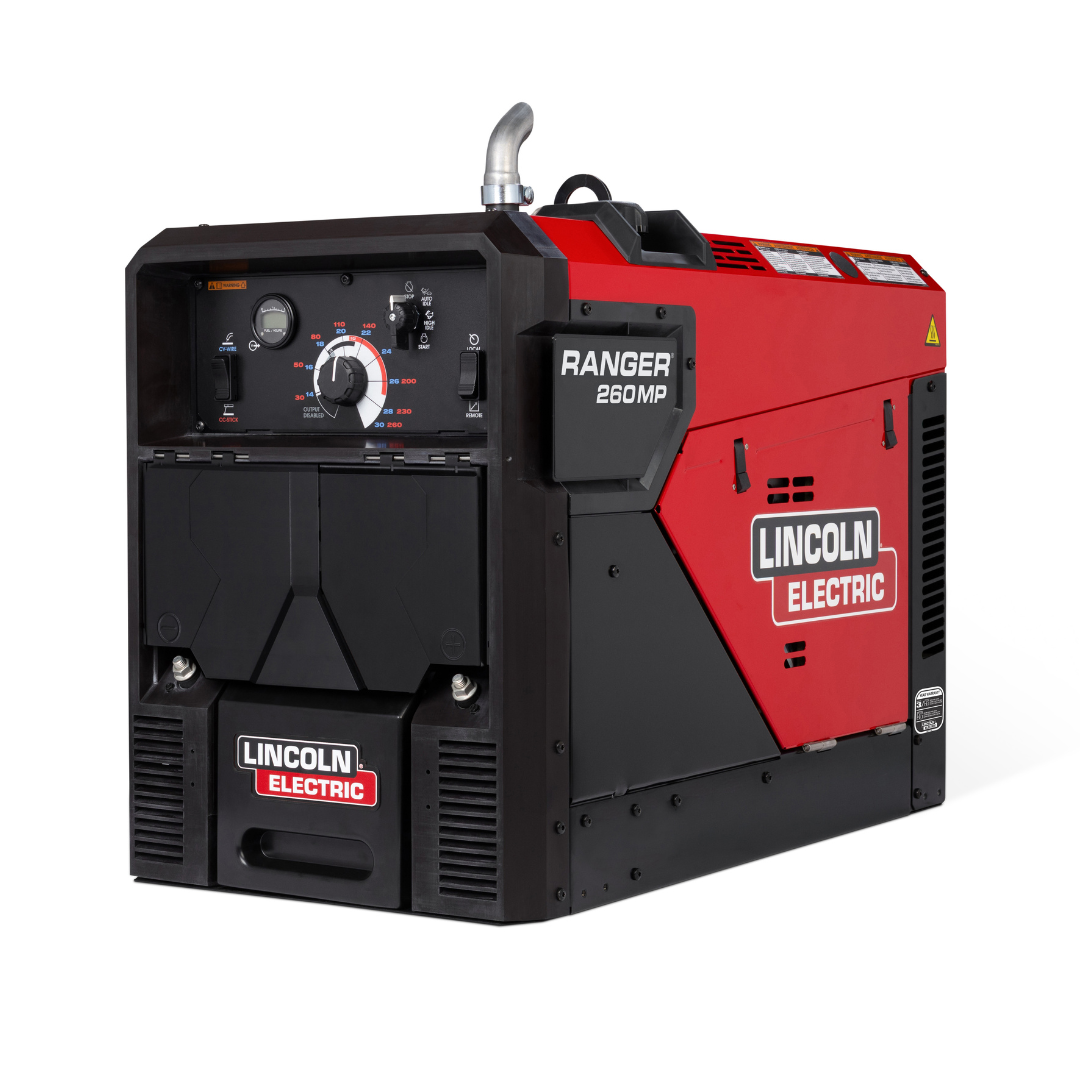

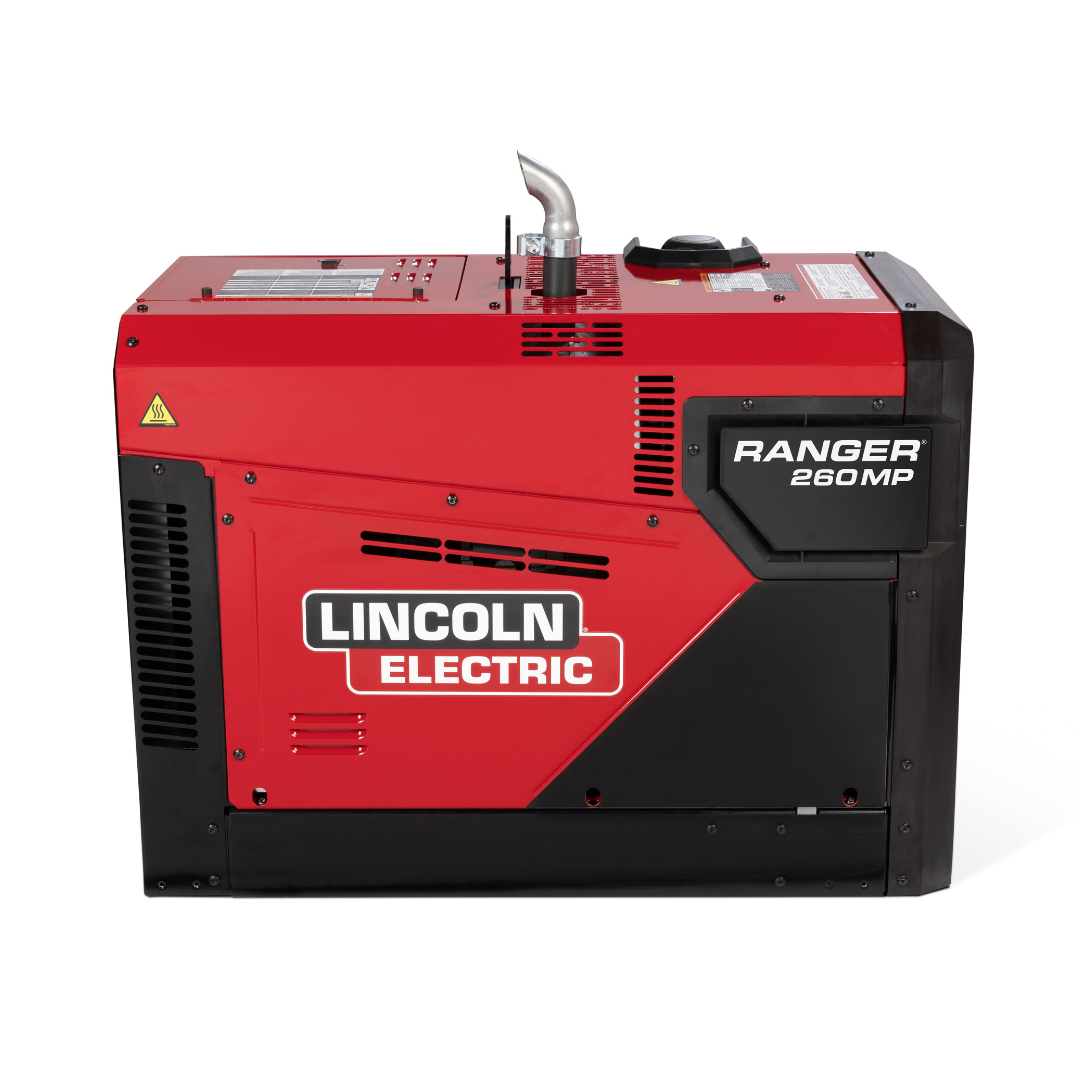

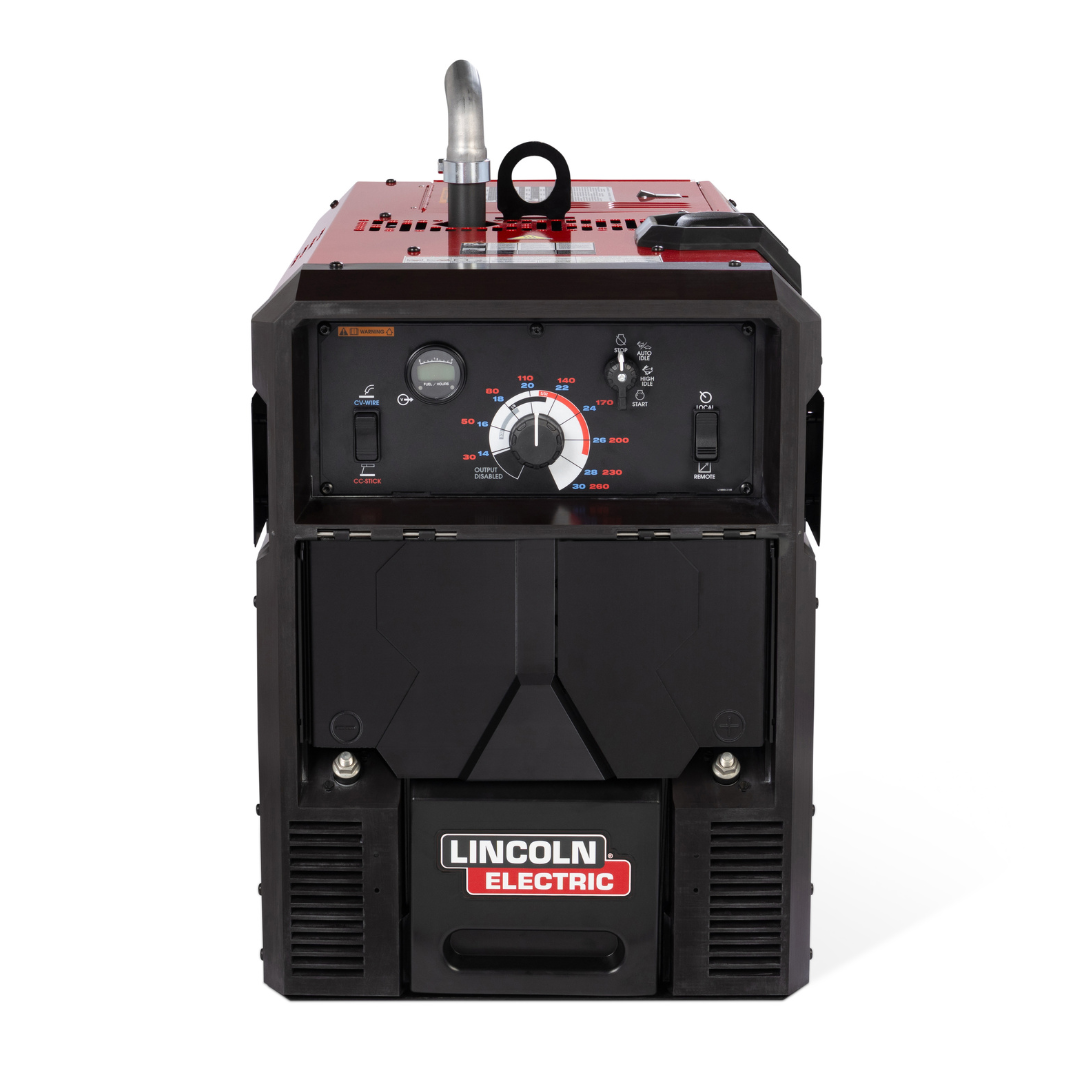

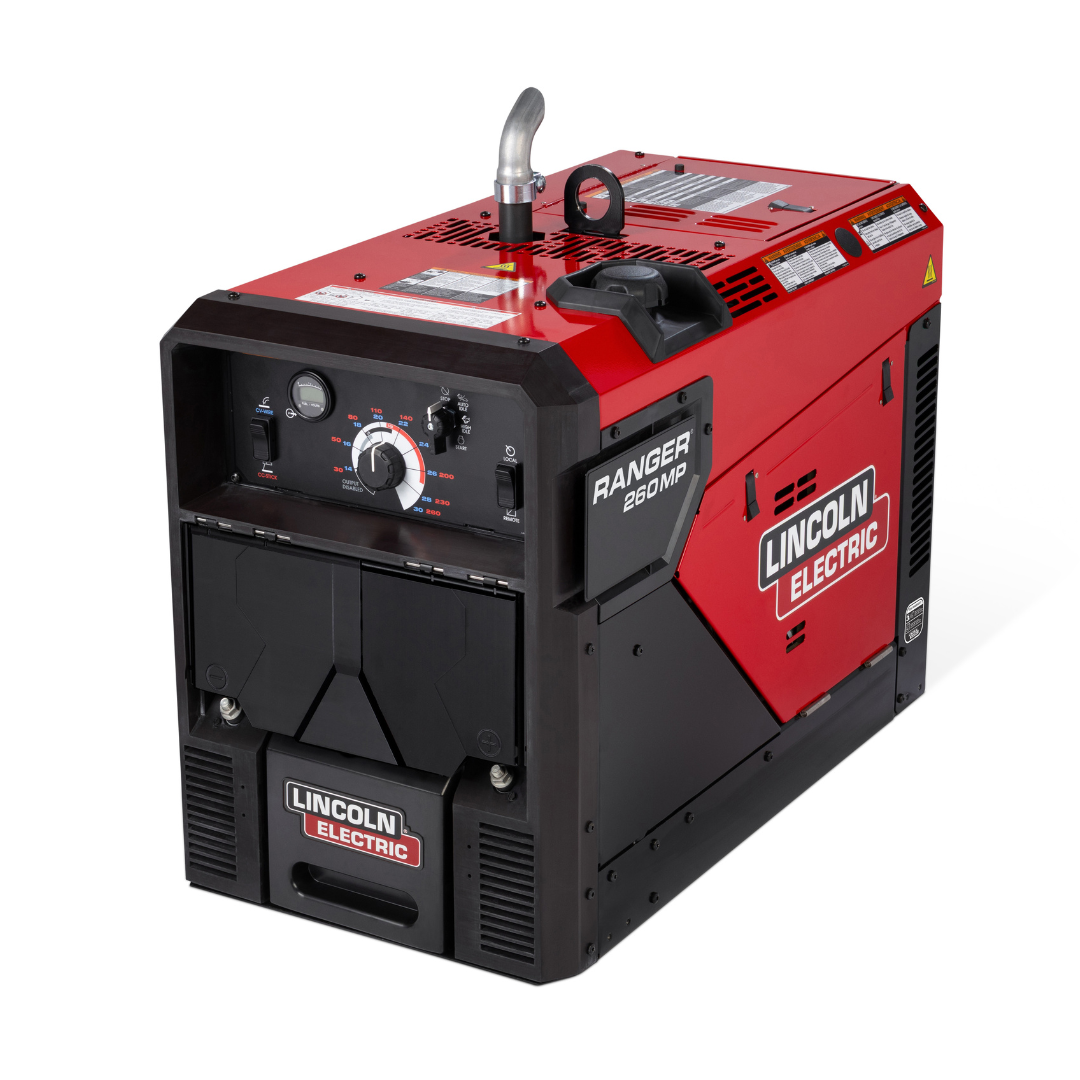

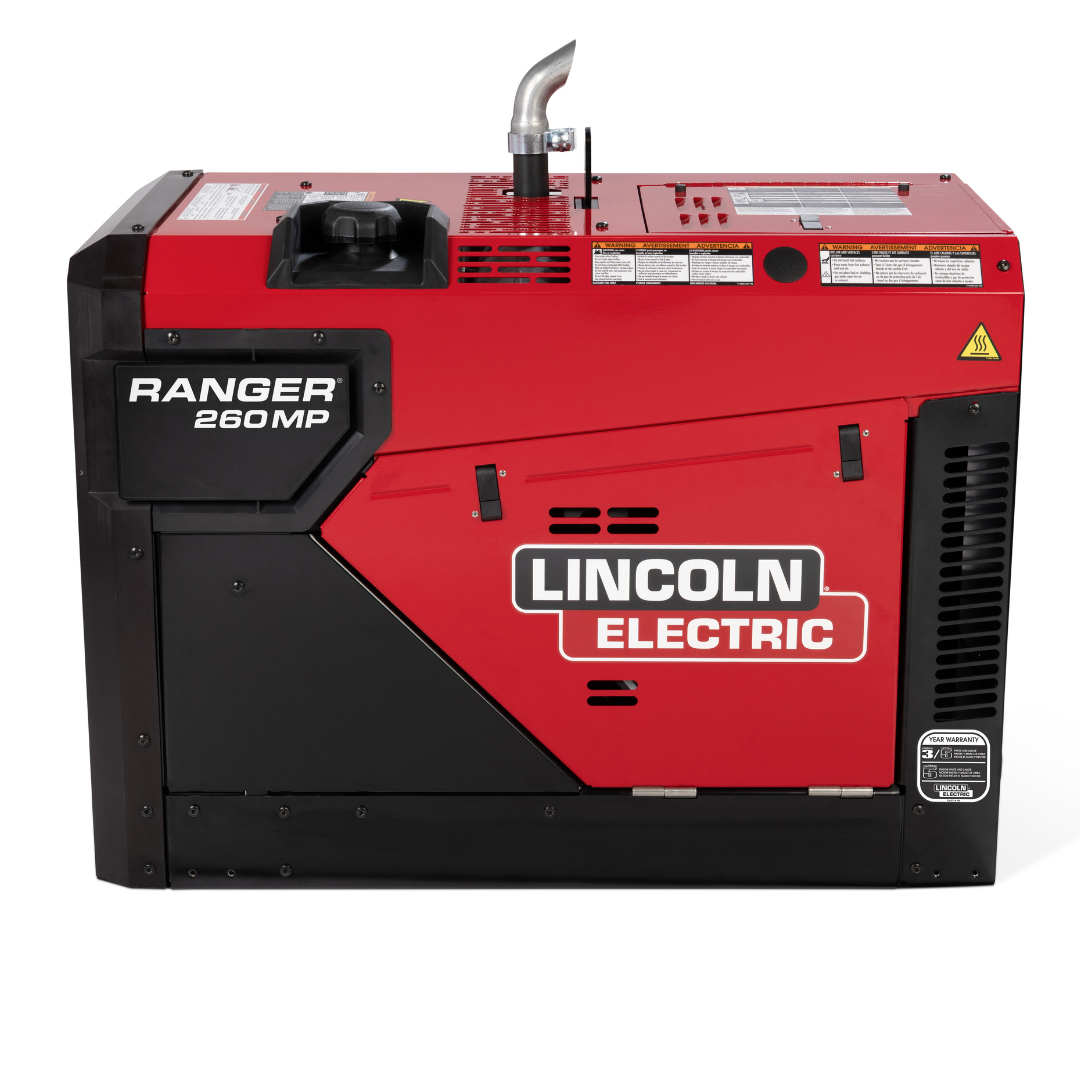

The Ranger® 260MP™ is a step up in welding output with remote capability for crews that need more flexibility without adding complexity. Straightforward controls and a single, glove-friendly knob keeps the focus on the work, not the machine.
Running cooler, quieter, and longer, its reduced-weight, balanced design enhances jobsite mobility. Consistent, dependable output ensures reliable power with seamless transitions between welding and generator use.
Designed for ease of maintenance, a rear engine layout now gives unmatched access to key service parts. All MPs come factory filled with 300-hour premium oil to maximize runtime and are equipped with an electric fuel pump for reliable fueling.
Product Specifications |
|
| Product Name | Ranger® 260MP |
| Product Number | K5937-1 |
| Processes | MIG, Stick, Flux-Cored |
| Applications | Construction, Farm, Maintenance & Repair, Service |
| Weld Power | • CC/Stick: 231A / 29.2V / 100% • CV/Wire: 253A / 26.7V / 100% |
| Output Range | 35–260A (CC) | 15–30V (CV) |
| Max OCV | 85 VDC |
| Generator Output (Peak / Continuous) | 10,500 W Peak / 9,500 W Continuous |
| Generator AC Voltage | 120/240V AC (Single Phase) |
| Full kVA Receptacle (14-50R) | 40A @ 240VAC / 40A @ 120V (each branch circuit) |
| 120V Receptacles (5-20) | 20A @ 120VAC total, GFCI protected |
| Engine Model | Rehlko CH730 |
| Engine Horsepower & Displacement | 23.5 hp @ 725 cc (44 in³) |
| Engine Controls & Fuel System | Electronic choke, carburetor, Gasoline with electric fuel pump (10% max ethanol) |
| Engine Speeds | 2,500 RPM (Idle) / 3,600 RPM (High Idle) |
| Fuel Capacity | 11 gallons (42 liters) |
| Battery | 12V Group 26 (500 CCA) |
| Dimensions (H x W x D) | 26.4 x 20 x 36.4 in (671 x 508 x 924 mm) |
| Height to Top of Exhaust Pipe | 33.1 in (840 mm) |
| Weight | 426 lbs (194 kg) |
