Lincoln Electric RANGER AIR 330MPX Multi-Function Engine Drive

Regular: $16,968.00

Sale: $16,968.00
Regular: $18,123.00

Sold Out

Unit Price: per

0 In Stock Available to Order. Ships in an average of 5–10 business days

Non Stock Item - 3-4 Week Lead Time Required

Lincoln Electric Vantage® 566X (Deutz®)

$48,272.00

Lincoln Electric Vantage® 441X (Perkins®)

$38,276.00

Lincoln Electric Dual Maverick® 200/200X (Kubota®)

$27,553.00

Lincoln Electric Frontier® 400X (Perkins®) K3484-1

$25,159.00

Lincoln Electric Maverick 325X® (Kubota®) - K3581-1

$20,993.00

Lincoln Electric RANGER® AIR 260MPX Multi-Function Engine Drive

$16,009.00

Lincoln Electric Ranger® 305 LPG Engine Driven Welder (Kohler®)

$11,437.00

Lincoln Electric Ranger 330 MPX EFI Engine Driven Welder (KOHLER®) - K4779-1

$10,769.00

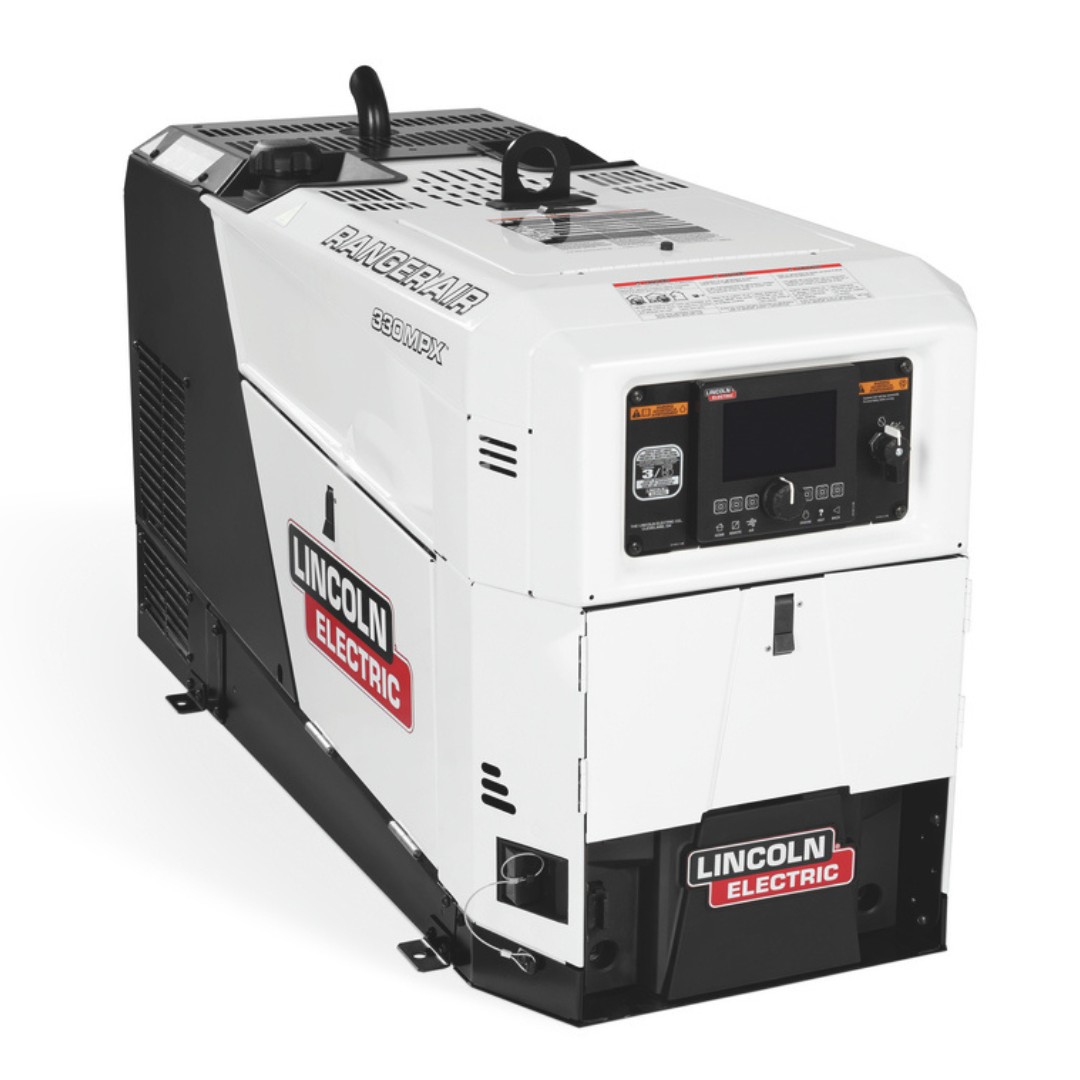

Lincoln Electric RANGER® AIR 330 MPX Multi-Function Engine Drive

Versatility With Unparalleled Performance

The Ranger Air 330MPX multi-function engine drive was designed for the operator who faces the unexpected every day.

Air Compressor

The Vanair® rotary screw air compressor delivers instant 40CFM @150 PSI,
generating up to 30% more air power compared to other machines in its class.
Operators can power large tools – up to a 1-inch impact wrench, and inflate
tires faster to complete jobs in less time.

Generator

10KW of clean continuous AC generator power accommodates a variety of
tools and equipment, allows you to power tools while welding and with less
than 5% total harmonic distortion (THD) you can operate sensitive electronics,
like laptops.

Battery Jump Assist and Battery Charge

Capability to jump and charge 12V and 24V batteries on the jobsite. Get
equipment started and keep productivity high with 330A for cold cranking assist.

Multi-Process Welding

Stick, TIG, MIG, Flux-Cored and direct connect spool gun
with a 330A/28V/100% duty cycle so the operator can tackle a variety
of applications.

Advanced Weld Modes

Gouge, pipe, pulsed TIG and pulsed spool gun modes give the operator more
control and flexibility when taking on welding jobs

Ranger AIR 330MPX Technical Specifications

Product Name // Part Number	Ranger Air 330MPX // K5239-1
Battery Jump Assist	330A
Battery Charge	25A or 50A
IEC Rating	CC-Stick: 292A/31.7V/100% Touch-Start TIG: 325A/23V/100% CV-Wire: 312A/29.6V/100%
Non-IEC Rating	330A/28V/100%
Output Range	CC-Stick: 35A - 330A Touch-Start TIG: 25A - 330A CV-Wire: 35A - 330A
Generator AC Power	11,500 Watts Peak 10,000 Watts Continuous
Voltage Output	60 Hz Single Phase 39.5 @ 240V 40A @ 120V each branch circuit
Receptacles	Four 120V Receptacles (20A Total) One 120/240 Volt AC Full KVA Receptacle One240 Volt AC Receptacle
Dimensions	26" x 20" x 48" (660 mm x 508 mm x 914 mm) To Top of Exhaust: 29" (737 mm)
Weight	565 lbs (256 kg)
Engine Model	Kohler OHV Command ECH749, 2 Cylinder, 4 Cycle, Air-Cooled, Gasoline Engine
Horsepower & Displacement	26.5 HP @ 3600 RPM 45 cu in (725 cc)
Fuel Capacity	11 Gallons (41.6 Liters)
Oil Capacity	0.5 Gallons (1.8 Liters)
Operating Speeds	Full Load: 3,600 RPM High Idle: 3,600 RPM Low Idle: 2,500 RPM
Fuel Consumption	Full Load: 1.9 Gals/Hr (7.0 L/Hr) High Idle: 0.6 Gals/Hr (2.4 L/Hr) Low Idle: 0.5 Gals/Hr (1.8 L/Hr)
Compressor Model	Vanair Single Stage, Oil Injected Rotary Screw
Compressor Delivery	40 CFM @ 150 PSI
Maximum System Pressure	150 PSI
Compressor Protection	Safety Relief Valve @ 225 PSI High Temperature Automatic Shutdown at 250°F
Compressor Capacity	0.75 Gallons (2.84 Liters)

Download Tech Sheet
