Lincoln Electric Eagle 10,000S Engine Driven Welder Generator (Rehlko)

Regular
$5,666.00
Sale
$5,666.00
Regular
0% OFF Sold Out
Unit Price
per
0 In Stock, Available to Order Ships in 5 – 9 business days

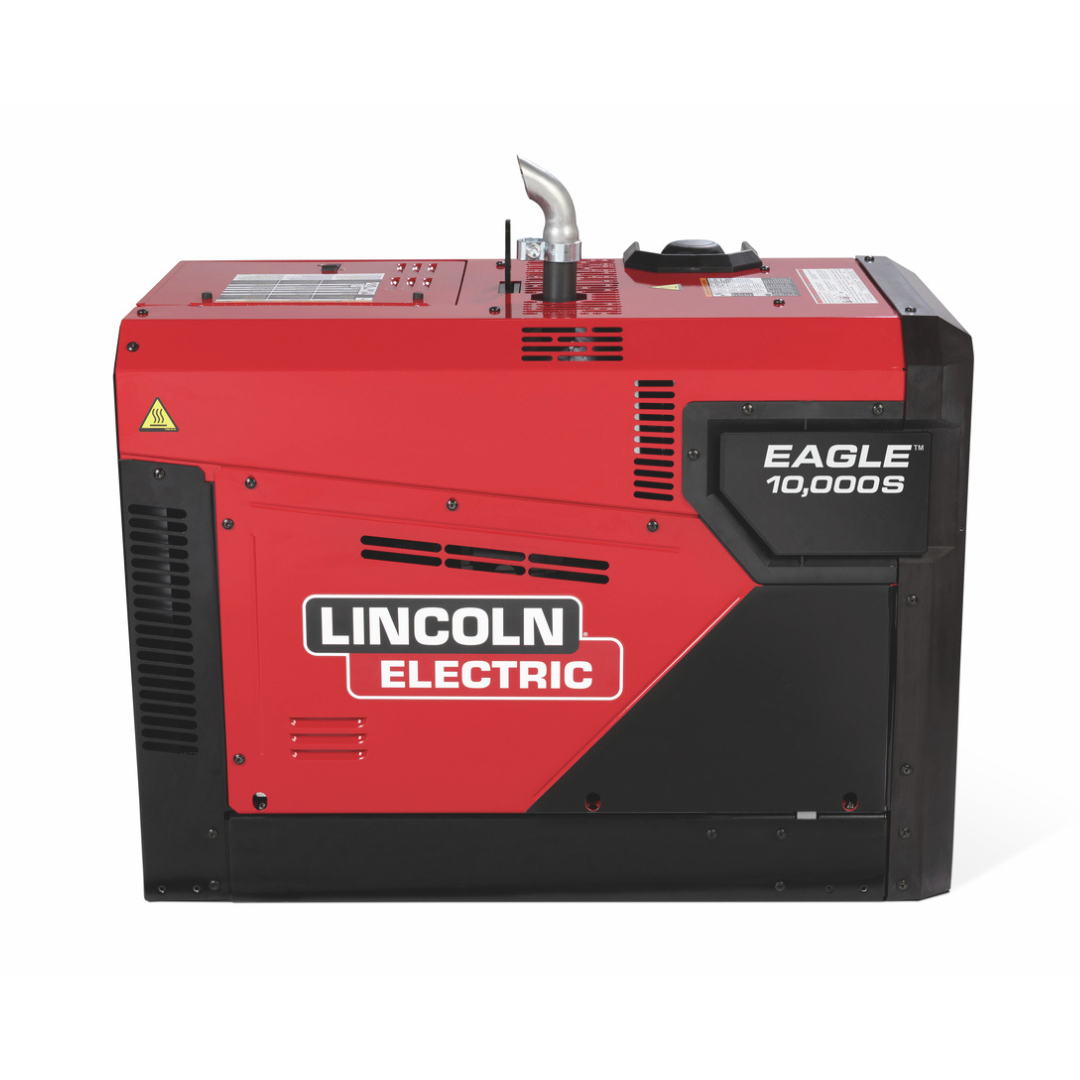

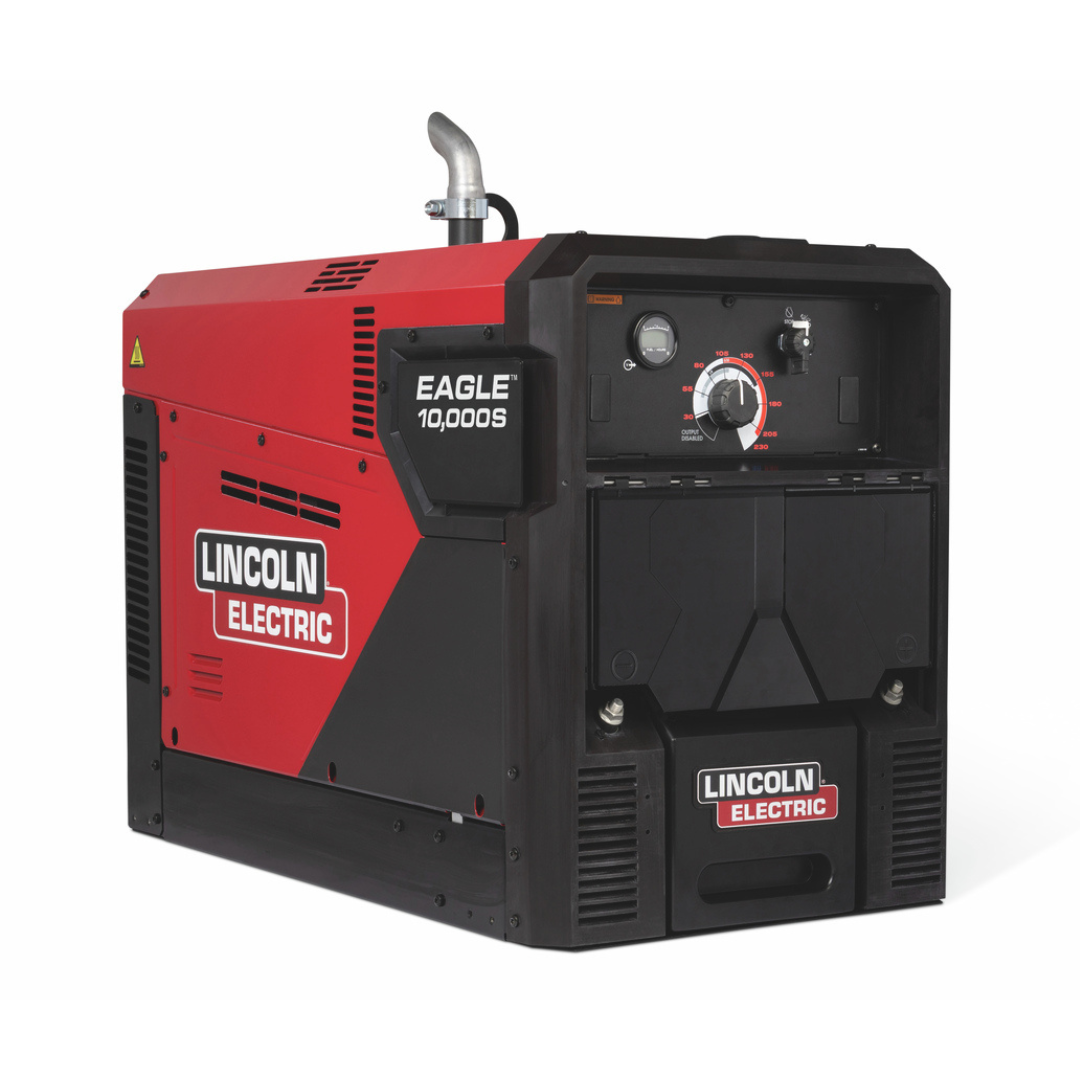

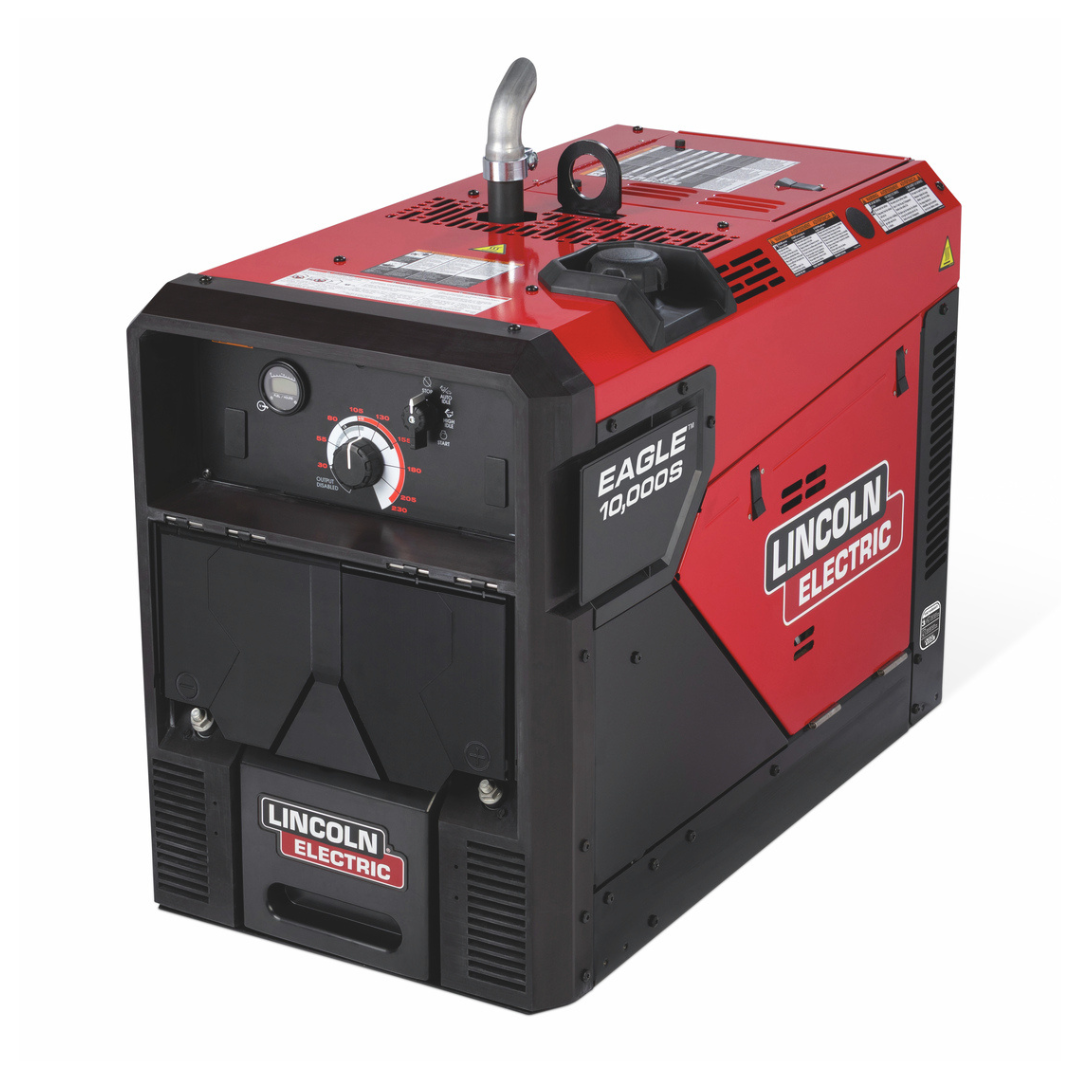

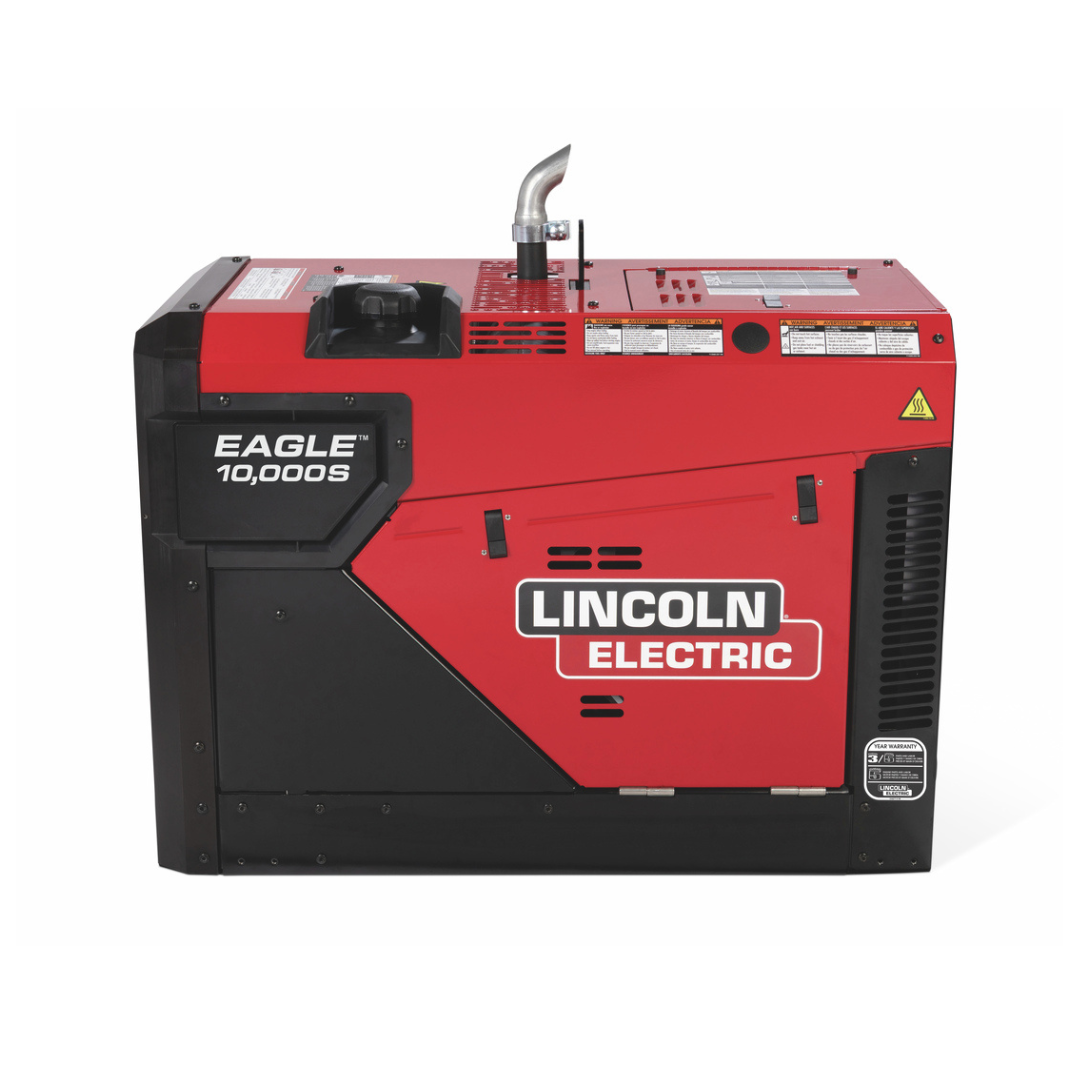

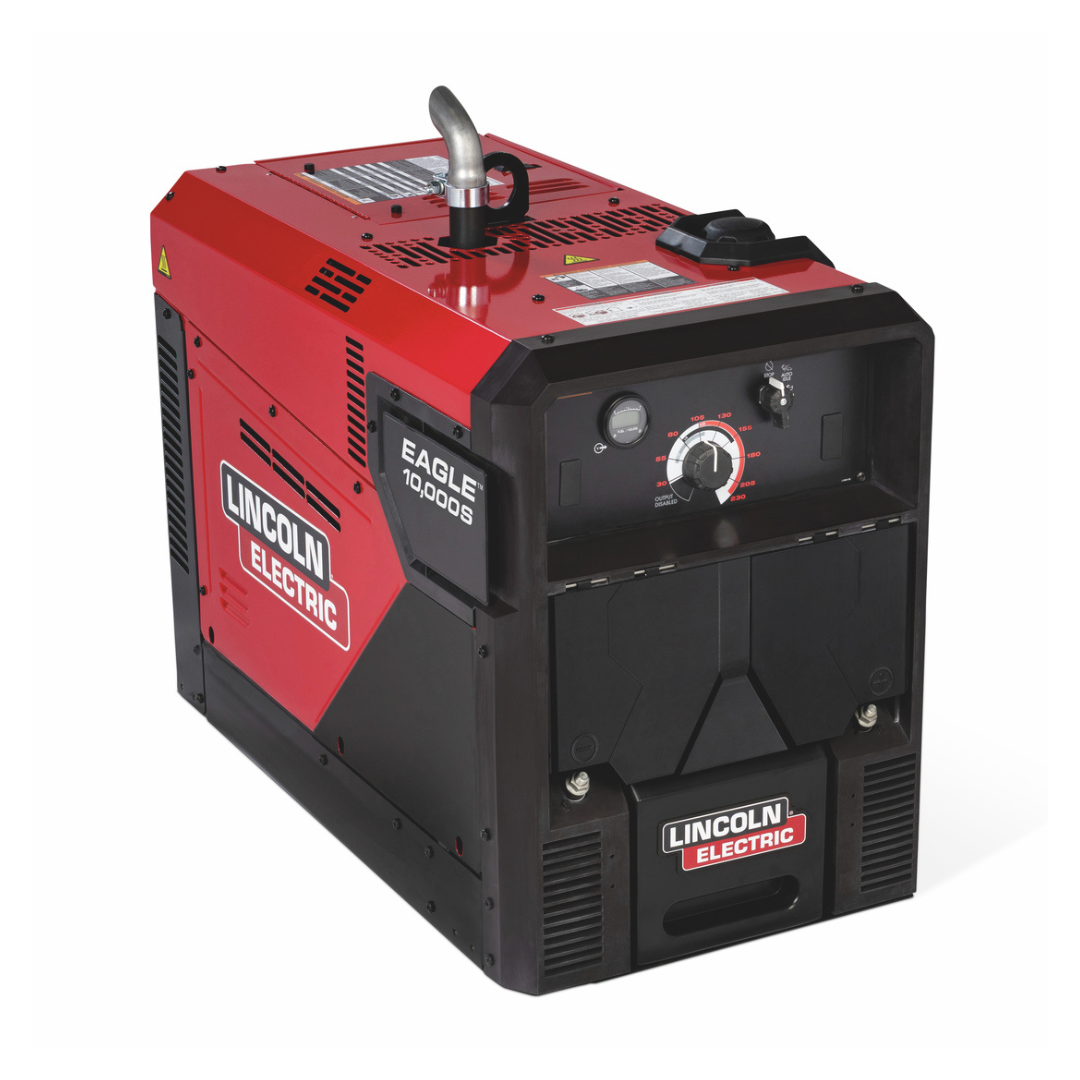

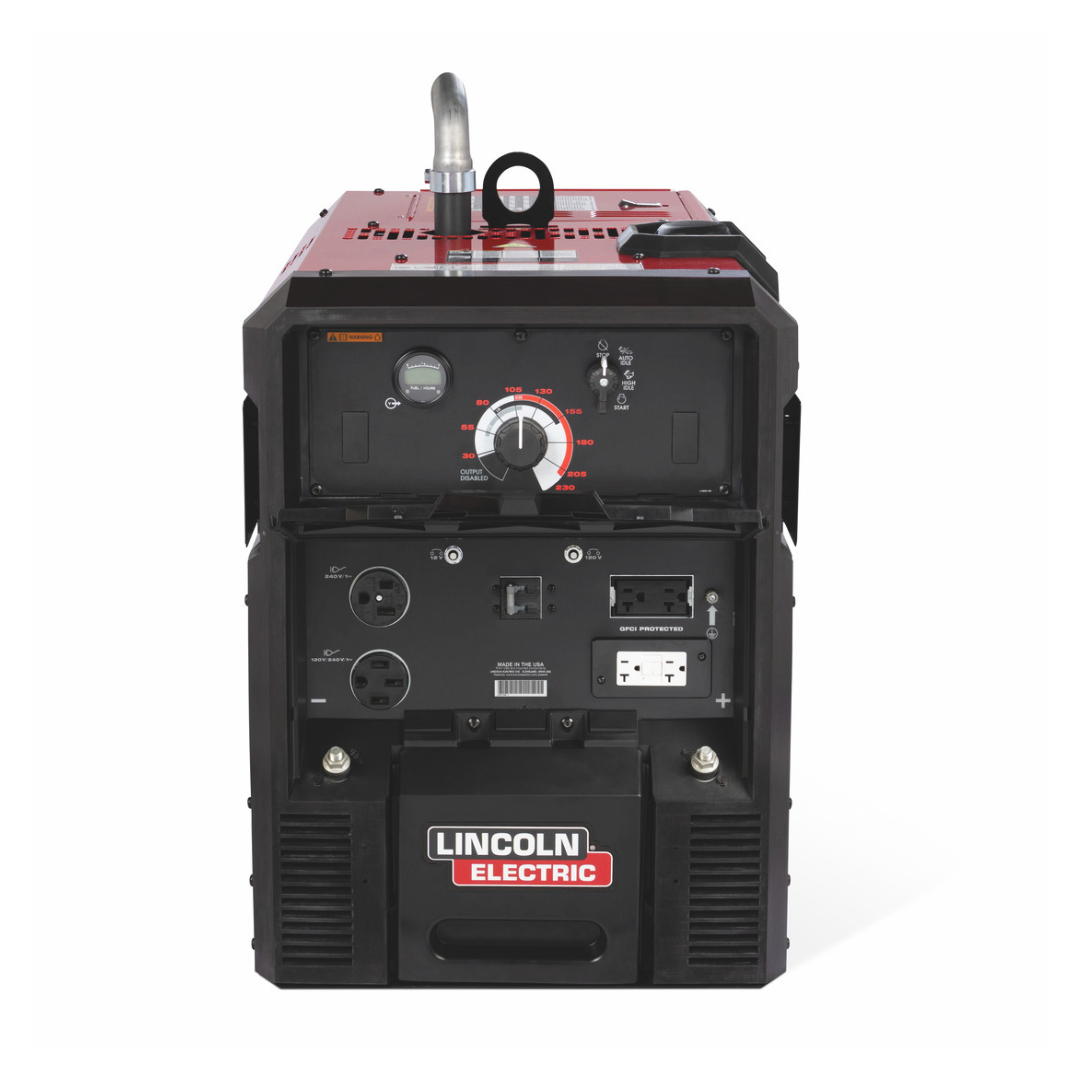

Lincoln Electric Eagle 10,000S Engine Driven Welder Generator (Rehlko)



The Eagle 10,000S delivers a smoother, more controlled stick welding experience in a smaller, lighter package. Fast-response welding technology helps provide easier starts, steadier arcs, and improved puddle control, giving operators greater confidence and consistency throughout the weld.

With more continuous generator power and clean auxiliary power for today’s jobsite equipment, the Eagle 10,000S is designed to help crews work efficiently while keeping operation and maintenance straightforward.

Key Features

  • One-knob, glove-friendly control — Faster setup with less adjustment on the job
  • High-quality stick welding — Reliable, consistent weld performance for everyday applications
  • Clean generator power — 10kW safely powers jobsite tools and equipment
  • Auto-idle — Reduces noise and fuel use when welding demand drops
  • Low-noise operation — Better for jobsite comfort and communication
  • GFCI-protected receptacles — Added protection when powering jobsite tools

Industry Leading Design

  • Reduced-weight, jobsite-mobile design — Easier transport and handling on site
  • IP23S-rated enclosure — Built for durability in tough outdoor conditions
  • Rear-engine layout — Easier access to service points
  • Front battery access — Faster battery service or replacement

Product Specifications

Product Name Eagle® 10,000S
Product Number K5941-2
IEC Rating @ 100% 204A/28.2V CC/Stick
227A/25.4V CV/Wire
Output Range 35-230A (CC), 15-30V (CV)
OCV Max 85VDC
Generator Power 10,500W (Peak), 9,500W (Continuous)
Voltage (Single Phase) 120/240V AC
Receptacles 14-50R Full kVA (40A @ 240VAC / 40A @ 120V ea branch), 5-20 (20A @ 120VAC total, GFCI protected)
Engine (Make & Model) Rehlko CH730
Engine Power 23.5hp
Engine Displacement 725 cc (44 in³)
Idle Speed 2,500 RPM, 3,600 RPM (High Idle Speed)
Fuel System Gasoline with electric fuel pump, 10% maximum ethanol
Fuel Capacity 11 gallon (42 l)
Battery 12V Group 26 500 CCA
Dimensions (HxWxD) 26.4 x 20 x 36.4 in (671 x 508 x 924 mm)
Weight 426 lbs (194 kg)

What's Included

  • (1) Eagle 10,000S Engine Driven Welder Generator

Eagle 10,000S Data Sheet
