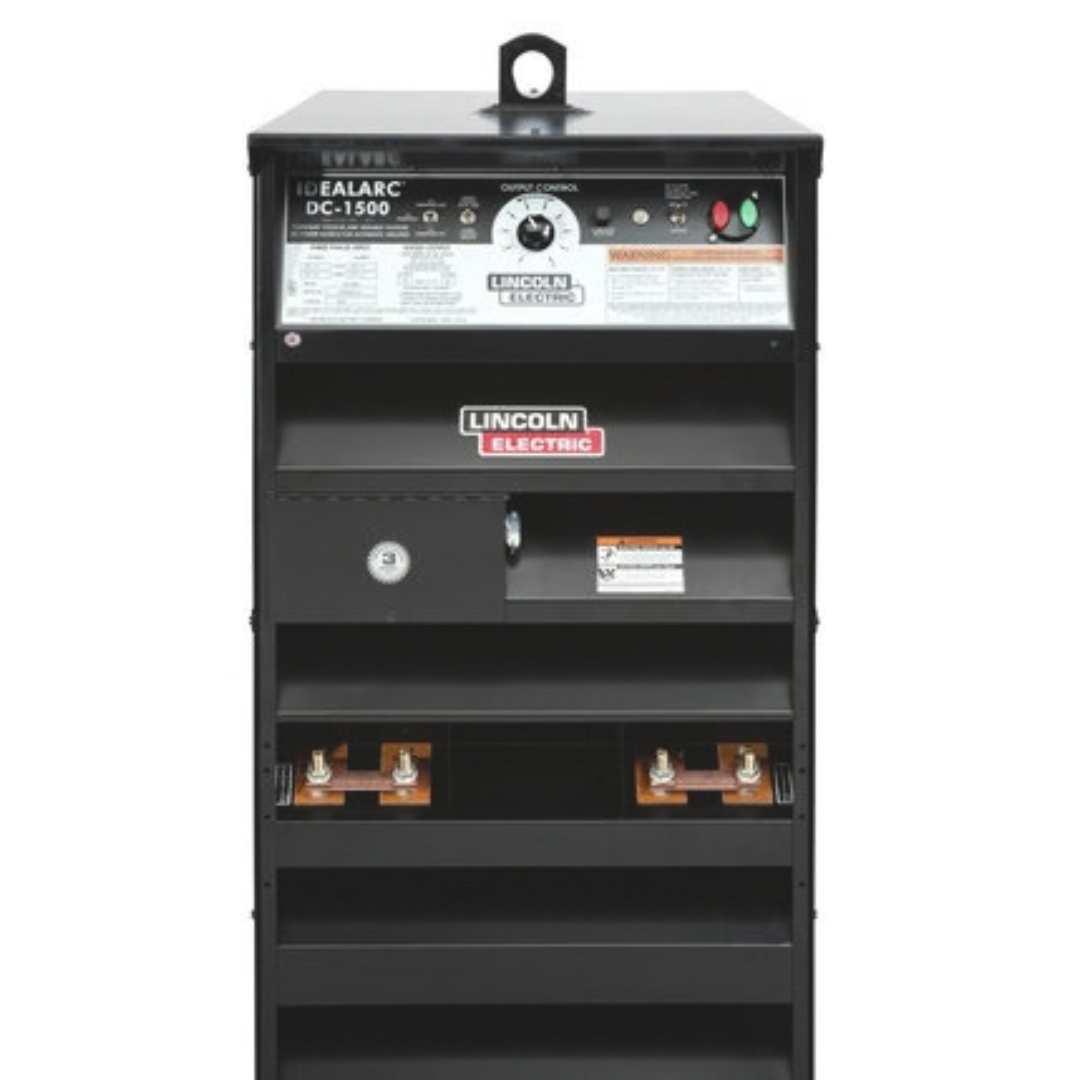

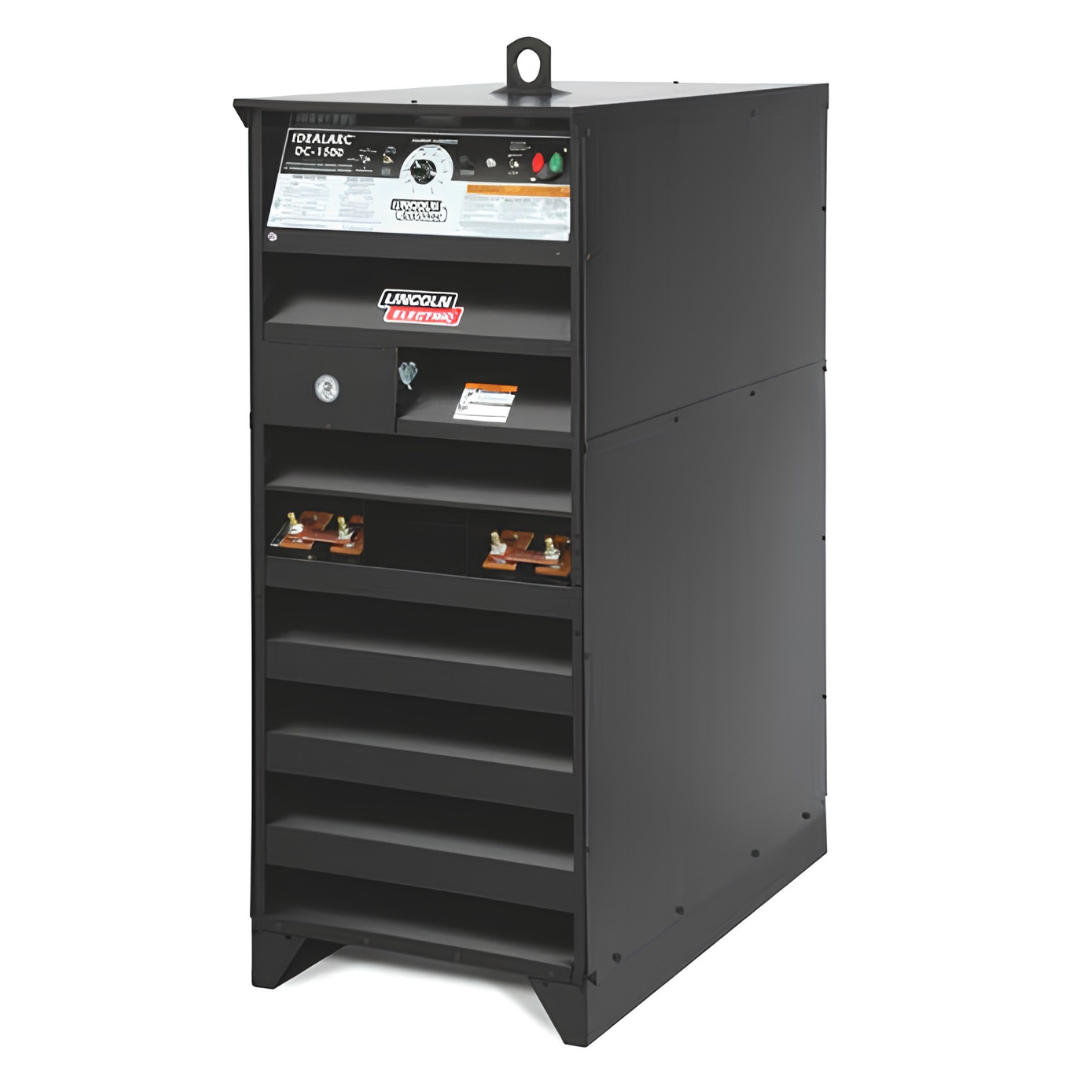

Lincoln Electric Idealarc DC-1500 Subarc Welder



Idealarc DC-1500 is a multi-process DC arc welding power source for submerged arc welding and FCAW processes.

The DC-1500 is designed for submerged arc welding, and FCAW processes within the capacity of the machine. It produces outstanding welding performance with a single range full output control potentiometer.

The precise output of the DC-1500 enhances productivity and quality control when used with Lincoln NA-3 and NA-5 automatic wire feeders, and the LT-7 tractor.

  • Solid state circuitry provides extra ling life for repetitive welding applications.
  • Full range output voltage control for easy operation and precise output control.
  • Mode switch used to select the desired output characteristics for the process being used.
  • Line voltage compensation for maintaining weld consistency, even with line voltage changes of ±10%.
  • Fan cooled with electronic and thermostatic protection from current overload and excessive temperatures.
  • Function lights built into the printed circuit boards speed diagnostics.
  • Windings and rectifiers protected against moisture and corrosive environments.
  • Eight amp fuse protected 115V wire feeder auxiliary power with 1000 volt-amp capacity.
  • Three-year warranty on parts and labor.
  • Seven-year warranty on the power rectifier.
  • Manufactured under a quality system certified to ISO 9001 requirements and ISO 14001 environmental standards.

Features

  • Line voltage compensation for maintaining weld consistency, even with line voltage changes of ±10%.
  • Fan cooled with electronic and thermostatic protection from current overload and excessive temperatures.
  • Windings and rectifiers protected against moisture and corrosive environments.
  • Three-year warranty on parts and labor; seven-year warranty on the power rectifier.
  • Part Number: K1275

    Machines sold as power source only, accessories are not included
