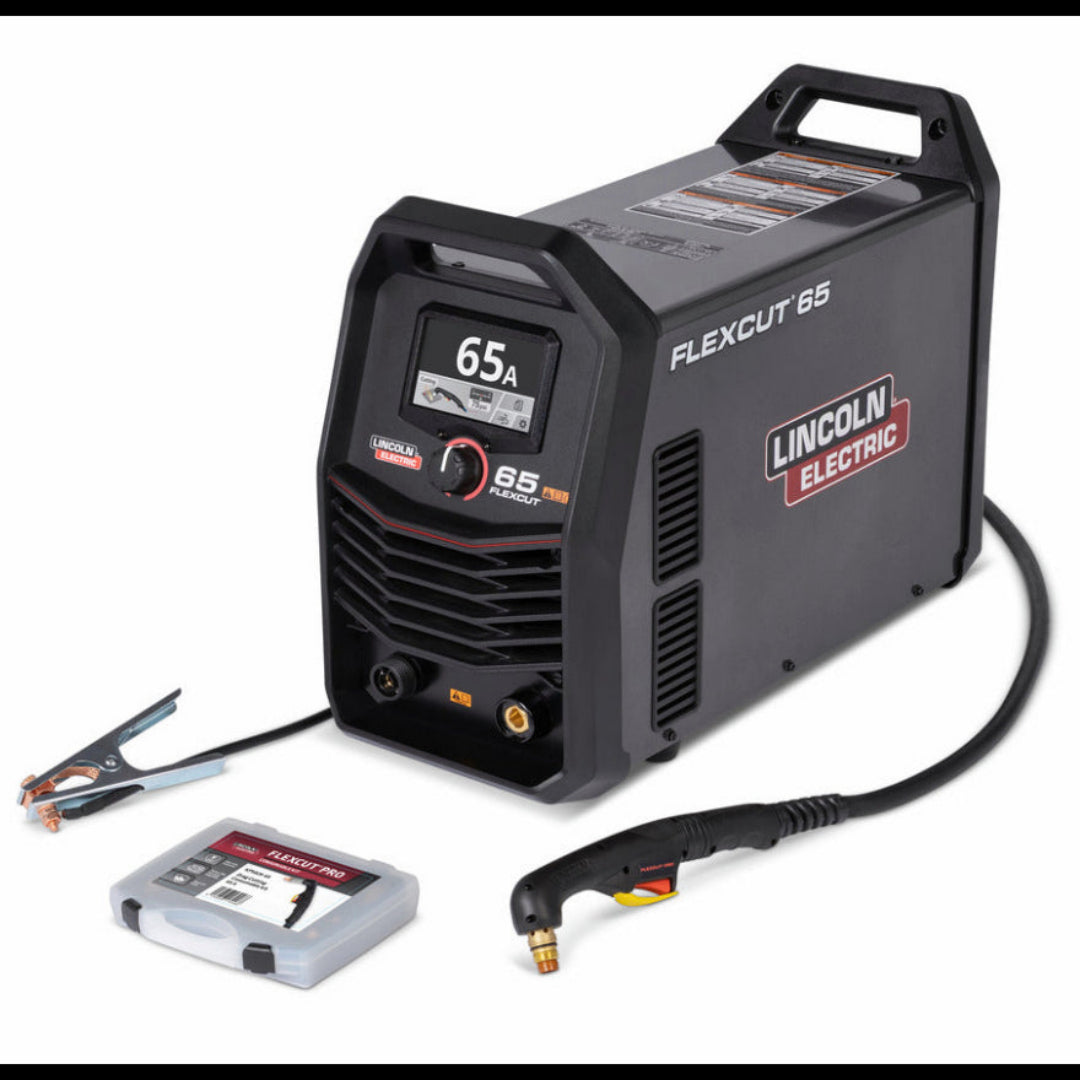

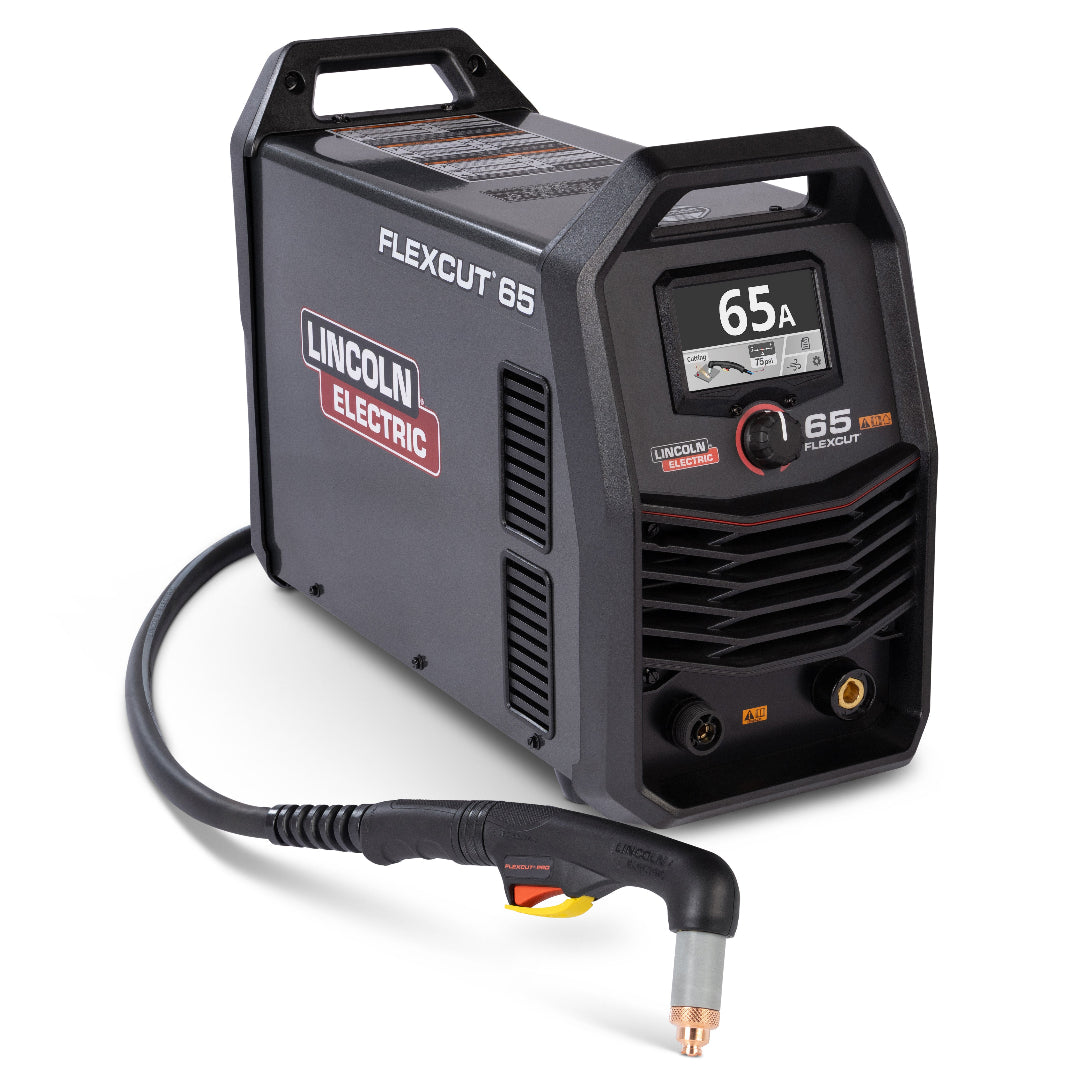

The FlexCut 65 delivers powerful, reliable performance for both handheld and mechanized applications. With eight plasma cutting processes, it’s built to handle a wide range of jobs with speed and precision.
CNC integration features built-in ports for easy setup and automatic detection, while the large LCD display provides clear, intuitive controls. Compatible with the FlexConnect Torch System, giving you the flexibility to switch between torch heads or cables in seconds.
The Lincoln Electric Flexcut 65 features an industry-best 5-Year Warranty
Value Added Features |
||
|
•65 Amps of Cutting Power: Tackle thicker materials with confidence and precision
|
•High Duty Cycle: Built for demanding applications without overheating or slowing down.
|
|
|

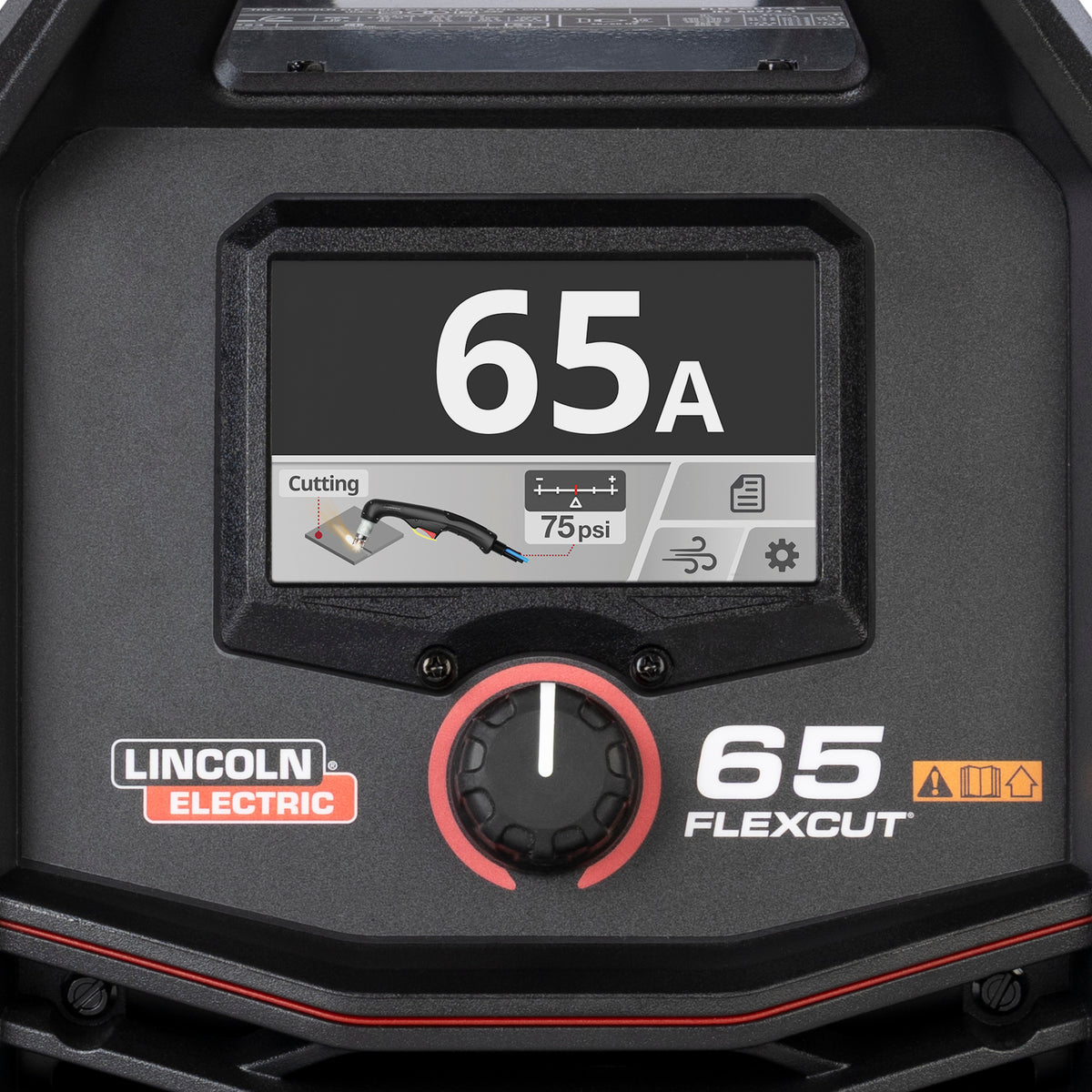

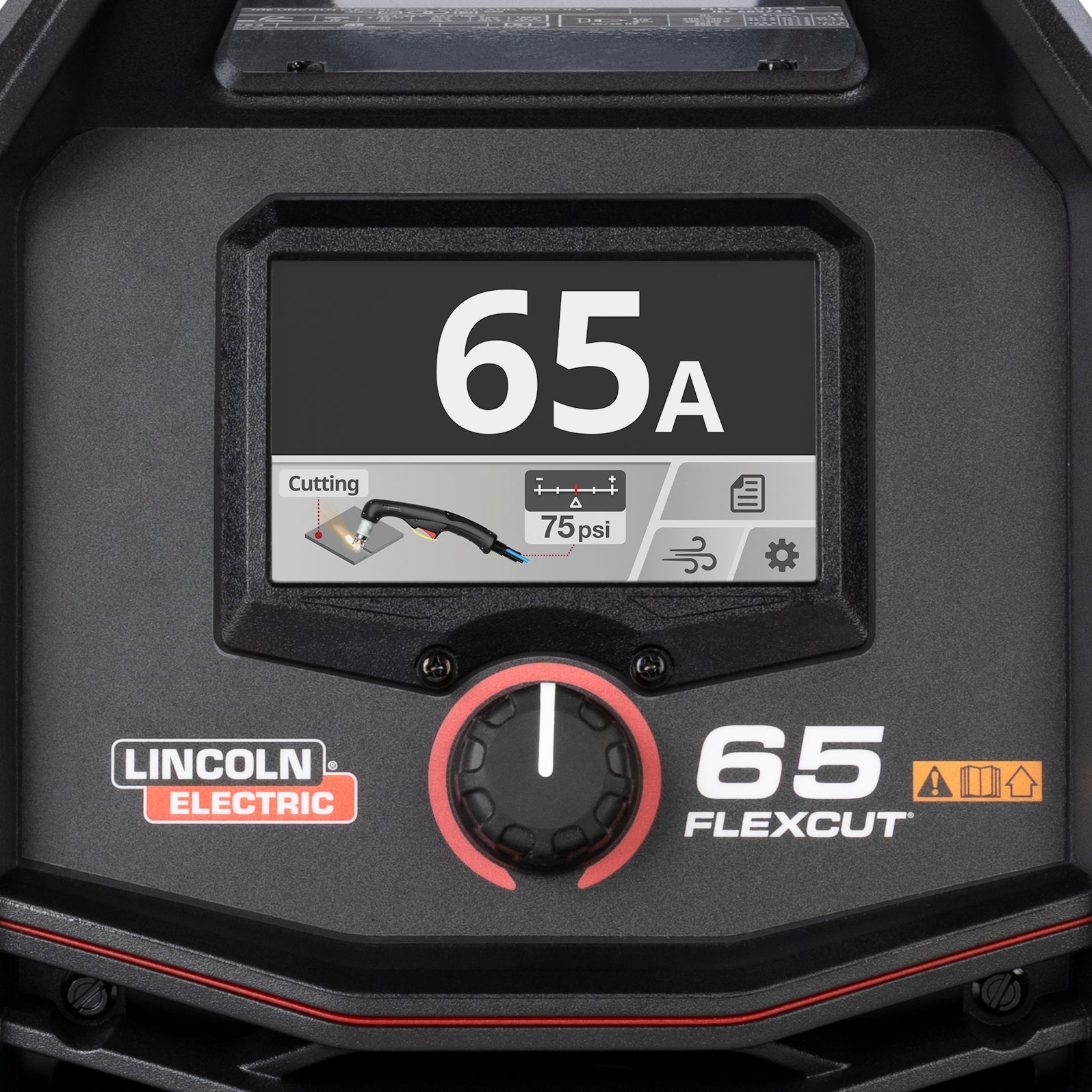

•LCD Display: Bright, easy-to-read screen with simple controls for quick and precise adjustments.
|
•Plug-and-Play CNC Integration: Seamless integration with CNC tables with automatic table detection for fast, precise setup.
|
|
|
•Multi-Process Capability: Drag cutting, fine cutting, gouging, and marking with one machinefor maximum versatility.
|
•Portable Yet Rugged: Portable design without compromising strength—easy to move, hard to damage
|
|
|
•Input Power Flexibility: Compatible with both 1-phase and 3-phase power
|
•Industrial IP23 Protection: Resists dust and water spray for dependable performance in challenging conditions.
|
|
| Specification Category | Details |
| Product Number | K5825-H |
| Input Power |
200V - 600V (Single Phase or Three Phase, 50/60 Hz)
|
| Rated Output (3-Phase) |
65A / 104V / 70% Duty Cycle 55A / 102V / 100% Duty Cycle
|
| Rated Output (1-Phase) |
65A / 104V / 50% Duty Cycle 45A / 98V / 100% Duty Cycle
|
| Output Current Range | 15 - 65 Amps |
| Recommended Cut (Mild Steel) |
3/4" (19 mm) @ 20 ipm
|
| Max Cut (Mild Steel) |
1" (25 mm) @ 10 ipm
|
| Max Severance (Mild Steel) |
1-1/4" (32 mm) @ 5 ipm
|
| Air Pressure Required |
90 - 120 PSI (6.2 - 8.3 bar)
|
| Dimensions (H x W x D) |
15 in x 11.5 in x 24.3 in (381 x 292 x 617 mm)
|
| Net Weight | 62 lbs (28.1 kg) |
| Torch Connection |
FlexConnect™ Torch System
|
Full Product Data Sheet | All Lincoln Electric FlexCut Plasma Products
