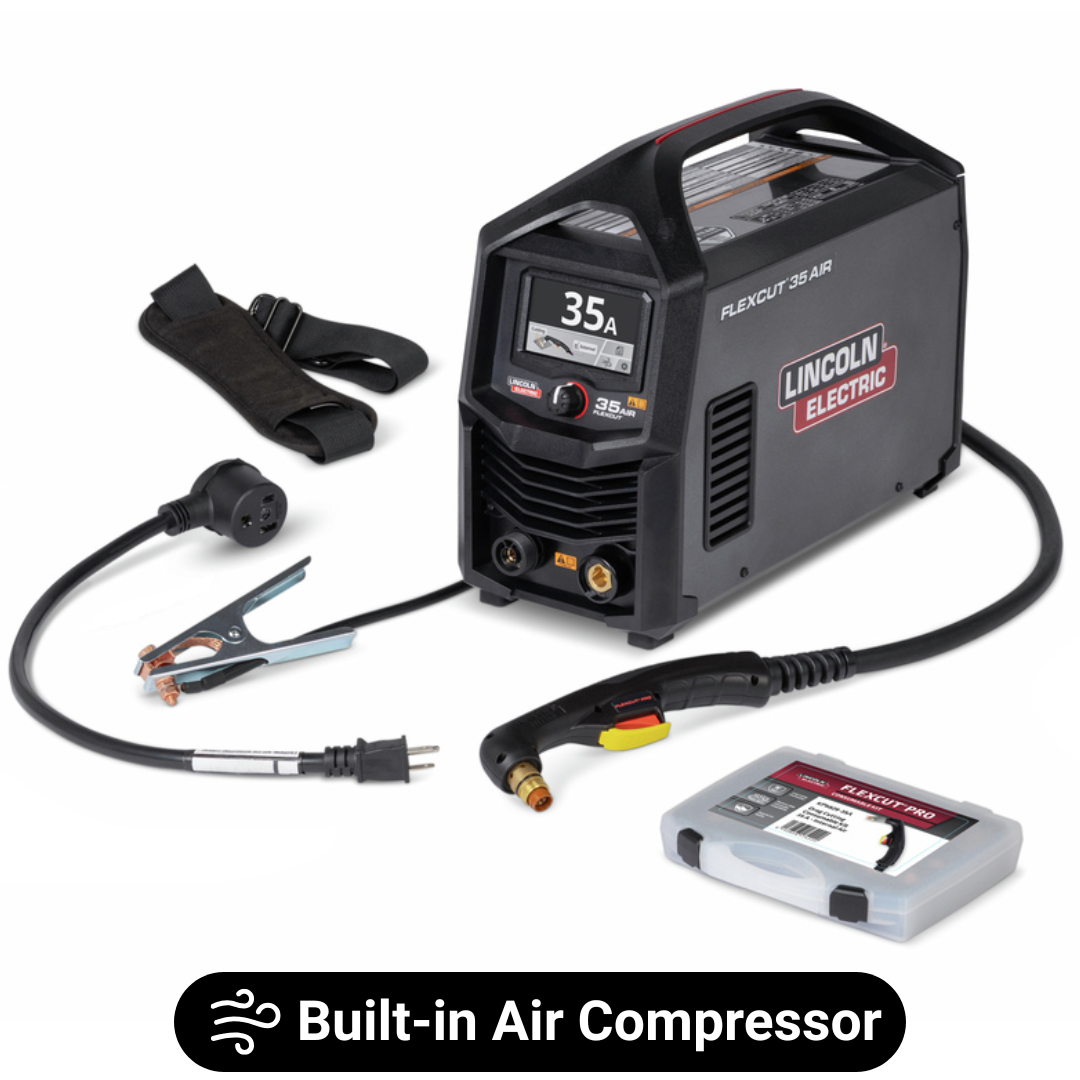

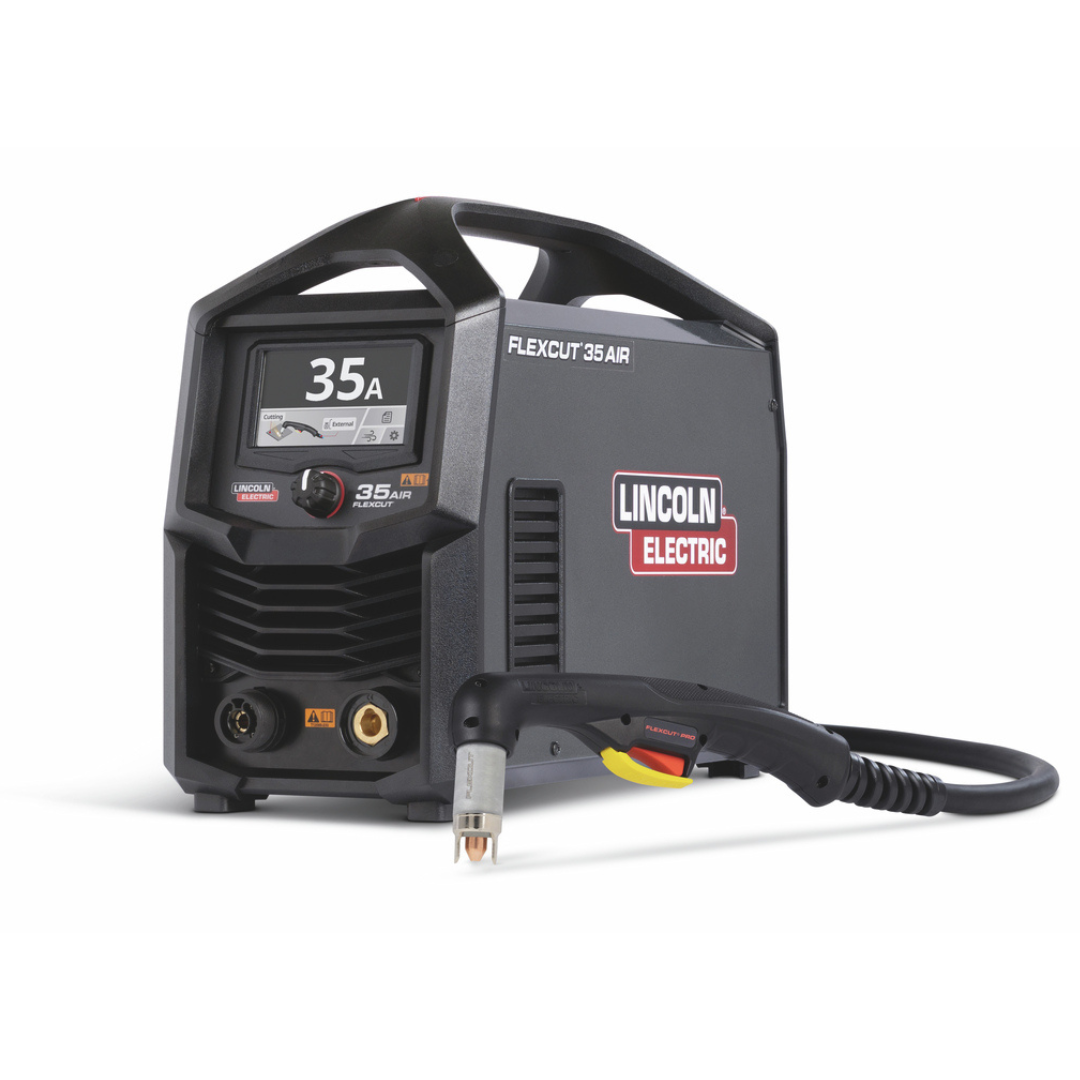

The FlexCut™ 35 Air delivers reliable cutting performance for small projects and light fabrication work. With steady power, consistent output, and a built-in air compressor, it keeps you moving without the need for shop air. The self contained design makes setup faster, enhances portability, and ensures clean, reliable cuts anywhere you work.
Built for versatility and ease of use, it offers precision and durability in a compact package. Perfect for everyday cutting of mild steel, aluminum, stainless steel, and grating, it’s designed to run efficiently while keeping operation simple.
The Lincoln Electric Flexcut 35 AIR features an industry-best 5-Year Warranty
Value Added Features |
||
|
•35 Amps of Cutting Power: Tackle thicker materials with confidence and precision
|
•High Duty Cycle: Built for demanding applications without overheating or slowing down.
|
|
|

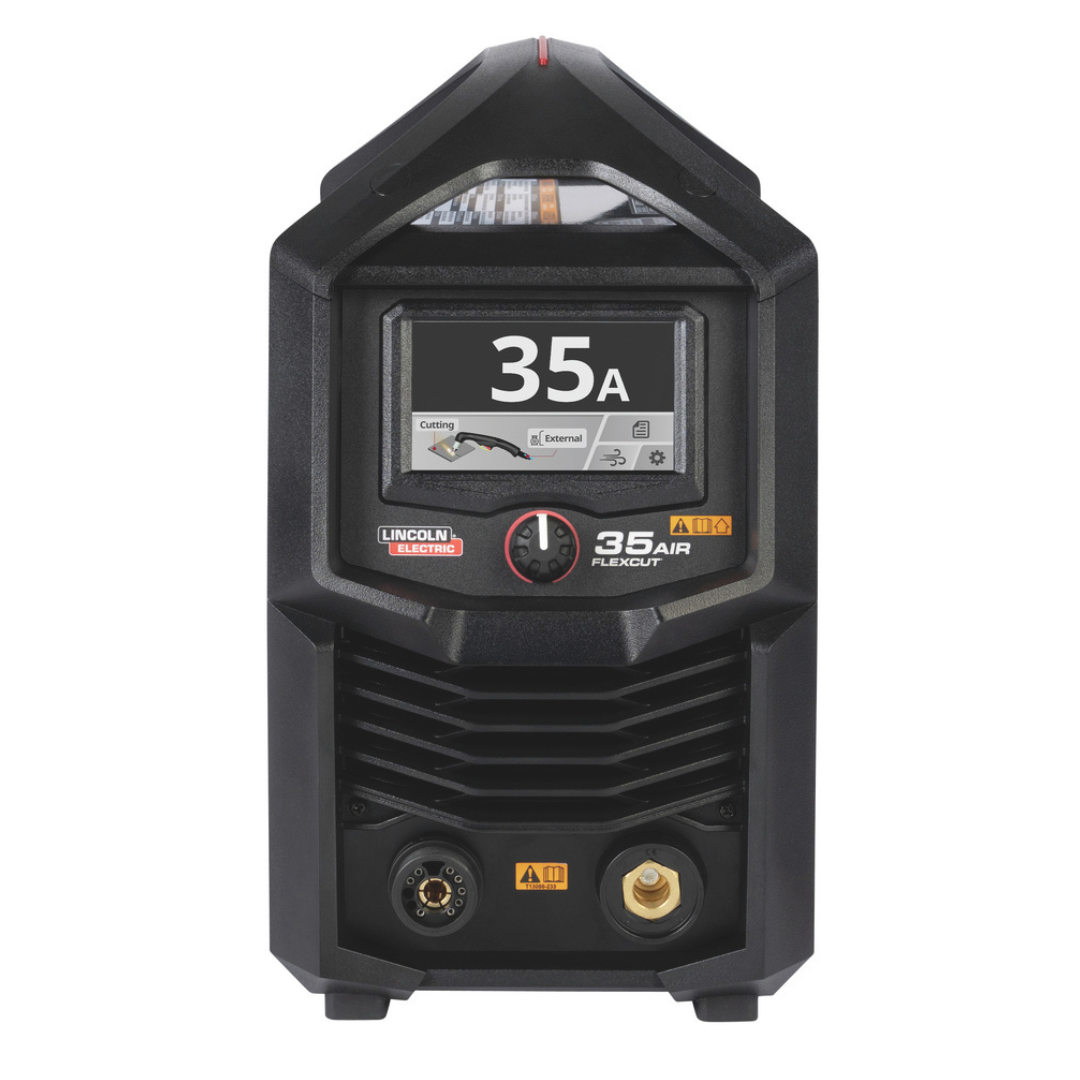

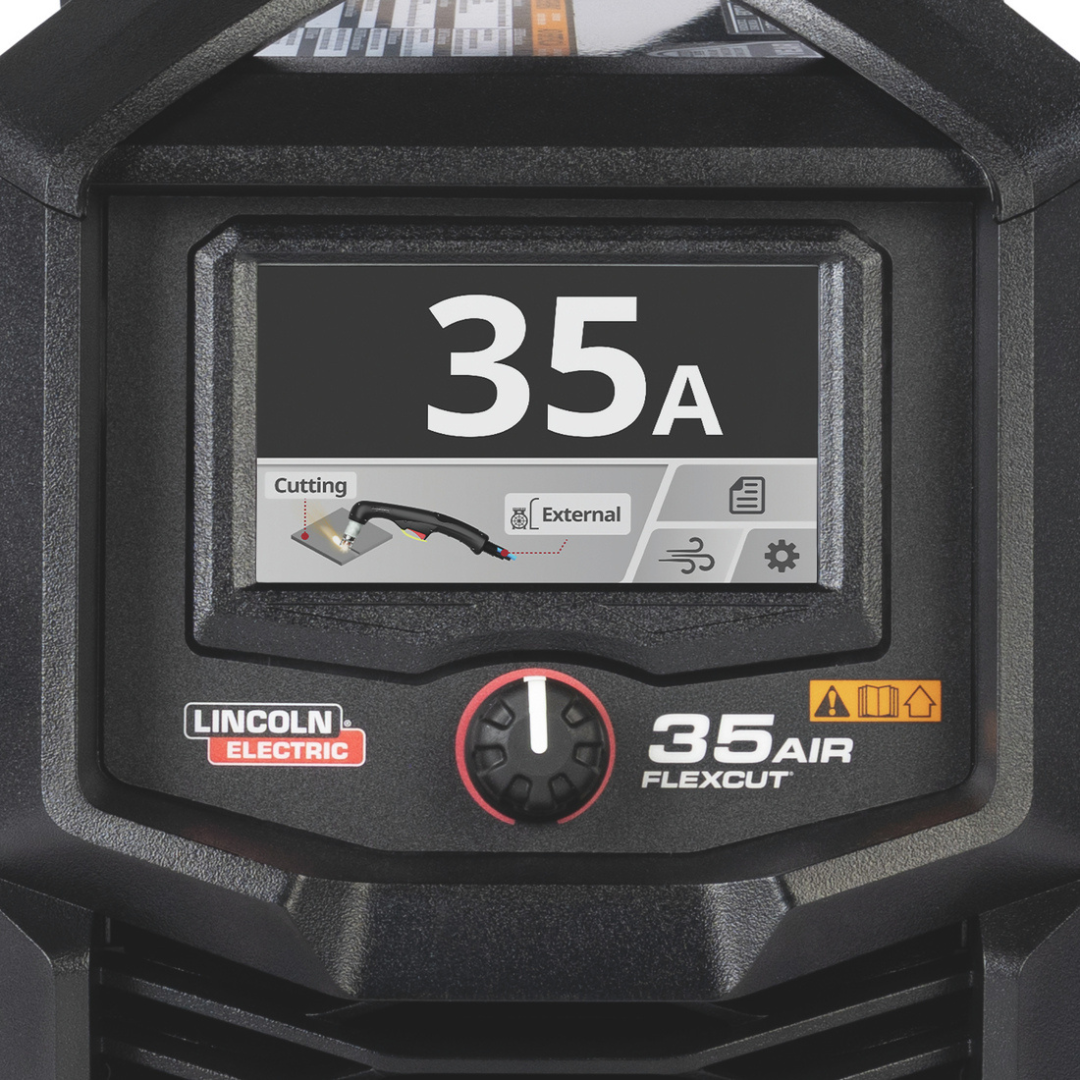

•LCD Display: Bright, easy-to-read screen with simple controls for quick and precise adjustments.
|
•Dual Voltage Flexibility: Plug into 120V or 230V power sources.
|
|
|
•Multi-Process Capability: Drag cutting and fine cutting with one machine for maximum versatility.
|
•Portable Yet Rugged: Portable design without compromising strength—easy to move, hard to damage
|
|
|
•Engine Drive Compatible: Easy power your Flexcut in remote locations with a Lincoln Electric– recommended engine-driven welder/generator
|
•Industrial IP23S Protection: Resists dust and water spray for dependable performance in challenging conditions.
|
|
| Specification | Details |
| Product Number |
K5822-H (Handheld Package)
|
| Input Power |
120V / 240V (Single Phase, 50/60 Hz)
|
| Rated Output (at 230V) |
35A @ 35% Duty Cycle 31A @ 60% Duty Cycle 21A @ 100% Duty Cycle
|
| Rated Output (at 120V) |
27A @ 20% Duty Cycle
|
| Output Current Range | 15 - 35 Amps |
| Recommended Cut (Mild Steel) |
1/4" (6 mm) @ 20 ipm
|
| Maximum Cut (Mild Steel) |
3/8" (10 mm) @ 10 ipm
|
| Severance Cut (Mild Steel) |
1/2" (13 mm) @ 5 ipm
|

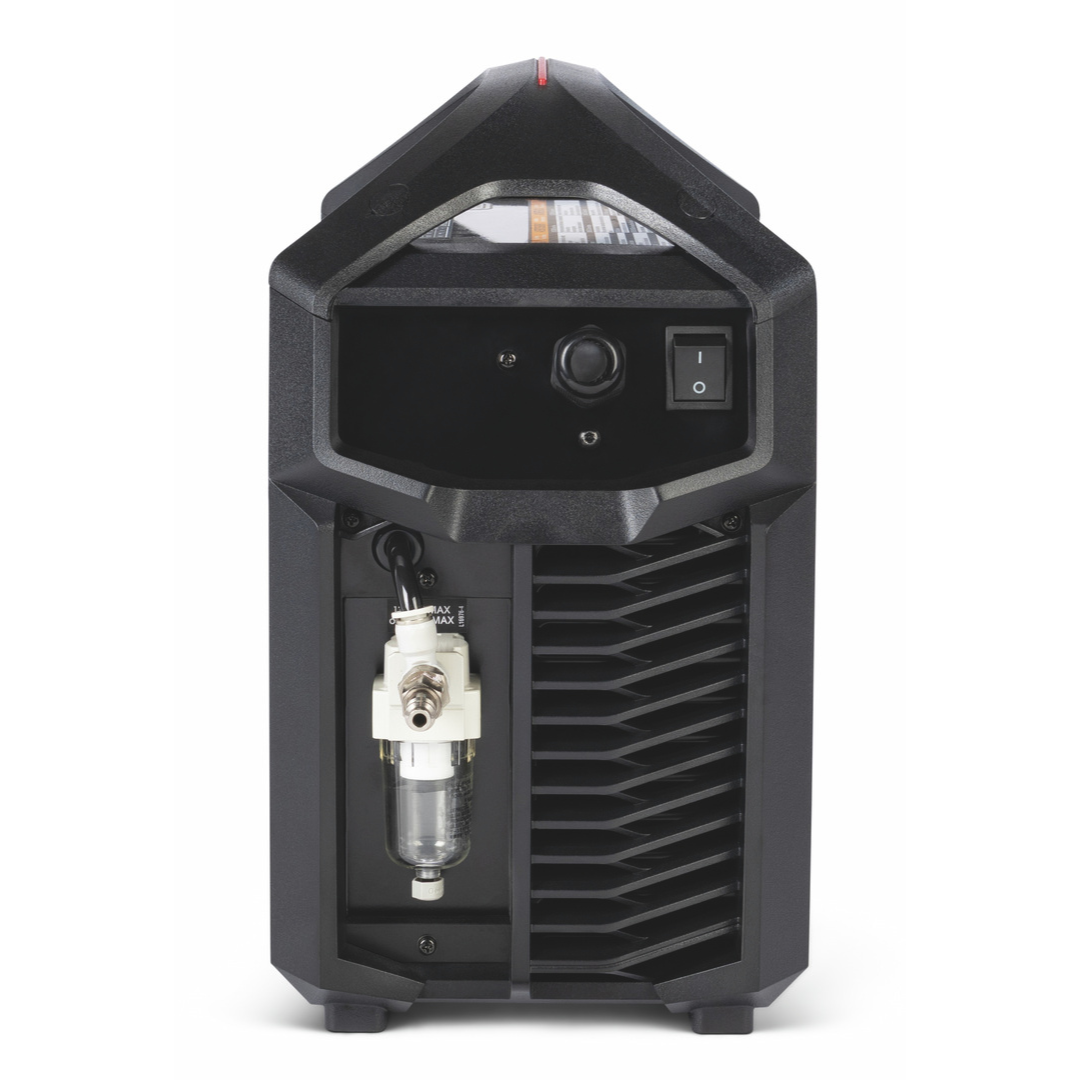

| Air Source |
Internal Compressor or External Air
|
| External Air Pressure (if used) | 90 - 130 PSI |
| Dimensions (H x W x D) |
18.4 in x 8.1 in x 14.1 in (468 x 205 x 359 mm)
|
| Net Weight | 35 lbs (15.9 kg) |
Full Product Data Sheet | All Lincoln Electric FlexCut Plasma Products
