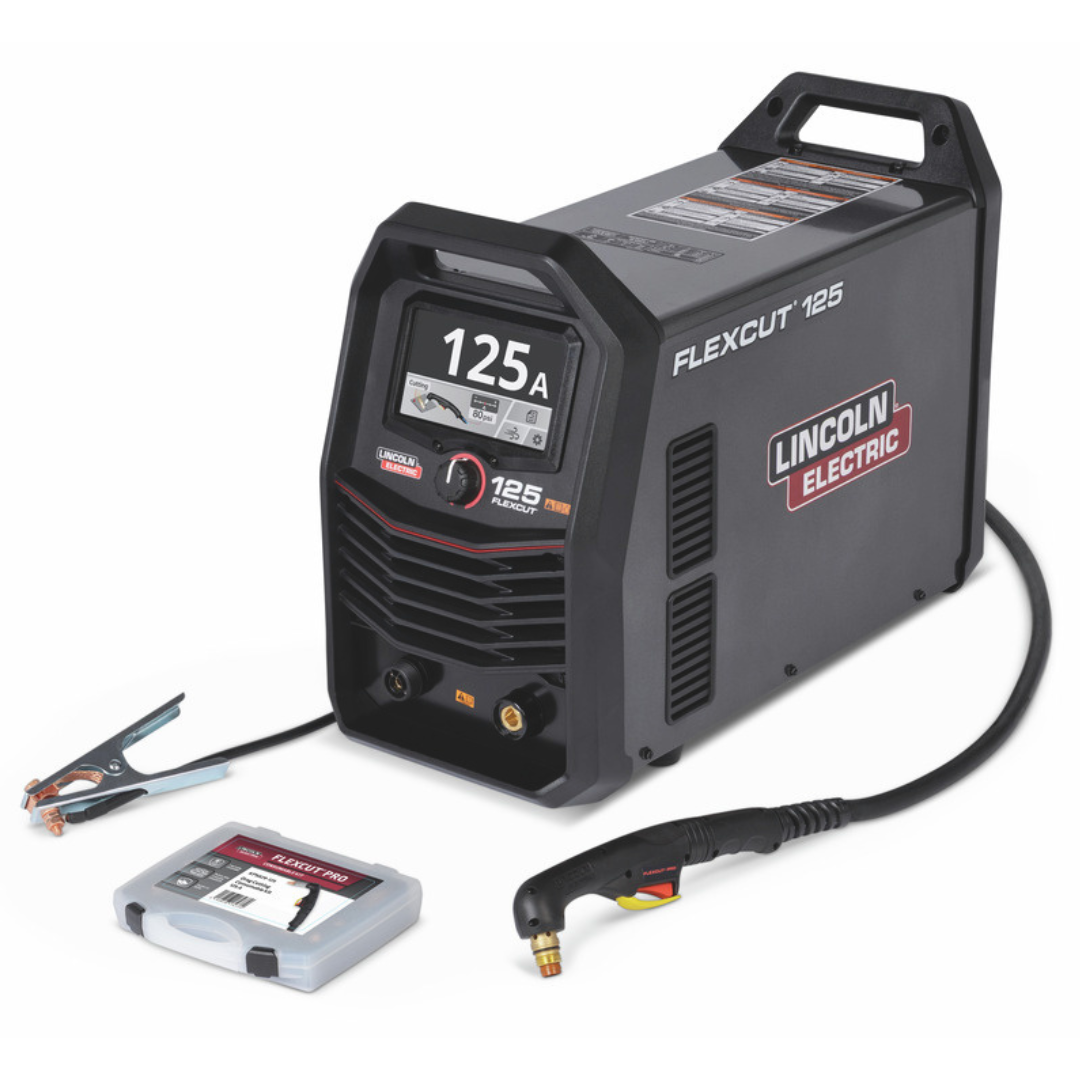

The FlexCut™ 125 delivers reliable, high-duty-cycle performance built for demanding industrial environments. Advanced CNC integration includes built-in ports, automatic table detection, and machine torch compatibility for seamless automated cutting.
With an industrial IP23-rated enclosure, reinforced components, and shock-resistant housing, it stands up to dust, water spray, and the rigors of daily use. Compatible with the FlexConnect™ Torch System, giving you the flexibility to switch between torch heads or cables in seconds.
The Lincoln Electric Flexcut 125 features an industry-best 5-Year Warranty
Value Added Features |
||
|
•125 Amps of Cutting Power: Tackle thicker materials with confidence and precision
|
•High Duty Cycle: Built for demanding applications without overheating or slowing down.
|
|
|

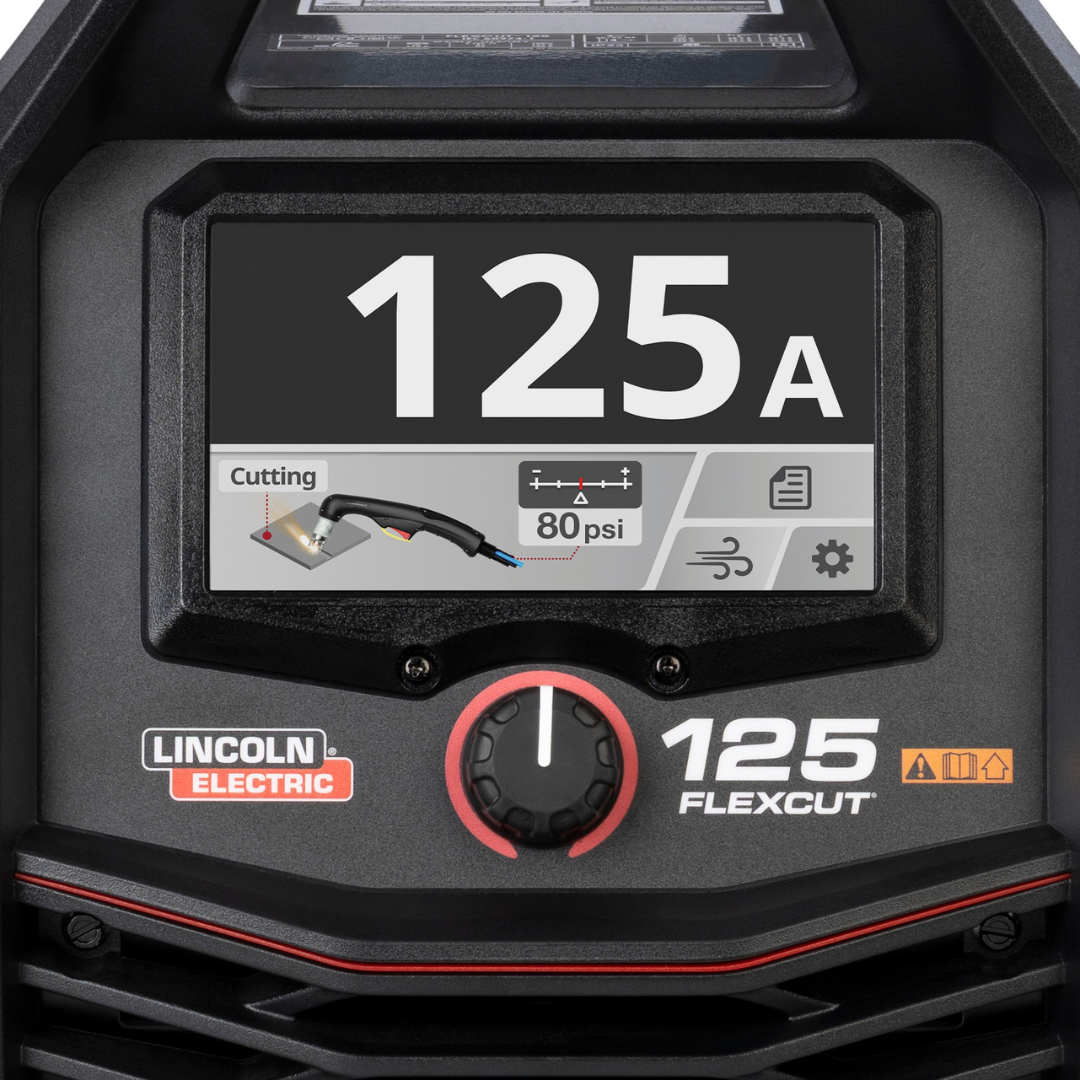

•LCD Display: Bright, easy-to-read screen with simple controls for quick and precise adjustments.
|

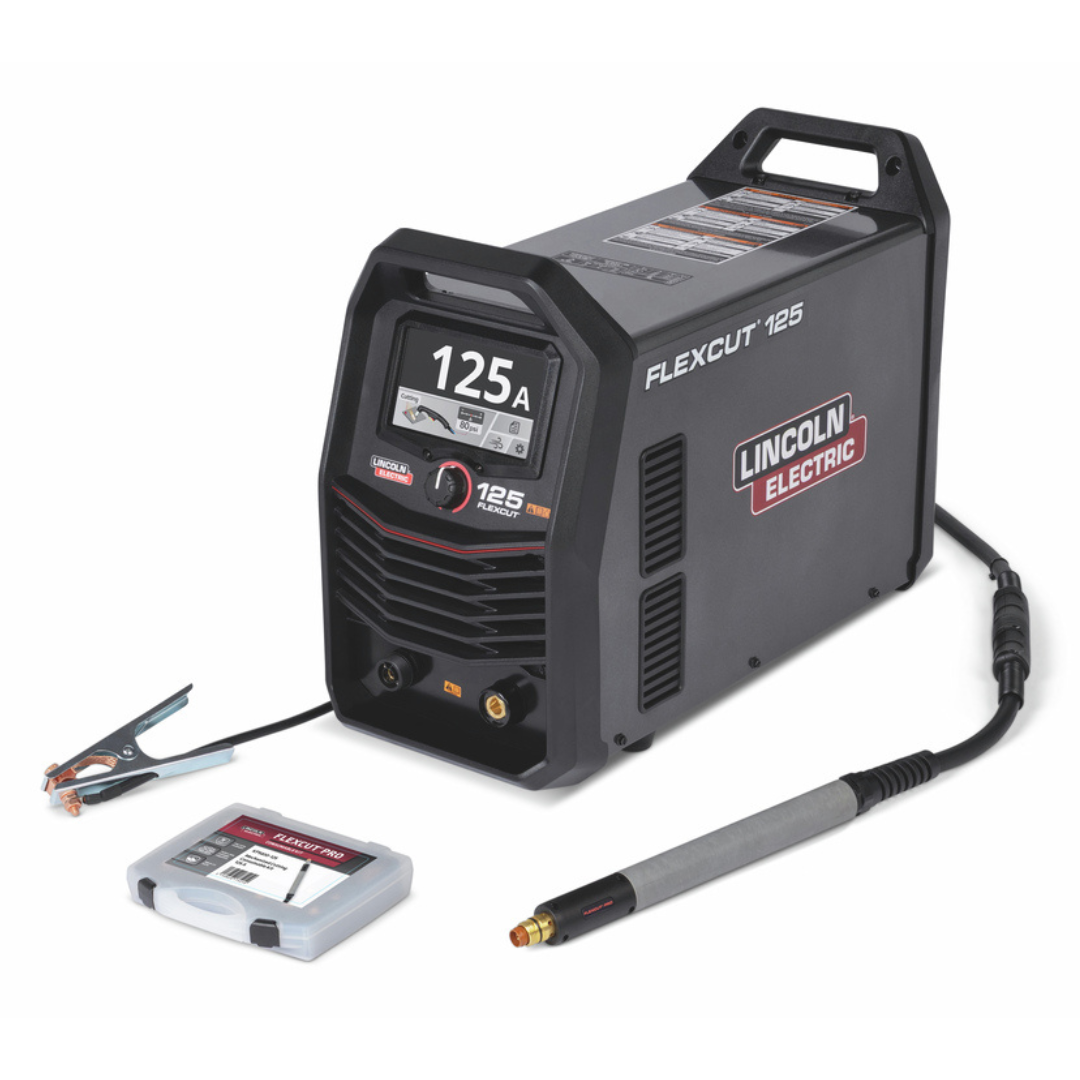

•Plug-and-Play CNC Integration: Seamless integration with CNC tables with automatic table detection for fast, precise setup.
|
|
|
•Multi-Process Capability: Drag cutting, fine cutting, gouging, and marking with one machinefor maximum versatility.
|
•Portable Yet Rugged: Portable design without compromising strength—easy to move, hard to damage
|
|
|

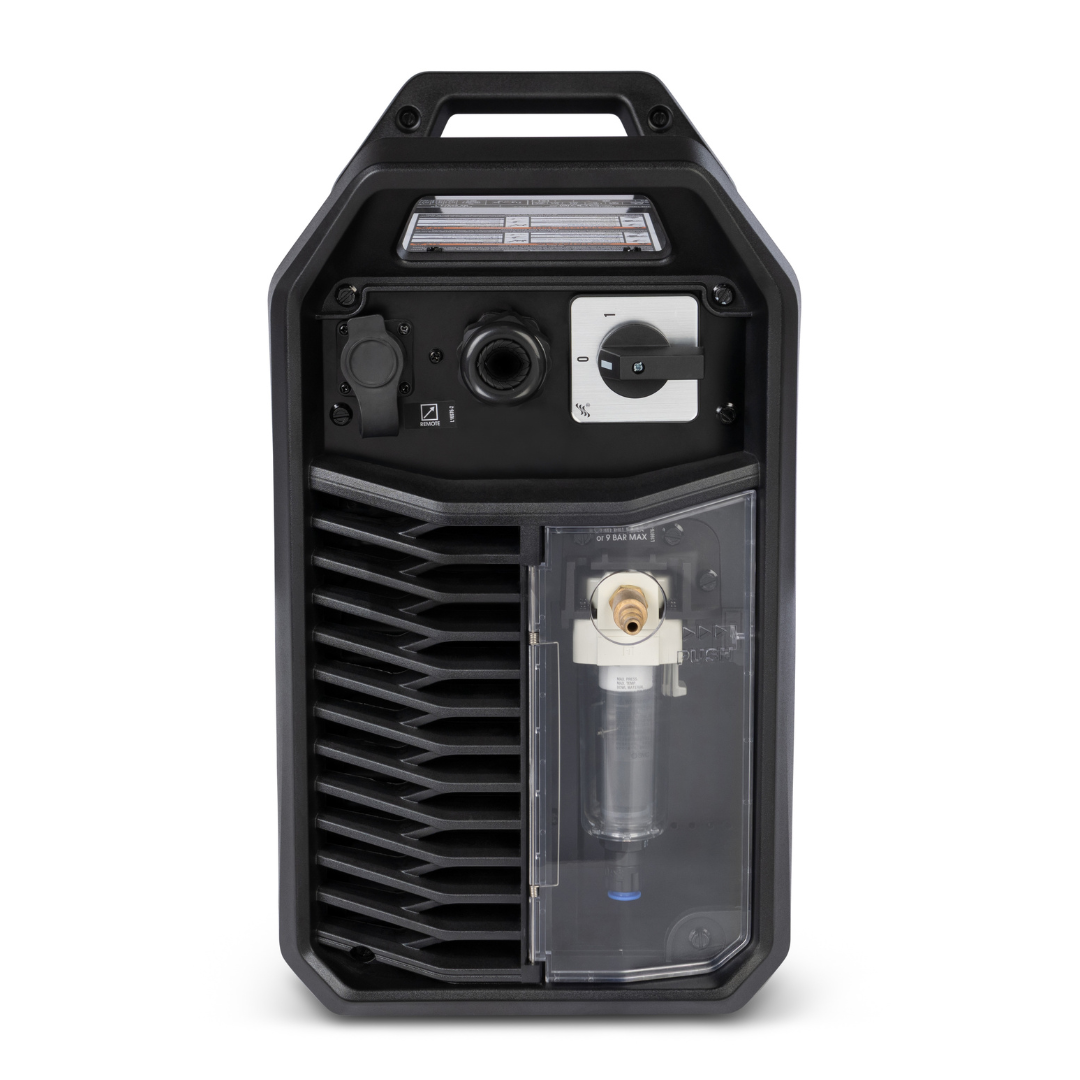

•Input Power Flexibility: Compatible with both 1-phase and 3-phase power
|
•Industrial IP23 Protection: Resists dust and water spray for dependable performance in challenging conditions.
|
|
| Specification | Details |
| Product Number |
K5828-H (Handheld)
|
| Input Power |
400V - 600V (3-Phase, 50/60 Hz)
|
| Rated Output |
125A / 100% Duty Cycle (at 400-600V, 3-PH)
|
| Output Current Range | 30 - 125 Amps |
| Recommended Cut (Mild Steel) |
1-1/2" (38 mm) @ 15 ipm
|
| Maximum Cut (Mild Steel) |
1-3/4" (44 mm) @ 10 ipm
|
| Severance (Mild Steel) |
2-1/4" (57 mm) @ 5 ipm
|
| Pierce Thickness | 1" (25 mm) |
| Air Pressure Required | 90 - 130 psi |
| Dimensions (H x W x D) |
27.2 in x 11.5 in x 18.6 in (691 x 292 x 472 mm)
|
| Net Weight | 90.6 lbs (41 kg) |
| Torch Connection |
FlexConnect™ Torch System
|
