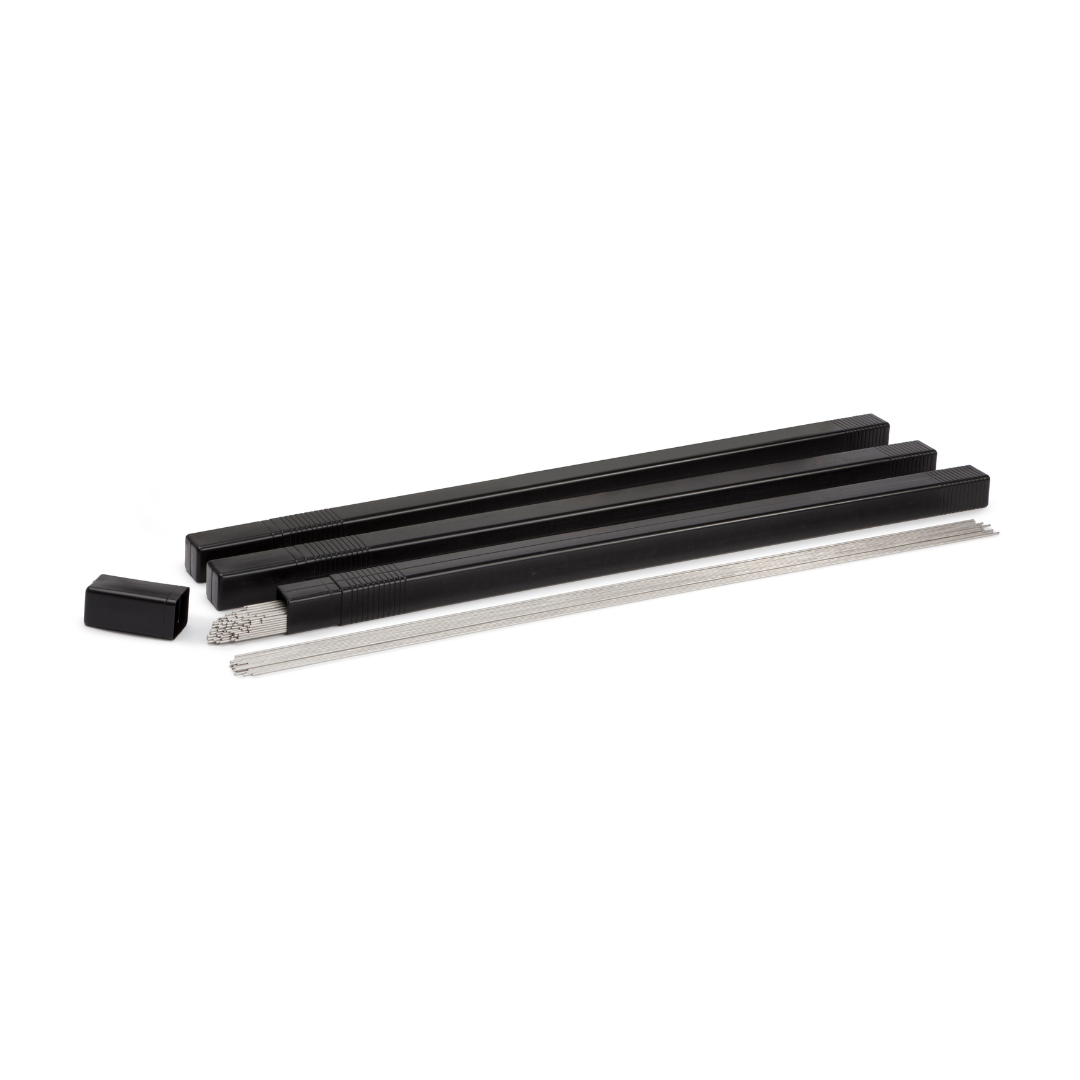

Lincoln Electric ER316/316L TIG Rod
Lincoln Electric Logo

Lincoln Electric ER316/316L TIG Rod

$95.00
$95.00
0% OFF Sold Out
0 In Stock, Available to Order Ships in 5 – 9 business days
Upsell Product Image-5

317L Stainless Steel TIG Rod

$103.00
Upsell Product Image-6

2209 Duplex Stainless Steel TIG Rod

$117.00
Upsell Product Image-7

5000T Dissimilar Metals Cast Iron TIG Rod

$26.00
Upsell Product Image-8

Lincoln Electric ER308 / 308L TIG Rod

$77.00

Lincoln Electric ER316/316L TIG Rod


LINCOLN® ER316/316L provides improved pitting corrosion resistance due to the 2-3% molybdenum content, while the 0.03% maximum carbon content increases resistance to intergranular corrosion. Also used in high temperature service applications.

Features

  • The 2-3% molybdenum improves pitting corrosion resistance of the weld deposit
  • Molybdenum grade increases corrosion resistance
  • Use for high temperature service applications
  • 0.03% carbon content increases resistance to intergranular corrosion
  • Ink jet printing identification on entire length of electrode
  • Q2 Lot® - Certificate showing actual wire composition and calculated ferrite number (FN) available online

Typical Applications

  • Sheet metal
  • High pressure piping and tubing
  • Use for welding similar alloys containing approximately 2% molybdenum

Welding Positions

  • All

Shielding Gas

  • 100% Argon

Available Options & Sizes

Diameters 10 lb (4.5 kg) Plastic Tube
1/8 in (3.2 mm) ED034447
1/16 in (1.6 mm) ED025428
3/32 in (2.4 mm) ED025431
5/32 in (4.0 mm) ED036061
