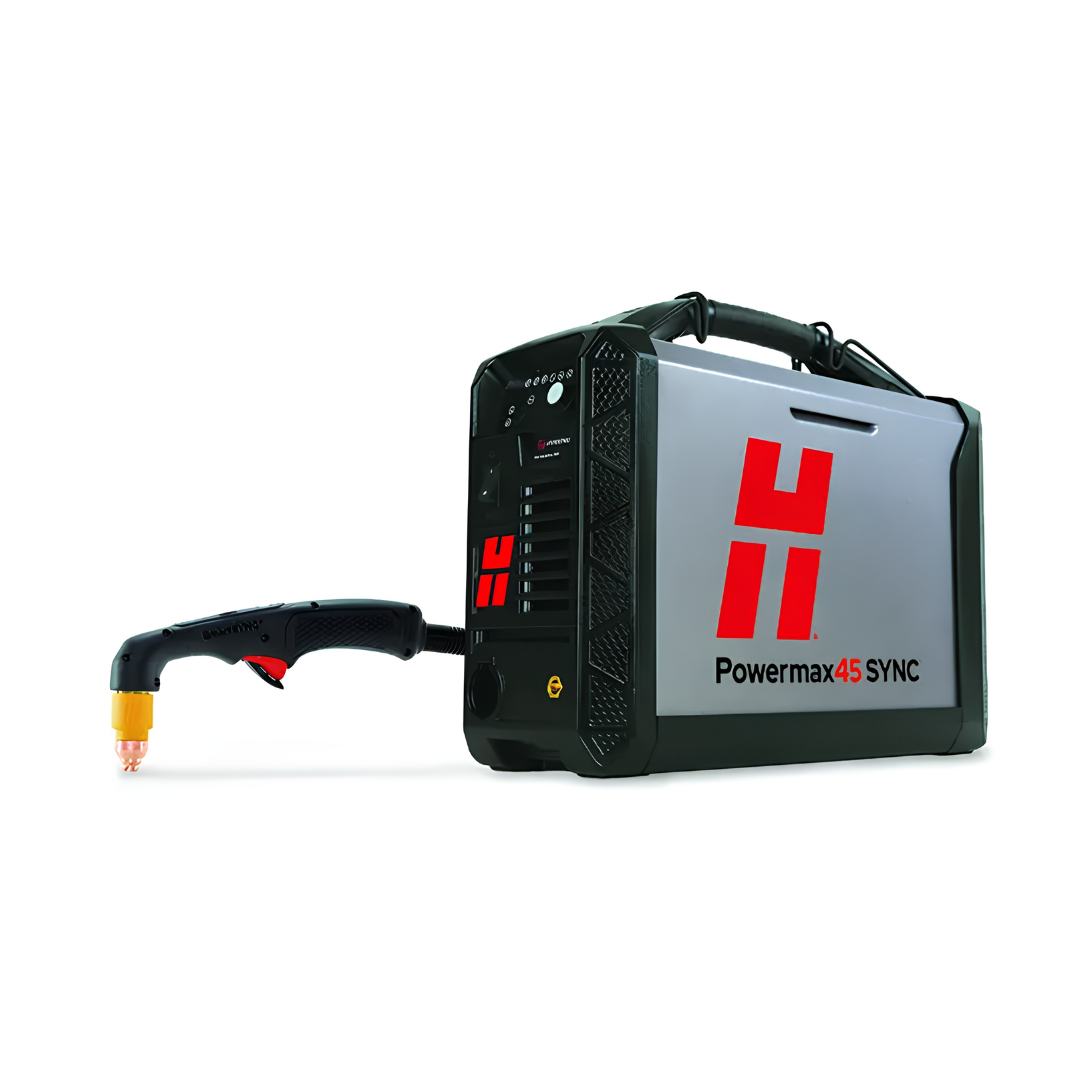

Hypertherm Powermax45 SYNC Plasma Cutter



For metal workers who want the most versatile system available to gouge, cut, and mark, Powermax45 SYNC delivers the best return on investment with a patented single-piece cartridge, up to 5x longer consumable life, and greater cutting power than higher-amperage competitors.

Features

  • SmartSYNC Technology: RFID-enabled torches and cartridges automatically set the correct amperage and operating mode, preventing setup errors.
  • Simplified Operation: Single-piece, color-coded cartridges replace traditional multi-piece consumable stacks.
  • End-of-life Detection: The system automatically notifies the operator when a cartridge is fully consumed.
  • On-torch Controls: Hand torch operators can adjust amperage and switch applications directly from the torch handle without returning to the power supply.
  • SpringStart Technology: Ensures consistent starting and extends torch reliability.
  • Application Versatility: Designed for drag cutting, fine feature cutting, max control/removal gouging, mechanized cutting, and marking.
Specification Details
Recommended Cut Capacity 16 mm (5/8″) at 500 mm/min (20 ipm)
Severance Cut Capacity 29 mm (1-1/8″) at 125 mm/min (5 ipm)
Pierce Capacity 12 mm (1/2″)
Gouge Capacity (Removal Rate) 3.4 kg (7.5 lbs.) per hour
Input Voltages 200–240 V, 1-PH (CSA) / 480 V, 3-PH
Output Current 9–45 A
Dimensions (with handles) 442 mm D x 173 mm W x 357 mm H (17.4″ x 6.8″ x 14.1″)
Weight (with 6.1 m / 20′ torch) 14 kg (31 lbs.) (CSA) / 15 kg (33 lbs.) (CE/CCC)
Required Gas Air (clean, dry, and oil-free), Nitrogen, or F5
Warranty Power supply: 6-year; Torch: 1-year

What's Included

  • 200–240 V CSA standard power supply
  • 75° handheld SmartSYNC torch
  • 6.1 m (20′) torch lead
  • Work cable with hand clamp
  • Hypertherm starter cartridge
  • Product information and operator manuals
