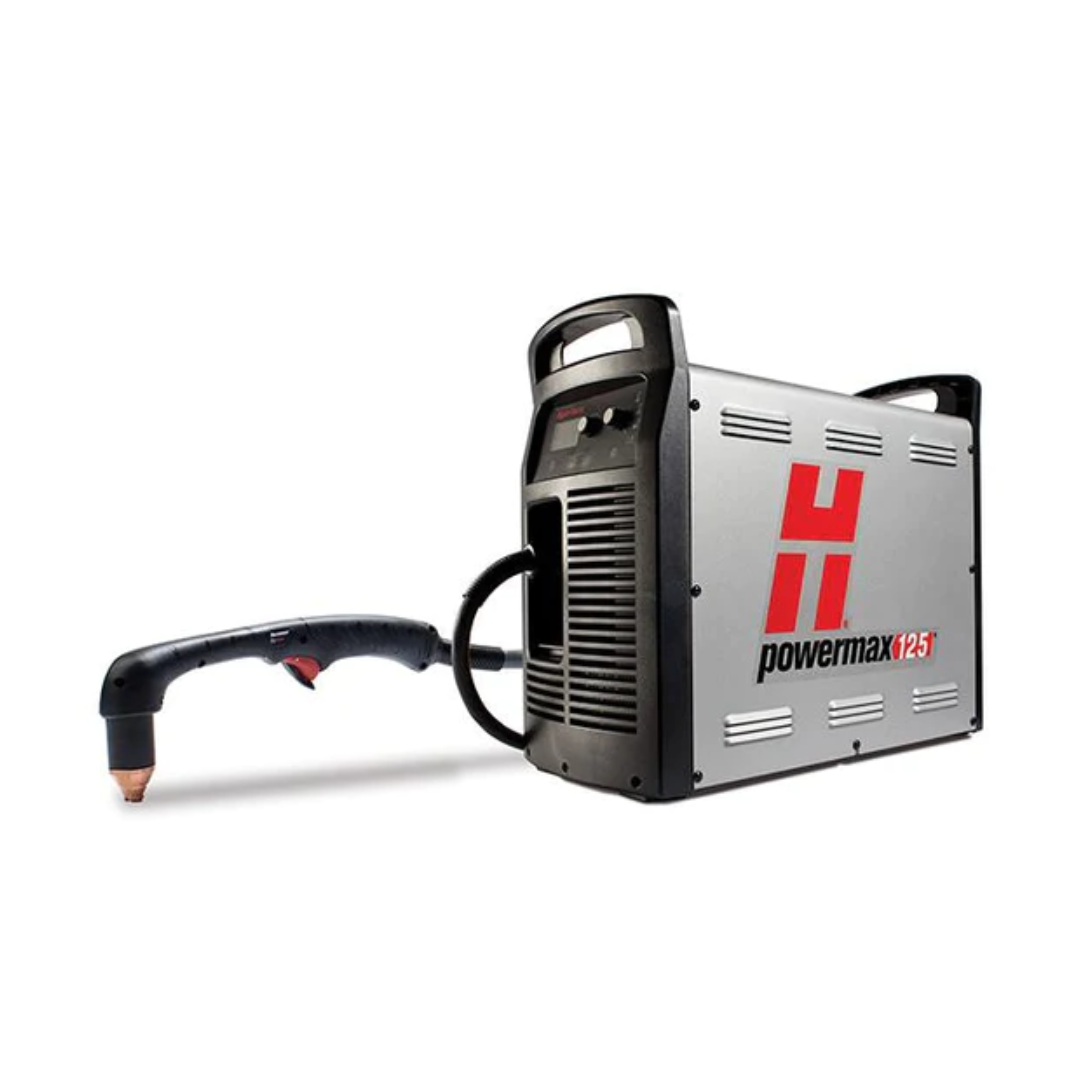

Hypertherm Powermax125 Plasma Cutter

Delivering maximum power and performance for air plasma, the Powermax125® plasma system cuts thick metals fast. Able to make short work of the toughest cutting and gouging jobs, the system offers a 100% duty cycle, a 25 mm (1″) mechanized pierce capability, and fast gouging metal removal. It also gives you the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure. Eleven Duramax® Hyamp™ torch styles provide versatility for hand cutting, portable automation, X-Y table cutting, extended reach cutting, and robotic cutting and gouging.



Maximum productivity

  • Finish jobs faster with cut speeds five times greater than oxyfuel on 12 mm (1/2”) mild steel
  • Superior cut and gouge quality let you spend less time on grinding and edge preparation100% duty cycle maximizes your cutting time
  • Multiple, easy-to-use torch styles let you tackle a wide variety of jobs using the same system

Easy-to-use for cutting and gouging

  • No need to change the air pressure – Smart Sense™ technology ensures that it is always correctly set
  • SpringStart™ technology ensures consistent starting and a more reliable torch
  • Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting

Lower operating costs

  • Consumable life up to four times longer than other systems in this amperage range
  • Electrode end-of-life detection protects the torch and workpiece from damage by automatically stopping power when the electrode is overused

Built to handle tough jobs

  • Hypertherm Certified™ reliability ensures peak performance even in the harshest environments
  • Duramax HyAmp torches are designed for high-impact and heat resistance

Options:



  • Powermax 105 SYNC, 25' Torch - 600 V CSA power supply with CPC port and voltage divider - 059546

Specifications

Recommended Cut Capacity 38 mm (1-1/2″) at 457 mm/min (18 ipm)
44 mm (1-3/4″) at 250 mm/min (10 ipm)
Severance (Hand Cutting) Cut Capacity
57 mm (2-1/4″) at 125 mm/min (5 ipm)
Pierce 25 mm (1″)
Gouge capacity Typical gouge
Metal removal rate 12,52 kg/hr
(27.6 lbs./hr)
Groove profile
4,3 mm - 7,9 mm D x 6,1 mm - 9,9 mm W
(0.17-0.31″ D x 0.24-0.39″ W)
Input voltages (± 10%) 480/600 V, 3-PH, 50/60 Hz
Input current @ 12.2 kW 480/600 V, 3-PH 31/24 A
Output current 30–125 A
Rated output voltage 175 VDC
Duty cycle @ 40° C (104° F) 100% @ 125 A, 480/600 V, 3-PH
Open circuit voltage (OCV) 320 VDC
Weight with 7,6 m (25′) torch 480 V: 47.9 kg (105.7 lbs.)
600 V: 47.5 kg (104.7 lbs.)
Dimensions with handles 483 mm D; 233 mm W; 430 mm H
(19" D; 9.2" W; 17" H)
Gas supply Clean, dry, oil-free air or nitrogen
Recommended gas inlet
flow rate/pressure		 Cutting: 260 l/min (550 scfh) @ 5.9 bar (85 psi)
Gouging: 212 l/min (450 scfh) @ 4.1 bar (60 psi)
Input power cable length 3 m (10′)*
Power supply type Inverter – IGBT
Engine drive requirement 40 kW or 50 kVA for full 125 A output
Electrical efficiency 91%-92%
Recyclability 100%
Warranty Power supply: 6-year, Torch: 1-year


What's Included:

  • 600V 3-PH, CSA, plus CPC with port
  • 85° handheld torch w/consumables
  • Work Lead 7.6m (25') lead and Ground Lead
  • Product Manual
