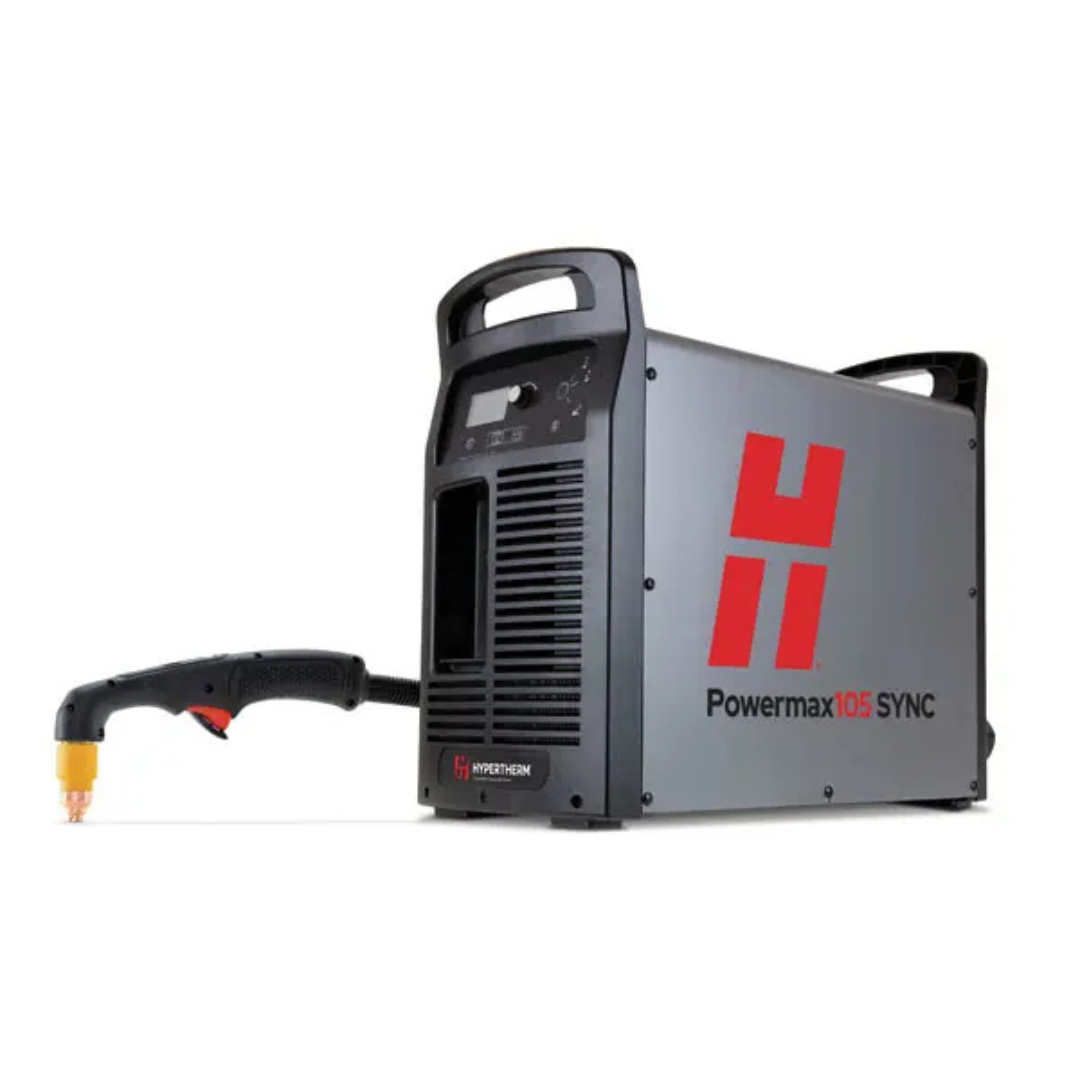

Hypertherm Powermax105 SYNC Plasma Cutter
Hypertherm Logo

Hypertherm Powermax105 SYNC Plasma Cutter

$7,898.00
$7,898.00
0% OFF Sold Out
0 In Stock, Available to Order Typically ships in 5–10 business days
Upsell Product Image-1

Swift-Cut Pro CNC Plasma Cutting System

$28,681.00
Upsell Product Image-2

Thermal Dynamics Cutmaster 30+

$1,558.00
Upsell Product Image-3

Thermal Dynamics Cutmaster 58 Plasma Cutter

$2,323.00
Upsell Product Image-4

Thermal Dynamics CUTMASTER 60i

$2,861.00
Upsell Product Image-5

RAZORCUT 30di 120/240V 30 Amp Plasma Cutting Machine

$717.00
Upsell Product Image-6

RAZORCUT 45di 120/240V 45 Amp Plasma Cutting Machine

$1,147.00
Upsell Product Image-7

Thermal Dynamics CUTMASTER A80

$4,084.00
Upsell Product Image-8

Thermal Dynamics CUTMASTER 102

$4,752.00

Hypertherm Powermax105 SYNC Plasma Cutter


The Powermax105 SYNC® is a next-generation, professional-grade air plasma cutter that dramatically simplifies system operation for gouging and recommended cutting up to 32 mm (1-1/4″). Features automated system process set-up via advanced RFID-enabled SmartSYNC® torches, and a revolutionary single-piece cartridge that provides trackable utilization data. The Powermax105 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance, and streamlined consumable inventory management.

Easy to use

  • Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups.
  • RFID-enabled SmartSYNC torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors.
  • End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge.
  • Less operator fatigue when using hand torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.

Minimize operation costs

  • Simplified system operation minimizes the time and costs spent on training and troubleshooting.
  • Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts.
  • Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.

Maximize performance

  • Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging.
  • Optimized cartridge consumable design provides up to twice the life for handheld cutting and improved quality over life in mechanized setups compared to standard consumables.
  • Time-saving hand torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply.

Industry-leading reliability

  • SmartSYNC torches are engineered for rugged, industrial environments.
    SpringStart™ technology ensures consistent starting and a more reliable torch.
    Industry-leading reliability reduces production downtime.

Options:

  • Powermax 105 SYNC, 25' 75 Degree Hand Torch - 059625
  • Powermax 105 SYNC with CPC port and voltage divider, 25' 75 Degree Hand Torch - 059627

Specifications

Recommended Cut Capacity
32 mm (1-1/4″) at 500 mm/min (20 ipm)
38 mm (1-1/2″) at 250 mm/min (10 ipm)
Severance (Hand Cutting) Cut Capacity 50 mm (2″) at 125 mm/min (5 ipm)
Pierce 22 mm (7/8″)
Gouge capacity Typical gouge
Metal removal rate 8,6 kg (19.1 lbs.) per hour
Groove profile
6,6 mm D x 6,0 mm W (0.26″ D x 0.24″ W)
Input voltages (± 10%) 200–600 V, 3-PH, 50/60 Hz
Input current @ 16.8 kW
200/208/240/480/600 V, 3-PH 58/56/49/25/22 A
Output current 30–105 A
Rated output voltage 160 VDC
Duty cycle @ 40° C (104° F) 70% @ 105 A, 240 V, 3-PH
80% @ 105 A, 480–600 V, 3-PH
100% @ 94 A, 480–600 V, 3-PH
100% @ 88 A, 240 V, 3-PH
Open circuit voltage (OCV) 300 VDC
Weight with 7,6 m (25′) torch 230-400 V: 42.7 kg (94 lbs.)
Dimensions with handles
592 mm D; 274 mm W; 508 mm H (23.3″ D; 10.8″ W; 20.0″ H)
Gas supply Clean, dry, oil-free air or nitrogen
Recommended inlet gas flow rate
Cutting: 260 I/min @ 6.2 bar (550 scfh, 9.1 scfm @ 90 psi)
Gouging: 260 I/min @ 4.8 bar (550 scfh, 9.1 scfm @ 70 psi)
Input power cable length 3 m (10′)
Power supply type Inverter–IGBT
Engine drive requirement
30 kW or 37.5 kVA for full 105 A output
Electrical efficiency 91%
Recyclability 100%
Warranty Power supply: 6-year, Torch: 1-year

What's Included:

  • Powermax105 SYNC system, 200-600V 3-PH, CSA, 75 degree handheld torch, 7.6m (25') lead - 059625
  • Powermax105 SYNC system, 200-600V 3-PH, CSA, CPC port, 75 degree handheld torch, 7.6m (25') lead - 059627
