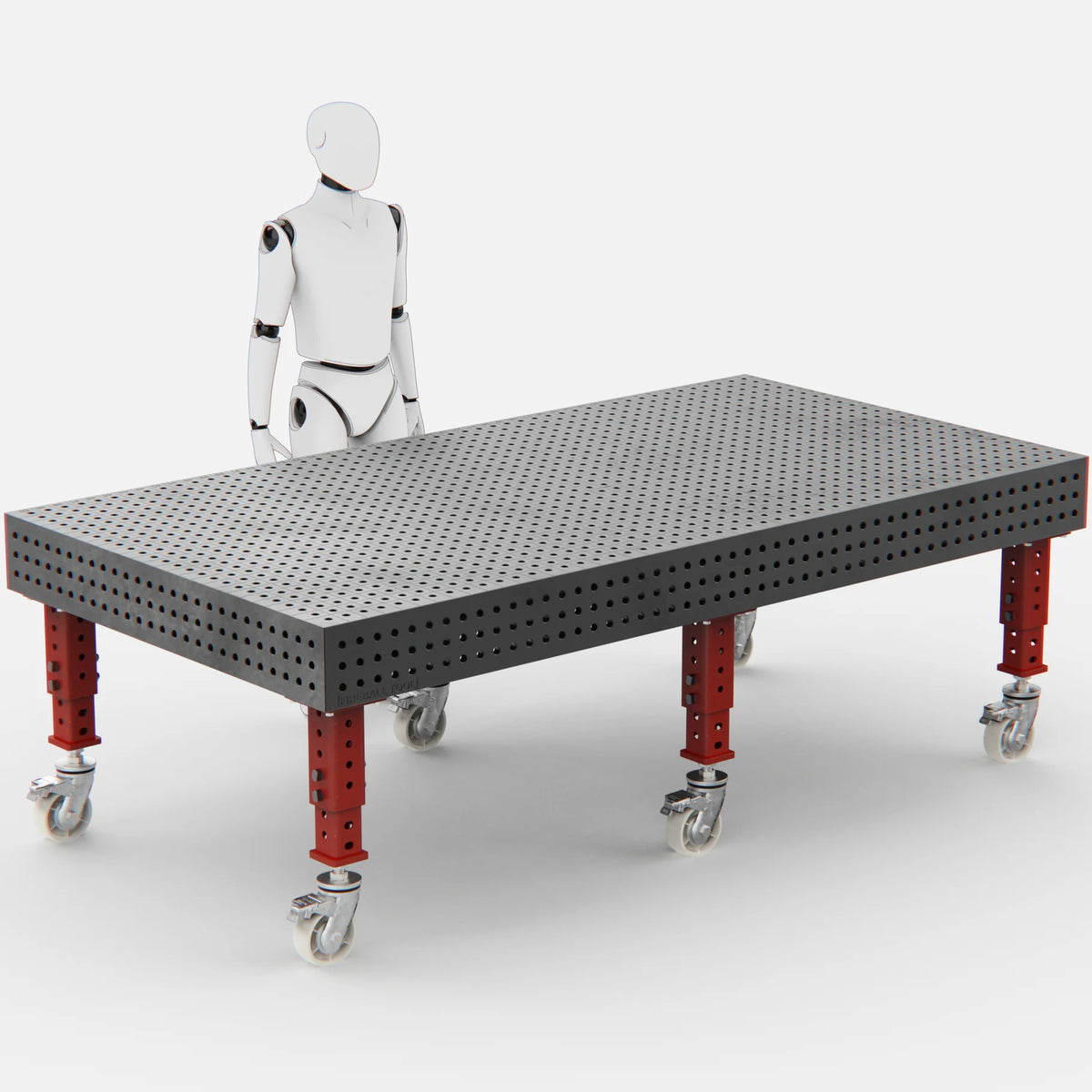

Table Top Under Frame: Heavy Duty Table Top

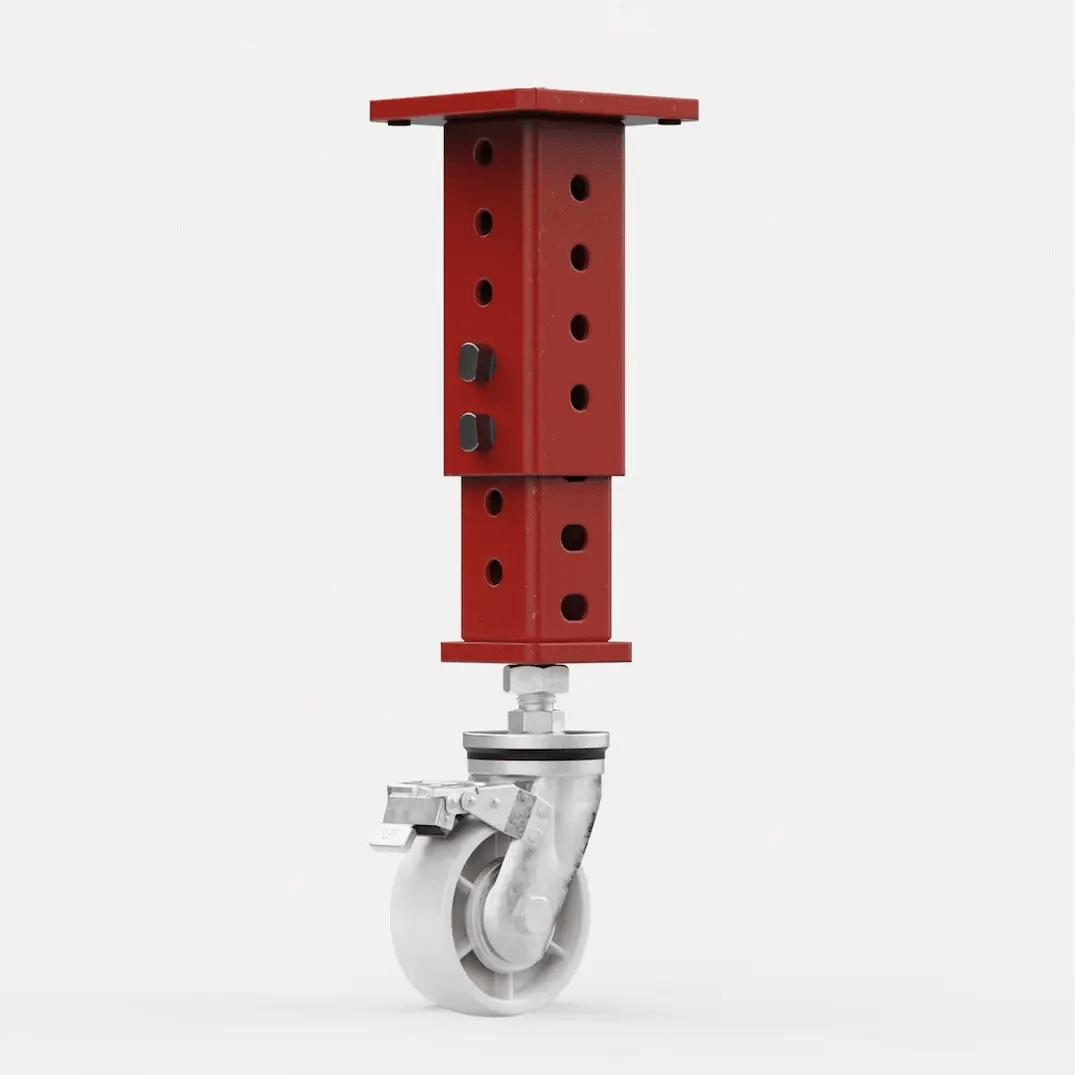

Leg Options: Adjustable Heigh + Caster
The Heavy Duty table is built for fabricators who push the limits of what a fixture table can do. Its one-inch cast iron top, deeper skirt, and robust construction make it the right choice when your work demands that the table maintain absolute flatness no matter what you put it through. Heavy Duty tables are measurably flatter than Standard Duty tables out of the box and are engineered to maintain that flatness under the most demanding loads.
The Fireball Cast Iron Tables are the best all around tables on the market. They combine the strength of 1” thick top and sides used for heavy duty tables with the more finely spaced 2” grid pattern you find on light to medium duty tables. Gray cast iron naturally resists weld spatter, does not form burrs on the surface, resists deformation, and once machined flat, it stays flat.
Features
- 3/4" Thick Ribbing for rigidity
- Ability to share a single table leg across two tables
- Single Piece Cast Construction for torsion control
- 8" Sidewall
- 6 Leg Pads
| Specification | Details |
|---|---|

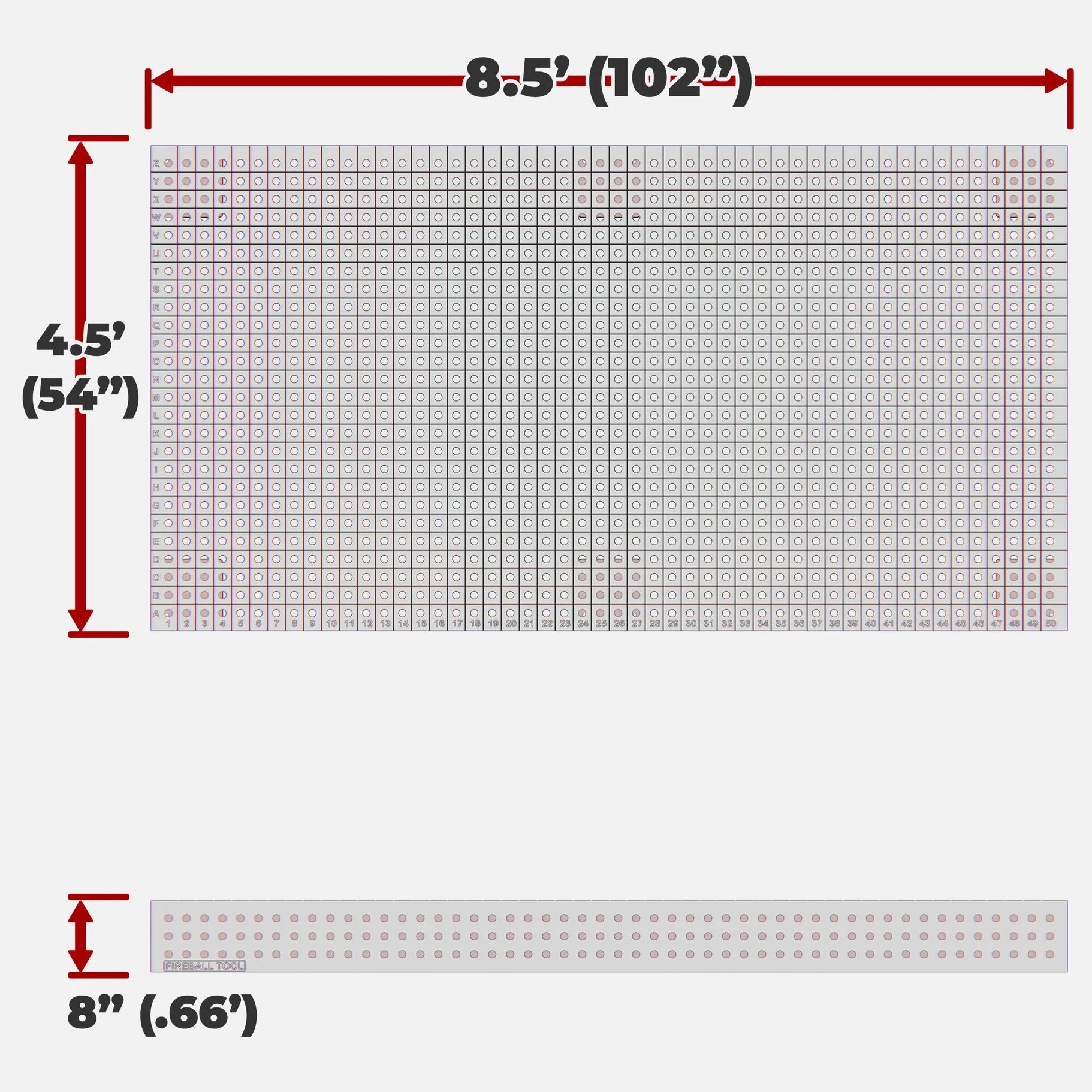

| Tabletop Dimensions | 102" x 54" (8.5' x 4.5') |
| Table Side Height | 8" |
| Table Thickness | 1" |
| Hole Diameter | 3/4" |
| Grid Pattern | 2" |
| Material | Gray Cast Iron |
| Finish | Dragon Scale |
| Leg Type | Heavy Duty |
| Number of Legs | 6 |
| Capacity Per Leg | 1,500 lbs |
| Rated Weight Capacity with Legs | 6,500 lbs |
