The Dragon Wagon is purpose-built for a different kind of user — someone who wants a highly organized, fully mobile, all-in-one workstation. Everything you need to do your job — welder, gas bottle, tooling, fixtures, seating — can be stored at or around the Dragon Wagon, and the whole setup rolls with you wherever you need to work. One of the Dragon Wagon’s most powerful features is that it is designed to be combined. The 4-inch sidewall is specifically engineered to allow multiple Dragon Wagons to be joined together — creating L-shapes, long runs, square configurations, or whatever your shop layout requires. They can also serve as a temporary expansion surface alongside any Standard Duty or Heavy Duty table.
Features
- Coating- Corrosion, spatter, and scratch resistant Dragon Scale
- Ribbing- Full height 4" ribbing engineered to torsional rigidity
- Holes- All counterbore and chamfered on back sides
- Side face on the tables are 4" tall with 1 row of holes.
- The modular leg accessory system provides an extensive range of customization options.
- 1/2" thick table that shares all the same fixtures as the 1" thick table.
- Flatness (+/- .005) full length, corner to corner
Best Suited For
-
Robotic welding cells — specialized tooling and fixtures organized and kept close at hand
-
Home hobbyists — who want a professional-grade table without a large floor footprint
-
Colleges and training facilities — looking for a compact, professional workstation
- Any shop — wanting a flexible, mobile secondary or satellite station
| Specification | Details |
| Dimensions |

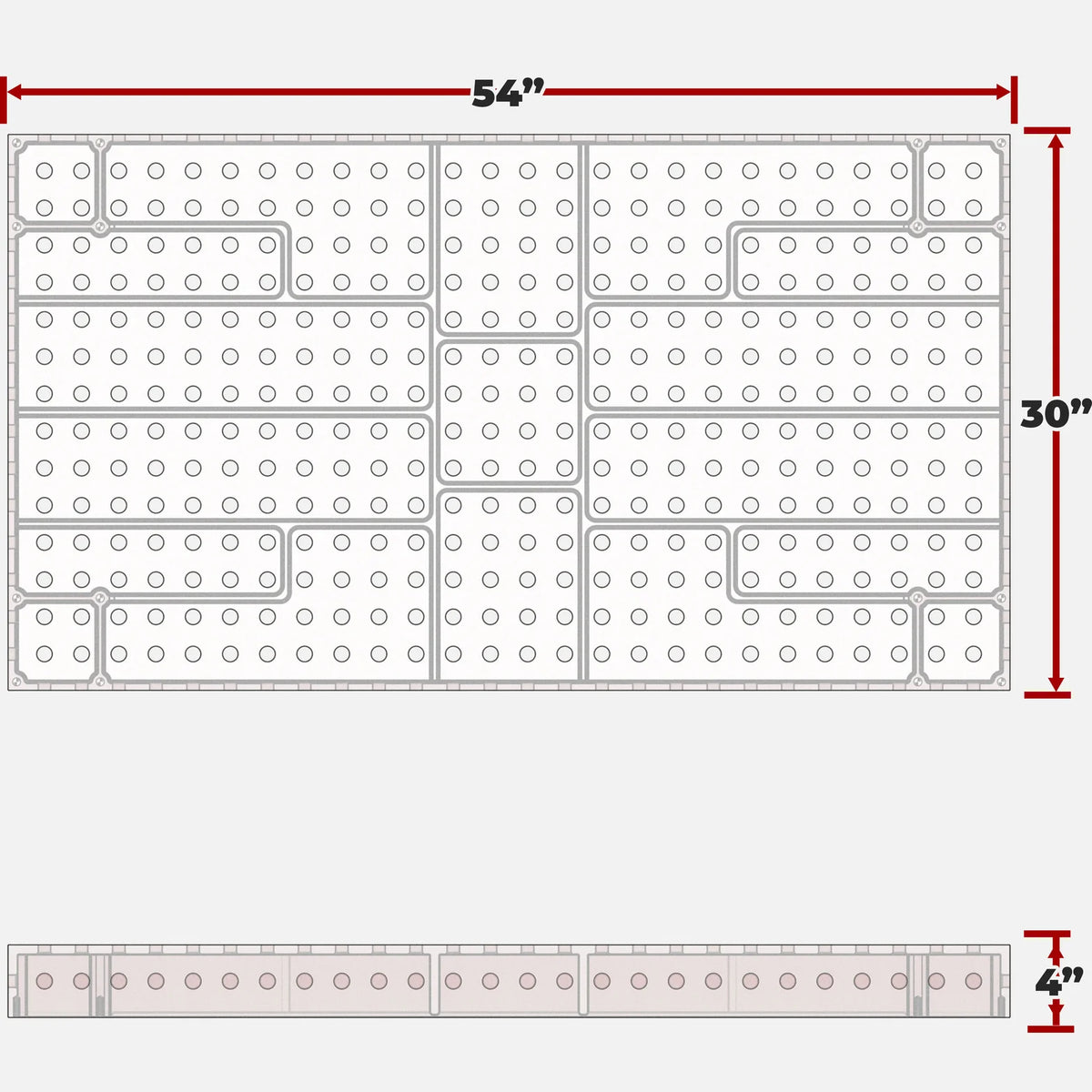

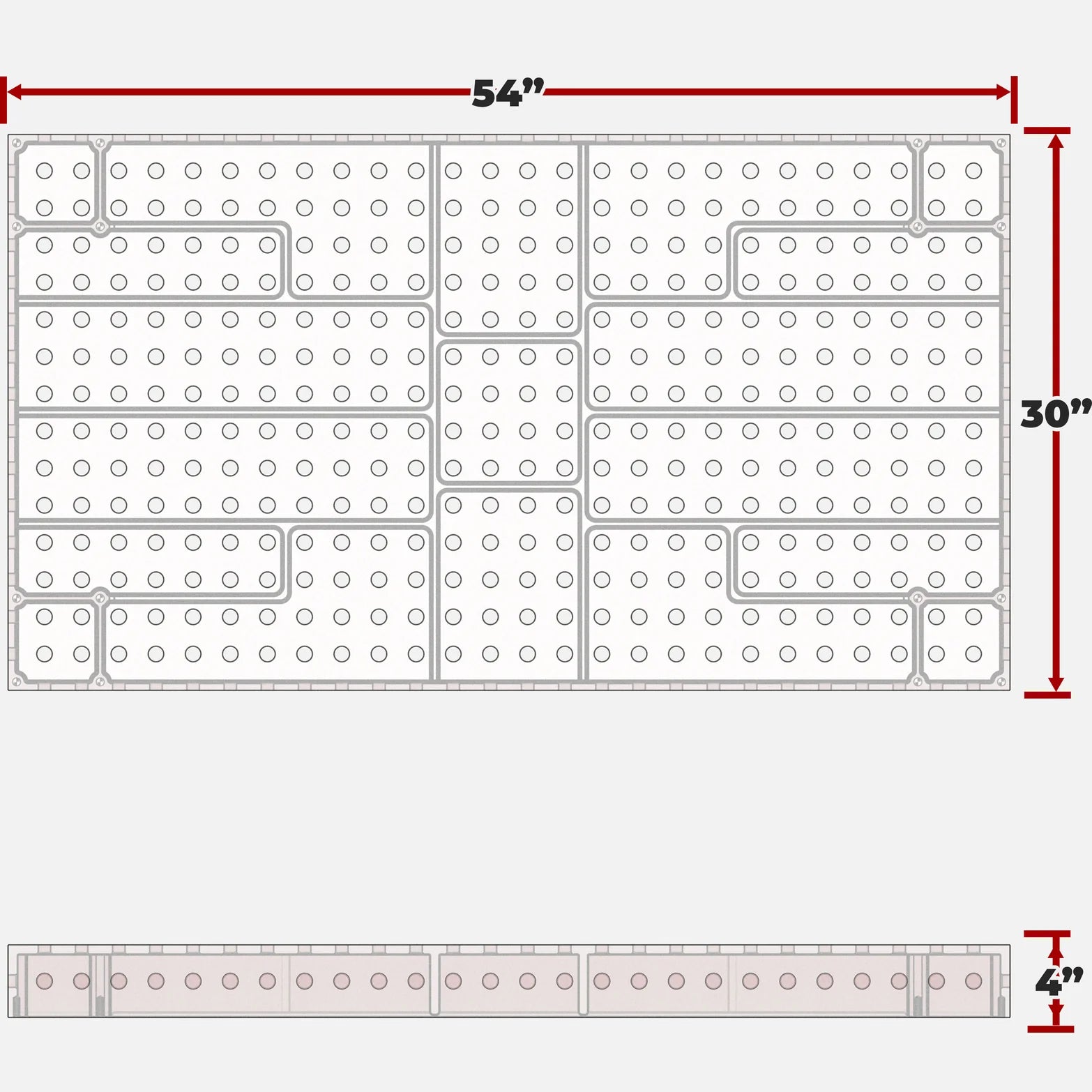

4.5' x 2.5' (54" x 30" x 4")
|
| Table Side Height | 4" |
| Table Thickness | 1/2" |
| Hole Diameter | 3/4" |
| Grid Pattern | 2" |
| Material | Gray Cast Iron |
| Finish | Dragon Scale |
| Table Top Weight | 375 lb |
| Shipping Weight | 425 lb |
| Leg Type | DW Legs |
| Number of Legs | x4 |
| Capacity Per Leg | 600 lbs |
| Rated Weight Capacity with Legs | 2,500 lbs |
