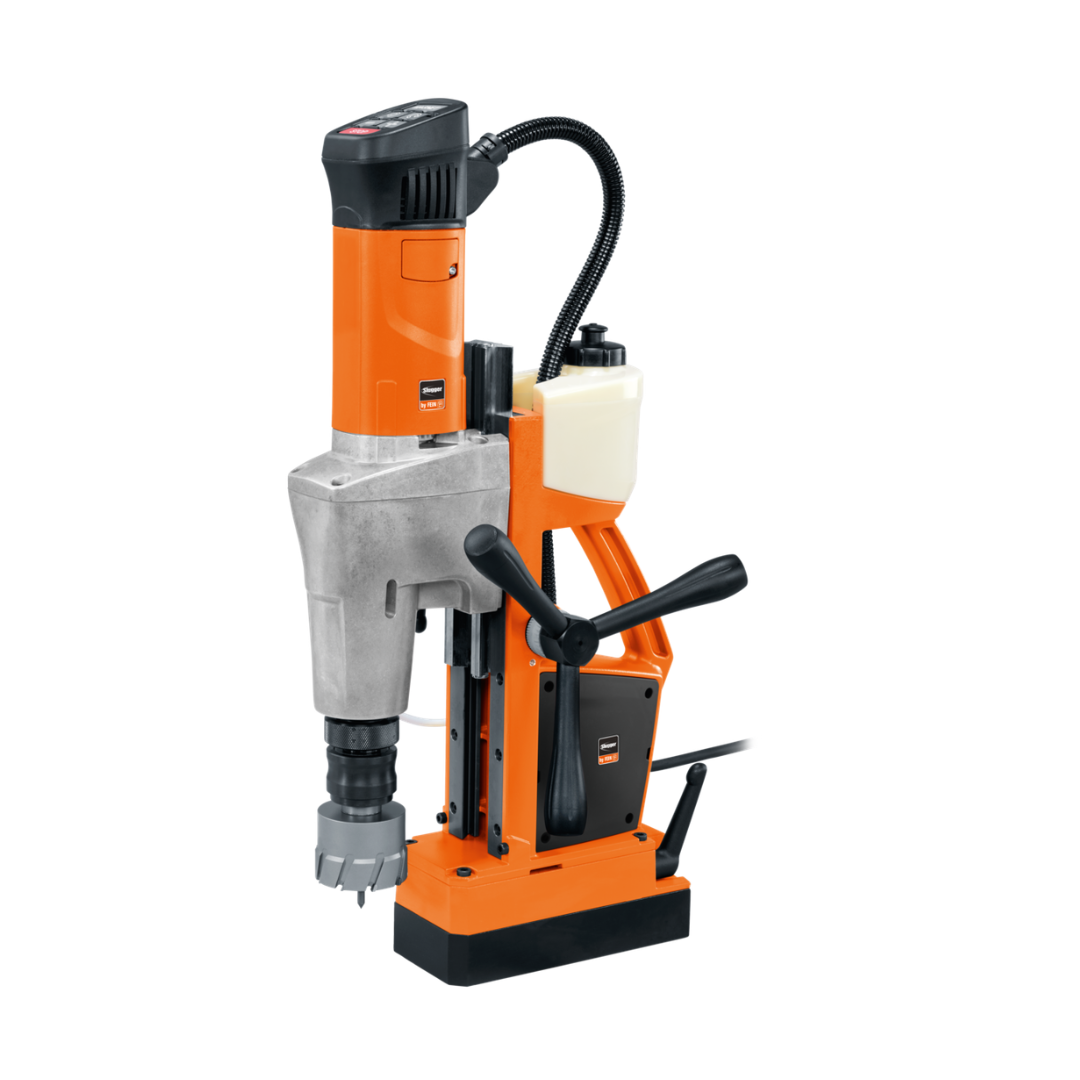

FEIN Universal Magnetic Core Drill 2-9/16 in. MT3 120V N12 – JCM256U



High-performance with 2-speed gearbox and outstanding functionality for universal and efficient use in the workshop.

Drilling Capacities
Carbide cutter max. dia. 2-1/2 in [65 mm]
HSS cutter max. dia. 1-3/4 in [45 mm]
Cutter max. drilling depth 2 in [50 mm]
Twist drill max. dia. 1 in [25 mm]
Tapping M 20
Max. countersinking dia. 2 in [50 mm]
Reaming max. dia. 1 in [25 mm]

Features:

  • Stable speed, even in the toughest applications.
  • Fine drill spindle adjustment for convenient machine alignment.
  • Double drill motor guides enable use of the longest annular cutters.
  • Reversible Electronic speed control.
  • MT3 interface.
  • High magnetic holding force.
  •  A Convenient magnetic holding force indicator supports the safe positioning of the tool.
  • Integrated coolant tank ensures high core drill tool life.
  • Manufacturer Part Number: 72704761120

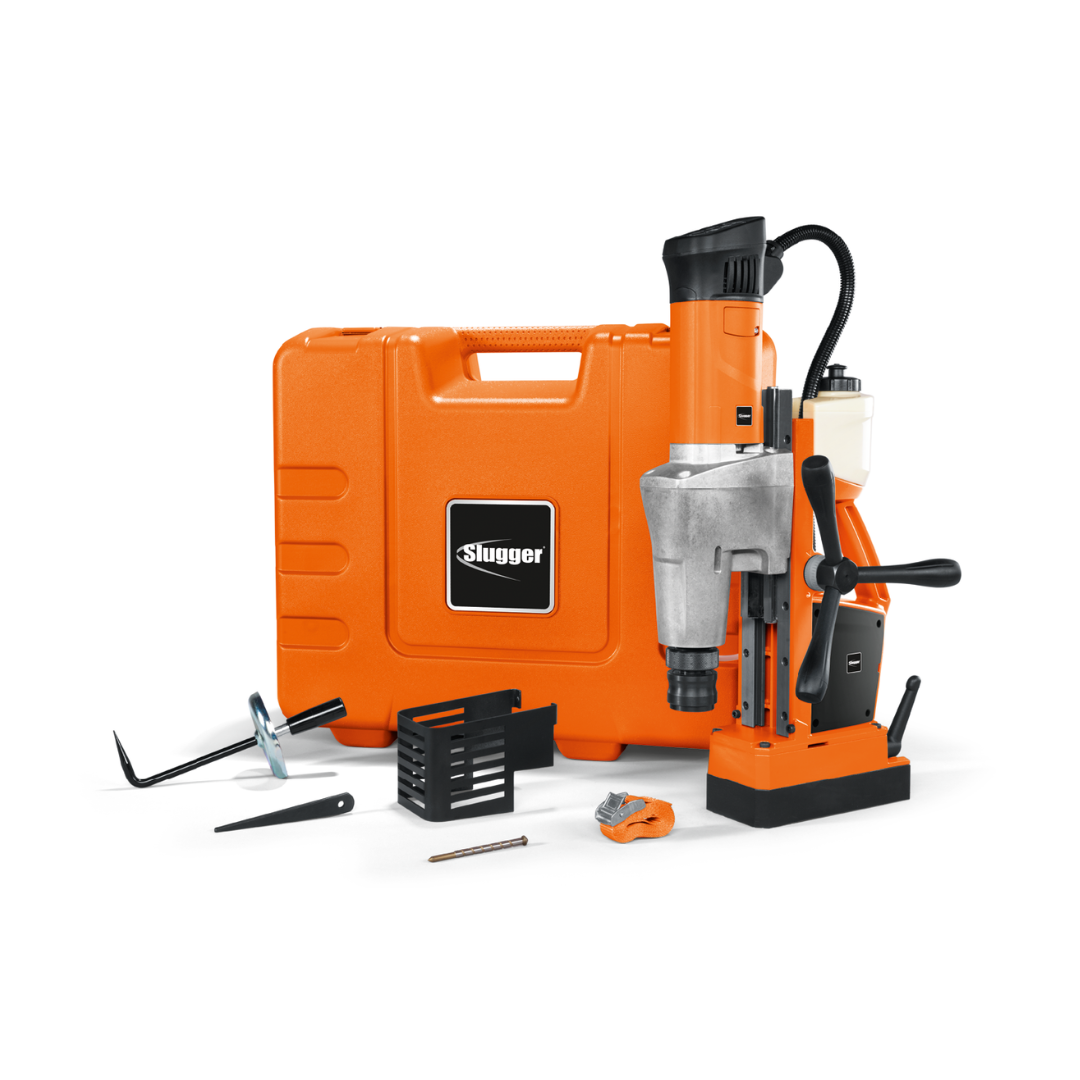

Items Included:

  • (1) magnetic base drill
  • (1) coolant tank
  • (1) safety strap
  • (2) pilot pins
  • (1) chip guard
  • (2) hexagonal socket keys, 3/16" and 1/4" [5 and 6 mm]
  • (1) hexagonal socket key with T-grip 5 mm
  • (1) case

Click Here to shop for Annular Cutters

Specifications:

Product Information
Product Name FEIN JCM 256 U
Product Number 7 270 47 61 120
Technical Specifications
Power consumption 1,300 W
Power output 730 W
Load speed: 1st gear 120-240 rpm
Load speed: 2nd gear 260-520 rpm
Cutter holder 3/4" straight shank
Tool mount MT 3
Stroke 5-11/16 in [145 mm]
Total stroke range 12-3/8 in [315 mm]
Magnetic holding force 3,147 lbs [14,000 N]
Cable with plug 13.1 ft [4 m]
Weight 35.05 lbs [15.90 kg]
Drill stand adjustment range 1/4 in [6 mm]
Drill stand angular adjustment 7°
Key Features
Reversibility Features forward/reverse operation
Speed Control Electronic speed setting with stable speed control
Coolant System Integrated coolant tank
Magnet Safety Magnet monitor system / holding force display
Cutter Change Tool-free cutter change
Motor Guides Double drill motor guides
Spindle Adjustment Fine drill spindle adjustment
Smart Features Memory function included

Full Product Data Sheet
