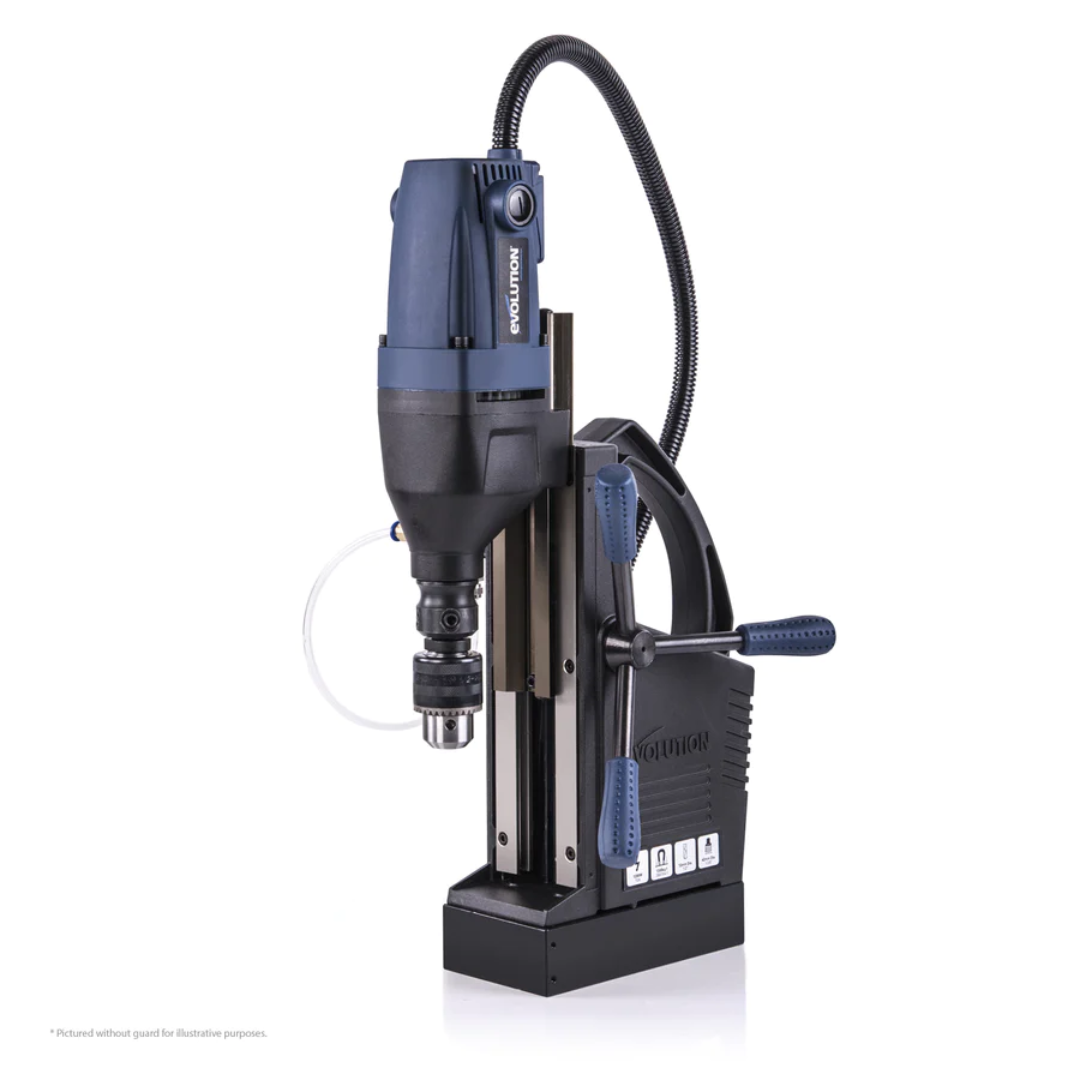

Evolution S28MAG: 1-1/8 In. Magnetic Drill
Features:

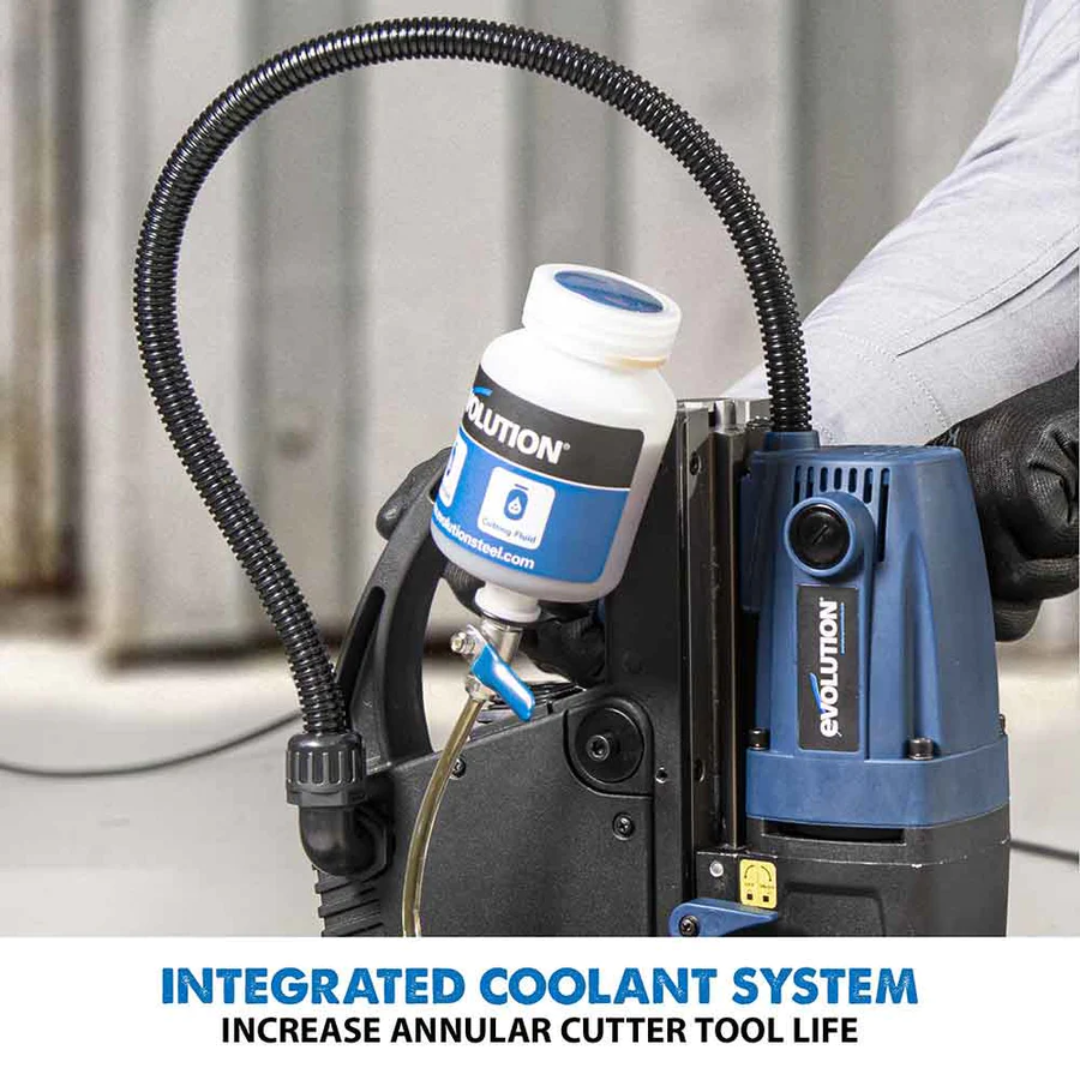

- Coolant system ensures workpiece stays cool while drilling
- Ultra-smooth dovetail slides offer smooth and precise operation
- 2 stage magnet allows you to precisely configure the machine

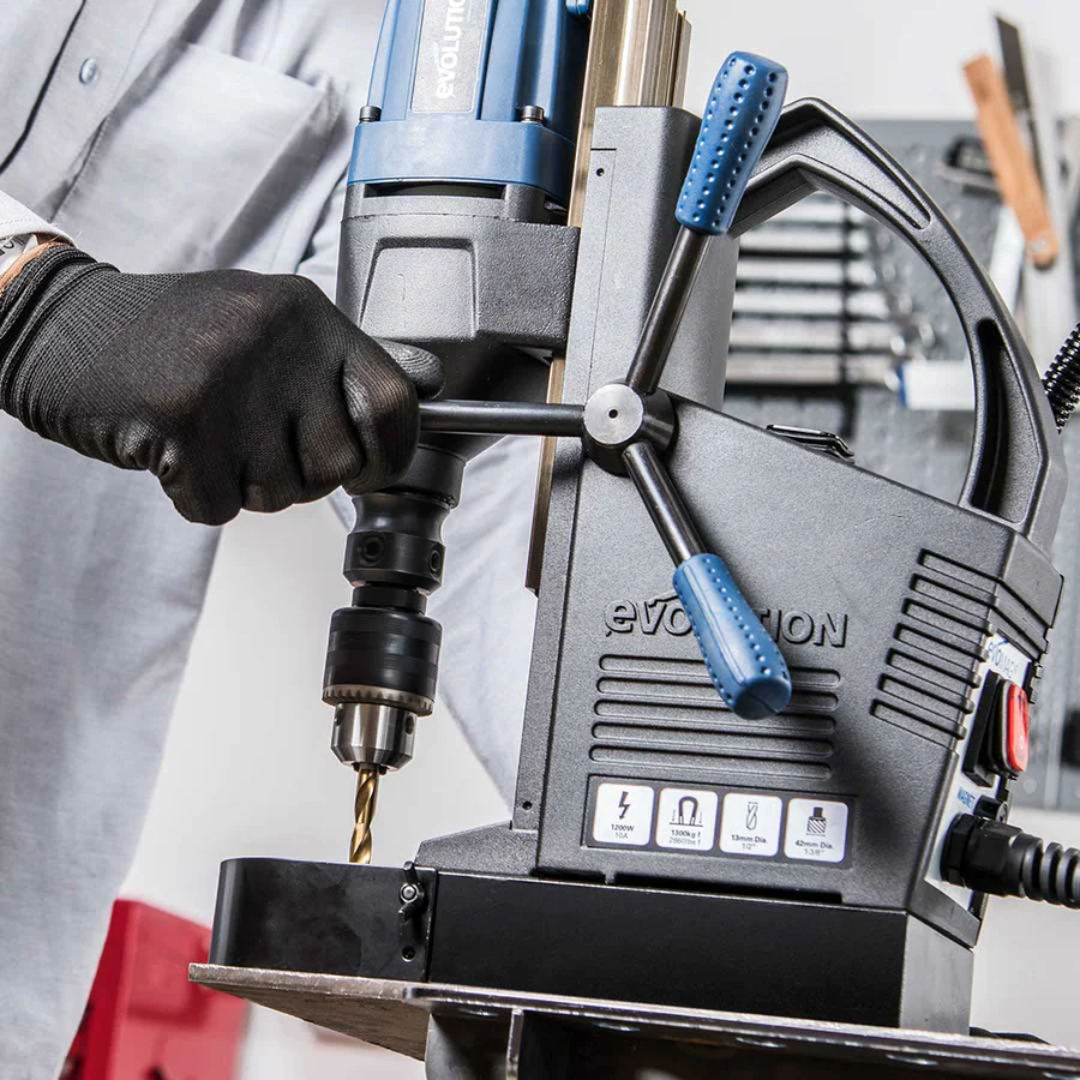

- Textured, Tri-spoke spindle handle gives you ultimate control when lowering the drill

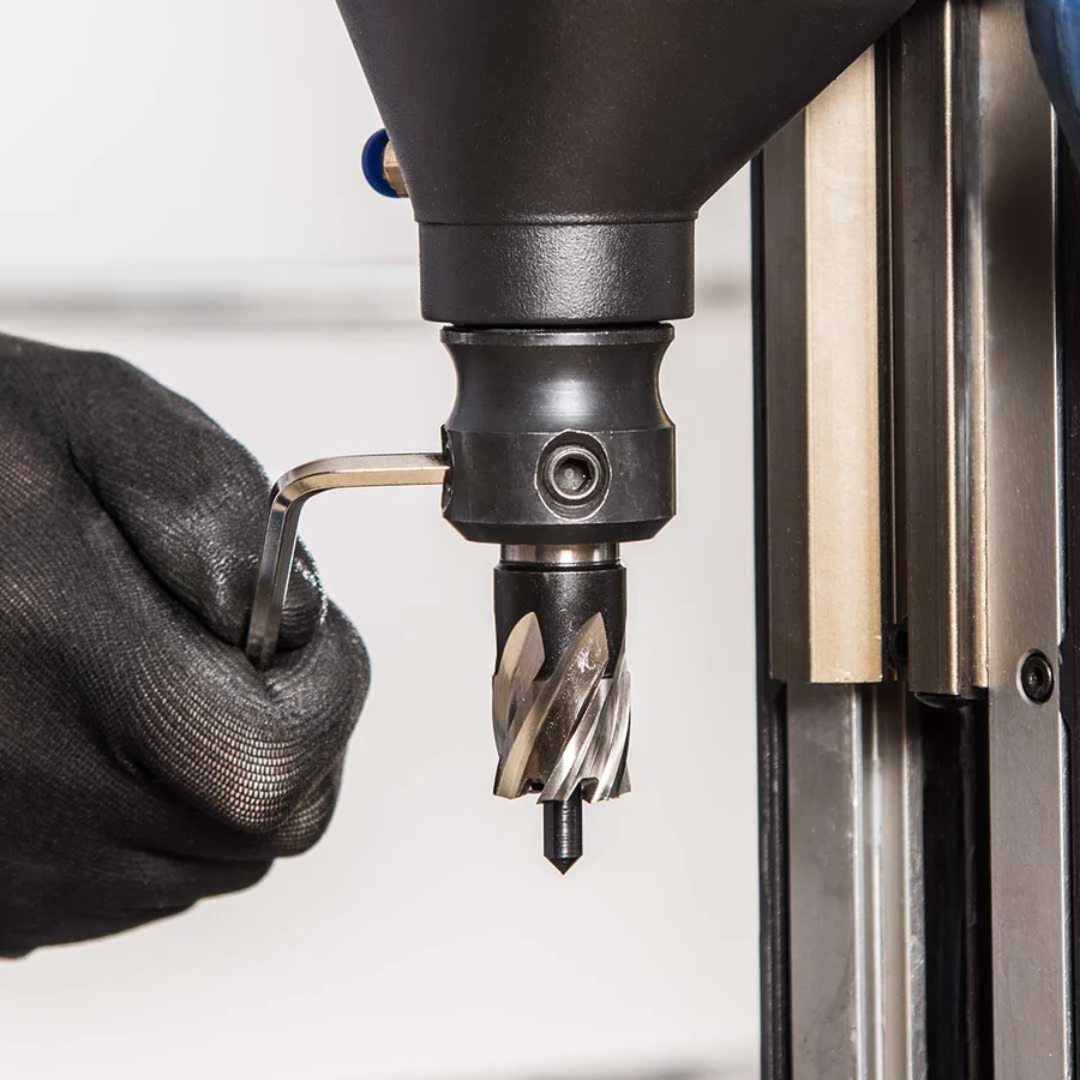

- Compatible with a range of Evolution premium annular cutters and accessories.
- Supplied in a robust carry case
- Manufacturer Part No. S28MAG

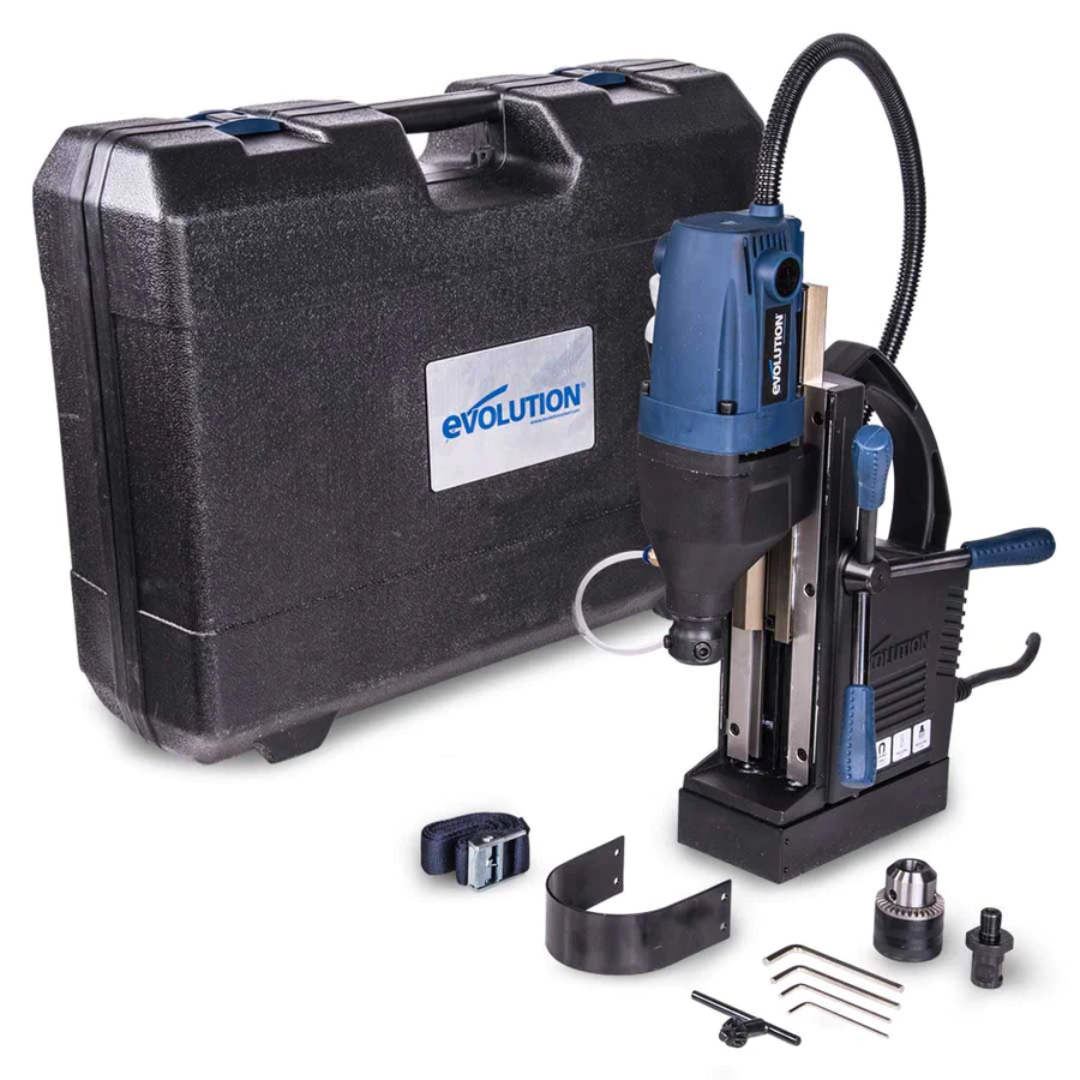

Includes:
- (1) Instruction Manual
- (1) Coolant System
- (1) Safety Guard and Fixings
- (1) Safety Strap
- (3) Feed Handles
- (2) Hex Keys

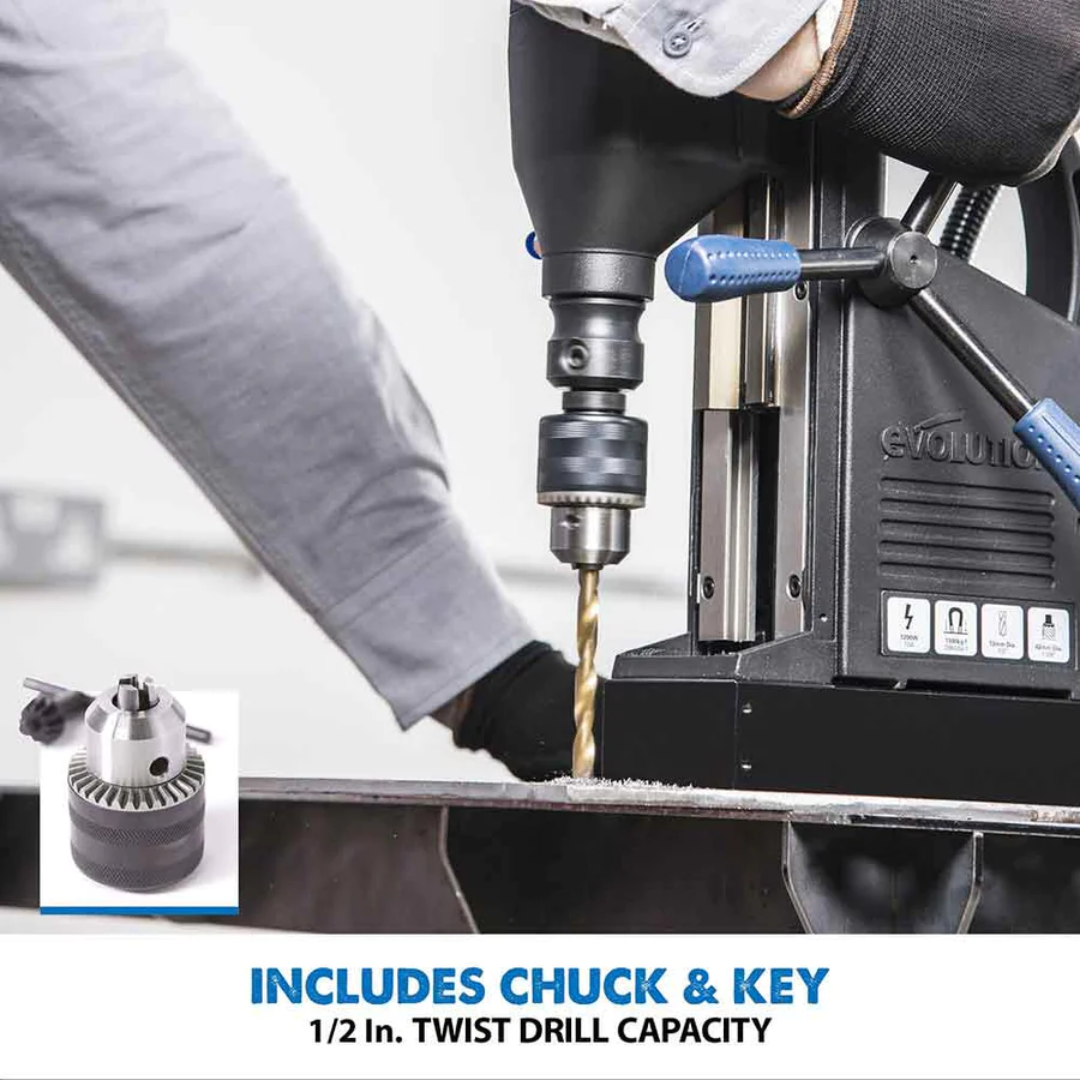

- (1) Chuck with Chuck Key
- (1) Carry Case
Click Here to shop for Annular Cutters

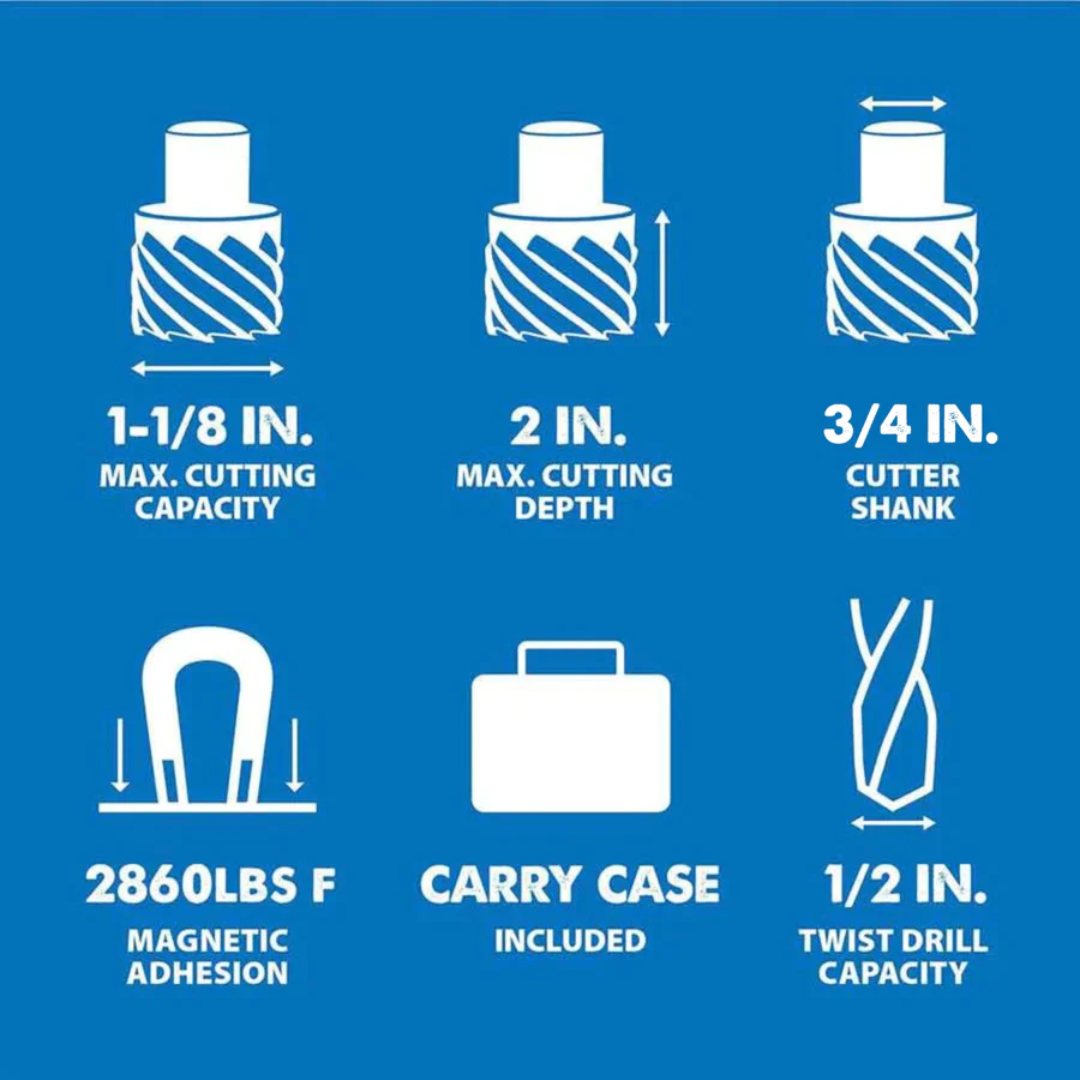

Specifications:
| Motor (120V 60Hz): | 10A |
| Speed No Load: | 450 rpm |
| Number of Speeds | 1 |
| Insulation Class | 1 |
| Cable Length: | 8ft 2inch |
| Magnetic Adhesion | 2860lbs f |

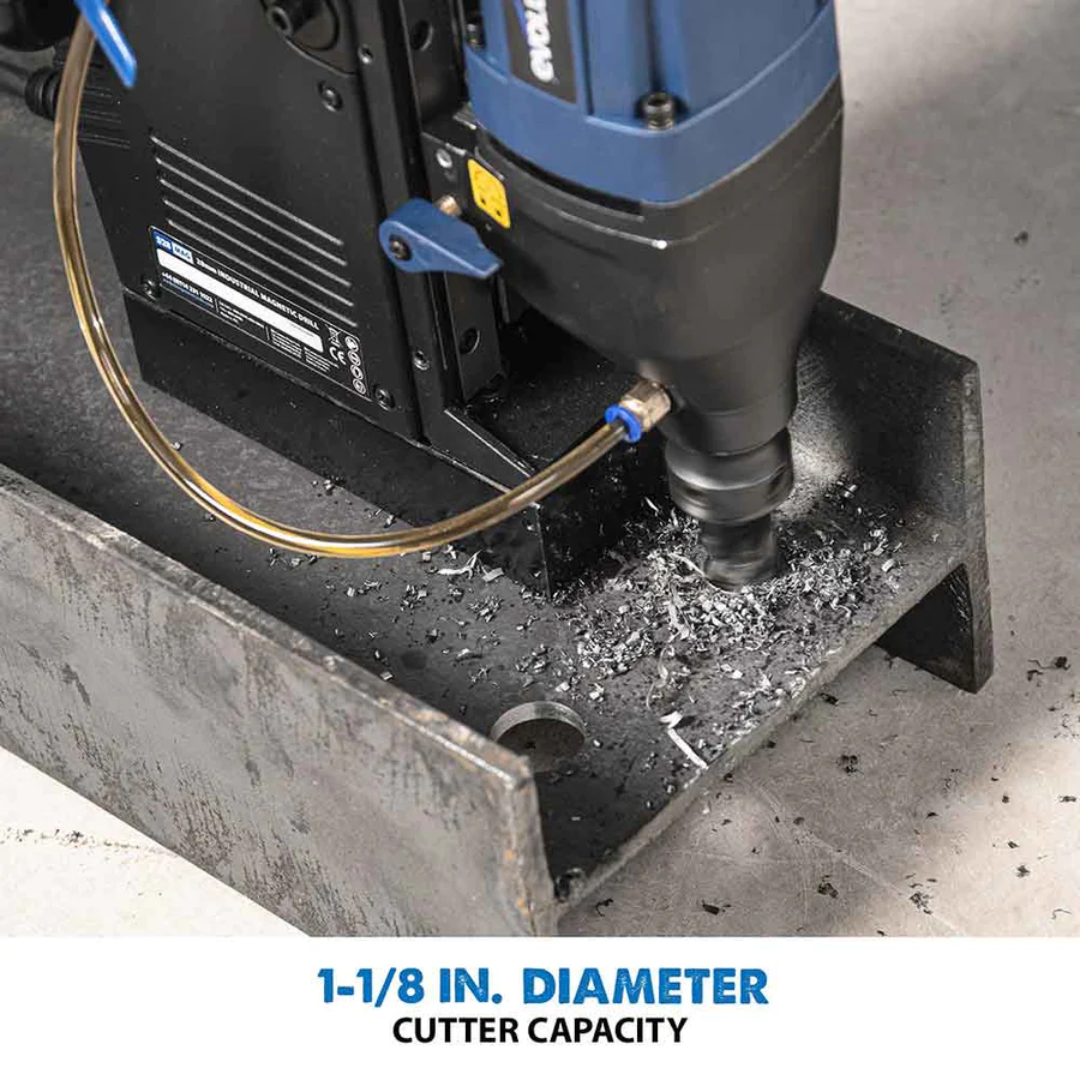

| Maximum Annular Cutting Capacity | 1-1/8 in. / 28 mm |

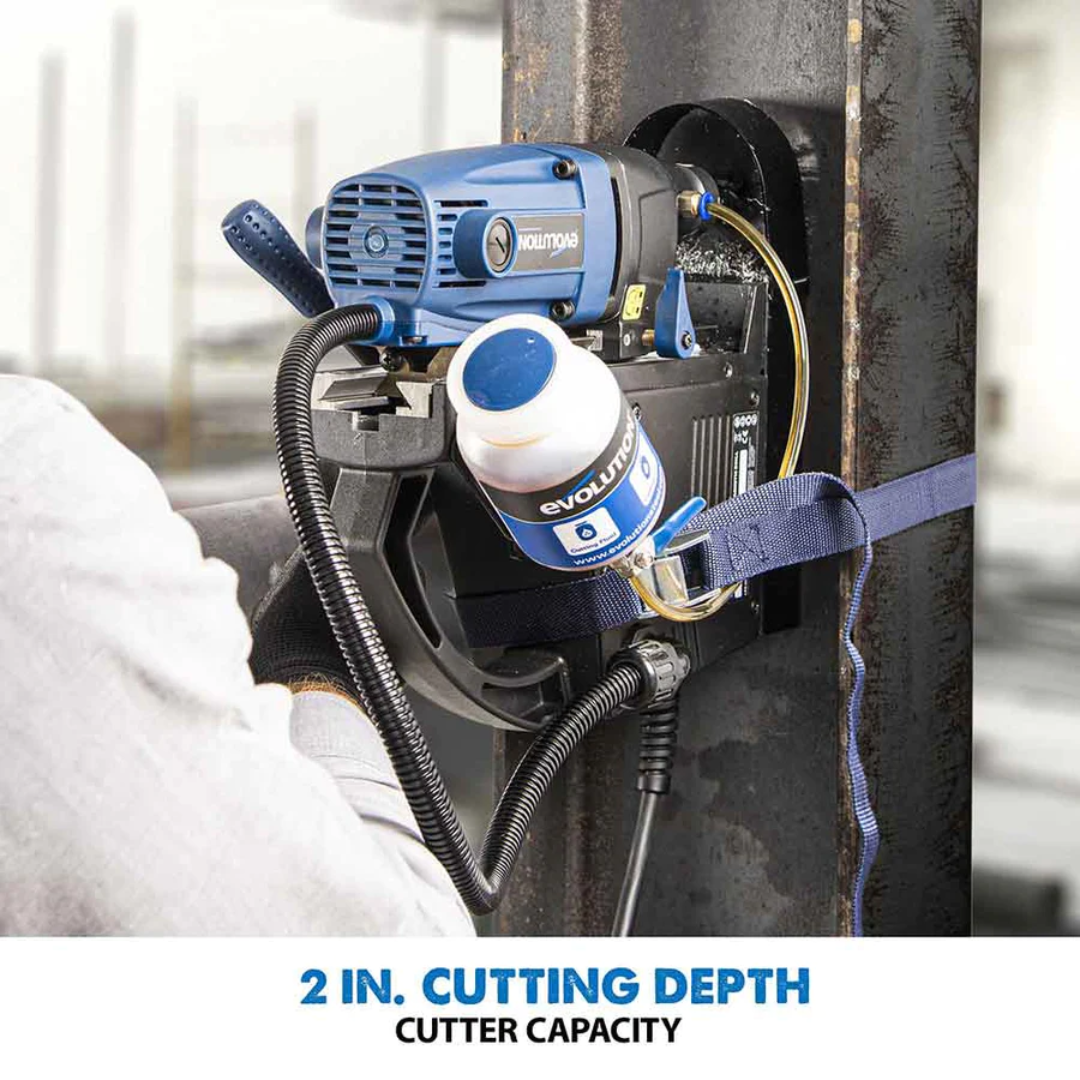

| Maximum Cutting Depth | 2 in. |
| Cutter Shank | 3/4 in. |
| Standard Twist Drill Capacity | 1/2 in. |
| Minimum Plate Thickness | 3/8 in. |
| Magnet Dimension | 1-5/8 x 3-1/2 x 7-1/8 in. |
| Maximum Machine Height | 25-5/8 in. |
| Minimum Machine Height | 16-1/2 in. |
| Machine Width | 7-7/8 in. |
| Product Weight: | 26 lb |
