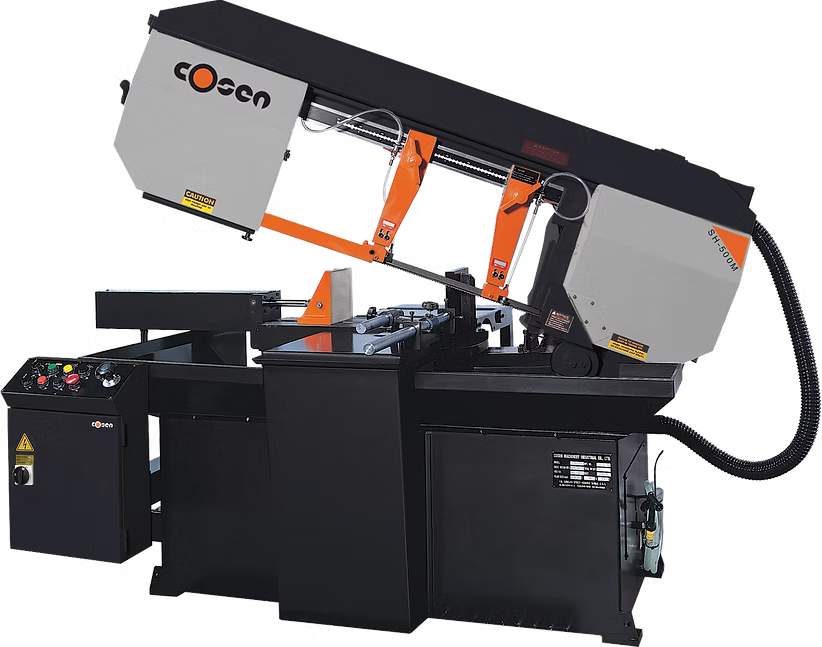

Cosen SH-500M 13"Heavy-Duty Horizontal Scissor Style  Mitering Band Saw

Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen's SH-500M fits into that category. This heavy duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.  Cosen saws are known for being heavier than competitive models with a bigger foot print providing less vibration – for a longer blade life.

Features:

  • Swivel saw head allows miter cutting from 0 degrees to 60 degrees
  • Hydraulic cylinder plus precision ground hinge support
  • Hardened gear for durability
  • Hard stops at 90, 45, and 30 degrees for quick angle set up
  • Blade drive equipped with variable pulley system
  • Adjustable flood coolant system
  • Motor driven, synchronized wire blade brush
  • Carbide blade guides and bearing provides additional blade support
  • Rigid cast-iron guide arms
  • Cast-iron hydraulic vise
  • Adjustable down-feed control
  • Adjustable material stop
  • Saw head automatically raises after each cut
  • Blade Tension Gage

Cutting Capacities:

Capacity Angle 0 45 60
Round Capacity 13" 11.8" 8.6"
Rectangular Capacity 11" x 17.3" 11" x 9.4" 11" x 8.6"


Machine Specifications:

Blade Speed 60Hz: 75, 114, 164, 246 FPM
Blade Size (LxWxT) 13' 7" x 1" x .035"
Blade Motor 3 HP
Coolant Motor 1/8 HP
Coolant Tank Capacity 7.9 gal
Hydraulic Tank Capacity 2.08 gal
Workbed Height 32.6"
Weight 1,980 lbs
Floorspace (LxWxH) 80.5" x 41.6" x 57.8"

    Included Accessories

    • Variable Blade Drive System With 3HP Motor
    • Adjustable material stop
    • Additional flushing hose for cleaning
    • Bi-metal saw blade
    • Tool Box with tools, leveling pads, and an additional wire brush
    • Operation & parts manual
    • 1.5' attachable infeed roller

    Free Shipping is not available on this product, estimated freight cost is added at checkout.
