Canaweld Multiprocess 302-SL, 208-230V 1Ph, 300 Amp Welder

Canaweld Multiprocess 302-SL, 208-230V 1Ph, 300 Amp Welder

The Multiprocess 302-SL is an industrial, heavy duty, powerful, Synergetic, intelligent, and portable Ontario Made welding machine equipped with an LCD Panel. This unit is an inverter-based arc welding power source optimized for MIG, Flux-Cored, Gasless Wires, TIG lift, and Stick welding in manual or synergic mode. This welding machine offers excellent welding performance and various professional functions. It is portable and easy to transport. The advanced static characteristic and waveform controls make it the best professional choice for all industrial workshops. A 5-inch color display, as well as various automatic controls, make the setup and operation quick and easy.

The Multiprocess 302-SL is capable of welding with Canaweld’s spool guns which ensures trouble-free Aluminum MIG welding. The MIG synergic control makes this unit user-friendly for welders looking to perform high quality welds. Equipped with an LCD, it guides the user step by step to automatically adjust the parameters based on the required usage. It’s like having your own personal welding expert right there with you! It is the perfect choice for anyone; from a novice to the professional production welder who has speed and quality in mind.

Top Features

• A 5-inch LCD allows both experienced, and novice users to operate the device quickly and easily, ensures correct setting and parameter selection, reduces parameter setting time, and increases actual welding time
• Synergic control provides pre-set weld parameters, improves usability, and enables operators of all skill levels to perform their tasks correctly
• Possibility of welding processes MIG, Flux Cored, Gasless Wires, TIG lift, Stick Welding
• Tested in (104°F/40°C), designed for toughest conditions
• Digital control of the welding parameters based on the material or gas type and the wire diameter
• Manual polarity changeover feature for most common gas and gasless wires, Stick electrodes and Lift TIG process.
• Professional and heavy-duty wire feeding mechanism with 37mm rolls
• Sealed (Dust proof), powerful, heavy-duty, and durable wire feeder motor
• Replaceable Double groove rolls, no tools needed
• Spool Gun Compatible
• Adjustable Voltage, Wire Speed, Wave Form, Burn back (in MIG process)
• Possibility of Selection of the Material, Wire Diameter, Gas, 2T/4T (in MIG process)
• Adjustable Amperage, Final Slope, Post Flow, (In TIG process)
• Adjustable Amperage, Arc Force and Material Thickness Selection (In Stick welding process)
• Working possibility with Both 8 and 12-inch (203 and 305 mm) Wire Spool Size
• Equipped with flip doors and specific mechanism to assist the movement and ability to hold the doors in place at an angle for ease of access.
• Metal face panel
• Auto-switching fan
• Generator compatible.
• Equipped with Lockable Swivel Casters
• Comprehensive 4-Year Warranty
• The machine is equipped with two built in eyebolts for lifting.

Specifications

Available Packages

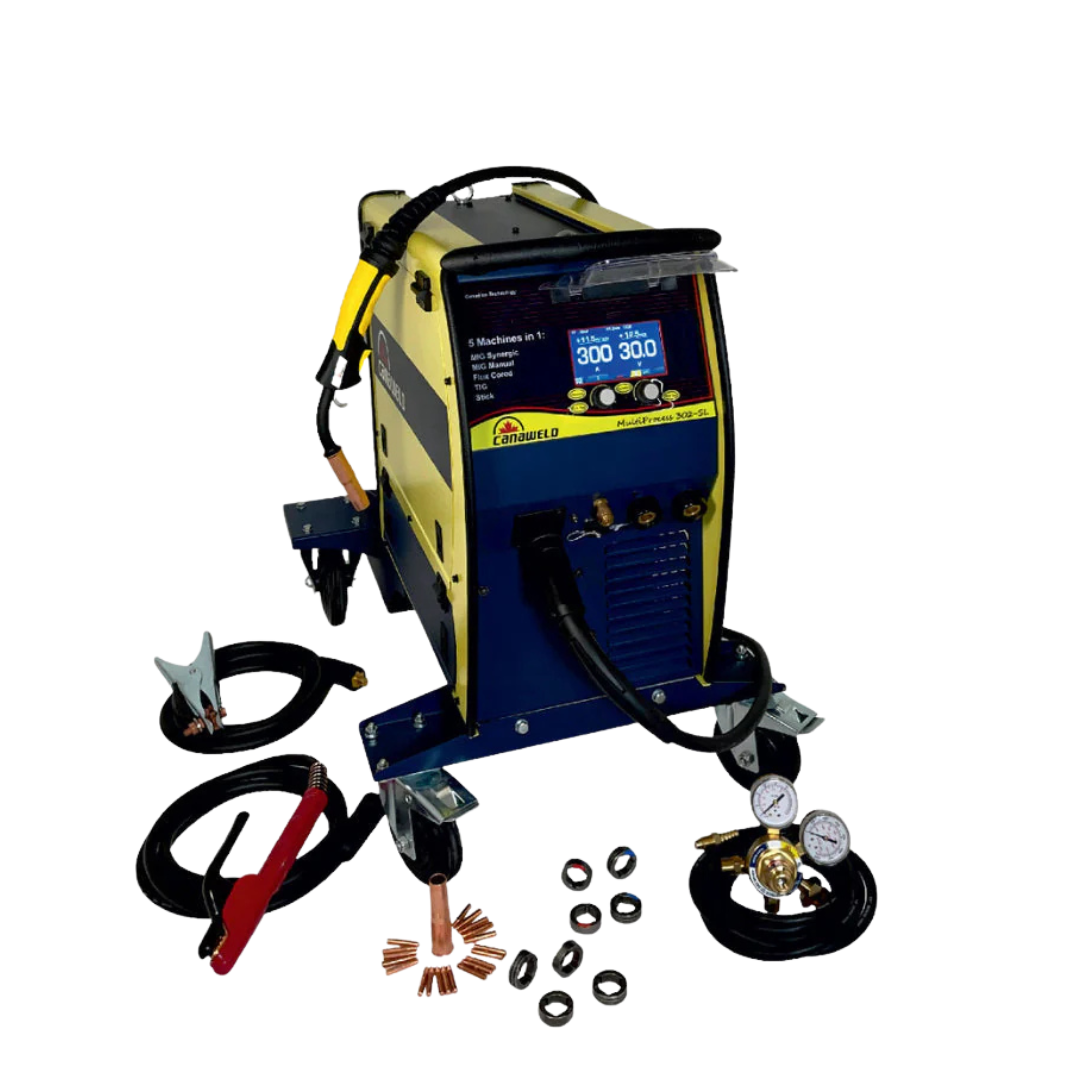

Silver Package - PLC7580138 Includes:

• Power Source
• 300A Complete Ground Clamp Assembly set

• 300A Complete Electrode Holder Assembly set

• Gas Welding Hose

• MIG Adjustable Nozzle Insulator T-Style

• MIG Gun T-Style Consumable Kits

• Spool Holder Adapter 12

• Argon/CO2 Pressure Regulator

• Drive Rolls Sets

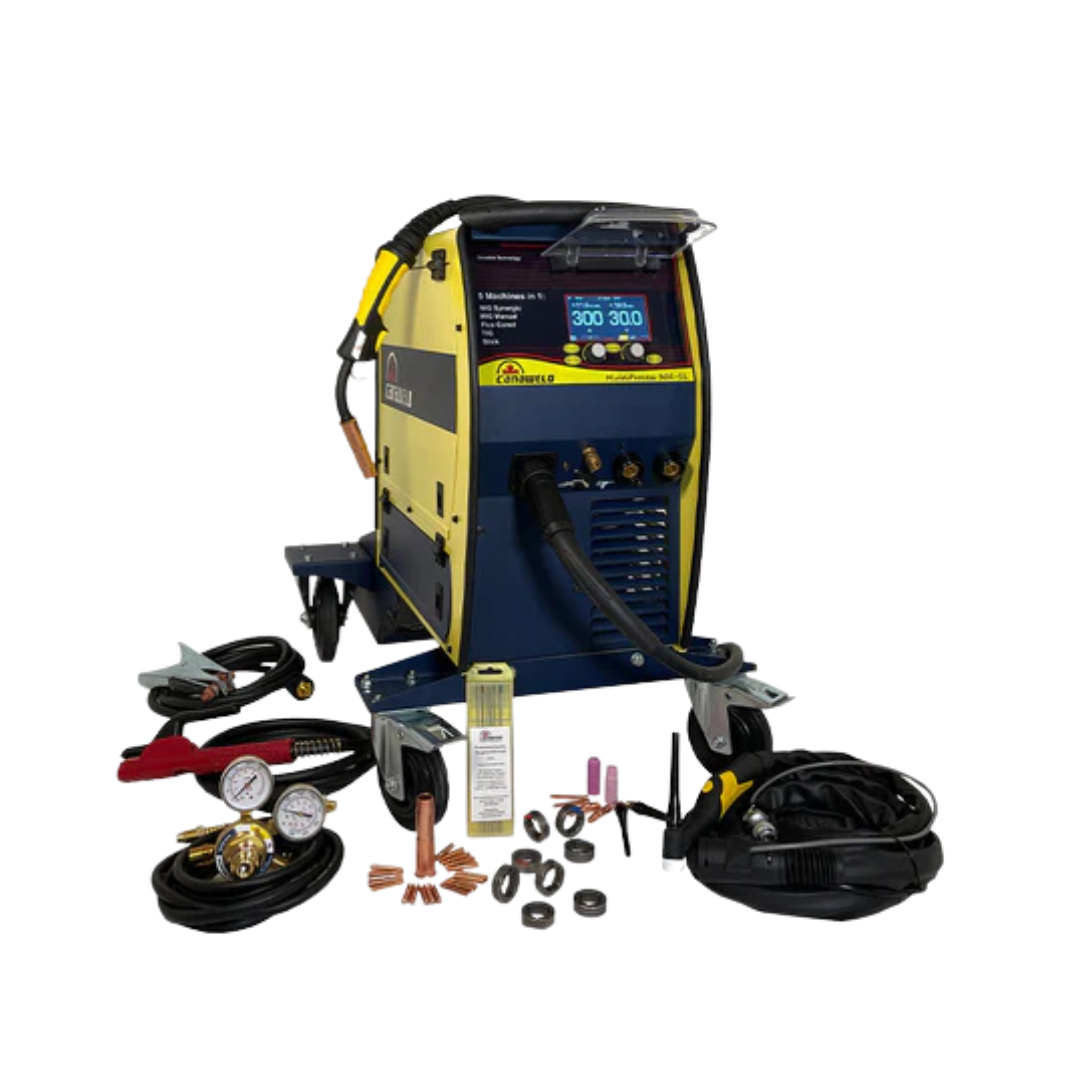

Gold Package - PLC7580173 Includes:

• Silver Package
• Classic TIG Torch 26 – Air-Cooled

• TIG Consumable Kit

• TIG Tungsten Electrode MIX of 6

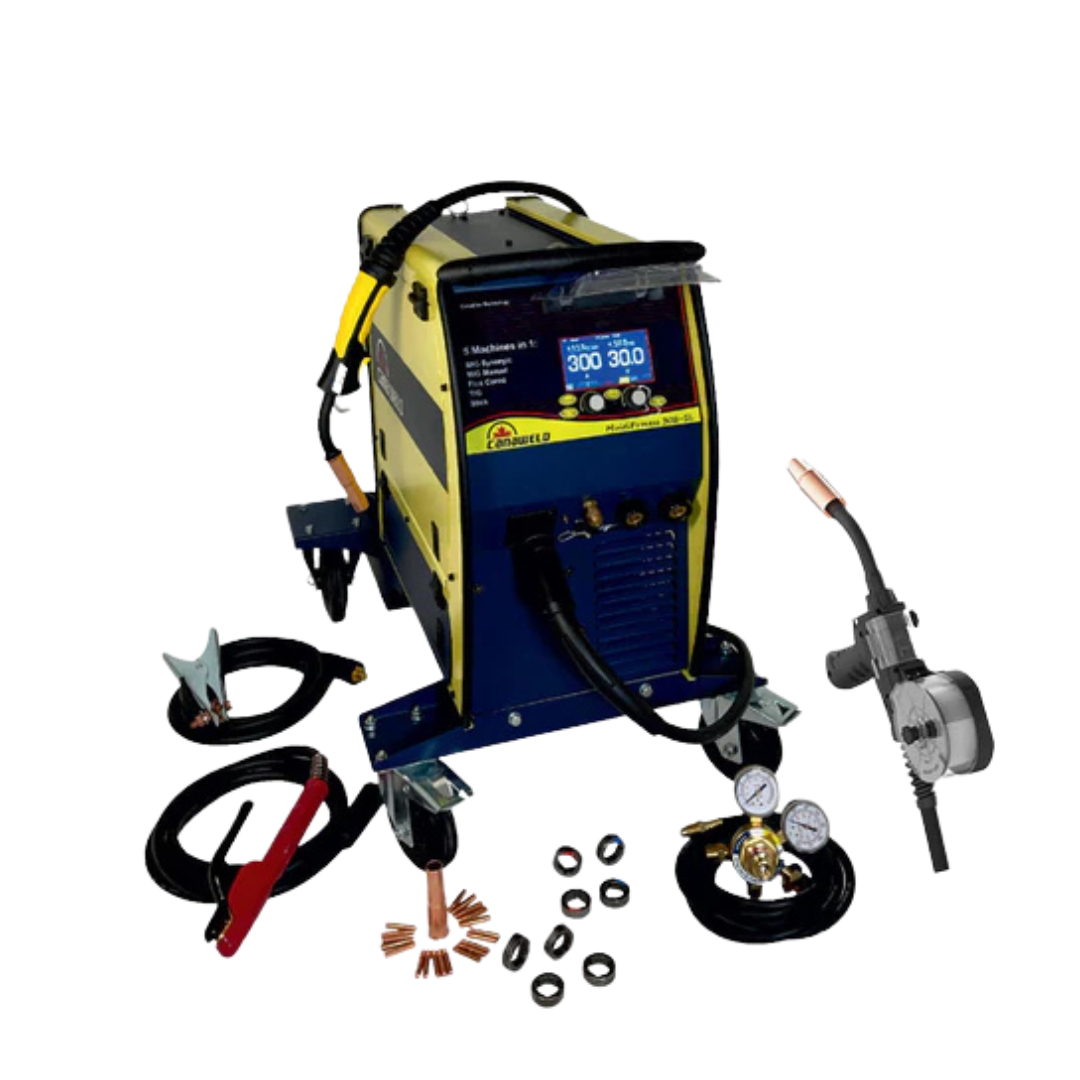

Aluminum Package - PLC7580175 Includes:

• Silver Package
• MIG Spool Gun SM300 Series
