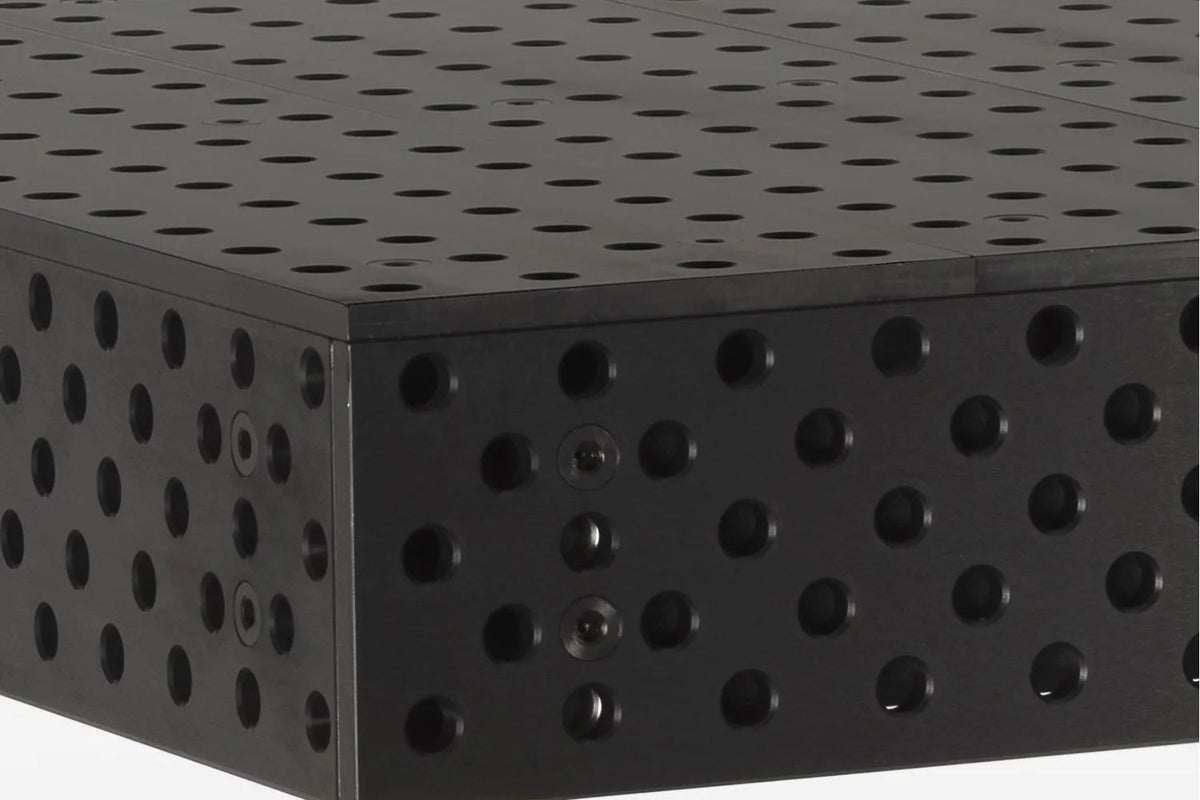

BuildPro Alpha 5/8" Tabletop
BuildPro Alpha 5/8" Tabletop
BuildPro Logo

BuildPro Alpha 5/8" Fixture Table, 6' x 4' Nitrided

$5,995.00
$5,995.00
$6,661.00
10% OFF Sold Out
0 In Stock Available to Order. Ships in an average of 5–10 business days
Upsell Product Image-1

Metabo 6" 18V Cordless Angle Grinder - WPB 18 LT BL, 601737620

$480.00
Upsell Product Image-2

RazorWeld 210di Multi Process 210 Amp Welding Machine

$1,419.00
Upsell Product Image-3

Lincoln Viking 3250D FGS PAPR Welding Helmet System

$2,780.00
Upsell Product Image-4

Walter 6" Rat Tail Angle Grinder, IRONMAN PS

$384.00
Upsell Product Image-5

Evolution Multi-Material Cutting Chop Saw With 14 In. Blade, R355CPS

$353.00
Upsell Product Image-6

CK Worldwide MT200 AC/DC TIG Welding System

$2,038.00
Upsell Product Image-7

ESAB Rebel EMP 215ic

$2,482.00
Upsell Product Image-8

Optrel Swiss Air PAPR Respirator

$1,248.00

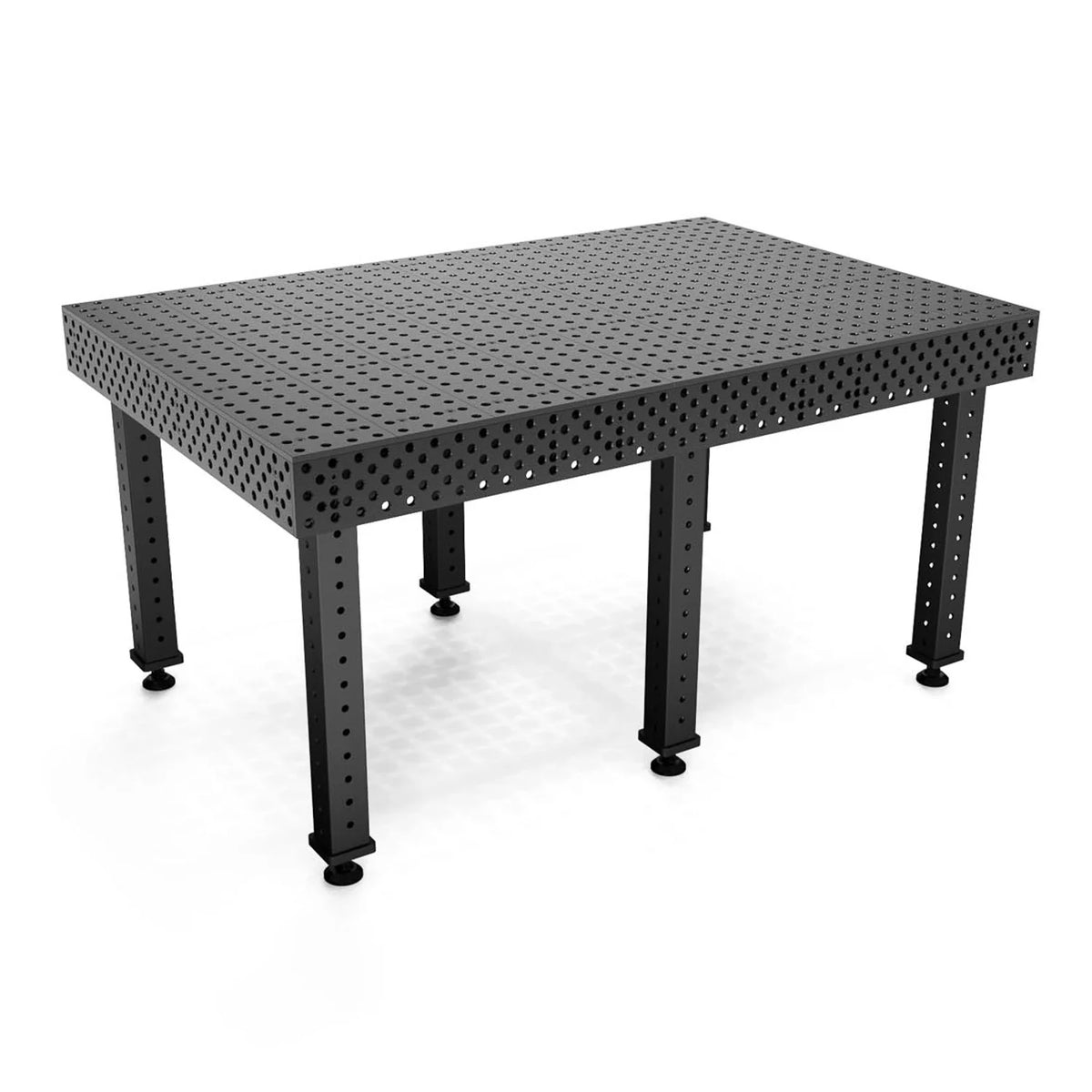

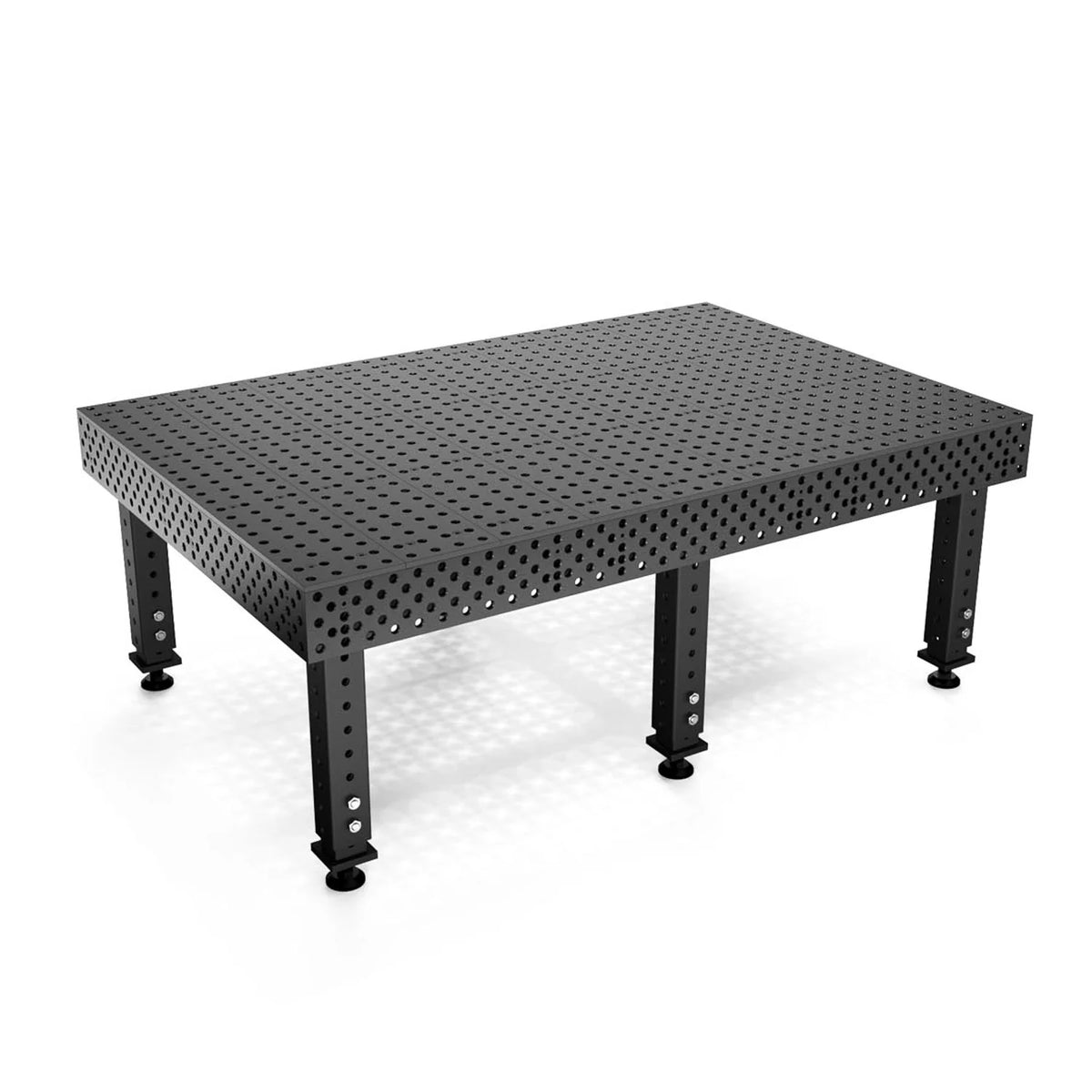

BuildPro Alpha 5/8 Welding Fixture Table



6' x 4' Nitrided - 5/8" Bore Diameter Fixturing Holes

This product ships free of charge to USA (lower 48) and Canada. No import fees or duties are applied. Forklift or Loading Dock are required.

The new heavy-duty table line from BuildPro; it features 5 sides fitted with 5/8″ diameter boreholes for more versatility and expandability than before. Maintaining industry-leading requirements for flatness, squareness, and dimensional accuracy.

Specifications

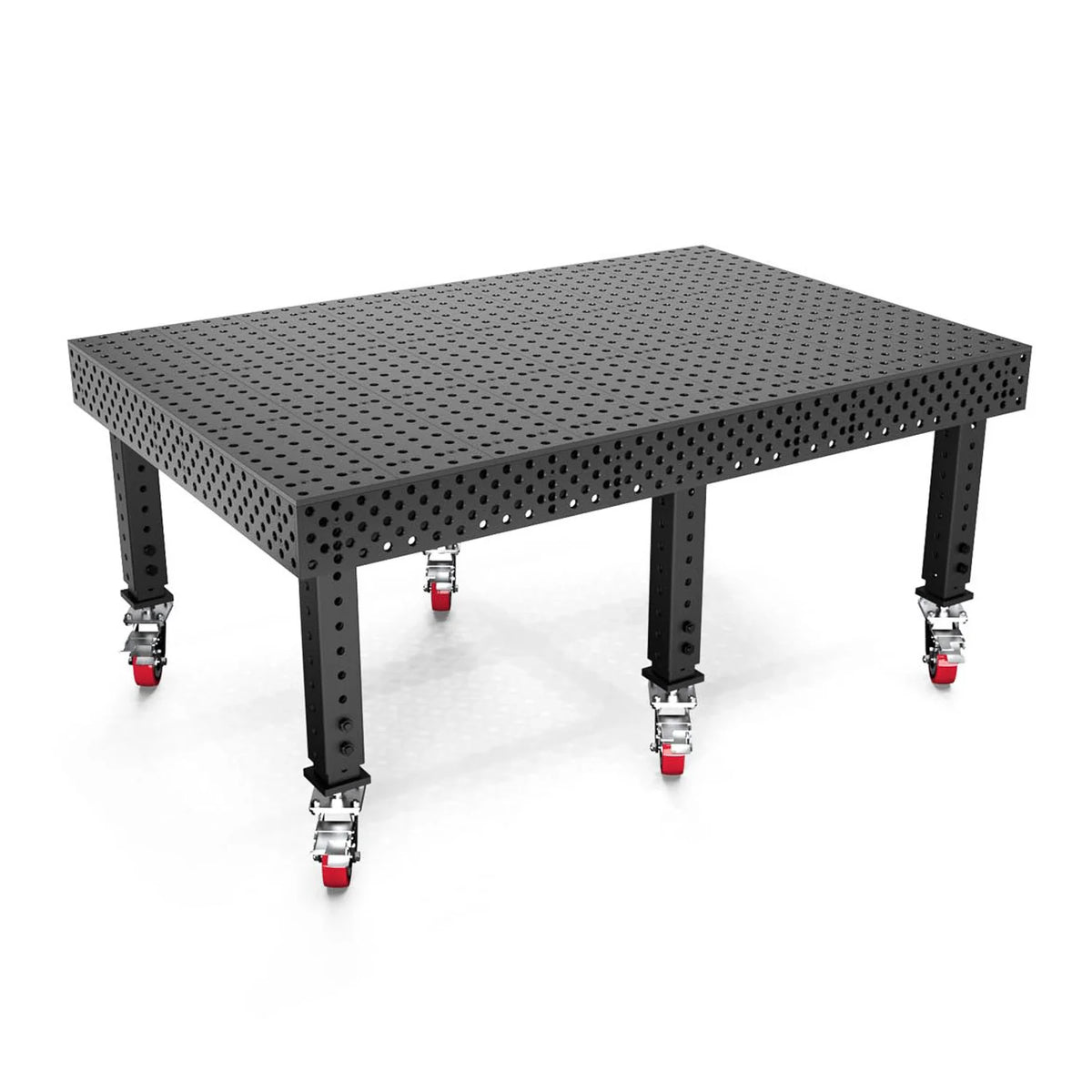

  • Capacity: 7,900 lbs (2,800 lbs with casters)
  • Size: 72 x 48 inches
  • Flatness: +/- .005 inches per 24 x 24 inches
  • Finish: Nitrided
  • Hole diameter: .625 +.002/-.000 inches
  • Hole spacing: 2.000 +/- .001 inches
  • Plate thickness: .47 +/- .004 inches
  • Weight (pounds): 1133

Table Accuracy

Hole Diameter 0.625" + .002 / -.000
Hole Spacing 2.000" ±0.001
Table Flatness ±0.005 per 24" x 24"
Plate Thickness 0.47" ±0.004
Tabletop Finish Nitrided (Heat Treated)
Surface Hardness 58-62 HRC
Coefficient of Friction 0.37

Top Plate

Material P20
Hardness 58-62 HRC

Side Plate

Material Q345B
Hardness 50-55 HRC





Please allow a 5 business day processing time.  Orders are shipped direct from the manufacturer and do not incur import fees.
