BuildPro Alpha 5/8 Welding Fixture Table



10' x 5' Nitrided - 5/8" Bore Diameter Fixturing Holes

The new heavy-duty table line from BuildPro; it features 5 sides fitted with 5/8″ diameter boreholes for more versatility and expandability than before. Maintaining industry-leading requirements for flatness, squareness, and dimensional accuracy.

Specifications

  • Capacity: 7,000 lbs (2,000 lbs with casters)
  • Size: 96 x 48 inches
  • Flatness: +/- .005 inches per 24 x 24 inches
  • Finish: Nitrided

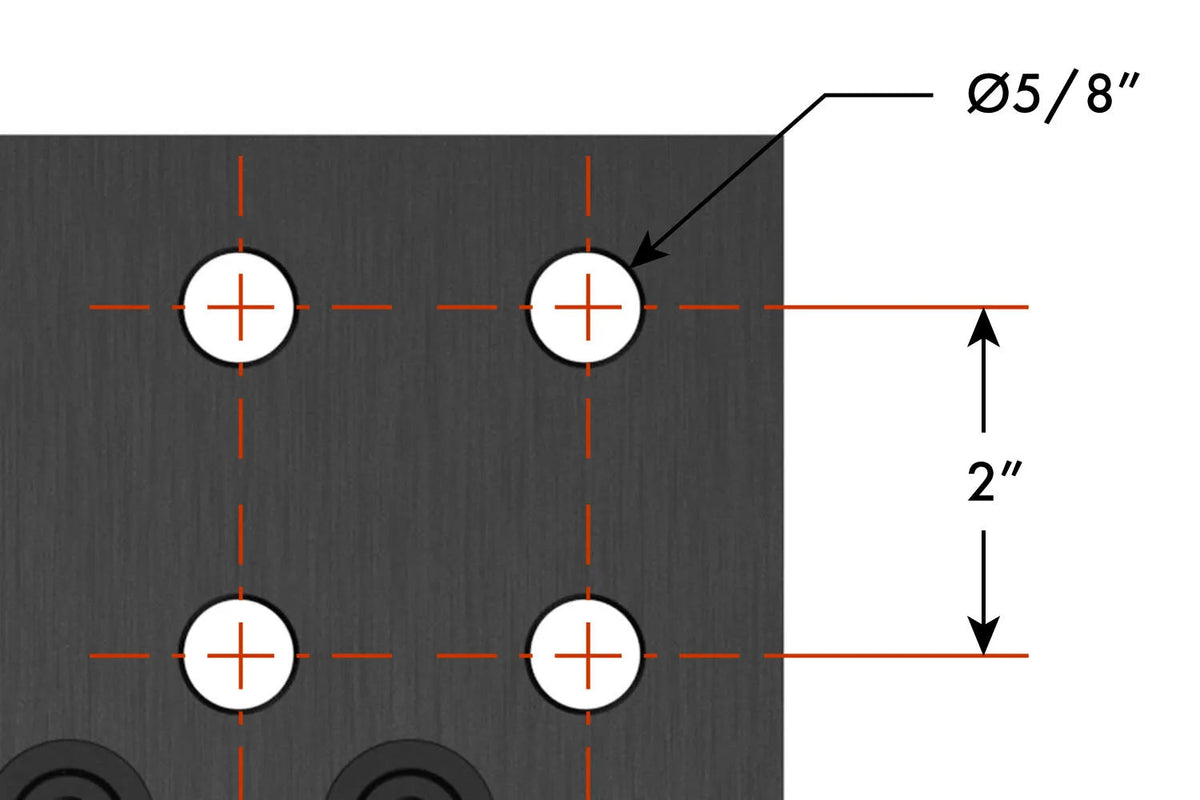

  • Hole diameter: .625 +.002/-.000 inches
  • Hole spacing: 2.000 +/- .001 inches
  • Plate thickness: .47 +/- .004 inches
  • Weight (pounds): 1923

Table Accuracy

Hole Diameter 0.625" + .002 / -.000
Hole Spacing 2.000" ±0.001
Table Flatness ±0.005 per 24" x 24"
Plate Thickness 0.47" ±0.004
Tabletop Finish Nitrided (Heat Treated)
Surface Hardness 58-62 HRC
Coefficient of Friction 0.37

Top Plate

Material P20
Hardness 58-62 HRC

Side Plate

Material Q345B
Hardness 50-55 HRC
