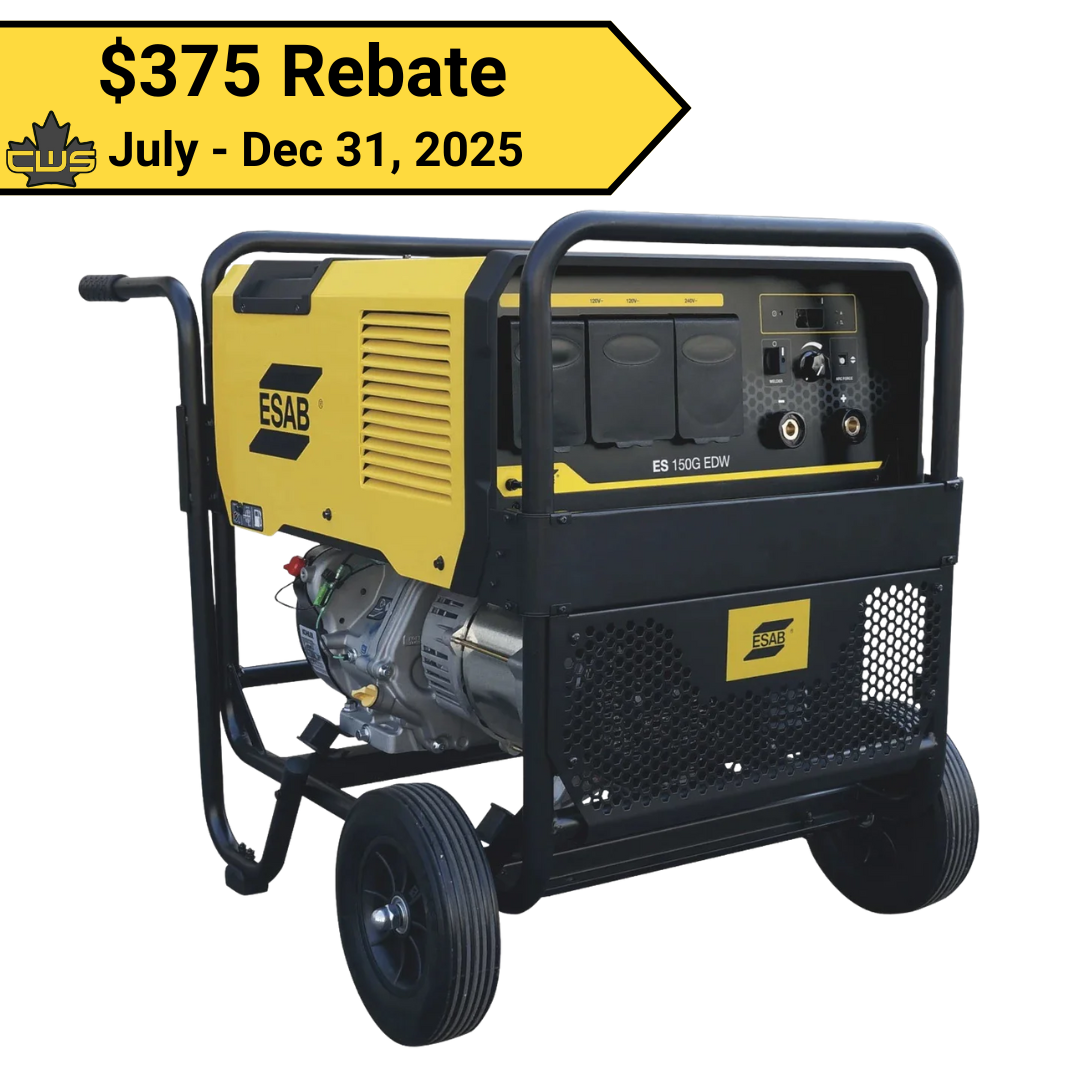

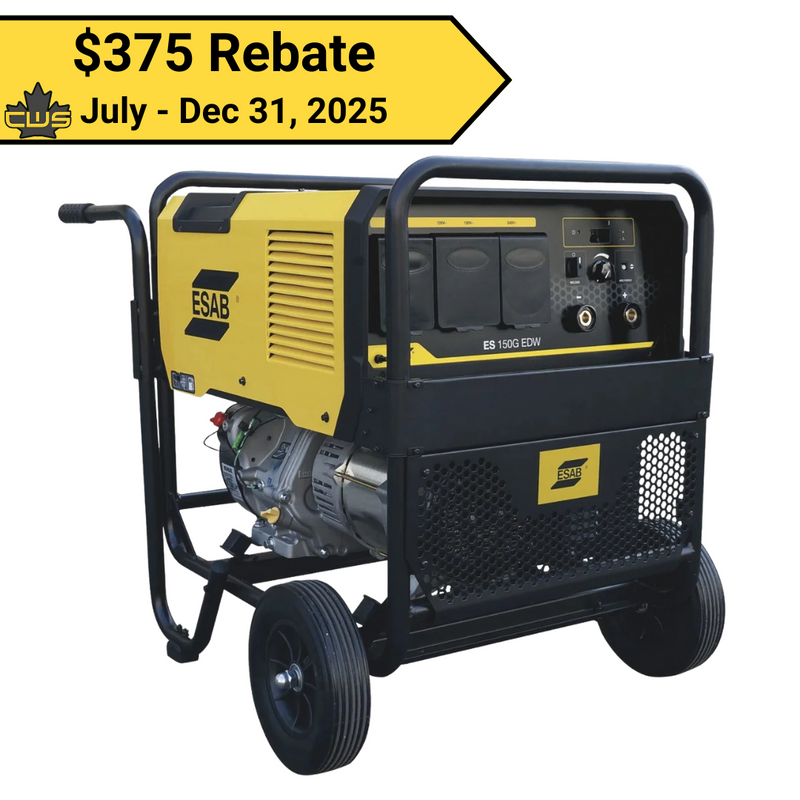

ESAB Ruffian ES 150G Engine Driven Welder
Lightweight, powerful, all-in-one DC Stick welding machine and AC generator combined.
As a welder, Ruffian uses inverter technology to provide up to 150 A of reliable welding power at 60% duty cycle in a very stable arc that helps avoid rework. As an AC generator, Ruffian uses a 14 HP Kohler® engine to deliver up to 4.5 kW starting power. 120 VAC and 240 VAC outlets provide versatility to run lights, grinders, hand tools – even light-duty plasma cutters and MIG/TIG welders – and to use as emergency backup.
Ruffian ES 150G Features
- 150A Welding Output @ 60% Duty Cycle
- Running gear included with convenient lifting handles
- Exceptional performance with cellulosic electrodes (6010)
- Kohler Command PRO CH440 Engine, 5 gal. fuel tank
- 4x 120V, 20A outlets, and 1x 240V, 50A outlet for auxiliary power
Technical Data
| Product Name // Part Number | ESAB Ruffian ES 150G EDW // 0707070150 |
| Welding Process | Stick (SMAW) |
| Rated Duty Cycle | 150A, 26V @ 60% 115A, 24.6 @ 100% |
| Welding Output Range | 20A - 150A DC, 78V OCV |
| Engine Type | 14HP Kohler CH440, Gasoline |
| Generator Power (Peak/Cont.) | 4,500W Peak 4,000W Continuous |
| Engine Start Type | Pull start only |
| Auxiliary Power Outlets | 4x 120V 15/20A 1x 240V 50A |
| Auxiliary Power (Max.) | 120V: 34A 240V: 17A |
| Dimensions L x W x H - Without Wheels and Handles: - With Wheels and Handles: |
28.70 x 22.52 x 25.98 in 40.83 x 28.74 x 31.61 in |
| Weight (Empty Weight, No Gas) - Without Wheels and Handles: - With Wheels and Handles: |
223.8 lb (101.5 kg) 248.0 lb (112.5 kg) |
| Warranty | 3-Year ESAB: Welder/Generator 3-Year Kohler: Engine |
What's Included
- Ruffian ES 150G EDW Machine
- Handle kit (4 pieces)
- 2x Wheels and axle
- Hardware to mount handles and axle
- ESAB Ruffian Manual, Kohler CH440 Manual
*Electrode holder, ground clamp, cables and connectors not included. Ruffian 150G is equipped with female Dinse 35 (50mm) connectors.
