ESAB Rebel™ EMP 285ic



Introducing the Rebel™ EMP 285ic, the most powerful, industrial ESAB Rebel yet! Designed for powerful performance on MIG, Flux-Cored, TIG and Stick applications.  Capable of welding up to 350A, this TRUE multi-process, multi-voltage industrial welding machine runs the full range of .035 in. (0.9 mm) and .045 in. (1.2 mm) wires. It’s the most portable, mobile welder in its class and has the power and performance to crush even the most demanding industrial jobs.

Features:

  • Power to Perform – with 285A @ 40% (1ph model), you’ll have the confidence to run the full range of .045 in. (1.2 mm) wire, short arc and spray transfer, with increased deposition rates and higher productivity on smaller diameter wires such as .030 in. (0.8 mm) and .035 in. (0.9 mm).

  • sMIG Technology – innovative “smart-MIG” feature that dynamically monitors the arc characteristics ultimately adapting to your technique resulting in a smooth, stable arc. Set wire diameter and plate thickness and you are ready to weld.

  • With ESAB’s new 4 Roll Drive System, weld up to .052 in. (1.4 mm) solid wire and up to 1/16 in.(1.6 mm) cored wire. Plus, electrodes up to 5/32 in. (4.0 mm) and TIG rods up to 3/16 in. (5.0 mm).

  • Unmatched Portability/Mobility – weighing in at 70 lbs. (32 kg) with multi-voltage, multi-phase capability and 4 handle roll cage. Detach the Rebel EMP 285ic from its cart and tackle any job around the shop or out at the job site.

  • TFT Multilingual Display – packed full of features, Rebel EMP 285ic has 4 programmable memory locations for each process, multi-language selection, trim adjustment, inductance control, pre/post flow control and spot weld setting giving you the ability to fine tune your welds for the most optimal performance.

  • Available with or without Rebel single cylinder cart.
  • Single phase 110-230V or three phase 460 - 575V options.

Options

  • 110-230V, 1PH, 15 ft Lead - 0558102554
  • 460-575V, 3PH, 15 ft Lead - 0558102556
  • 110-230V, 1PH, 15 ft Lead w/Cart - 0558102555*
  • 460-575V, 3PH, 15 ft Lead w/Cart - 0558102557*

*Cart options ship direct from ESAB. Please allow 2-3 days lead time.

User Manual         Technical Data & Specifications

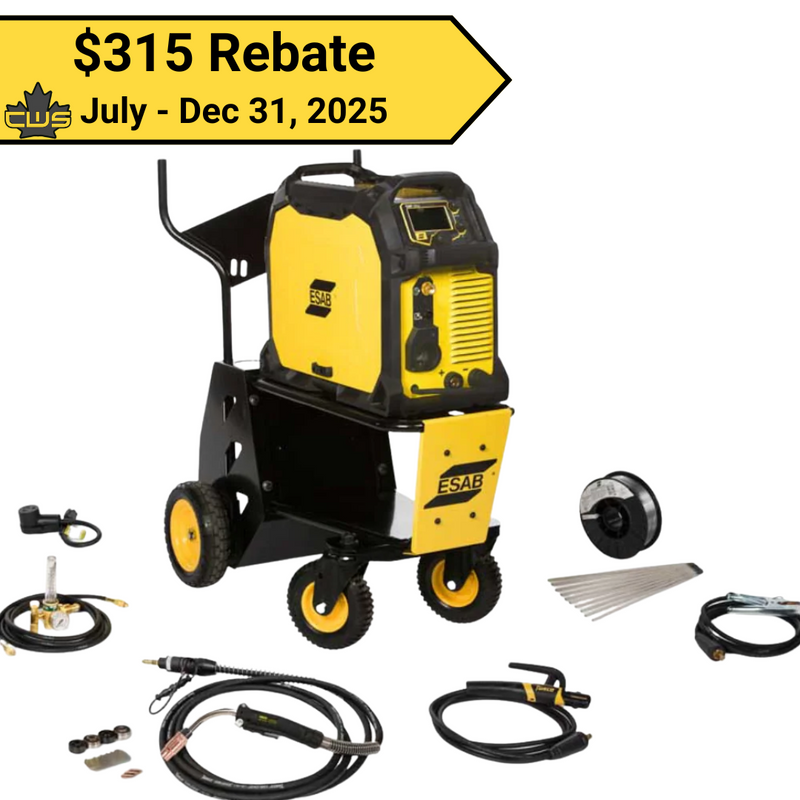

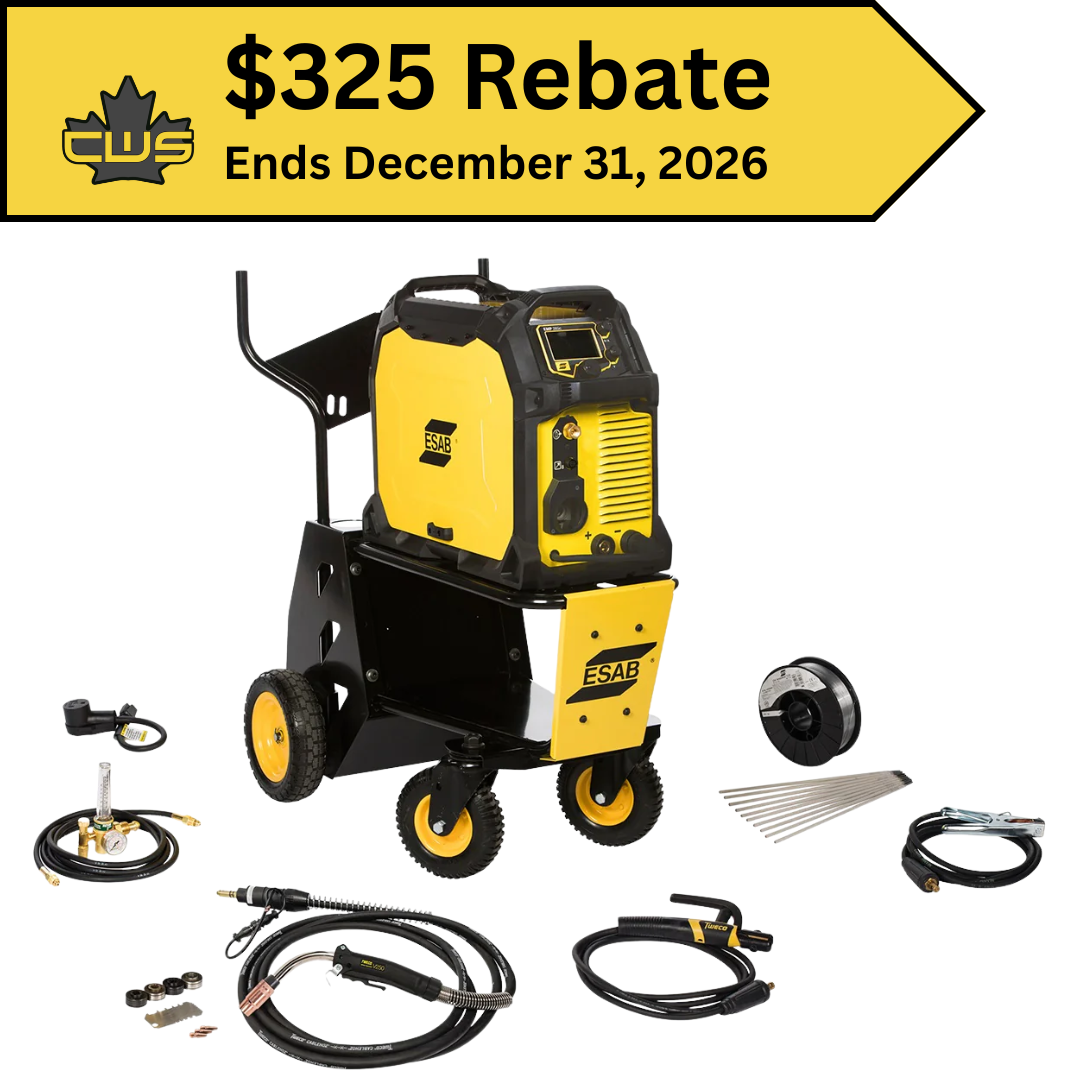

What's in the box?

ESAB EMP 285ic 1ph power source

  • Tweco® Spray Master® V250 MIG torch with 15 ft (4.5 m) cable, with 0.032 in, 0.035 in., 0.045 in. (0.8 mm, 0.9 mm, 1.2 mm) contact tips, 5/8” recess nozzle
  • ESAB stick electrode holder, 12 ft (4 m) 300 A
  • Ground clamp, 10 ft (3 m), 300 A
  • Victor® Flow Meter with 6 ft (2 m) gas hose
  • Drive rollers: 0.035 in. (0.9 mm) to 0.045 in. (1.2 mm) V-Groove, 0.045 in. (1.2 mm) to 0.052 in. (1.4 mm) Knurled
  • Guide tubes: 0.030 in. (0.8 mm) to 0.062 in. (1.6 mm) Solid Wire
  • Filler metal starter pack

ESAB EMP 285ic 3ph power source

  • Tweco® Spray Master V350 MIG torch with 15 ft (4.5 m) cable, 0.030 in., 0.035 in., 0.045 in. (0.8 mm, 0.9 mm, 1.2 mm) contact tips and Allen key
  • ESAB stick electrode holder, 12 ft (4 m), 300 A
  • Ground clamp, 10 ft (3 m), 300 A
  • Victor® Flow Meter with 6 ft (2 m) gas hose
  • Drive rollers: 0.035 in. (0.9 mm) to 0.045 in. (1.2 mm) V-Groove, 0.045 in. (1.2 mm) to 0.052 mm (1.4 mm) Knurled
  • Guide tubes: 0.030 in. (0.8 mm) to 0.062 in. (1.6 mm) Solid Wire
  • Filler metal starter pack

Link to Contact Tips and Nozzles
