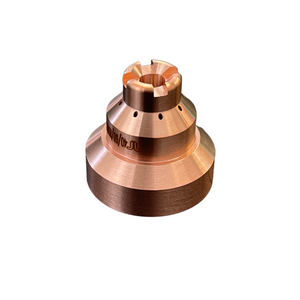

Thermacut® Standard Nozzles for Duramax® Torches (5/Pack)

$36.00
Upsell Product Image-2

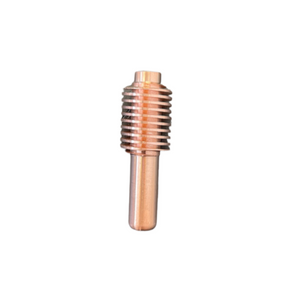

220842 Powermax, Duramax Electrode, 45-105A by Thermacut® (5/Pack)

$44.00
Upsell Product Image-3

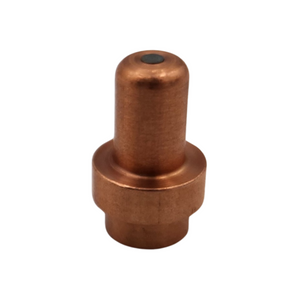

020103 Electrode Standard

$67.00
Upsell Product Image-4

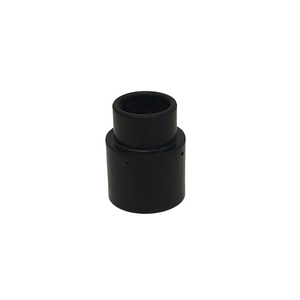

020101 Swirl Ring Diffuser

$35.00
Upsell Product Image-5

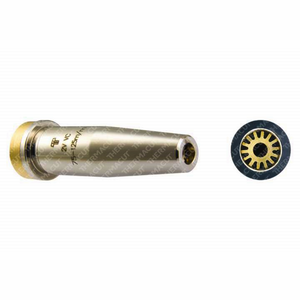

Thermacut Model 6290 VVC Two-Piece Propane / Natural Gas Cutting Tips

$9.00
Upsell Product Image-6

Thermacut® 120928 Retaining Cap 40/60/80 Amp

$32.00
Upsell Product Image-7

Thermacut® 120925 Swirl Ring 40/60/80 Amp (2/Pack)

$32.00
Upsell Product Image-8

Replacement Plasma Cutting Torch - 228788-UR

$480.00

Crossfire Invercut 105HD Plasma Cutting System



1" Pierce Capacity, 1-3/8" Recommended Cut Capacity

The Crossfire Invercut 105HD system fits different needs, from small workshops to
heavy-duty production facilities with continuous operation. Combined with the
perfectly fitting torches and cable leads, they provide outstanding cutting, gouging and grid-cutting performance.

Features

  • Manual or Mechanized Performance - Machines are supplied with hand operated torches for manual applications, as well as a remote input connection to easily adapt to mechanized and automated applications
  • Multi-Voltage Input - One machine, all input voltages. The Invercut 105HD is ready to connect to Single Phase 230V THROUGH 3-Phase 575V, ensuring maximum flexibility in any application.
  • No Cartridges! Spend Less on Consumables - The traditional style torch ensures that operators are able to change only the parts that have worn, rather than an entire consumable stack. Keep less consumables on hand, and save money by only changing consumables when they need to be replaced.
  • Convenient and Easy Operation - The 4.3" LCD display and control, protected by a clear viewing cover allow for easy adjustment of cutting mode, air pressure, and output settings while providing accurate and easy to read data at a glance.
  • 30+ Years of Experience - The Invercut 105HD is made with Thermacut® DNA, Thermacut brings over 30 years of knowledge and experience to all plasma cutting platforms

Specifications

Product Name // Part Number Crossfire Invercut 105HD // CF-995105
Input Voltage // Amp Draw 230V 1Ph // 73.3A Max
230V 3Ph // 58.7A Max
460V 3Ph // 26A Max
575V 3Ph // 23.6A Max
Output Current

70% at 85 A, 1Ph 230V
100% at 71A, 1Ph 230V
60% at 105 A, 3Ph 208V
100% at 81 A, 3Ph x 208 V
80% at 105 A, 3Ph 460/575V
100% at 94 A, 3Ph 460/575V
Protection Rating IP23S
CSA Approved ✅
Dimensions (L × H × W) 24 x 12 x 20 in.
Net Weight 101 lb.


Full Product Spec Sheet | Plasma Torch Consumables
