Harris Model 447-50-1⁄4" L - Station / Line Regulator

Harris Model 447-50-1⁄4" L - Station & Pipe Line Regulator

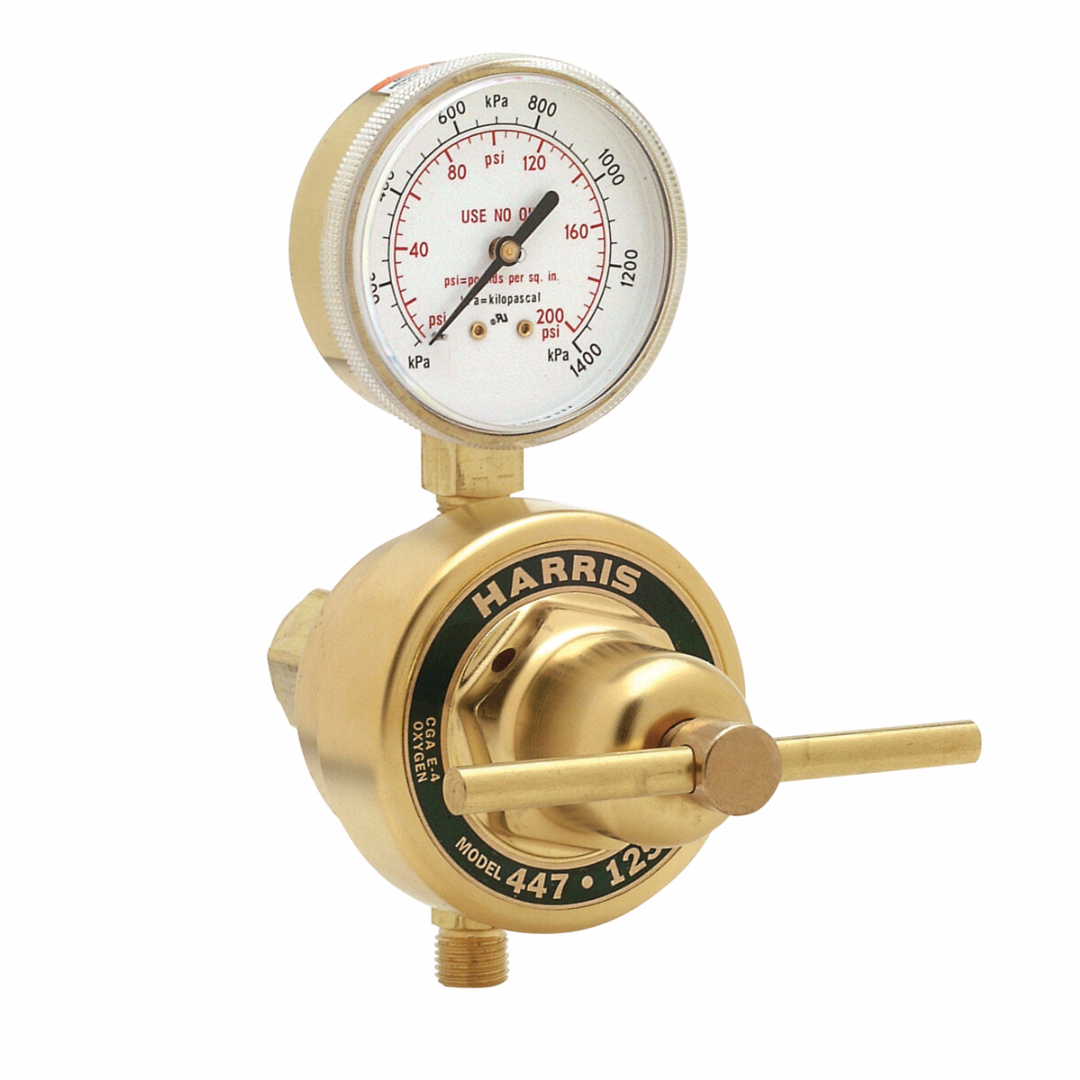

Model 447 regulator is designed to deliver high gas flows from piping systems that are equipped with standard pipe connection outlets. This heavy-duty, high flow, pipeline regulator has back entry access and a 1/4 in. NPT inlet connection. It features a brass body and bonnet, 2.5 in. dual scale brass gauge, brass T-screw adjustment handle and one-piece encapsulated seat design with internal filter and PTFE Teflon® seat.

Features

• Provides high gas flows for piping systems

• Designed to work with back-entry standard pipe connection outlets

• Easy-to-operate brass T-screw adjusting handle

• Forged brass body and bonnet for longer service life

• Rubber diaphragm for better pressure control

• 2.5 in. Brass-plated steel dual scale easy-to-read gauges (psi/kPa)

• One-piece encapsulated seat design with internal filter to protect the PTFE
• Teflon® seat from particulate contamination

• 1/4 in. NPT (F) inlet connection (rear)

• 9/16 in. - 18 LH outlet connection

Specifications

Part Number: 4000571
