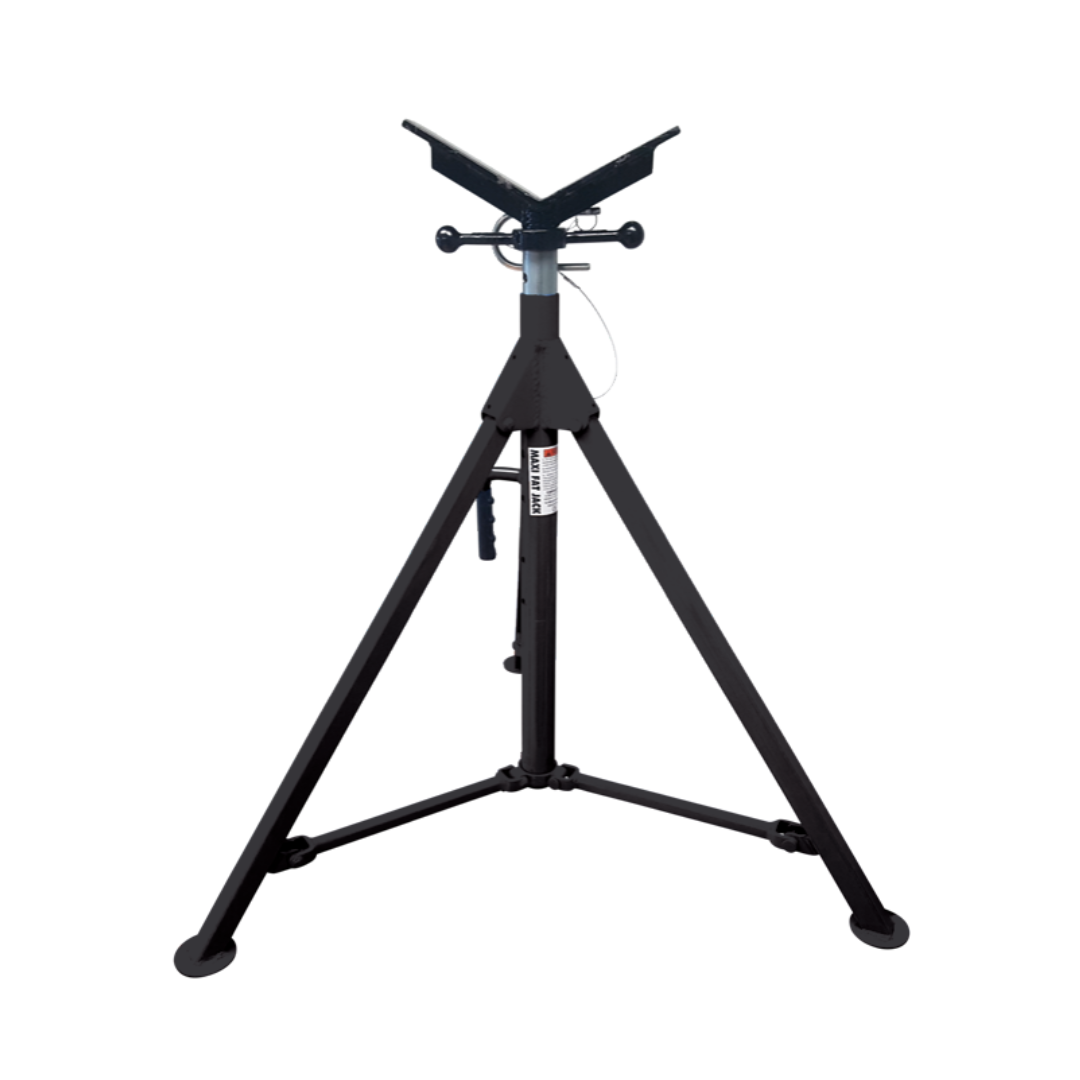

&B Sumner Fat Jack Maxi V Head

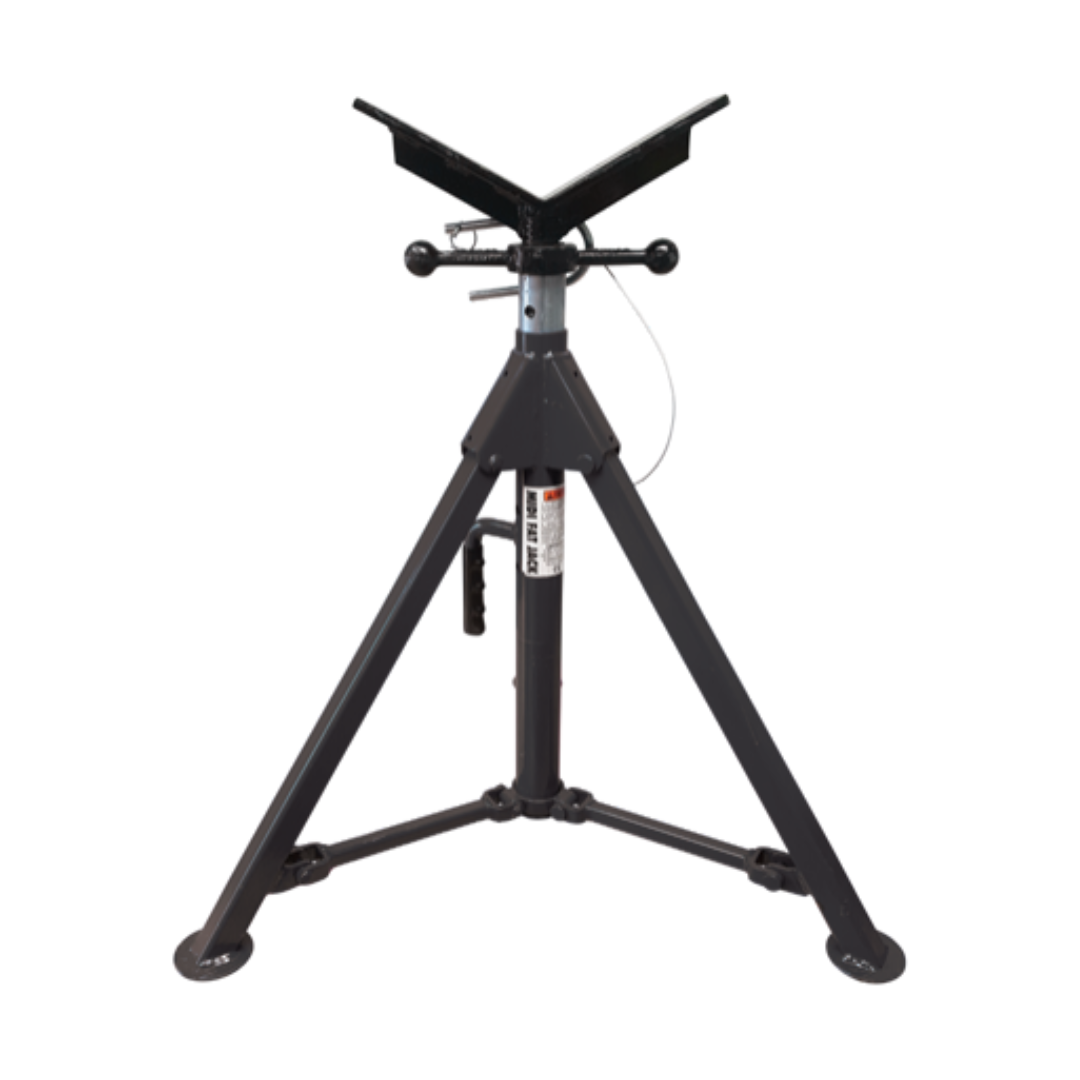

&B Sumner Fat Jack Midi V Head

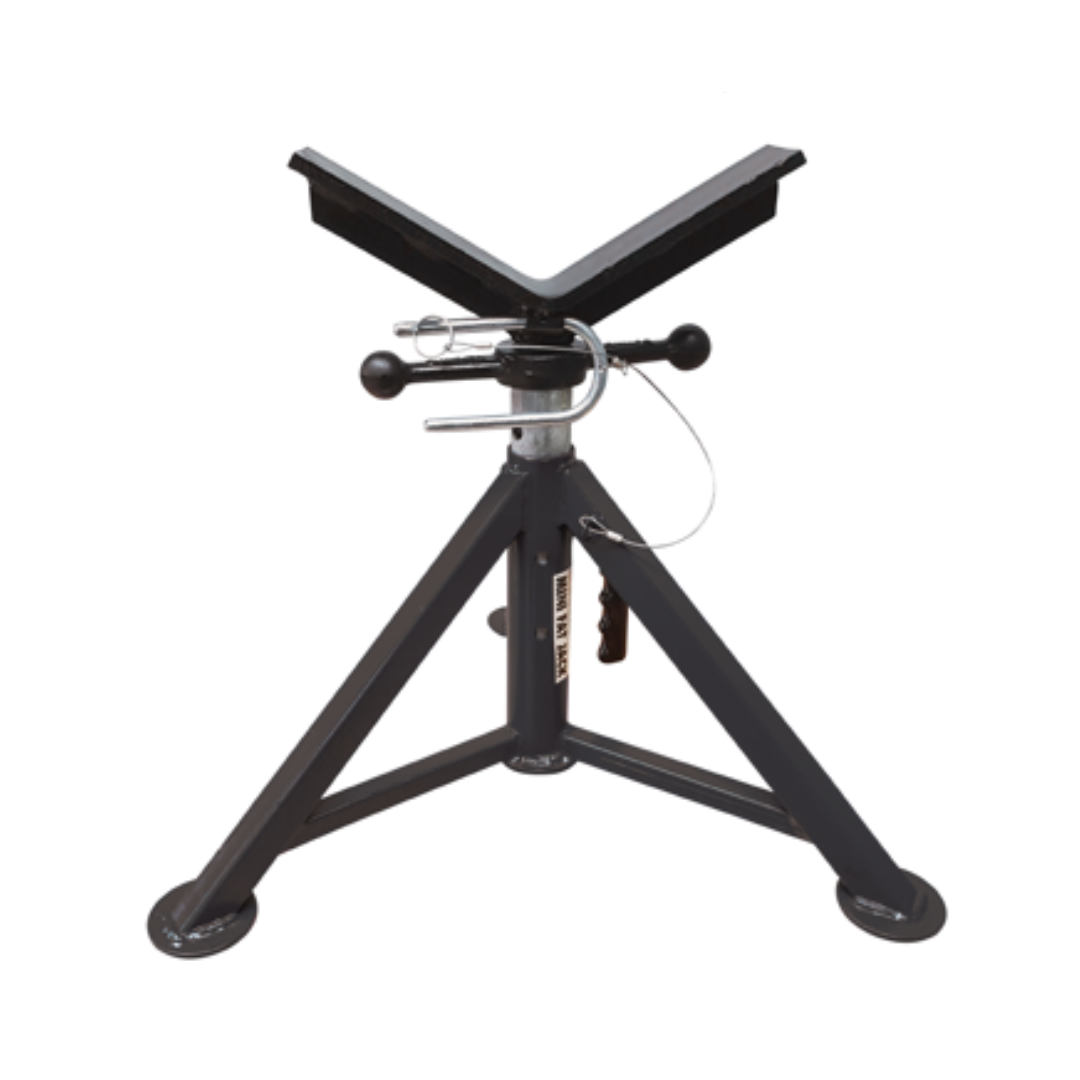

&B Sumner Fat Jack Mini V Head

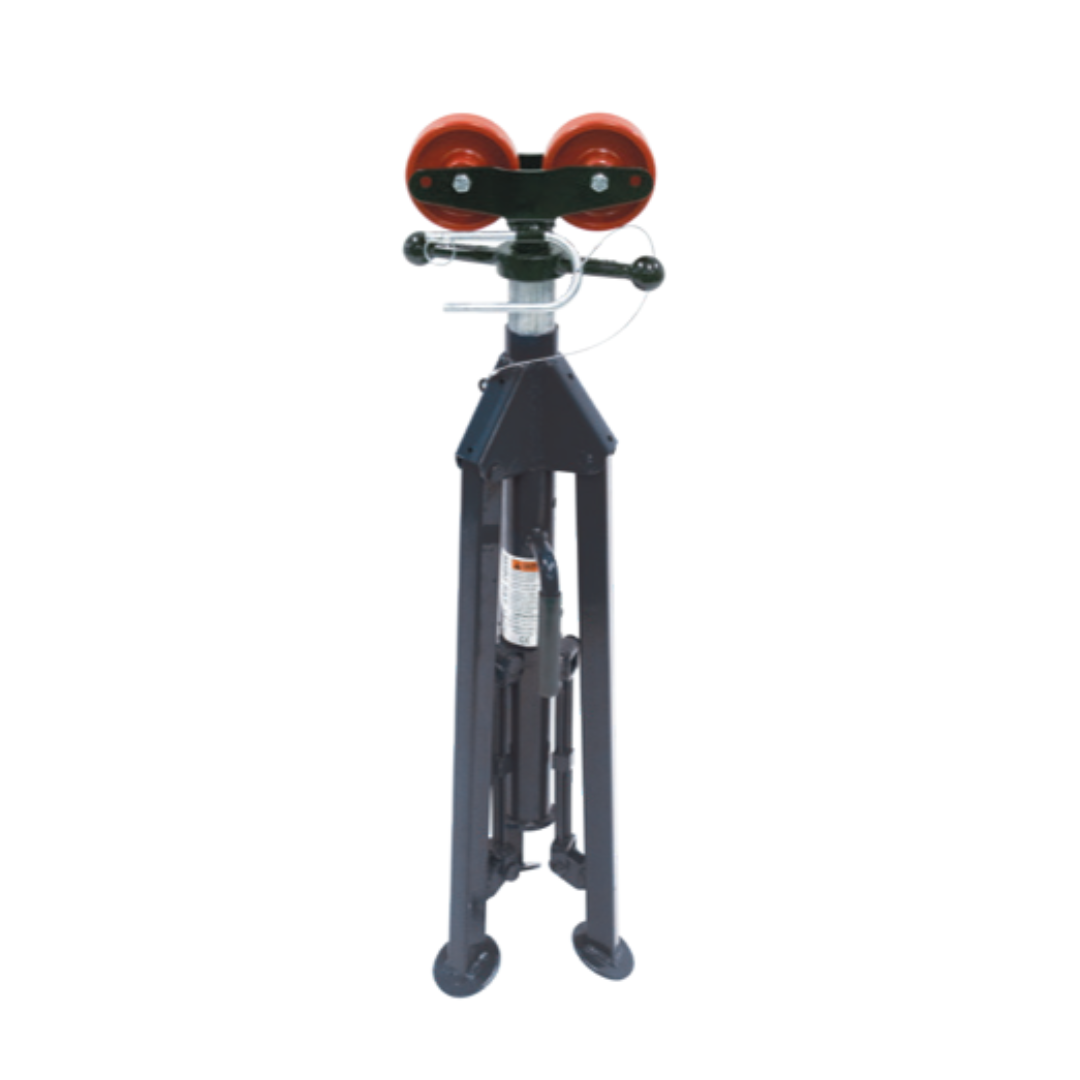

B&B Sumner Fat Jack Steel Roller Head

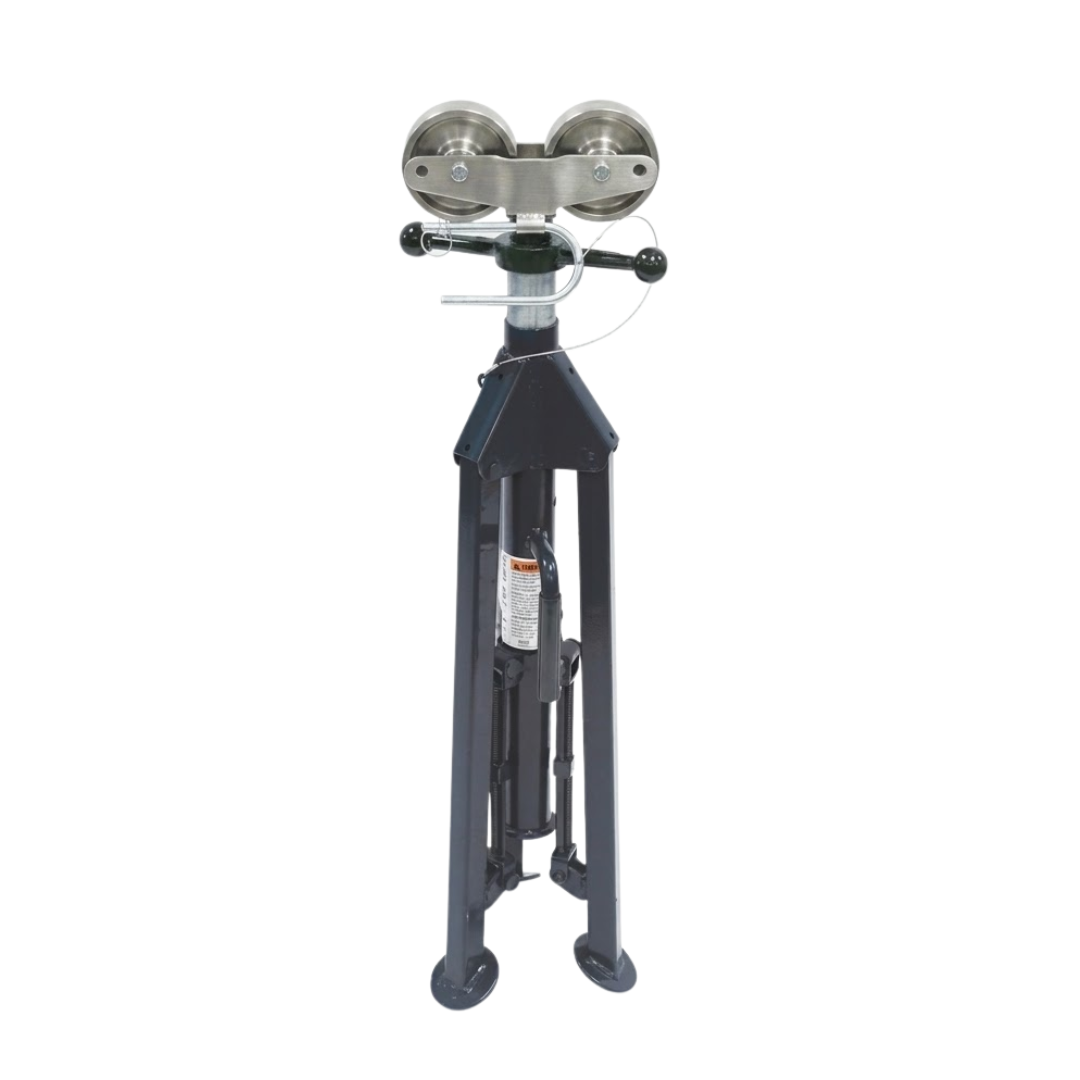

B&B Sumner Fat Jack Stainless Roller Head
B&B Sumner Fat Jack

B&B Sumner Fat Jack

$194.00
$194.00
0% OFF Sold Out
0 In Stock More Coming Soon
Upsell Product Image-1

Sumner Fold-A-Jack® Standard Vee

$133.00
Upsell Product Image-2

Sumner Fold-A-Jack Steel Roller Stand

$173.00
Upsell Product Image-3

Sumner Fold-A-Jack® Flat Bar Stock Roller

$280.00
Upsell Product Image-4

Tri-Stand Chain Vice 6100

$584.00
Upsell Product Image-5

Sumner Hold Down Chain Vise For Vee Head Attachment

$183.00
Upsell Product Image-6

H&K Fab Roller Jack Stand Roller Heads

$156.00
Upsell Product Image-7

Sumner Vee Head Attachment

$82.00
Upsell Product Image-8

Sumner Stainless Steel Sleeves For Vee Head Attachment

$62.00

B&B Sumner Fat Jack

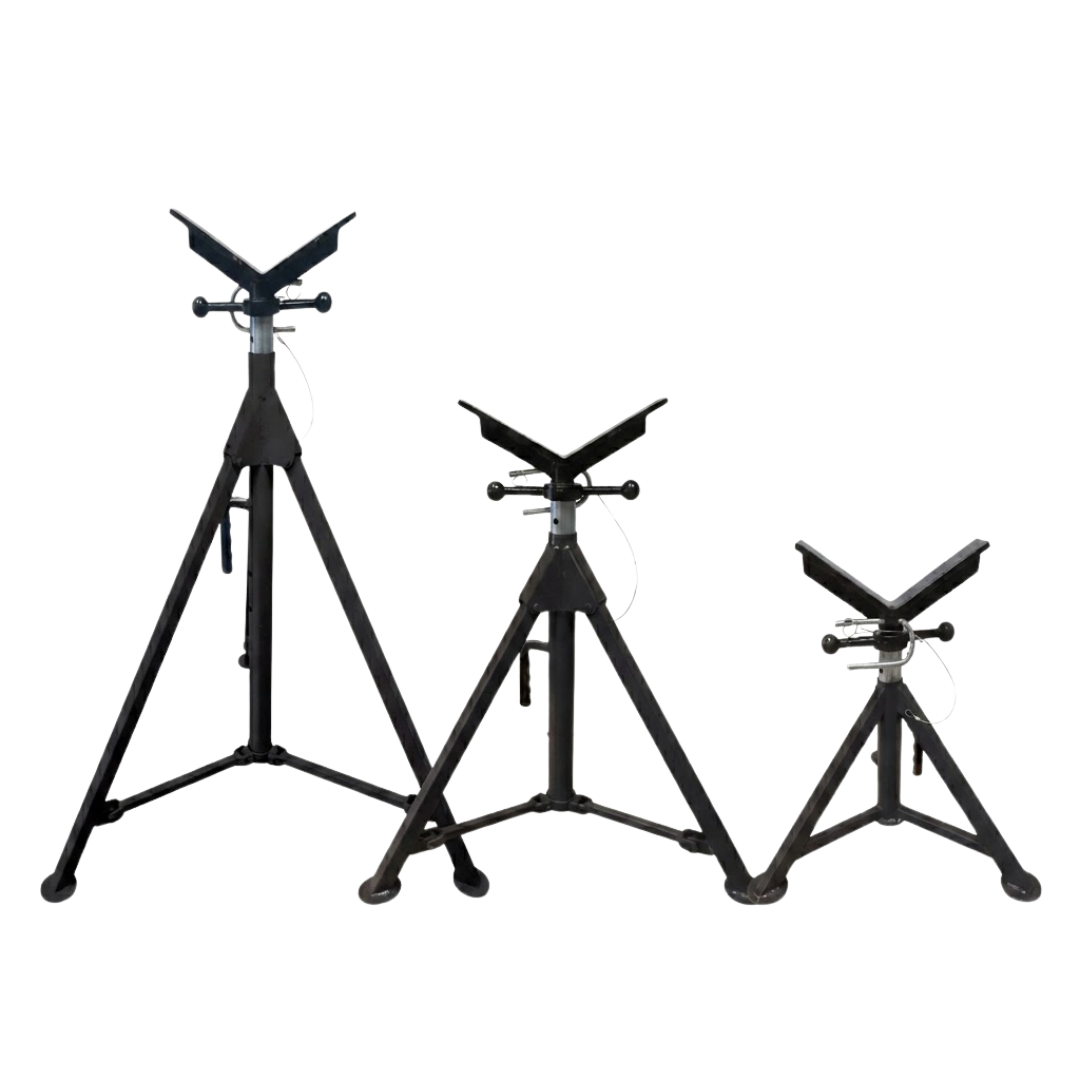

The B&B SUMNER Fat Jack™ range entails high-performance pipe jack stands designed to handle the most demanding industrial applications.

Crafted from rugged 1.25" steel tubing, the Fat Jack™ series is engineered to offer superior strength, stability, and reliability on the job site and is available in three sizes: Mini, Midi, and Maxi - each capable of withstanding heavy loads up to 6,000 lbs / 2,725 kg, setting a new benchmark for durability in material handling solutions.

Features:

  • Supports loads up to 6,000 lbs / 2,725 kg
  • Equipped with a 1.5" ACME fine adjustment thread and a large ergonomic handle for smooth and accurate height changes
  • Quick-secure double locking pin system - fast and reliable height locking
  • Available with two head options
  • Sturdy construction - built with 1.25" steel tubing
  • Wide base for stability
  • Max. pipe capacity 36" / 900 mm with V-head, and 24" / 600 mm with roller
    heads

Available Options and Part Numbers

Part Number

Old Sumner PN

Description

Load Capacity (lb)

Load Capacity (kg)
4700 787900 Fat Jack™ Maxi with V-head 6,000 2,725
4700SWH 787903 Fat Jack™ Maxi with steel wheel head 6,000 2,725
4700SSWH n/a Fat Jack™ Maxi with stainless steel wheel head 6,000 2,725
4701 787901 Fat Jack™ Midi with V-head 6,000 2,725
4701SWH 787904 Fat Jack™ Midi with steel wheel head 6,000 2,725
4701SSWH n/a Fat Jack™ Midi with stainless steel wheel head 6,000 2,725
4702 787902 Fat Jack™ Mini with V-head 6,000 2,725
4702SWH 787905 Fat Jack™ Mini with steel wheel head 6,000 2,725
4702SSWH n/a Fat Jack™ Mini with stainless steel wheel head 6,000 2,725

B&B Sumner Fat Jack Specifications
