Harris Model 19-6 Combination Torch Handle

Model 19-6 Combination Torch Handle with Front Valves and Check Valves

The Models 19-6 and 19-6A are combination handles for medium-duty welding, brazing, heating and cutting. They can be used with oxy-acetylene or any of the alternate fuel gases. The Model 19 features silver brazed twin-tube construction. Both Models 19-6 and 19-6A have front valves for easier adjustment while welding and brazing. The 19-6A features 3⁄8"-24 class "A" hose fi ttings.

Features

• Medium duty combination torch handle with front valves for use with all fuel gases

• Silver-brazed twin inner tube construction for strength, safety and durability while still being lightweight

• Tube-within-a-tube construction for optimum flow performance while providing maximum leak integrity

• Front valves for easier adjustments during operation

• Features 9/16 in. - 18 B-hose fittings

• Embossed with model number for ease in selecting compatible parts

• Handle is 7 1/2 in. (190.53mm) in length

• UL® listed

• Equipped with FlashGuard® replaceable check valves

• Cuts up to 2 in. (50.6mm) plate and Welds up to 5/16 in. (7.9mm) plate.
• Part No. 1401156

Technical Specifications

• Capacity: Welds to 5⁄16" (7.9 mm); cuts to 2" (50.8 mm)
• Length: 7 1⁄2" (190.5 mm)
• Weight: 0.7 lbs. (0.32 kg)
• Certification: UL® listed
• Equipped with: FlashGuard® check valves
• Inlet Connections:

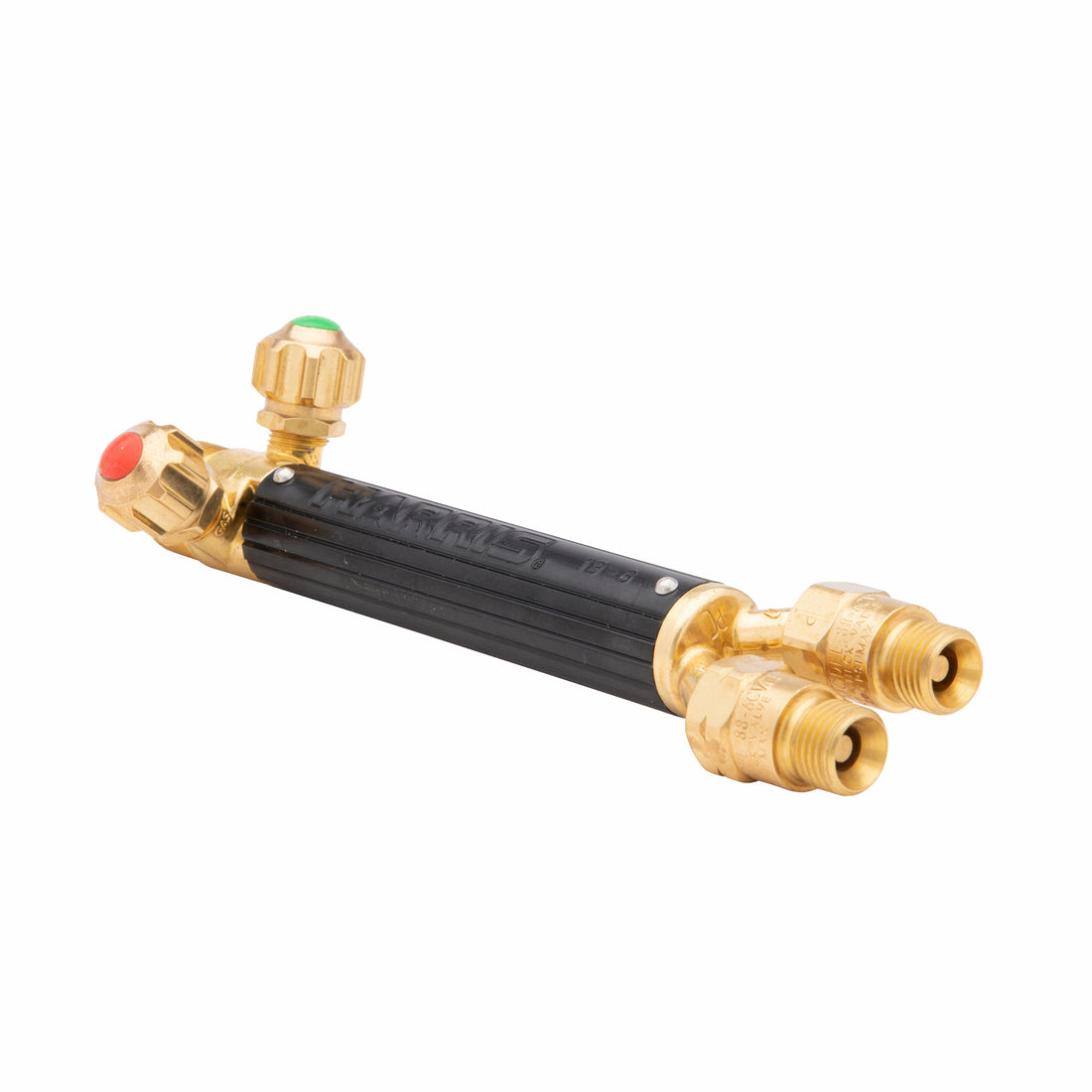

  • Model 19-6: 9⁄16" - 18 (Part Number: 1401156)

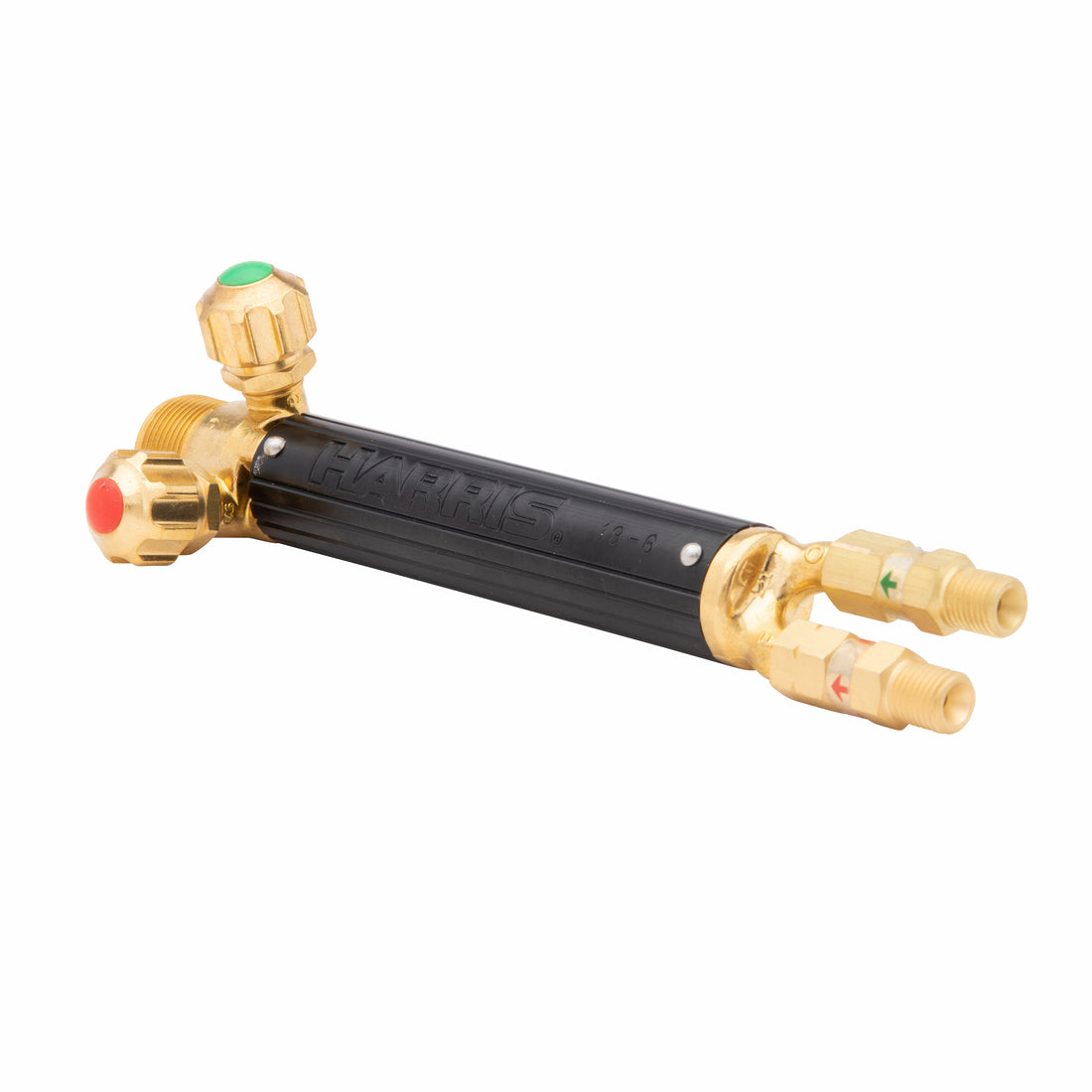

  • Model 19-6A: 3⁄8" - 24 (Part Number: 1401143)
