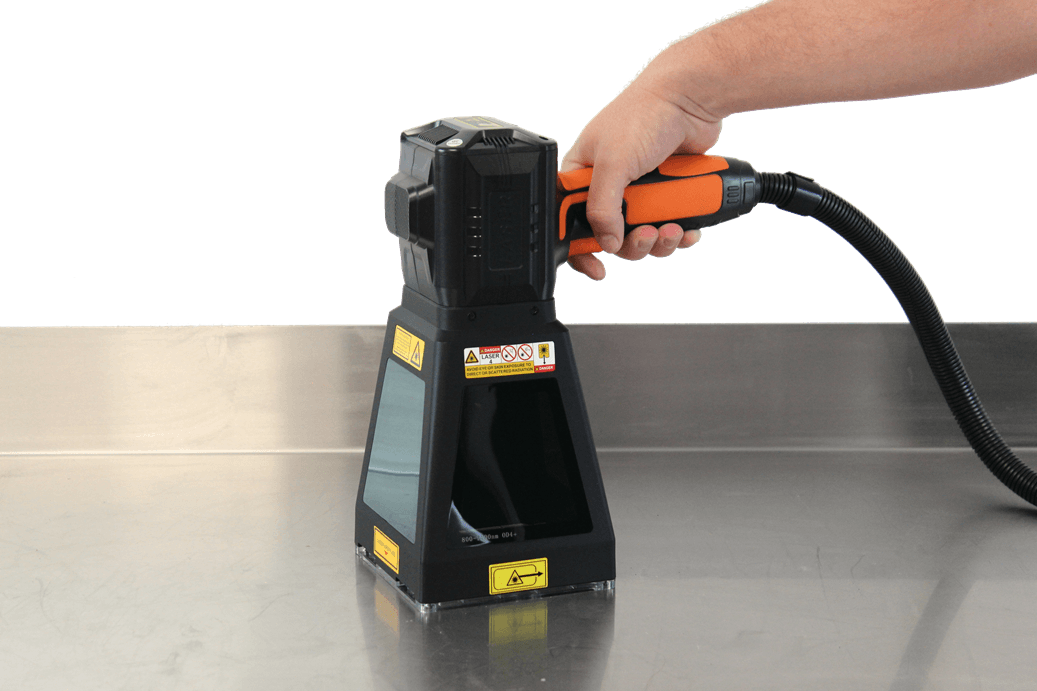

The MK310 is a portable 30W fiber laser marking machine for permanent marking on metals, plastics, rubber, silicone, and selected coated surfaces.

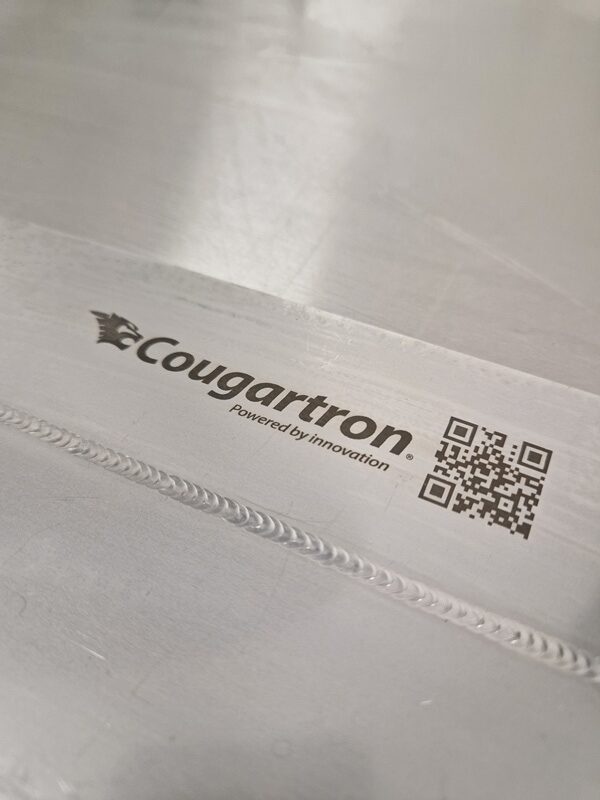

Use it for serial numbers, QR codes, logos, part IDs, dates, batch data, graphics, and traceability directly on the part. It is lightweight, easy to move, and built for workshops and production teams that need marking to happen close to the work.

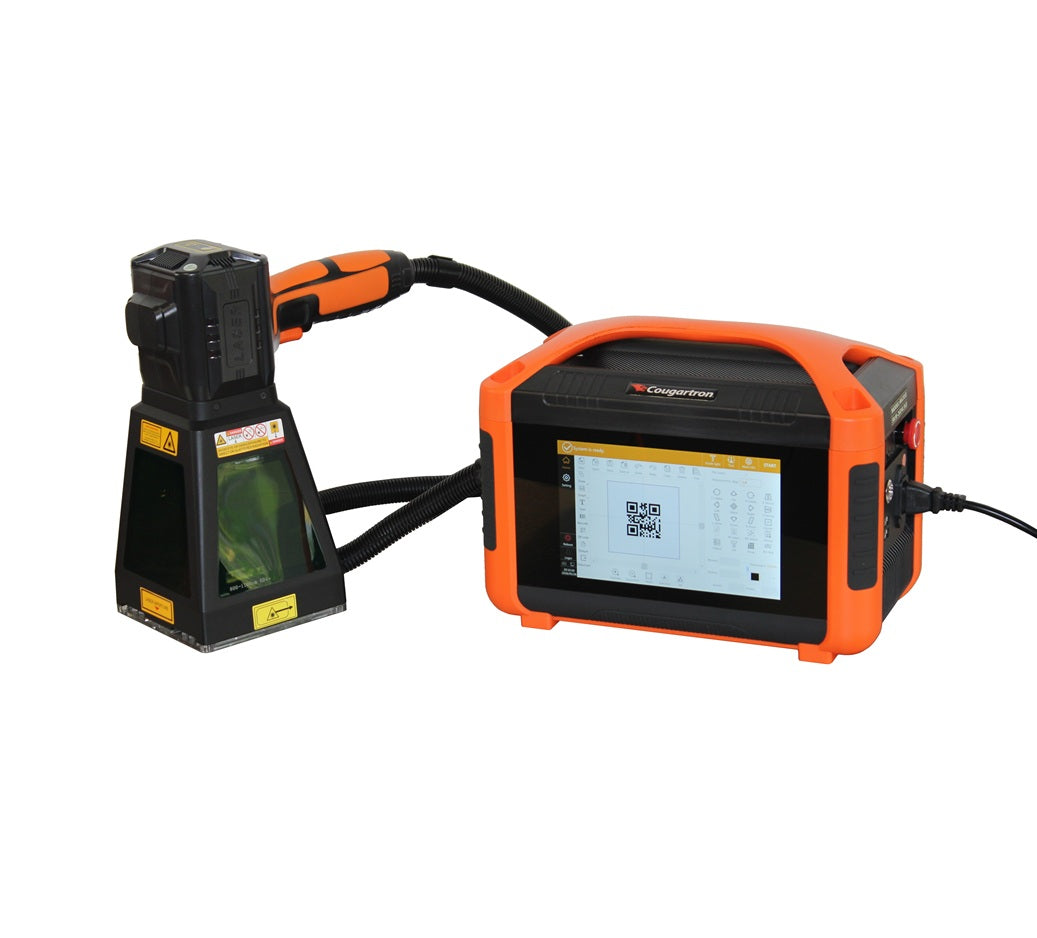

The MK310 is available in battery-powered and corded 110V versions. It features integrated touchscreen software, marking speeds up to 7,000 mm/s, a standard 3.94 × 3.94 in marking area, and an optional lens that extends the marking area up to 5.71 × 5.71 in. The machine weighs just 13.2 lb, making it easy to move, position, and use around the shop.
| Laser type | Fiber laser |
| Power output | 30W |
| Standard marking area |
3.94 × 3.94 in (100 × 100 mm)
|
| Optional expanded marking area |
Up to 5.71 × 5.71 in (145 × 145 mm)
|
| Machine weight | 13.2 lb (6 kg) |
| Laser handle weight | 2.4 lb (1.1 kg) |
| Marking speed |
Up to 7,000 mm/s
|
| Repeat accuracy |
0.00039 in (0.01 mm)
|
| Wavelength | 1064 nm |
| Pulse frequency | 27–170 kHz |
| Maximum marking depth |
Up to 0.0079 in (0.2 mm)
|
| Minimum line width |
0.0012 in (0.03 mm)
|
| Minimum character size |
0.0157 in (0.4 mm)
|
| Power supply, corded version | 110V AC |
| Power supply, battery-powered version |
Lithium battery pack, 216 Wh
|
| Cooling | Air cooling |
| Operating temperature |
32–104°F (0–40°C)
|
| Laser lifetime |
50,000–100,000 hours
|
| Software |
Integrated touchscreen software
|
| Supported file formats |
BMP, DXF, PNG, JPEG and PLT
|
