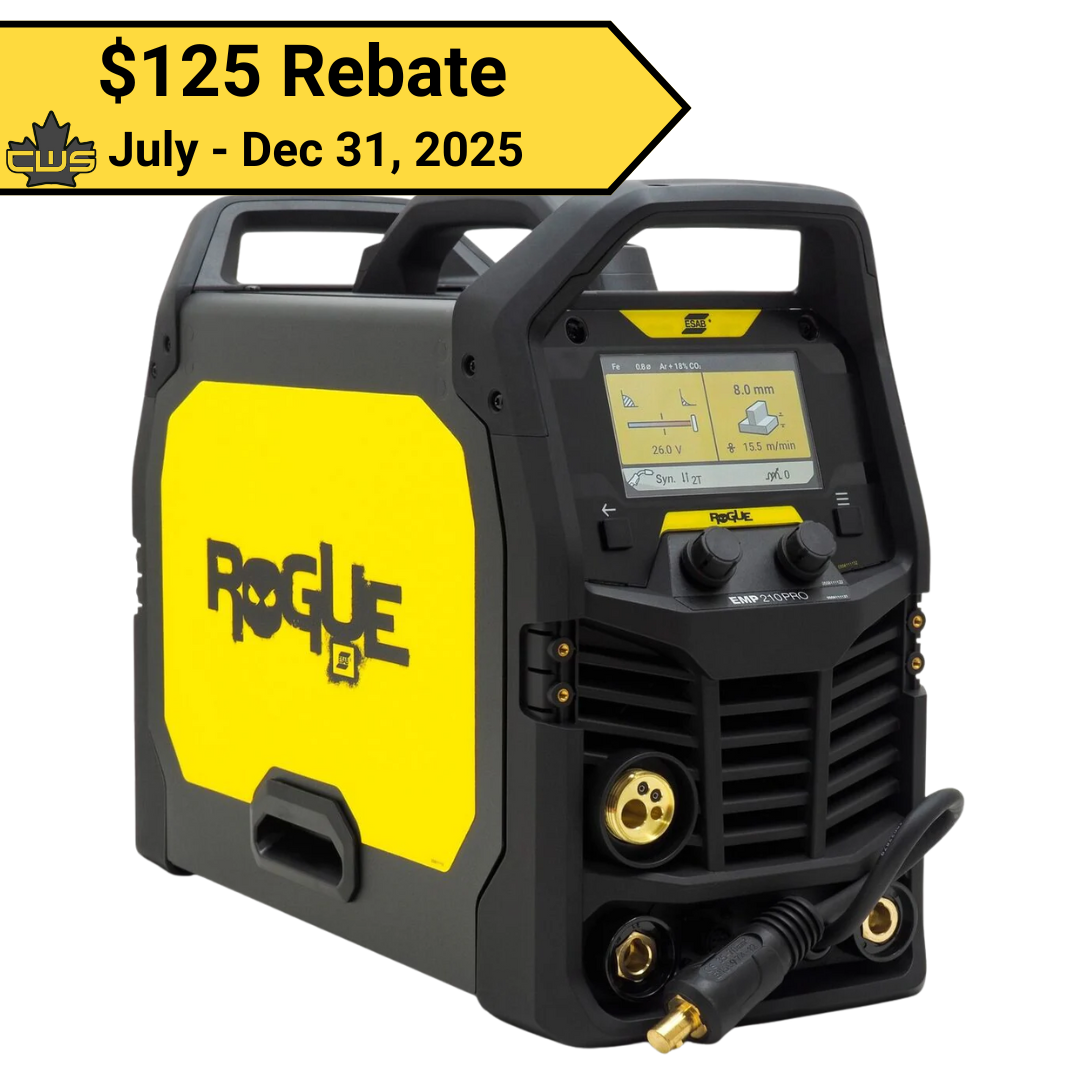

ESAB Rogue EMP 210 PRO MultiProcess Welding Machine



Portable, 120/230V Powered Stick, TIG, MIG and Flux Core Welding System

ESAB Rogue EMP 210 PRO is an inverter-based multi-process welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding.

With a weight of only 16.7 kg, 230 V single-phase input and compatibility with 10 kVA generators, this system provides maximum flexibility and portability, both in the shop and in the field.

Top Features

  • True multi-process with Synergic MIG, Manual MIG, MIG Brazing, Flux-Cored, Lift TIG, and Stick (including 6010)
  • Intuitive 5.0 in TFT screen offers clear views with direct interaction
  • Synergic Weld Programs – full range of welding parameters, 0.5 – 10.0 mm (0.020 – 0. 375 in.) with single knob control
  • Power Factor Correction (PFC) – ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m (328 ft)
  • Unique rugged industrial design – supporting multiple lift points and cable management
  • Arc Dynamics – fine tune arc characteristics for a crisp/stiff arc for carbon steel or a smooth/soft arc for stainless steel
  • Jobs – 10 memory save/recall function
  • Spool Gun Ready – Rogue automatically configures set up when spool gun is connected (Spool gun sold separately)
  • Multi-language display – configure the display to 1 of 29 languages
  • Energy Save Mode – after 2 minutes of inactivity the unit will enter this state to reduce power consumption
  • IP23S rated for indoor/outdoor use

Additional Product Specifications

Product Name // Part Number ESAB Rogue EMP210 PRO // 0700301085
Welding Processes MIG, Flux Core, TIG (DC, lift-arc)
Spool Gun Compatible ✅ - Tweco Spool Gun 160A
Spool Sizes 4" and 8" Spools Accepted
Input Voltage 120/230V AC, 50/60 Hz.
Max. Output Power (230V) Current: 210A // Voltage: 10.4-27.2V (78V OCV)
Dimensions 23.2 x 8.7 x 15.2 in.
Weight 37.3 lb. (Unloaded)
Warranty  3 Year, ESAB Authorized Repair Centres



What's in the Box?

Full Product Spec Sheet | Tweco Fusion 180 - Velocity Light Duty Torch Consumables
