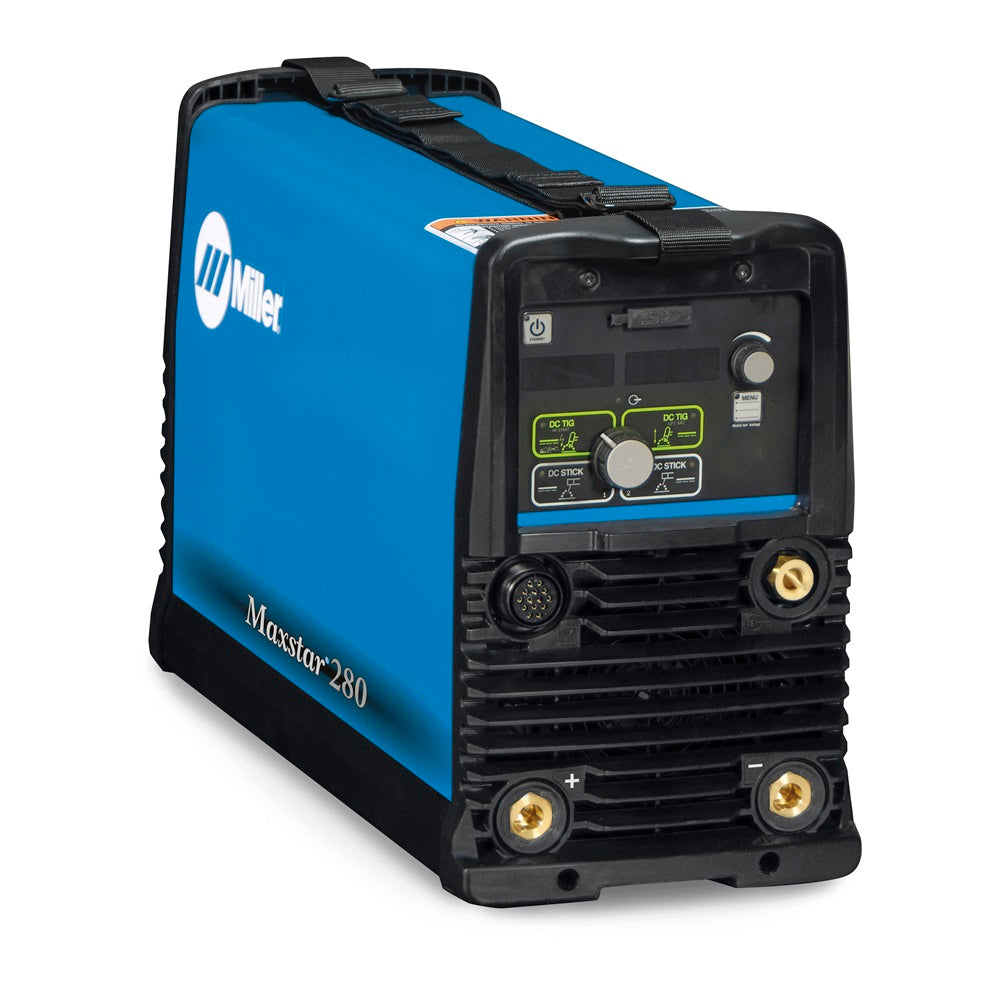

Miller Maxstar® 280 Auto-Line 208-575V
The Maxstar 280 Series is a powerful combination of capability and portability. Weighing only 47 pounds, it can weld up to 3/8" thick material. The DC TIG/Stick power sources feature an energy-efficient inverter design and Auto-Line™ technology.
Top Features
-
Auto-Line Power Management Technology
For portability and reliability this inverter power supply allows for any single-phase input voltage hookup (120–480V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.
-
Upgradeable and Expandable
Front panel memory card data port provides the ability to easily upgrade software and expand product features. Visit MillerWelds.com/tigsoftware for the latest software upgrades and expansions. Learn More
Technical Specs
| Product Name // Part Number |
Miller Maxstar 280 CPS // 907682 // 907538002 |
| Input Voltage |
230V thru 575V, 50/60 Hz
|
| Input Current |
21A (208V), 19A (230V), 7A (575V) |
Dimensions
|
H: 13.6 in. (346 mm)
W: 8.6 in. (219 mm)
D: 22.5 in. (569 mm) |
| Weight |
50 lb |
