ArcReach Heater w/ Extension & 2 Quick Wraps - 951849
Miller ArcReach Heater 301390
ArcReach Heater w/ Extension Cable - 951848
Miller ArcReach Heater 301390
Miller ArcReach Heater 301390
Miller ArcReach Heater 301390
Miller Logo

Miller ArcReach Heater

$11,404.00
$11,404.00
0% OFF Sold Out
0 In Stock, Available to Order Typically ships in 5–10 business days
Non Stock Item - 3-4 Week Lead Time Required
Upsell Product Image-2

Miller 301451, ArcReach Heater Extension Cable

$6,943.00
Upsell Product Image-3

Miller 301452, ArcReach Heater Air-Cooled Quick Wrap

$6,012.00
Upsell Product Image-4

Miller ArcReach Heater Air-Cooled Induction Cables

$4,852.00
Upsell Product Image-5

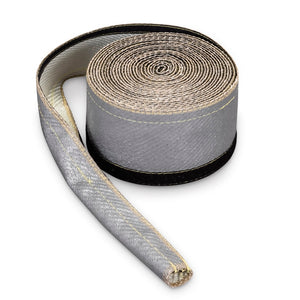

Miller ArcReach Heater Air-Cooled Heater Cable Covers

$916.00
Upsell Product Image-6

Miller 195437, ArcReach Air-Cooled Series Adapter

$1,232.00
Upsell Product Image-7

Miller 301334, Preheat Insulation w/ Cable Harness

$3,496.00
Upsell Product Image-8

Miller ArcReach Heater Preheat Insulation

$623.00

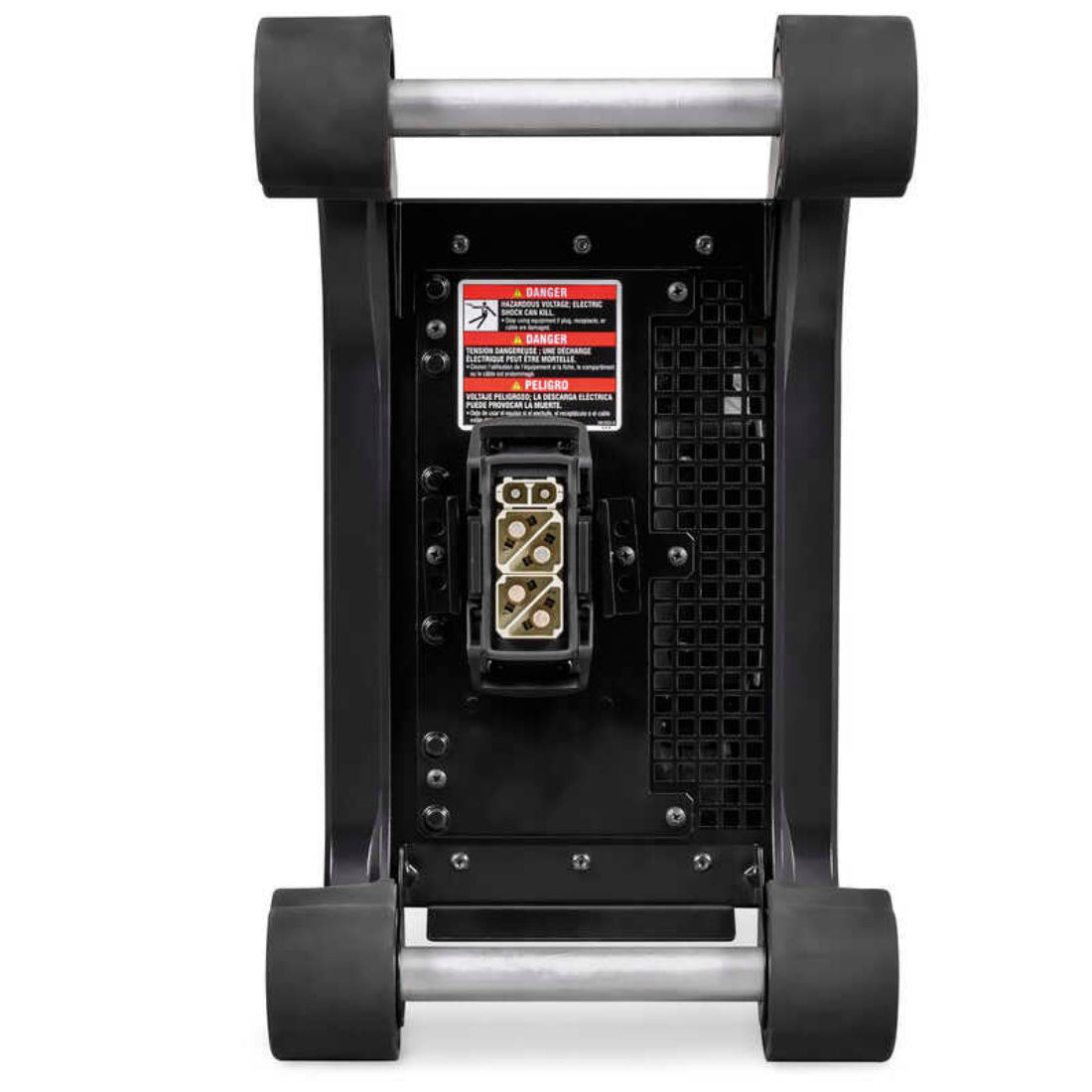

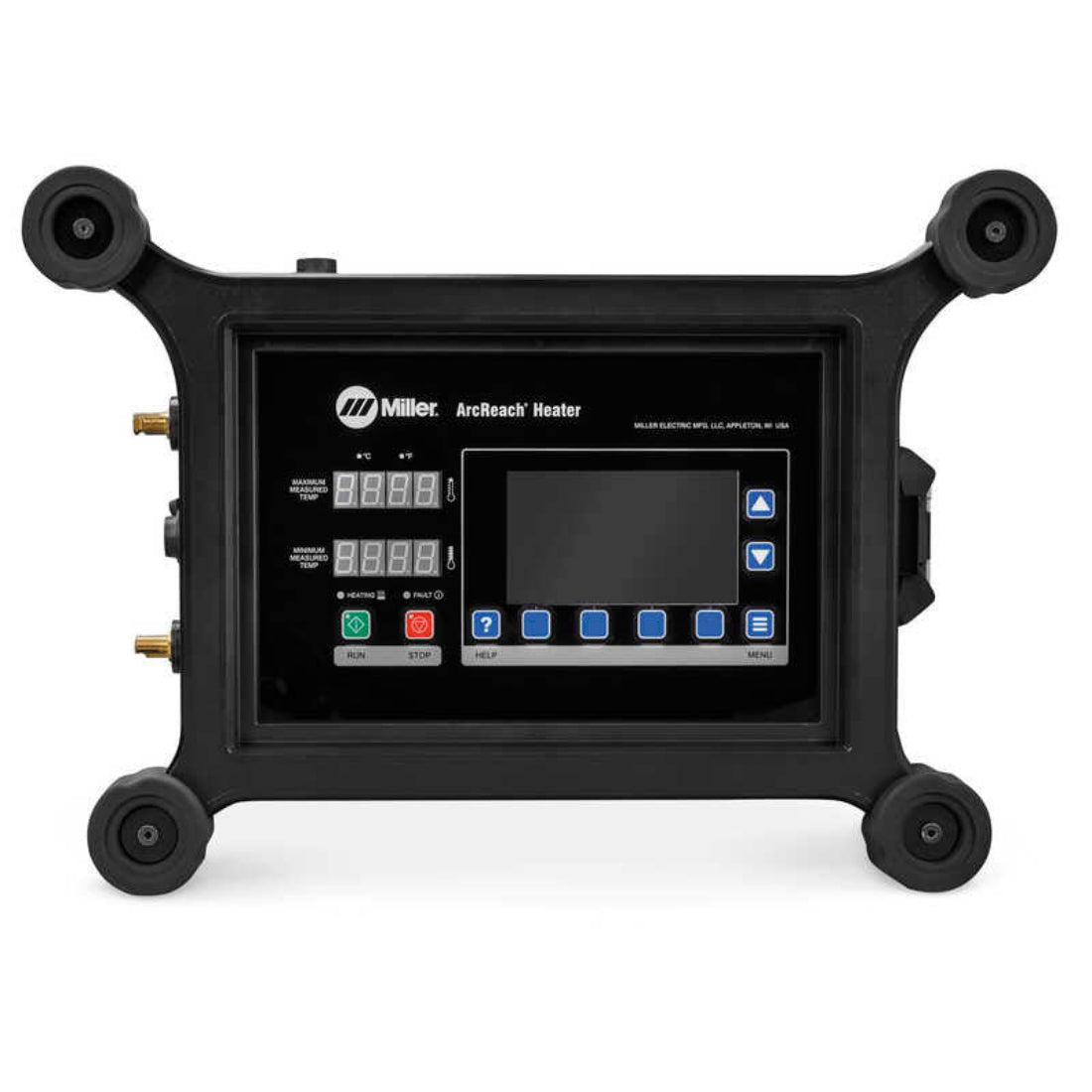

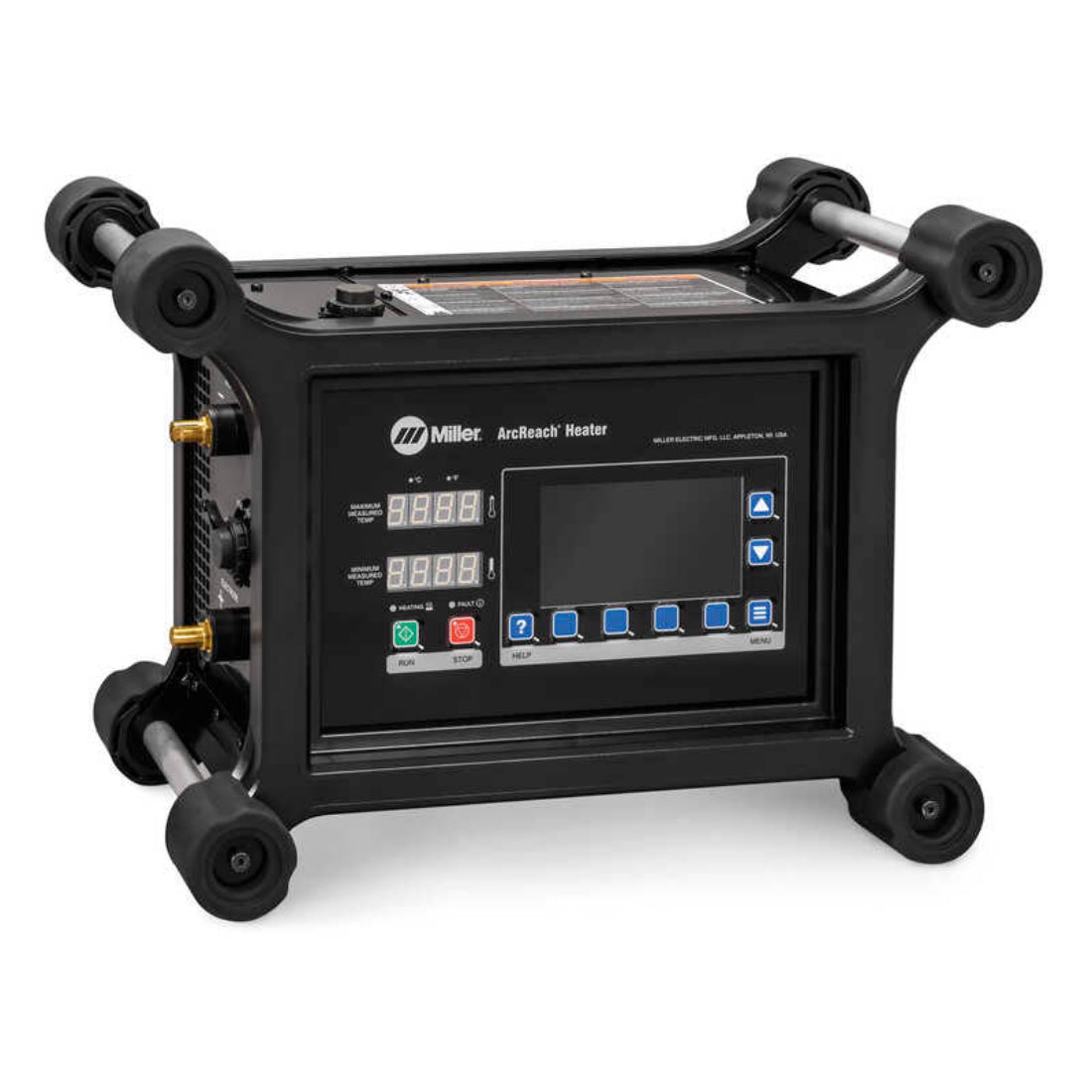

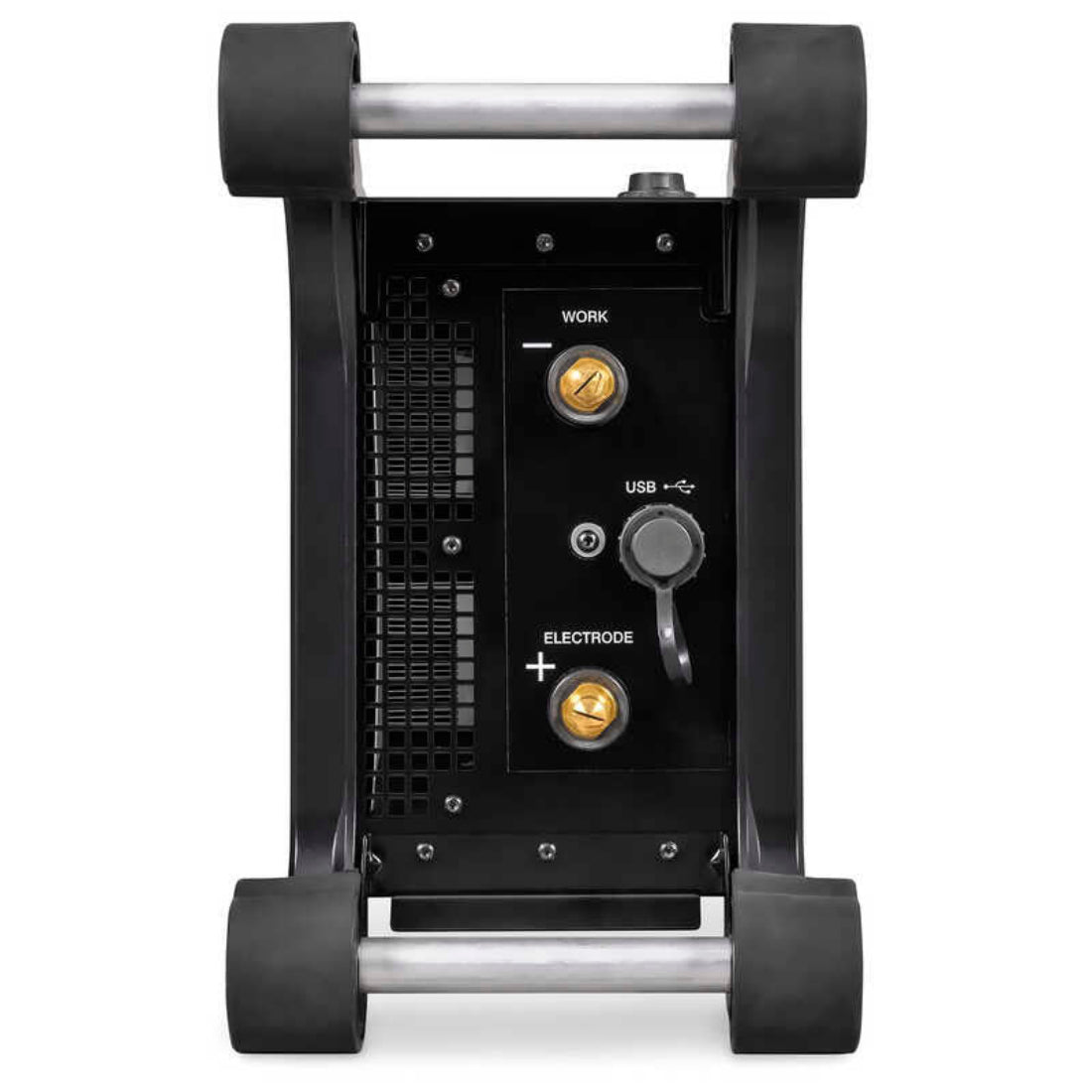

Miller ArcReach Heater



The ArcReach Heater is an air-cooled induction heating system designed for use with existing ArcReach-enabled welding power sources. This system allows for preheating and bake-out on pipe and plate applications without the need for additional power drops, flame heating, or resistance cables. It provides uniform heating and includes built-in temperature recording to assist with quality control and code requirements.

Features

  • Field Portability: Connects directly to the welding leads of an ArcReach-compatible power source.
  • Temperature Recording: Built-in data logger captures temperature profiles; data can be downloaded via USB.
  • Safety: Eliminates open flames and reduces the risk of accidental burns compared to resistance heating.
  • Efficiency: Achieves temperature faster than flame or resistance methods and maintains a 100% duty cycle.
  • Remote Control: Adjust settings and monitor temperatures at the point of work using the ArcReach communication protocol.
  • Versatile Tools: Compatible with air-cooled cables or Quick Wrap tools for various pipe sizes and configurations.

Not Included
• Air-Cooled Cable(s) • High-Temperature Rope
• Preheat Insulation • Thermocouple Wire
• Preheat Insulation with Cable Harness • Thermocouple Connectors
• Cable Cover Sleeve(s) • Thermocouple Attachment Unit
• Contact Thermocouple Sensor (probe)

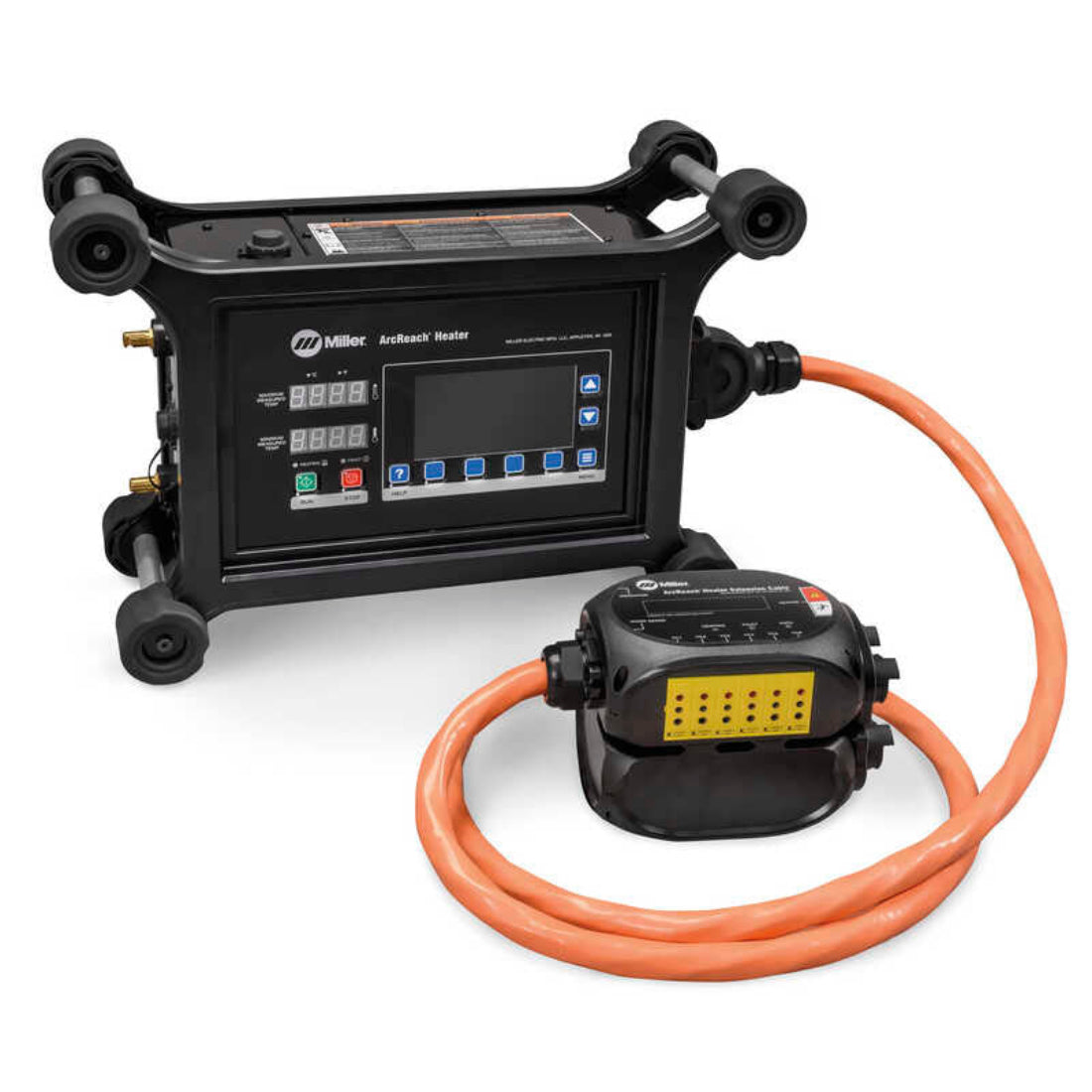

Included in 951848 Extension Cable Package
ArcReach® Heater 301390
ArcReach® Heater Extension Cable 301451

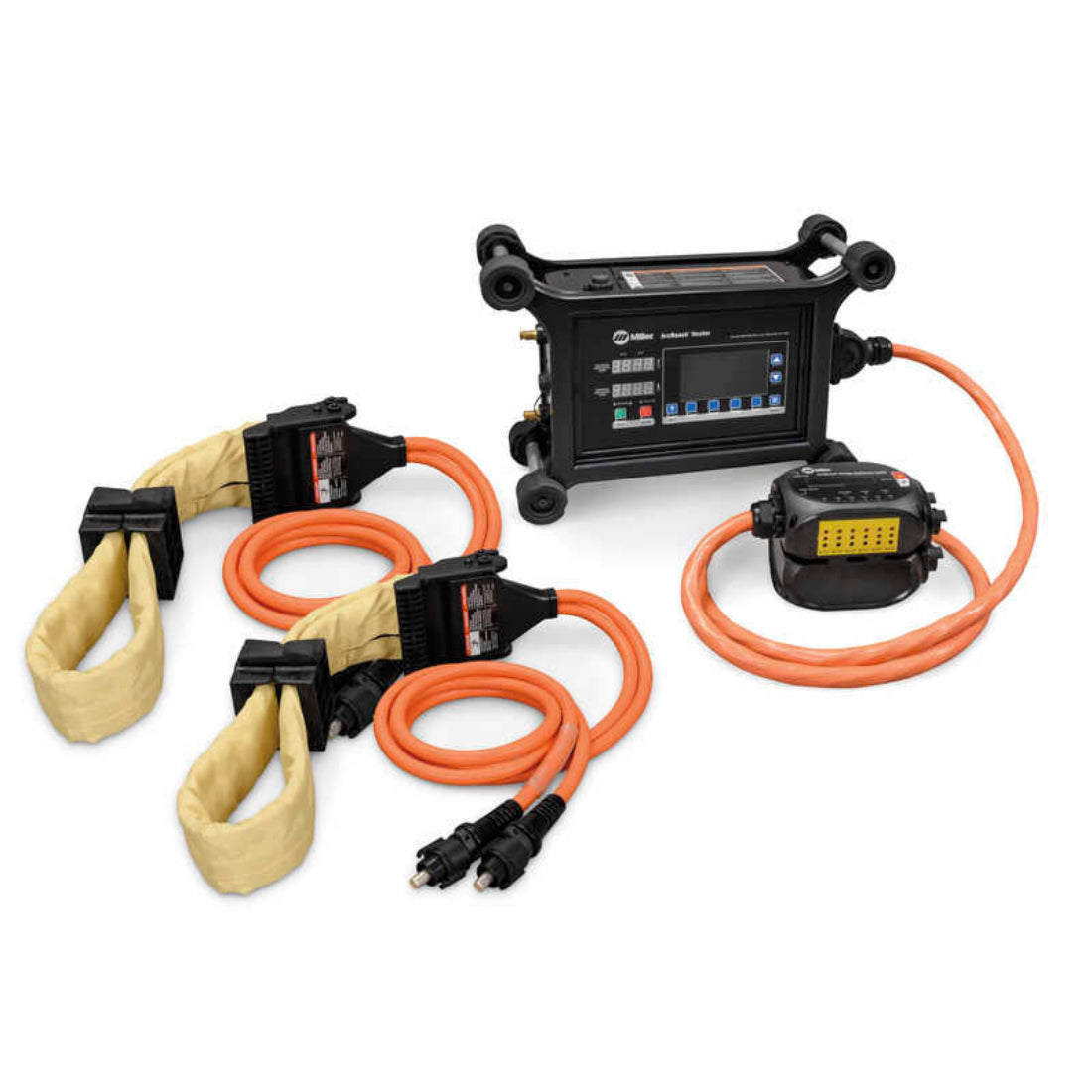

Included in 951849 Extension / Quick Wrap Package
ArcReach® Heater 301390
ArcReach® Heater Extension Cable 301451
Air-cooled Quick Wrap 301452 (Qty 2)

Compatibility

  • Compatible with ArcReach power sources:
  • XMT 350 FieldPro™ Series
  • XMT 400 ArcReach®
  • XMT 450 CC/CV ArcReach®
  • XMT 650 ArcReach®
Product Name ArcReach Heater
Input Power 50–70 VDC (from welding power source)
Rated Output 7.8 kW at 100% Duty Cycle
Max Temperature 600°F (315°C)
Output Frequency 5 – 30 kHz
Output Current 200 A
Weight 43 lbs (20 kg)
Dimensions 18.6" H x 11.2" W x 26.7" D

ArcReach Heater Data Sheet
