Rapol 150 lb Bench Top Welding Positioner (BP-150)

Rapol 150 lb Bench Top Welding Positioner (BP-150)

$2,367.00
$2,367.00
0% OFF Sold Out
0 In Stock Available to Order. Ships in an average of 5–10 business days
Non Stock Item - 2 Week Lead Time Required
Upsell Product Image-1

NextGen Pro™ Digital 110 lb. Compact Welding Positioner

$2,038.00
Upsell Product Image-2

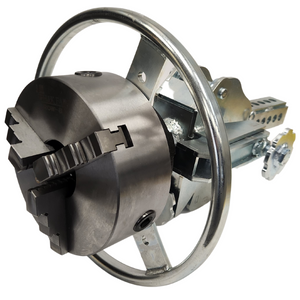

H&K Fab Pro Roll Out Wheel

$801.00
Upsell Product Image-3

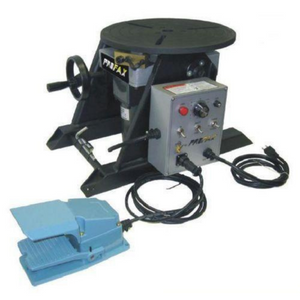

Profax® 440 lb Capacity Welding Positioner (WP-250)

$2,753.00
Upsell Product Image-4

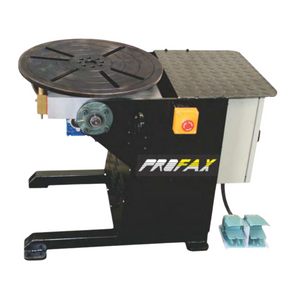

Profax 900 lb Capacity Analog Positioner (WP-500)

$6,255.00
Upsell Product Image-5

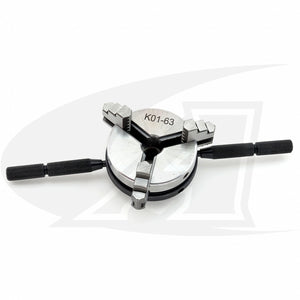

2.5" Mini Speed Chuck For A-PT-051-PRO Positioner

$337.00
Upsell Product Image-6

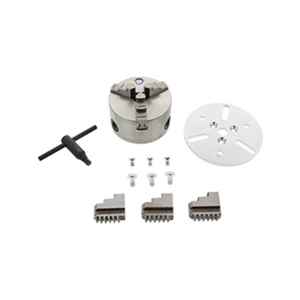

MK Products 3 Jaw Welding Positioner Chuck - 005-0812

$720.00
Upsell Product Image-7

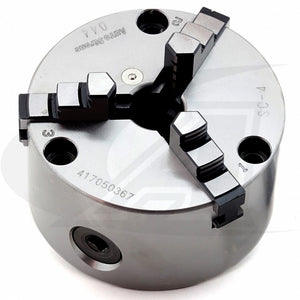

4" Heavy Duty Positioner Chuck

$465.00
Upsell Product Image-8

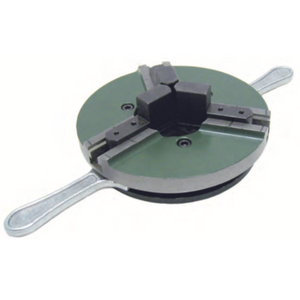

Profax Speed Chuck For WP-250 Welding Positioner

$524.00

Rapol Bench Top Welding Positioner



The BP-150 is designed for rotation of lighter work pieces, it offers a robust solution for consistent holding and rotating of parts in your welding workstation. The BP-150 positioner offers manual tilt adjustment, high frequency protection, and a heavy-duty foot control switch  The capacity is 200lbs in the horizontal position and 150lbs in the vertical position.

Made in Canada

Features

  • Control The solid state (SCR) DC control with dynamic braking – variable speed table rotation motor system will always provide proper weld speed settings and steady rotation rates. Rotation speeds are electronically controlled in both forward and reverse direction.
  • Drive Heavy-duty self-locking worm gear reducer on rotation drive positively prevents the load from moving unless the worm gear is revolving.
  • Electrical System The electrical control components are housed in an easy access cabinet in the front of the machine. Components and wiring are neatly laid out and labeled for easy troubleshooting.
  • Control Panel User friendly and positioned on the back of the machine.
  • CSA Certified

Specifications:

Load Capacity 200 lbs (at 0°)
Load Capacity 150 lbs (at 90°)
Table Style
Disc Table with Pre-Drilled Holes
Table Height 5”
Rotation Speed
0.2 - 10 RPM OR 0.1 - 5 RPM
Rotation Motor 1/8 HP DC
Tilt Range 0 - 90 Degrees
Voltage 115V 60 Hz



Download User Manual

Optional Extras:  Contact sales@canadaweldingsupply.ca for pricing

  • On/Off Foot Switch
  • Variable Speed Foot Switch
  • Digital Display (Reference)
  • 1⁄4” NPT Spindle Purge Hole

*Heavy item - additional shipping charges apply at checkout
