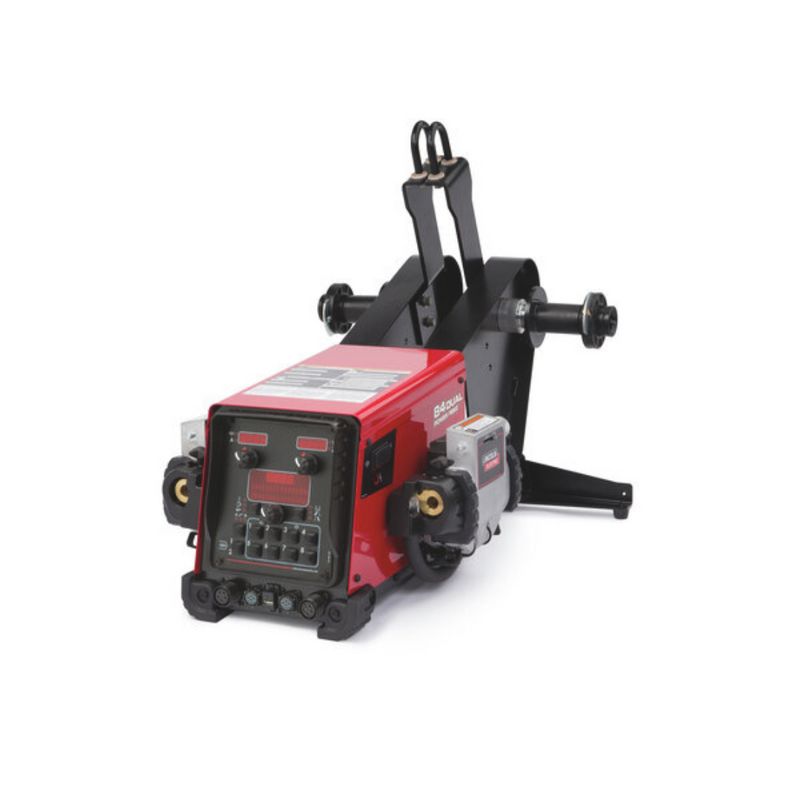

Lincoln Electric Power Feed 84 Dual Bench Wire Feeder - K3330-5

Lincoln Electric Power Feed 84 Dual Bench Wire Feeder

Single Digital Control Semiautomatic Wire Feeder

The Power Feed® 84 semiautomatic industrial wire feeder is built on a modular platform to be used in a variety of applications.

• Simple & Customizable Controls
  • Auto Settings simplify process setup
  • Eight User Memories- Per Feed Head for complete WPS recall
• Rugged
  • Improved Isolation & Environmental Protection
  • Robust connection points allow for reliable operation in tough conditions
• Modular
  • Modularity allows for customizable configurations
• Advanced Interface – includes digital meters for actual and preset weld display and full weld sequence control including run-in, start, weld, burnback and crater parameters.
• USB Port – included on select models for unlimited memory expansion or for future upgrades.
• Feed plate – can be located on either right or left side of the wire drive housing for easy integration into any work center.
• Electrode input stud – mounted on the wire drive frame – protects the feed plate from misuse caused by pulling on the gun cable.
• New Gun Adapters – deliver improved electrical reliability, less voltage loss and simplified connection.
• Optional Digital Gas Flow Kit – displays actual gas flow rate while welding.
• Push-pull capable – drive systems.

Features:

• New Auto-Settings simplify process setup
• Eight User Memories – Per feed head for complete welding procedure recall
• Improved isolation & environmental protection
• Robust connection points allow for reliable operation in tough conditions
• Modularity ensures the feeder can be configured to fit a variety of application needs

Package Includes:

• User interface
• Standard #2 - #4 gun adapter
• 20 tooth pinion gear
• Heavy duty wire reel stand 8 ft. (2.4 m) control cable (K1543-8) USB
