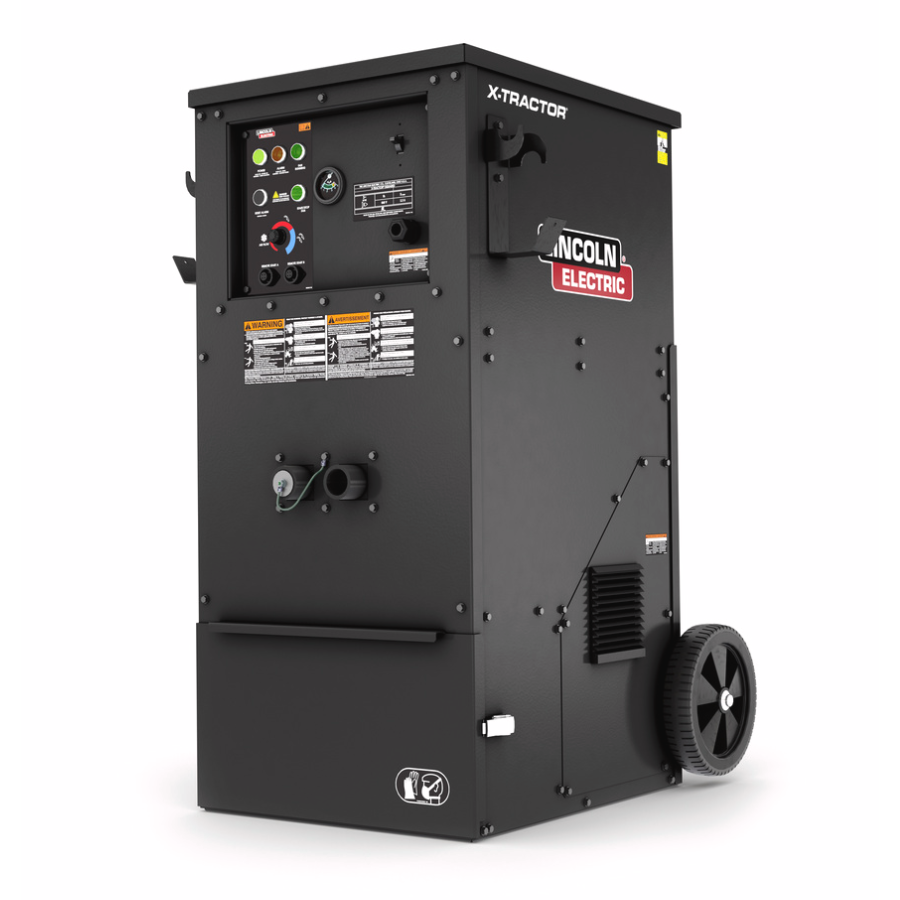

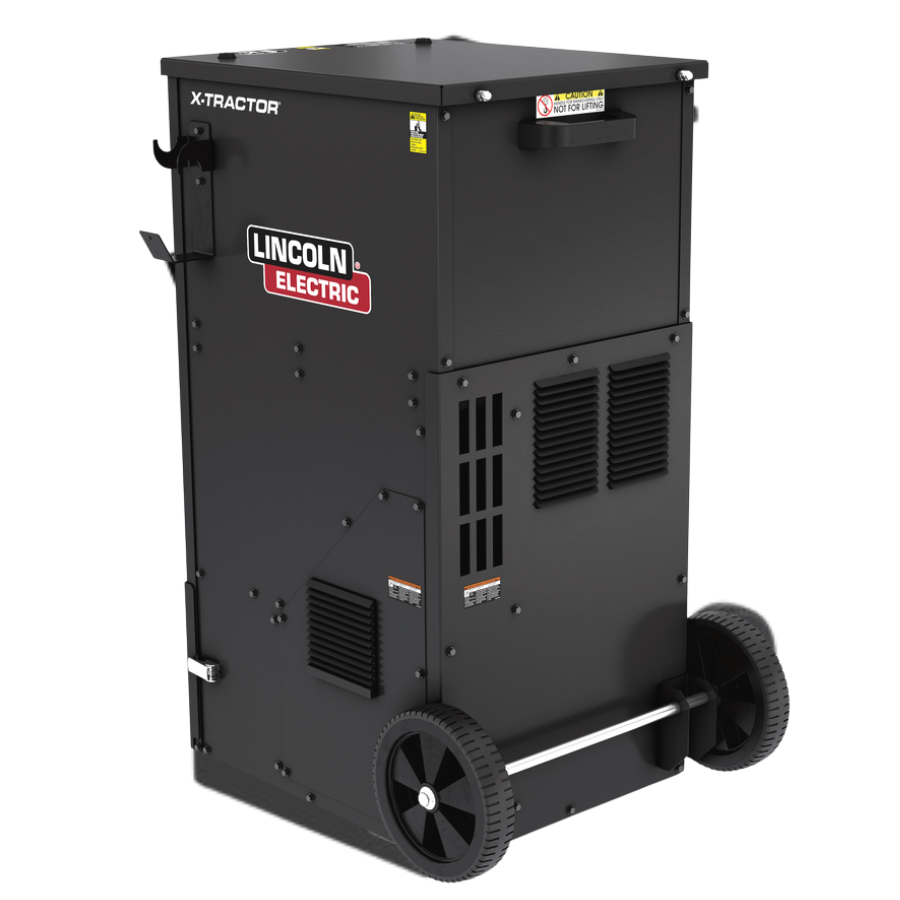

Lincoln Electric X-Tractor® 2 - 2 Torch Fume Extractor
2-Torch Solution for Fume Guns. 3-Phase Power Required
The Lincoln Electric X-Tractor® 2 Fume Gun is a high vacuum extraction system designed for the removal and filtration of welding fume. This unit is a great choice for fume removal in light duty welding applications typically used in heavy fabrication, ship building and maintenance shops. The compact size of the X-tractor 2 Fume Gun makes it an asset for the mobile welder and in locations where ambient or low vacuum source capture is not available.
- Automatic Self Cleaning
- VFD Controlled - 4 HP
- SCFM Control at the unit 180 max. SCFM
- 150 SCFM when connected to two fume guns.
- Infinitely variable fan speed control knob
Product Specifications
| Product Name // Part Number | X-Tractor® 2, 230V 3PH // K5271-2 X-Tractor® 2, 575V 3PH // K5271-3 X-Tractor® 2, 460V, 3PH // K5271-1 |
| Input Power Consumption (Amps) | K5271-2 (208-230V) - 10.5A K5271-3 (575V) - 3.8A K5271-1 (460V) - 5.2A |
| Dimensions (HxWxD) | 44.8 x 26.1 x 32.3 inch (1138 x 663 x 820 mm) |
| Net Weight | 335 lb. |
Applications
- Fume Guns
- On-Torch Robotic Systems
- Fume Extraction Nozzles
What's Included
- MERV 16 (HE), Nano Filter
- Automatic Filter Cleaning System
- (2) torch/hose holder brackets
- Removable dust bin
- 20 ft (6M) power cord
Non Stock Item - Allow 2 week lead time
