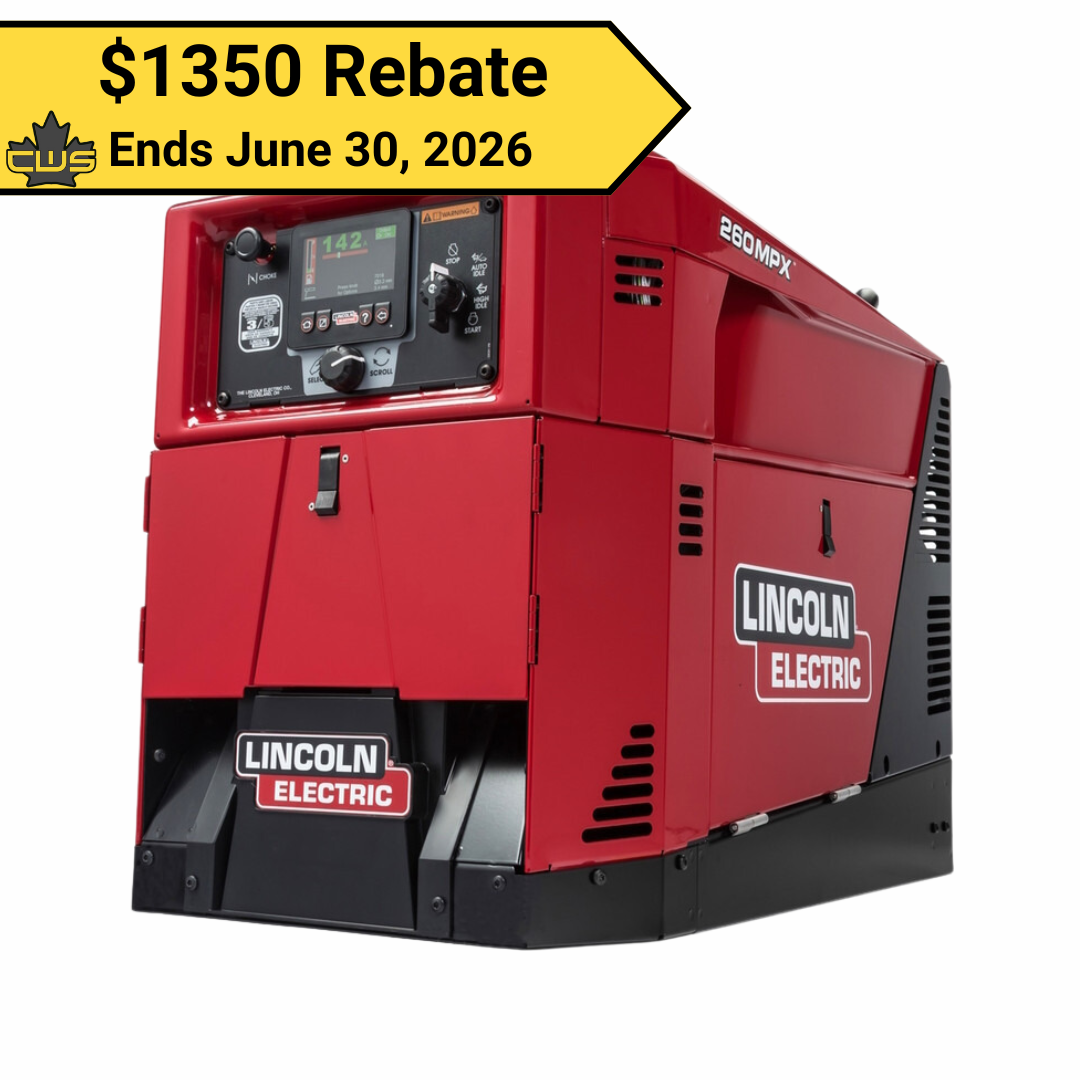

Lincoln Electric Ranger 260 MPX Engine Driven Welder


The Ranger® 260MPX™ engine driven welder/generator excels on the job. The unit’s industry-leading design makes it smaller, lighter and quieter than other machines in its class, while an intuitive user interface with advanced technology helps simplify operation and improve arc control. You can also count on a reliable source of clean generator power to run a variety of tools and sensitive equipment.

Top Features

  • Compact Size
  • Low Decibel Rating
  • Easy-to-Use Digital User Interface
  • Clean AC Generator Power
  • Advanced technology to improve weld performance and productivity

Smaller
The Ranger 260MPX has a 20 percent smaller footprint and is 25 percent lighter than other machines in its class. It transports to the field with less bulk and less effort, leaving more room for other tools and accessories needed on your job site.

Smarter
The Ranger 260MPX’s digital user interface offers a suite of advanced technology that improves weld performance and productivity.

High Quality Operations

  • 9.5kW of clean AC generator power accommodates a variety of tools and equipment
  • Operate sensitive electronics, like laptops, without concern - this unit delivers clean generator power with 5% Total Harmonic Distortion
  • Run generator power and weld at the same time, without interruption

Ranger 260MPX Technical Specifications

Duty Cycle:
260 Amps, 26 Volts @ 100%
Welding Output:
260 Amp DC, MulitProcess, Chopper Technology
Generator Output:
10,00W Peak, 9,500W Continuous 60Hz AC Power
Full-KVA Receptacle:
39.5A @ 240V, 40A @ 120V ea. Branch Circuit
120V Receptacles:
Four 120V Receptacles, 20A Total
Kohler Engine:
OHV Command
CH730 Gasoline
23.5 HP @ 3600 RPM, 44.2 cu in (725 cc)
Electric Start, 12V Battery, 410 CCA, Rotary Start Switch
Fuel: 11 Gals (41.6 liters) Oil: 2.0 Qts (1.9 liters)


Download Tech Sheet

    Freight charges extra, contact us at support@canadaweldingsupply.ca for a freight quote.
