E308L Stainless Steel Electrodes
- Regular
- $15.00
- Sale
- $15.00
- Regular
0% OFF
Sold Out
- Unit Price
- per
In Stock Online

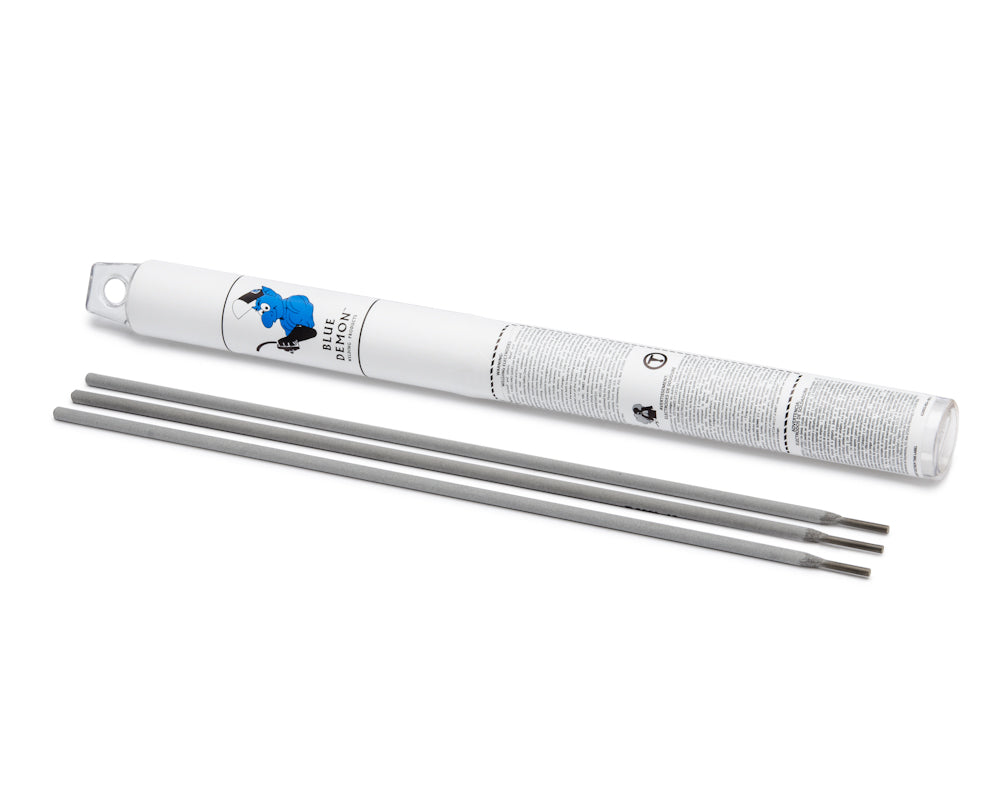

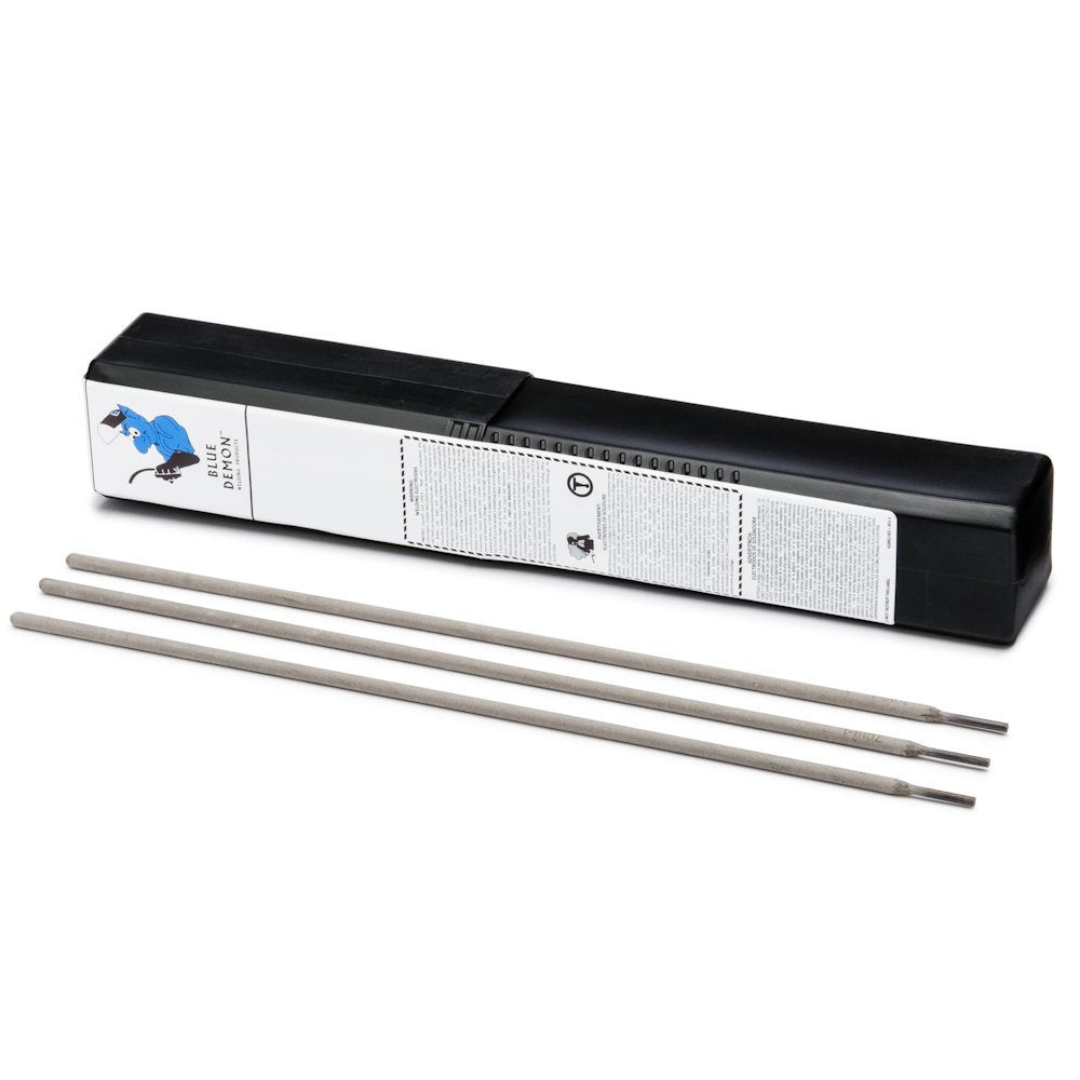

E308L Stainless Steel Covered Electrodes
Low carbon electrode for the welding of type 304L, 321, and 347 stainless steels. The controlled ferrite in the weld deposit gives excellent notch toughness at cryogenic temperatures. This electrode deposits a max of 4% carbon in the weld metal to minimize the formation of chromium carbides and consequent susceptibility to intergranular corrosion.
| Material / Alloy | Stainless Steel (AWS 308L/308L-16) | Current / Polarity | AC or DCEP |
| AWS Classification | A5.4 | Tensile Strength (Min) | 75,000 psi |
| Welding Process | SMAW (Stick) | Yield Strength (Min) | 54,000 psi |
| Welding Positions | F, V, OH, H (All Positions) | Elongation | 35% |
Typical Applications: General purpose stainless steel welding. Used on food and pharmaceutical equipment, also for architectural fabrication
- Sold in 1 lb or 5 lb plastic tube
Available Options and Part Numbers
| Diameter | Length | AWS Class | Package Size | Part Number |
|
1/16" (1.6 mm)
|
12" (304 mm) | E308L / E308L-16 | 1 lb. | E308L-116-01 |
| 12" (304 mm) | E308L / E308L-16 | 5 lb. | E308L-116-05 | |
|
3/32" (2.4 mm)
|
14" (355 mm) | E308L / E308L-16 | 1 lb. | E308L-332-01 |
| 14" (355 mm) | E308L / E308L-16 | 5 lb. | E308L-332-05 | |
|
1/8" (3.2 mm)
|
14" (355 mm) | E308L / E308L-16 | 1 lb. | E308L-125-01 |
| 14" (355 mm) | E308L / E308L-16 | 5 lb. | E308L-125-05 | |
|
5/32" (4.0 mm)
|
14" (355 mm) | E308L / E308L-16 | 1 lb. | E308L-532-01 |
| 14" (355 mm) | E308L / E308L-16 | 5 lb. | E308L-532-05 | |
| 3/16" (4.8 mm) | 14" (355 mm) | E308L / E308L-16 | 5 lb. | E308L-316-05 |
Blue Demon E308L Specfications
Approx. Number of Rods per Pound for each Diameter* |
|
| Diameter | Count per lb. |
| 1/16" (1.6 mm) | 50-56 |
| 3/32" (2.4 mm) | 28-34 |
| 1/8" (3.2 mm) | 16-18 |
| 5/32" (4.0 mm) | 10-12 |
| 3/16" (4.8 mm) | 8-9 |
| *Approximations only - Filler metals sold by weight | |
