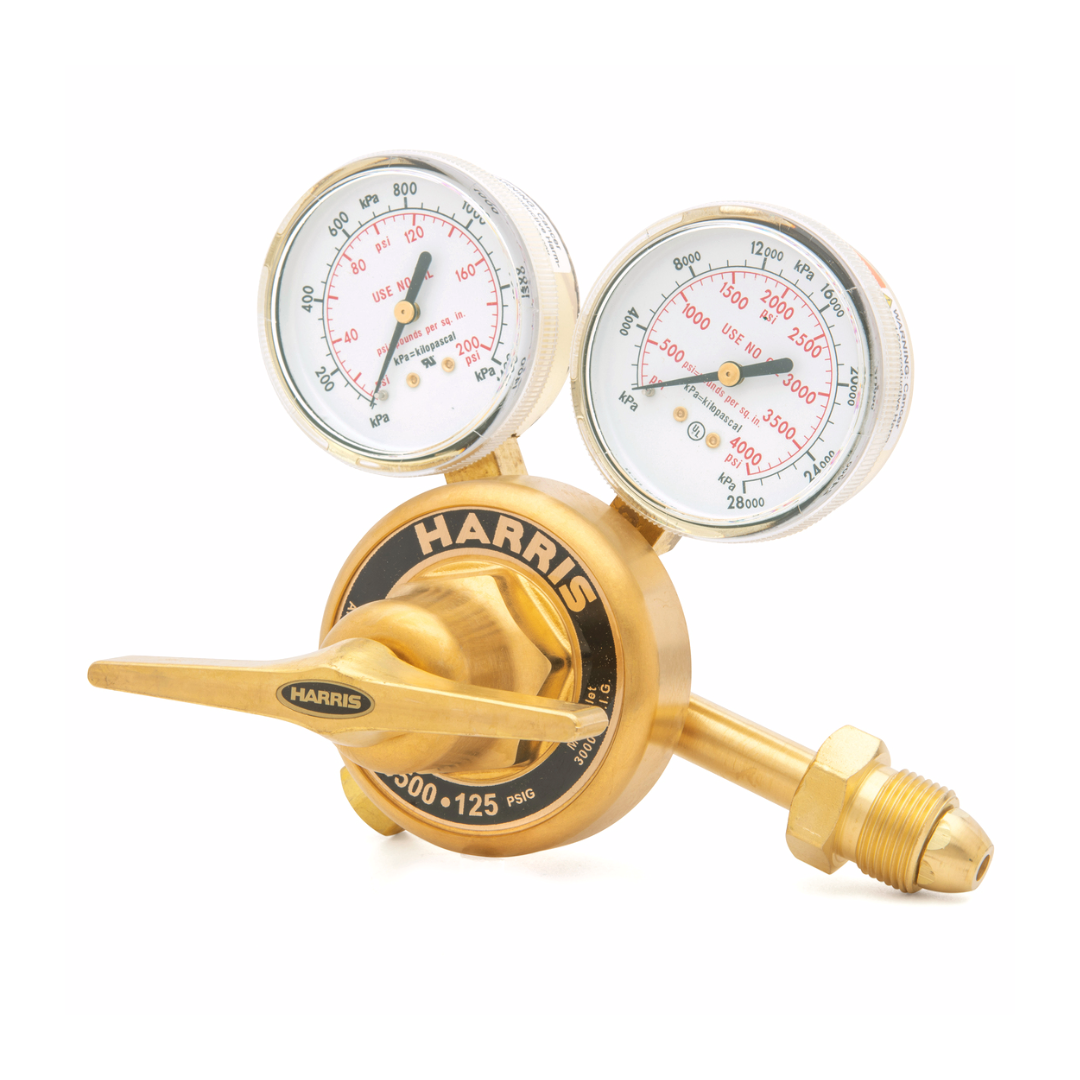

Harris Model 3500-200-680 Regulator - CGA 680

Harris Model 3500-200-680 Regulator - CGA 680

CGA 680 High-pressure, high-flow single-stage regulator

Model 3500 high-pressure, high-flow regulator is specifically designed to provide high gas flows from cylinders and to supply manifold gas systems. It is also ideal for special high-flow cylinder applications such as heavy cutting and heating. It has dual port outlets and a neoprene diaphragm. Includes a 3/8 in. NPT auxiliary port.

Features

• Operates on high pressure cylinders of up to 3000 PSIG
• Ideal for special high flow cylinder applications
• Easy-to-operate brass T-screw bar adjusting handle
• Brass body and bonnet for longer service life
• Large 2.75 in. neoprene diaphragm for improved pressure control
• 2.5 in. Brass dual scale easy-to-read gauges
• One-piece encapsulated seat design with internal filter to protect the CTFE Kel-F® seat from particulate contamination
• Equipped with a tamper-proof, self-reseating, internal high pressure safety relief valve
• Equipped with dual outlet ports
• Features 3/8 in. NPT outlet connection auxiliary port
• Part Number: 3003516
